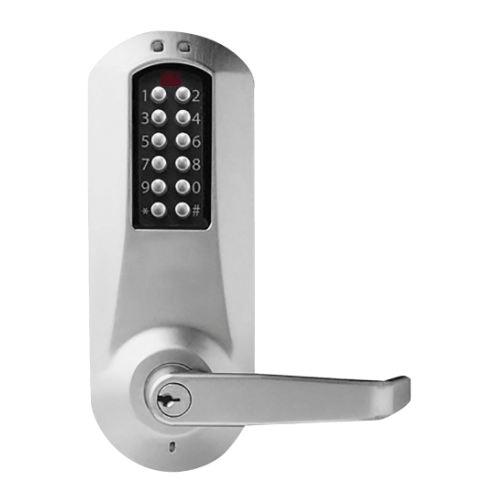

Dormakaba E5231XSWL-626-41, Electronic Pushbutton Lock, Satin Chrome

Dormakaba* E5231XSWL-626-41, Electronic Pushbutton LockW/ Cylinder , - Satin Chrome*

Key Override - Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

Number of Codes: Multiple Users—3,000 Codes

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed:pre-assembled for left hand door - easily changed in the field

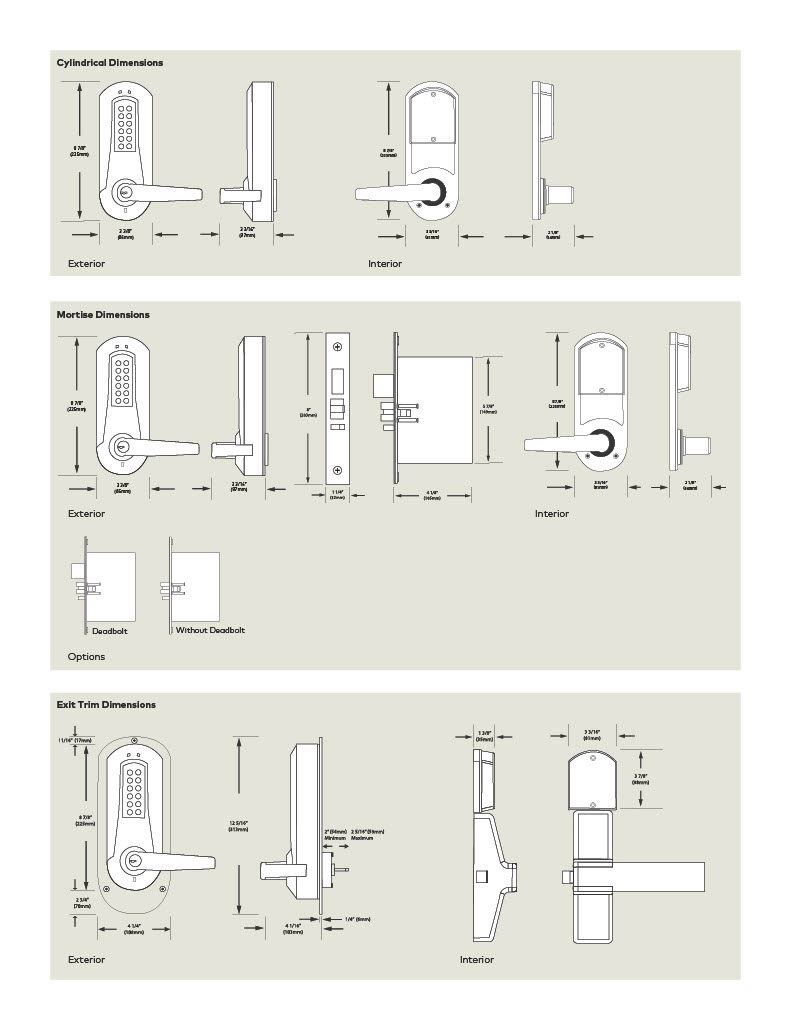

Minimum Stile Required:5" (127 mm)

Scheduling: Access schedules—up to 16 different access schedules may be programmed into lock Holiday/Vacation—up to 32 different holiday/vacation blocks may be programmed into lock

Three Operation Modes:PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Capability:30,000 Events .

Batteries:batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for exten- sive use in indoor and outdoor applications

Cylindrical latch with 3-hour UL/ULC fire rating

Door Thickness:1 3⁄8" (35 mm) to 2 1⁄4" (57 mm) Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)

ANSI/BHMA A156.25, Grade 1 Certified

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty:Three-year warranty from date of installation; built-in warranty counter in lock memory

Model: Dormakaba Ilco E5231XSWL62641, E5231-XSWL-626-41, E5231-XSWL62641, E5231-XSWL-626 Simplex Dormakaba5200, Dormakaba 5231, E5231, E5231626
