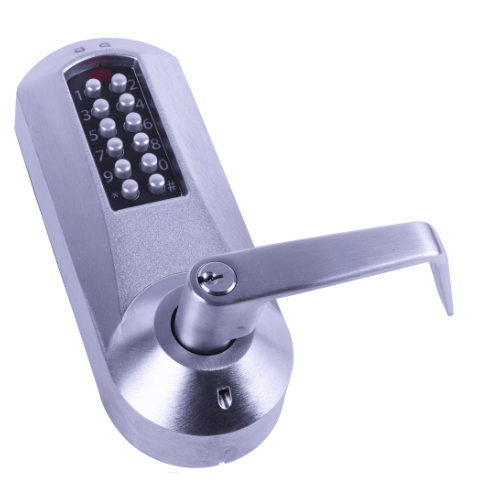

Dormakaba E5266XSWL626-41, Electronic Keypad Mortise lock - Satin Chrome

Dormakaba* E5266XSWL626-41, Electronic Keypad Mortise lock, W/ Cylinder - Satin Chrome*

Key Override - Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

Access Control:Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.

Minimum Stile Required:5" (127 mm)

No Wires:E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks

Locking Device Options:

 American Standard Mortise: With 1" (25 mm) and 1¼" (32 mm) face plate;

Number of Codes:Multiple Users—3,000 Codes

Programming:Locks are programmed via keypad or with optional Microsoft Excel-based software—Simplifies management of doors and users as facility’s number of users and access points grow

Handing:Non-handed; pre-assembled for left-hand door installations—easily changed in the field

Scheduling:Access schedules—up to 16 different access schedules may be programmed into lock Holiday/Vacation—up to 32 different holiday/vacation blocks may be programmed into lock

Operation Modes:  PIN access  Passage—can be toggled on/off or can be pre-programmed to re-lock after acertain number of hours  Lockout

Authority Levels:  Five different levels allow who has access to specific lock functions, including:Service Codes—programmed for one-time access or "come-and-go" accessfor 1 to 24 hours

User Parameters:  Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds         Battery Operation: Batteries located in interior housing cover; offers quick and easy battery replacement for institutions (four AA Alkaline batteries provide up to 180,000 cycles; 400,000 cycles with high capacity battery pack). Lock data is maintained if batteries fail.

Numeric Keypad:Vandal resistant, solid metal pushbuttons

Backset: Mortise: 2¾" (70 mm) backset

Latches:Mortise Models: ¾" (19 mm) latch

Minimum Stile Required:5" (127 mm)

Door Preparation:Easily installs on wood or metal doors; four bolt installation; no wiring

Door Thickness:Mortise Models: 1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm).            Items Supplied Include: Installation manual, quick reference guide, operations manual, full-scale template, required installation hardware, and tailpiece for specified key override

Indicators:Audible and visual indicators; low battery visual indicator

Audit Capability:30,000 Events

Accessibility Standard:  Americans with Disabilities Act (ADA) and installed with an existing fire-rated Exit Device (where applicable)

Certification and Testing:Fire Rating: 3-hour, UL/ULC fire door rating for "A" labeled doors, Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3), Environmental: Indoor/Outdoor Approved,Front Housing: -31 Degree  F (-35 Degree  C) to + 151 Degree F (66 Degree C),Rear Housing: -31 Degree F (-35 Degree  C) to + 130 Degree F (55 Degree C)

Warranty:3-year warranty from date of installation; built-in warranty counter in lock memory

Model:DormakabaIlco E5266XSWL62641, E5266XSWL-626, E5266-XSWL-626- 41, E5266 XSWL-626, Simplex Dormakaba 5200, Dormakaba 5260, E5266,
