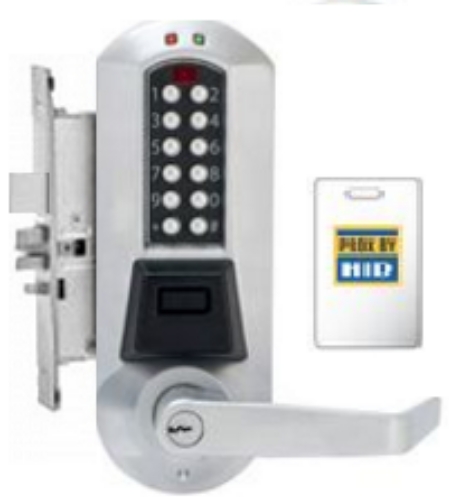

Dormakaba E5767XSWL-626-41, Pushbutton - Prox - Mortise lock, W/ deadbolt

Dormakaba* E5767XSWL-626-41,Pushbutton Mortise lock W/ deadbolt -Pin/Prox Access  - Satin Chrome*

Key Override - Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

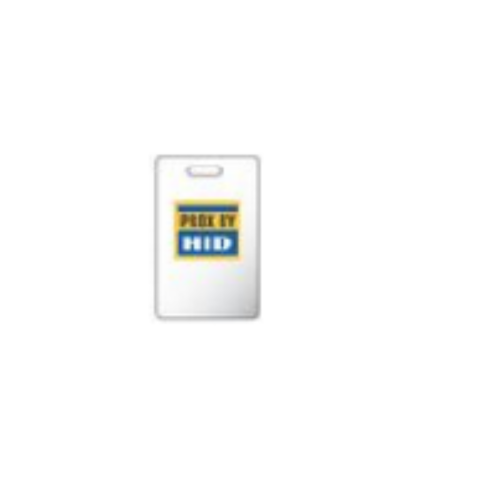

Access Control:Electronic lock with dual credential capability—PIN and/or PROX card (HID, 125 kHz, 26 to 84-bit format). Lock is scheduled to require credentials based on security and convenience requirements.  PIN only  PROX card only  PIN + PROX card

No Wires:E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks

Locking Device Options: American Standard Mortise: With 1" (25 mm) and 1¼" (32 mm) face plate; with  Deadbolt

Number of Users:Multiple Users—300 with LearnLok feature; 3,000 with optional software

Programming:Locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage a large number of doors and users

Handing:Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Scheduling:Access schedules—up to 16 different access schedules may be programmed into lock Holiday/Vacation—up to 32 different holiday/ vacation blocks may be programmed into lock

Operation Modes:  PIN access  Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours  Lockout

Battery Operation:Batteries located in interior housing cover; offers quick and easy battery replacement for institutions; four AA Alkaline batteries provide up to 120,000 cycles; 400,000 cycles with high capacity "C" battery pack. Lock data is maintained if batteries fail.

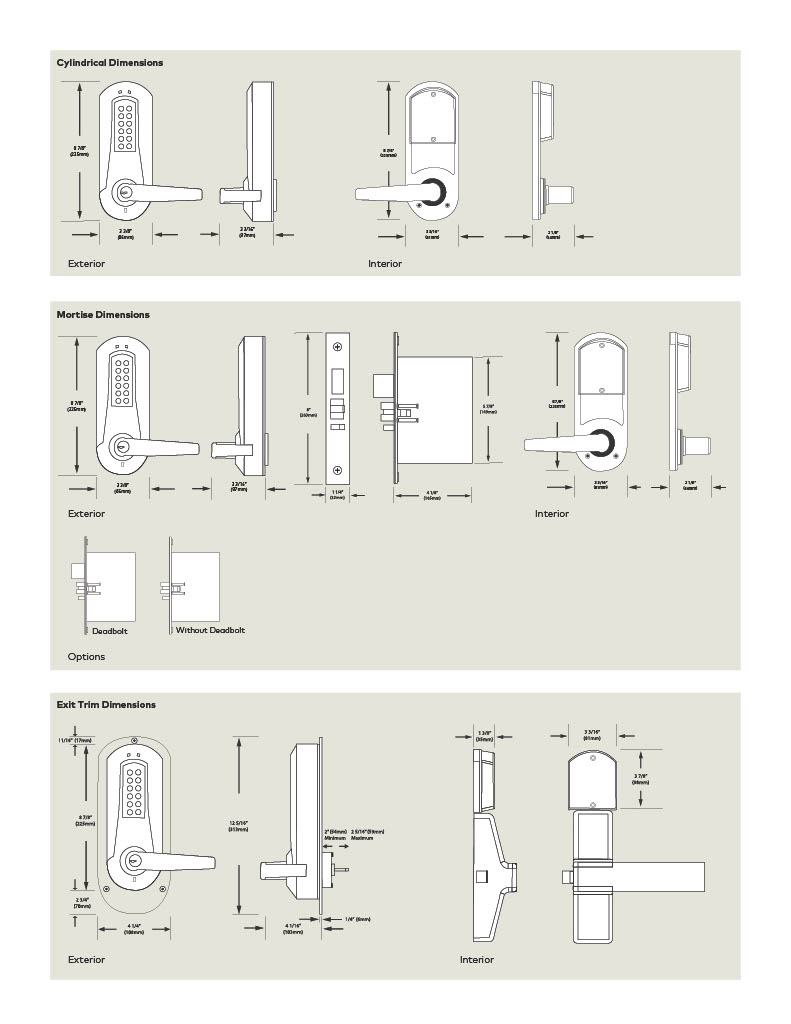

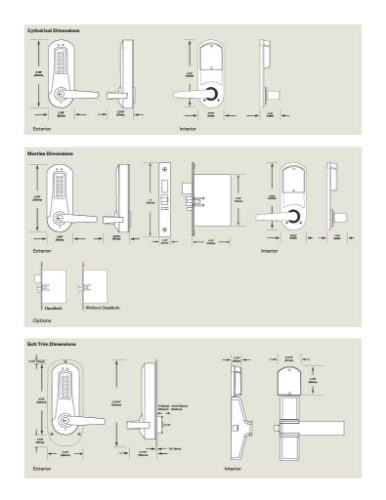

Backset: Mortise: 2¾" (70 mm) backset

Latches:Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt

Minimum Stile Required:5" (127 mm)

Door Thickness:Mortise Models: 1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm).

Audit Capability:30,000 Events

Certification and Testing: Accessibility Standard: Americans with Disabilities Act (ADA) Fire Rating: 3-hour, UL/ULC fire door rating for "A" labeled doors Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3) Environmental: Indoor/Outdoor Approved Front Housing: -31 Degree F (-35 Degree C) to 151 Degree F (66 Degree C) Rear Housing: -31 Degree F (-35 Degree C) to 130 Degree F (55 Degree C)

Warranty:Three-year warranty from date of installation; built-in warranty counter in lock memory

Model:DormakabaIlco E5767XSWL62641, E5767-XS-WL-626-41, E5767-XSWL-626-41, E5767XSWL-626,  E5767 XSWL 626, E57671-XS-WL-626-41, Simplex Eplex 5700, E Plex 5767, E5767, E5767626
