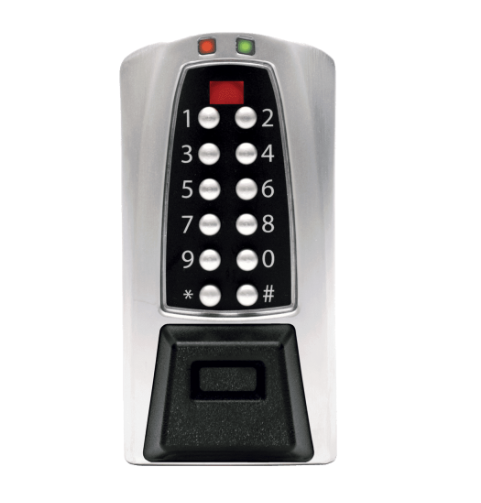

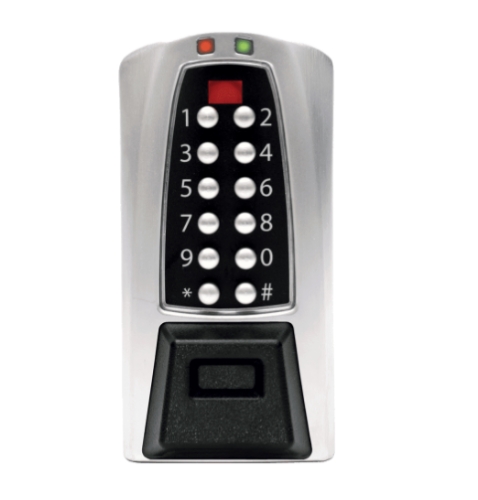

Dormakaba E5770-626-41 Stand-Alone - Prox - Access Controller

Dormakaba* E5770-626-41 Stand-Alone Access Controller -Pin/Prox Access- Satin Chrome*

3,000 Users, 30,000 Audit Events

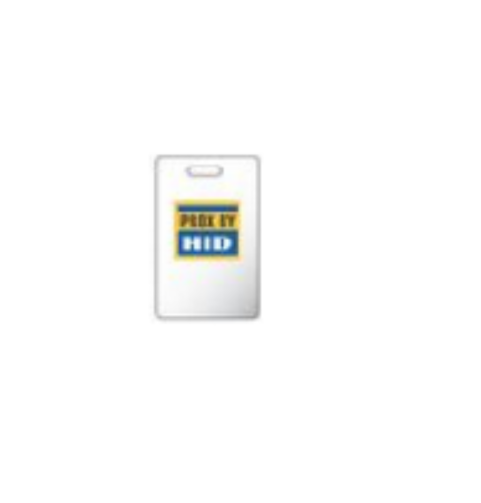

Access Control:Electronic dual credential solution for dual-swing doors, parking gates, glass doors, etc., featuring online-type functionality in a stand-alone, easy-to-install reader housing with keypad–PIN and/or PROX card (HID, 125 kHz, 26 to 84-bit format). Reader is scheduled to require credentials based on security and convenience requirements: PIN only; PROX card only; PIN + PROX card.

Number of Users:Multiple Users—300 with LearnLok feature; 3,000 with optional software

Programming:Locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage large number of doors and users

Scheduling:Access schedules—up to 16 different access schedules may be programmed into reader Holiday/Vacation—up to 32 different holiday/vacation blocks may be programmed into reader

Operation Modes:  PIN access  Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours  Lockout

Authority Levels:Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours

User Parameters:Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds

Power:Requires 12–24 VDC power input from standard, off-the-shelf power interface units (must have battery backup). If power is lost, user data and lock parameters are retained in on-board memory.

Vandal Resistance:Exclusive tamper-switch circuitry in reader housing prevents unauthorized access if unit is attacked or removed from mounting plate. If tamper is detected, the reader unit emits constant bright blue lights and all internal wires other than power are passive until unit is reset. Once reader unit is later reinstalled and/or remotely reset, PIN access is restored.

Audit Capability:30,000 Events

Access Schedule:Up to 32 holiday and vacation blocks and 16 access schedules

Warranty:3-year warranty from date of installation; built-in warranty counter in memory

Model:DormakabaIlco E577062641, E5770-626-41, E5770626-41,,  E5770 XSWL 626, E5770-626-41, Simplex Eplex 5770, E Plex 5770, E5770626
