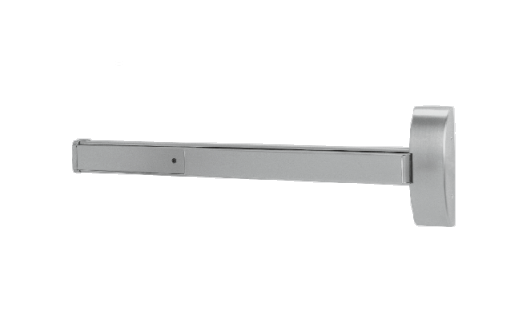

Dormakaba F9500A 630 Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 48" Fire-Rated Device, Exit Only, Less Dogging, Satin Stainless Steel Finish

F9500A 630 Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 48" Fire-Rated Device, Exit Only, Less Dogging, Satin Stainless Steel Finish

Applications:

The 9000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards.

This premium exit device is built for high impact applications such as schools, universities and other institutional or commercial buildings.

Devices fit standard 1-3/4"- 2-1/4" thick doors

4 1⁄2" minimum stile width

Hex Key Dogging (non-listed units only)

Rim devices and trim are non-handed

Standard Strike No. 463

Warranty:

10 year mechanical

Model:Dormakaba F9500, F9500B, F9500A, F9500A689, F9500B689, F9500A630, F9500B630

Listings & Approvals:

- Certified/listed to ANSI/BHMA 156.3, Grade 1 for exit devices. - UL and CUL listed under their continuing reinspection programs and conforms to standards UL 10B & 10C positive pressure testing. - Complies with NFPA 101 life safety code. Fire rated devices comply with NFPA 80 fire doors and windows. - CSFM approved, California State Reference Code 1989 (title 19). - Devices, trim, pulls, and levers comply with the Americans for Disabilities Act, 1994, and ANSI 117.1-2003 for accessible and usable buildings and facilities. - Contributes to U.S. Green Building Council, LEED MR Credits 2.1, 4.1, 4.2 and 5.1.
