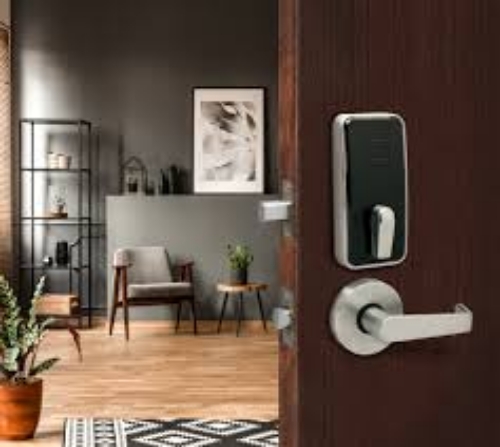

Dormakaba MD0032-ECB-CB-0 Saffire LX-D Series Electronic Deadbolt Satin Chrome w/Black Facia Finish

**Dormakaba MD0032-ECB-CB-0 Saffire Electronic LX-D RFID Deadbolt; 3-Hour Fire Rating; Bluetooth Low Energy Enabled (BLE); Electronic Lock Override (ELO); Vertically Mounted; Operated by Community Software; Satin Chrome with Black Facia Finish

Overview** Saffire LX-D Series features sophisticated RFID technology in a contemporary design. Easy-to-use, flexible and secure, multihousing properties now have the option of issuing mobile credentials for added resident convenience. Saffire LX-D Series is a smart solution that combines high-performance with  esthetics that harmonize with progressive building technology and amenities.

Convenient Mobile Access The Saffire LX-D Series is equipped with Bluetooth Low Energy (BLE) technology, which gives residents the added convenience of using a smart device, in addition to fobs, to access their residence, common areas and the perimeter. Our key delivery platform issues and authenticates mobile credentials through BlueSky, dormakaba's mobile access app.

Intuitive Access Management Software The Saffire LX-D is managed by dormakaba CommunityTM access management software. Community provides intuitive access management of residences, amenities, common areas and perimeters from a single platform. Community offers the convenience of both RFID credentials and BLE mobile access keys for a seamless experience with no need for additional softwares.

Low Maintenance

Operates with a completely sealed, high performance contactless readerBattery life up to 2 years under normal operationLow battery indicator for preventative maintenanceEnsures latching and prevents binding with mechanical operation to retract and throw deadboltNo touring to update access without having to visit the lockApplications

Ideal for new construction projects or retrofitsAccess control for resident units and common areasProvides single system to control perimeter entries, amenity spaces and storage unitsSecurity Features

BHMA Grade 2Non-volatile memory maintains lock programming and audit recordsStaff monitoring - RFID keycard auditsTamperproof design

Mechanical Features: *Description:Electronic deadbolt lockset with clutch mechanism and built-in contactless RFID reader *Handing:Field handed Finishes:   Trim finishes: Satin chrome, oil-rubbed bronze, bright chrome, satin nickel and black   Polycarbonate finishes: black, gray, white Door Thickness:From 1 3/8" to 2 1/8" (35mm to 54mm) Locking Options:ANSI/BHMA Grade 2 with 1" deadbolt Batteries:3 AA for up to 2 years. Low battery indicator for preventative maintenance Concealed key override:Electronic battery backup Online Configuration:Messenger Online available this fall: Lock controller board with Messenger capability Mobile Access BLE enabled:BLE enabled. Ready to operate using dormakaba mobile access solutions. Lock Operation No Touring:New credentials automatically cancel prior credential when brought to lock Electronic Key Levels:User defined, customizable key levels & key groups tailored for your community. Individual levels for residents, leasing, maintenance, services and vendors. Date/time stamp:Real time: date and hours/minutes; automatically adjusts for daylight savings time Programming & audit trail downloading:Handheld unit incorporating Near Field Communication interface and FW/Security features Lockout mode: Set by authorized key Keys accepted:Three credential format options available: Mifare classic, Mifare plus or Mifare Ultralight C Mifare classic: Resident keys (mini), Staff (4k & 1k) Mifare plus: Resident keys (Mifare plus 2K), Staff keys (Mifare plus S 2k, Mifare plus S 4k) Feedback LED:Light indicators Diagnostics:Handheld display Audit memory:Most recent 4,000 events Certifications & Testing *Certification:BHMA A156.36 grade 2 and A156.25, Florida Building Code non-HVHZ *Accessibility standard:ADA (Americans with Disability Act) compliant levers and thumbturns Fire rating:UL 10C and ULC S-104, on fire door rated up to and including 20 minutes (90 minutes pending) Electronics: Compliant with RE Directive 2014/53/EU for electromagnetic compatibility and FCC part 15 and RSS-247 Industry Canada requirements. Environmental operating conditions:-31 F to +158 F (-35 C to +70 C), 0% to 90% non-condensing humidity at 86 F (30 C) Meets IP54 *Warranty *Standard warranty: Two years
