Product Details

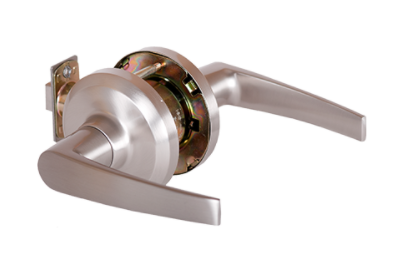

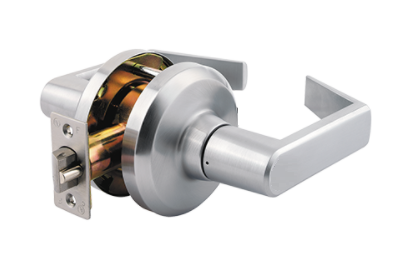

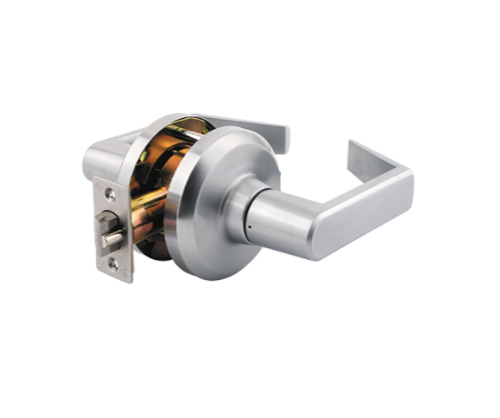

Dormakaba *QCL130 Grade 1 Heavy Duty Cylindrical Lock - Passage Function*

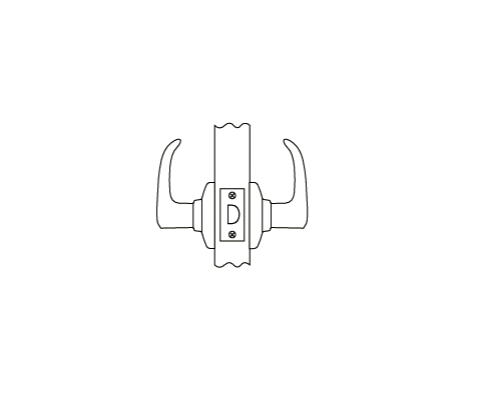

Function - QCL130- Passage Both levers always unlocked and always free for immediate ingress & egress.
ANSI F75
Performance Features:
- Tested to meet Grade 1 specification of 800,000 cycles.
- Standard clutching mechanism provides resistance to damage caused by physical force.
- Thru-bolt design and heavy-duty spring tension provides longer performance life and prevents lever sag.
- Concealed mounting screws.
- Compartmentalized packaging allows for quick and easy installation.
Certifications:
- ANSI/BHMA A156.2 Series - Grade 1.
- ANSI A117.1 Accessibility Code (ADA Compliant).
- UL/cUL Listed (3 hours) for 'A' label single-door applications.
(4' x 8') (1.219m x 2.438m).
- UL10C/UBC 7-2 (1997) Positive Pressure Rated.
- UL10B Pressure Rated.
- California State Reference Code (formerly Title 19 - Fire Marshal).
- Hurricane Compliant - Miami-DADE N.O.A. See page 78 for more details.
Product Specifications:
Handing:
All QCL100 Series Levers Locksets are non-handed.
Door thickness:
1 3⁄8" - 2" (35mm-51mm) standard.
Backset:
2 3⁄4" (70mm) square standard. 2 3⁄8" and 5" (60mm, 127mm) available.
Exposed trim:
Pressure cast zinc, plated to match finish designation.
Strike:
ANSI Strike 1 1⁄4" x 4 7⁄8" (32mm x 124mm) standard.
Other strike options also available.
Door prep:
2 1⁄8" (54mm) diameter cross bore.
Latch bolt:
Keyed/Exterior 1⁄2" (12.7mm) steel throw; Interior 1⁄2" (12.7mm) spring latch.
Latch faceplate:
1 1⁄8" x 2 1⁄4" (29mm x 57mm) standard.
- Single dummy is surface mounted.
- Electrification options available.
Finishes:
605 Bright Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel, 625 Bright Chrome, 626 Satin Chrome.
Keying:
- 6-pin non-IC brass cylinders. 6 or 7 pin SFIC option available. Many keying options available from our factory to include, but not limited to, master keying, grand master keying and construction keying.
- 2 keys per lockset.
- Offered with the following keyway options: BF-BEST "F" SFIC, KWKwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, & LC-Less Cylinder.
Consult factory for other cylinder options.
Warranty:
- Lifetime Mechanical, 3-year finish,* and 1-year electrical.
*(613/US10B carries no finish warranty).
