About this item

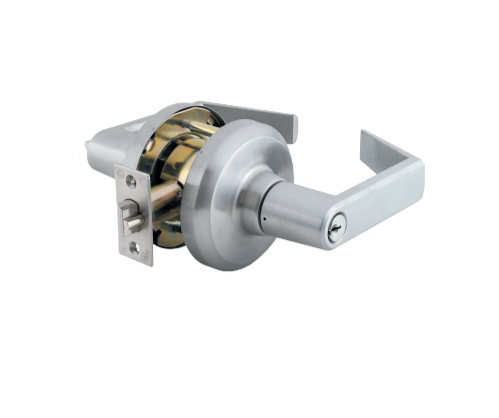

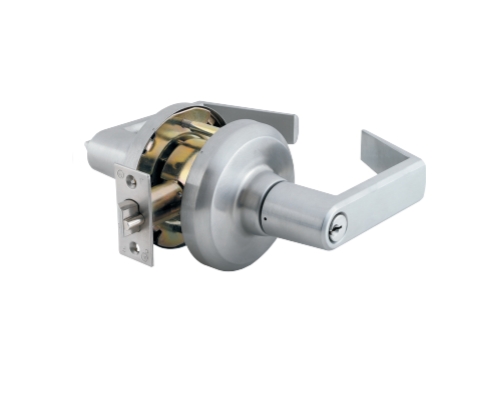

The QCL250-E is the Entry/Office function in the Dormakaba QCL200 Series Grade 2 cylindrical lock family. The "250" is the function code (ANSI F109 Entry/Office). The "E" is the lever style: Sierra lever, a clean commercial profile on a standard rose. The "Schlage C" is the keyway: Schlage's most widely distributed commercial keyway, compatible with virtually any Schlage-keyed facility master key system. All three are in the model number, which is how the QCL200 Series is specified: function first, lever style second, keyway third.

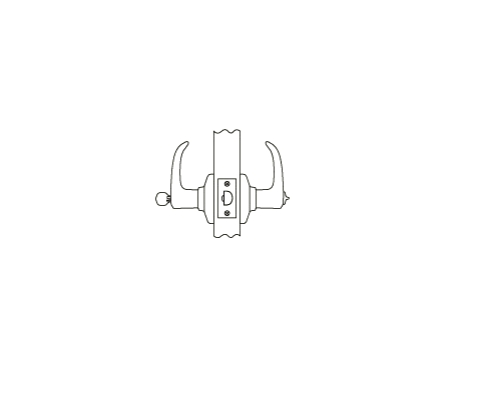

The Entry/Office function (ANSI F109) has two inside push-button modes that give the inside occupant control over outside access. A single press of the button locks the outside lever: the lever locks until either a key is used from outside or the inside lever is depressed. A press-and-turn of the button puts the lock in a more secure state: the outside lever locks and stays locked until the button is manually released from inside; key entry from outside does NOT reset the button in this mode. Clutch mechanism disengages the outside lever from the latch when the button is engaged, so torque attacks on the outside lever have no effect on the internal mechanism. Inside lever is always free for egress regardless of button state. For all Grade 2 commercial lever locks, browse our commercial locks catalog.
ANSI F109 Two-Mode Push Button: Both Modes
Mode one (single press): Outside lever locks. Outside entry requires a key from the corridor. Turning the inside lever releases the button and restores normal operation on the next outside entry.
Mode two (press and turn): Outside lever locks in a maintained state. A key from outside enters but does NOT reset the button. Someone inside must manually release the button to return the door to normal operation. This mode is used in office suites where management wants the door to stay locked between keyed visitor entries without inside staff needing to re-engage the button each time.

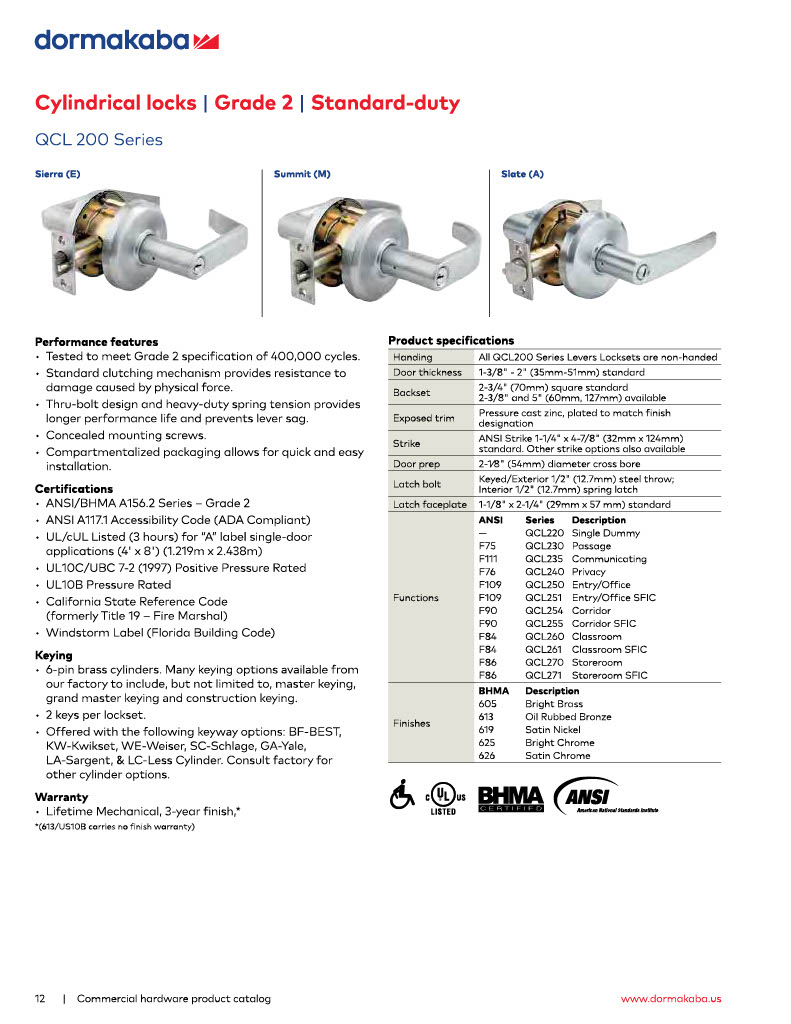

Dormakaba QCL250-E Technical Specifications
SKU: QCL250E. Also known as: Dormakaba QCL250, QCL Dormakaba, QCL250E626. Series: Dormakaba QCL200. Function: ANSI F109, Entry/Office. Lever: E, Sierra Lever. Grade: ANSI/BHMA A156.2 Grade 2. ADA: ANSI A117.1 compliant. Clutch: Yes, disengages outside lever from latch when locked. Fire rating: UL/cUL 3-hour A label, UL10C Positive Pressure, UL10B. Certifications: California State Fire Marshal, Miami-DADE N.O.A. Hurricane Compliant (ANSI:109). Handing: Non-handed. Door thickness: 1-3/8" to 2" (35mm to 51mm). Backset: 2-3/4" standard; 2-3/8" and 5" available. Door prep: 2-1/8" cross-bore. Latch bolt: 1/2" steel throw outside; 1/2" spring latch inside; 3/4" throw option for hurricane compliance and fire-rated double door applications. Latch faceplate: 1-1/8" x 2-1/4". Strike: ANSI 1-1/4" x 4-7/8". Cylinder: 6-pin non-IC brass; SFIC (6 or 7 pin) available (QCL251 variant). Keyways: Schlage C (SC) standard; Kwikset (KW), Weiser (WE), Yale (GA), Sargent (LA), BEST SFIC F (BF), Less Cylinder (LC) also available. Keying: KD standard; KA; MK; master keying, grand master, construction keying available. Keys: 2 per lockset. Finishes: 605 Bright Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel, 625 Bright Chrome, 626 Satin Chrome. Warranty: Lifetime Mechanical; 3-year finish (613 carries no finish warranty).
QCL200 Series Function Range
The QCL250-E is one function in the full QCL200 Series lineup. All functions use the same QCL200 cylindrical body, same Grade 2 certification, same Sierra lever and other available styles. The QCL230 is Passage (both levers are always free). The QCL240 is Privacy (push-button inside, emergency outside release). The QCL250 (this product) is Entry/Office (two-mode push button). The QCL254 is Corridor (outside lever controlled by key). The QCL260 is Classroom (outside lever locked from corridor by key). The QCL270 is Storeroom (outside lever always locked, key entry each time). All six functions are available with Sierra lever and Schlage C keyway for consistent architectural appearance across a facility's complete door schedule.
