Dormakaba QCL270-E-ZB Grade 2 Cylindrical Lock - Storeroom Function - Summit Lever - Schlage "C" Keyway - Zero Bitted

Dormakaba QCL270-M-ZB Grade 2 Standard Duty Cylindrical Lock - Storeroom Function - Summit Lever - 2-3/4" Square Latch - 4-7/8" ANSI Strike - Schlage "C" Keyway -*Zero Bitted -*626 Satin Chrome Finish

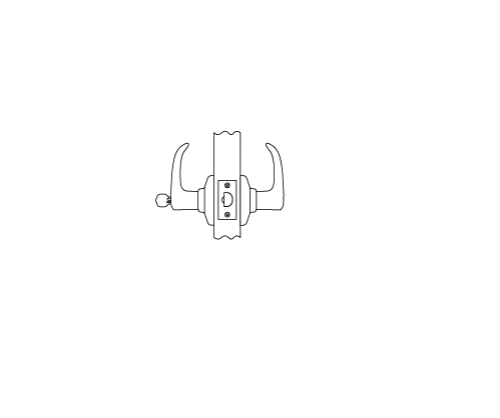

Function: 270*Storeroom*- Outside lever always locked. Entrance by key only. Inside lever unlocked and free for immediate egress. Clutch feature disengages outside lever from latch when locked to prevent vandalism.

Certifications: - ANSI/BHMA A156.2 Series-Grade 2 - ANSI A117.1 Accessibility Code (ADA compliant) - UL/cUL listed (3 hour) for 'A' label single door applications (4' by 8') - UL10C/UBC 7-2 (1997) positive pressure rated - UL10B pressure rated - California State Reference Code (formerly Title 19  Fire Marshal) - Hurricane Compliant - Miami DADA N.O.A. ANSI:109

Product Specifications:

Exposed trim:pressure cast zinc, plated to match finish designation. Standard door thickness:1 3/8" (35mm) - 2" (51mm). Backset:2 3/4" (70mm) square standard; 2 3/8" (60mm) and 5" (127mm) available. Strike:ANSI strike 1 1/4" (32mm) x 4 7/8" (124mm) standard; other options available. Door prep:2 1/8" (54mm) diameter cross bore. Latch bolt:keyed/exterior 1/2" (12.7mm) steel throw; interior 1/2" (12.7mm) spring latch; 3/4" throw option for hurricane compliance or fire-rated double door applications. Latch faceplate:1 1/8" (29mm) x 2 1/4" (57mm) standard. Keying: - 6-pin non-IC brass cylinders. - 6- or 7-pin SFIC option available. - Two keys per lockset. - Keying options include: master keying, grand master keying, construction keying. - Keyway options include: BF-SFIC F, KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, LC-Less Cylinder. Functions: QCL220 Single Dummy. ANSI F75 QCL230 Passage. ANSI F111 QCL235 Communicating. ANSI F76 QCL240 Privacy. ANSI F109 QCL250 Entry/Office. ANSI F109 QCL251 Entry/Office SFIC. ANSI F90 QCL254 Corridor. ANSI F90 QCL255 Corridor SFIC. ANSI F84 QCL260 Classroom. ANSI F84 QCL261 Classroom SFIC. ANSI F86 QCL270 Storeroom. ANSI F86 QCL271 Storeroom SFIC. Finishes: 605: Bright Brass, 613: Oil Rubbed Bronze, 619: Satin Nickel, 625: Bright Chrome, 626: Satin Chrome. Warranty: Lifetime mechanical. Three-year finish (613 carries no finish warranty).

Dormakaba qcl, qcl Dormakaba, Dormakabaqcl, qcl,Dormakaba, Dormakaba qcl270, qcl270 Dormakaba, Dormakabaqcl270, qcl270Dormakaba, qcl270, qcl270EZB,

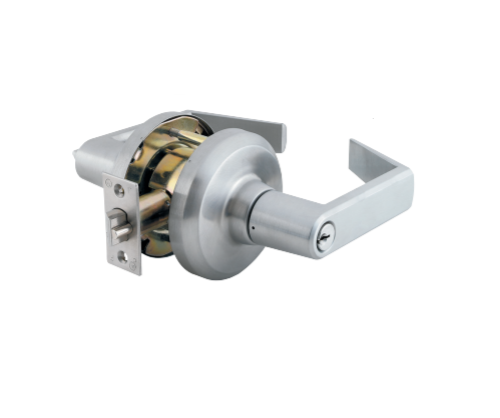

STANLEY Commercial Hardware QCL200

Designed for security.With features like thru bolt design, clutching mechanisms, and fire-rated latchesplus available hurricane compliant option QCL200 series locks ensure the utmost security. Backed by a leading warranty. The QCL200 lock series comes with lifetime mechanical and three-year finish warranties. Durable safety.We designed the QCL200 series with heavy-duty torsion springs to prevent lever sag and ensure long-term durability. Each lock in the series is BHMA/ANSI Grade 2 certified. Easy to retrofit.Choose locks with a SFIC option or keep your existing small format cores and use them with QCL200 series locks. Standard door prep and the same thru bolt pattern found in other common locks makes retrofit quick and easy.  Simple to install.Compartmentalized packaging makes QCL200 locks easier to install. Reliable value.The QCL200 series combines premium materials, construction, and performance at a great value both in your upfront investment and in long-range durability.
