Dormakaba Simplex LL1021R-026 Pushbutton Lock LH LHR Sargent - Bright Chrome

Dormakaba *Simplex LL1021R Pushbutton Lock, with Key Override,preparedfor*"Sargent" Core

for Left Hand or Left Hand Reverse Doors[**(Help Me)

**](https://www.americanlocksets.com/optionsjs/ajaxoptions.php?productsid=6713&optionsid=10)

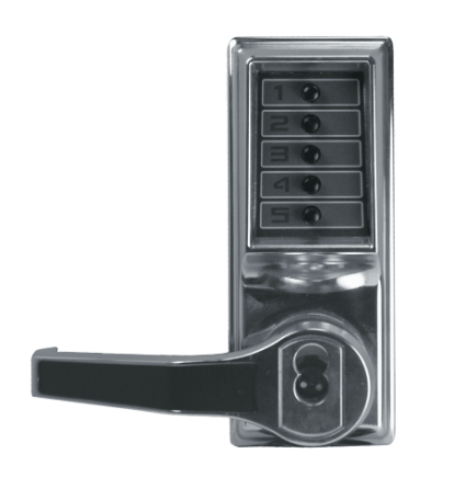

Cylindrical keyless Lever Lock, Combination Entry and Key Override. Accepts Sargent Large Format IC Core, Core not included.

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model L1011)

Combination Entry and Passage (model L1031)

Combination Entry and Key Override (model L1021)

Combination Entry, Key Override and Passage (model L1041)

Passage option:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key included with all passage feature models (optional)

Lockout option:Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only (optional)

Model: Dormakaba, Ilco, Access, Simplex, LL1021R026, LL1021R26, LL1021RUS26, LL1021R-026-41, 625, Bright Chrome
