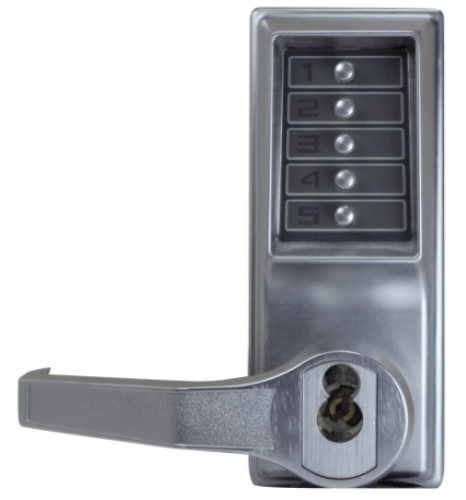

Dormakaba Simplex LL1021C-26D Pushbutton Lock LH LHR Corbin- Satin Chrome

Dormakaba *Simplex LL1021C Pushbutton Lock, with Key Override, prepared for "Corbin Russwin" Cores*

for Left Hand or Left Hand Reverse Doors(Help Me)

Cylindrical keyless Lever Lock, Combination Entry and Key Override. Accepts Corbin Russwin Large Format IC Cores, Core not included.

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model L1011)

Combination Entry and Passage (model L1031)

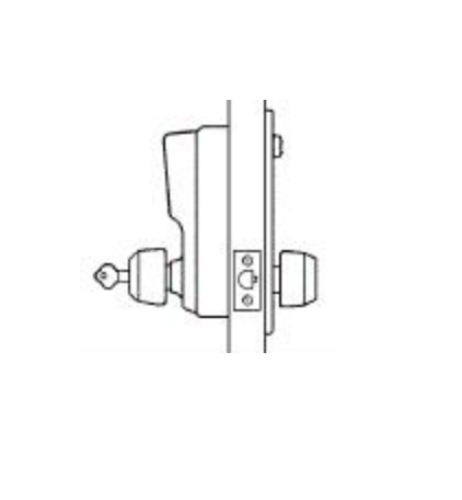

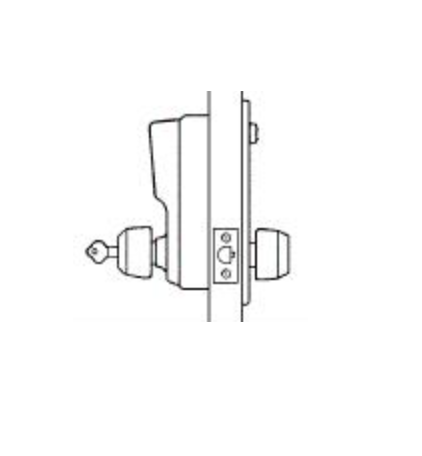

Combination Entry and Key Override (model L1021)

Combination Entry, Key Override and Passage (model L1041)

Passage option:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key included with all passage feature models (optional)

Lockout option:Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only (optional)

Model: Kaba, Ilco, Access, Simplex, LL1021C, LL1021C26D, LL1021CUS26D, LL1021C-26D-41, 626, Satin Chrome
