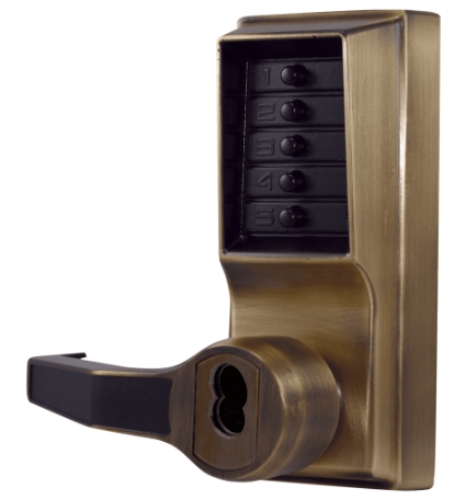

Dormakaba Simplex LL1041B-05 Pushbutton Lock Antique Brass Key/Pass LH LHR

Dormakaba *Simplex LL1041B Pushbutton Lock, with Key Override,preparedfor*"Best and Compatibles" Cores with Passage Feature

for Left Hand or Left Hand Reverse Doors[(Help Me)

**](https://www.americanlocksets.com/optionsjs/ajaxoptions.php?productsid=6713&optionsid=10)

** Cylindrical keyless Lever Lock, Combination E

ntry and Key Override Best and Compatibles (Best, Arrow & Falcon Small Format IC Cores)

Passage:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model L1011)

Combination Entry and Passage (model L1031)

Combination Entry and Key Override (model L1021)

Combination Entry, Key Override and Passage (model L1041)

Model: Dormakaba, Ilco, Access, Simplex, LL1041B05, LL1041B5, LL1041BUS5, LL1041B-05-41, 609, Antique Brass
