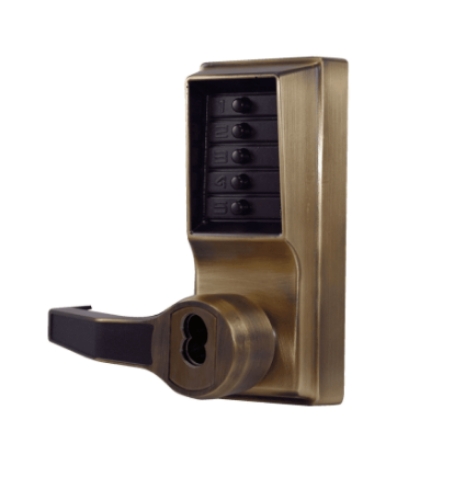

Dormakaba Simplex LL1041C-05 Pushbutton Lock W/Passage LH LHR - Corbin - Antique Brass

Dormakaba Simplex LL1041C Pushbutton Lock, with Key Override prepared for"Corbin Russwin" Cores with Passage Feature

for Left Hand or Left Hand Reverse Doors

Cylindrical keyless Lever Lock, Combination Entry and Key Override. Accepts Corbin Russwin Large Format IC Cores, Core not included.

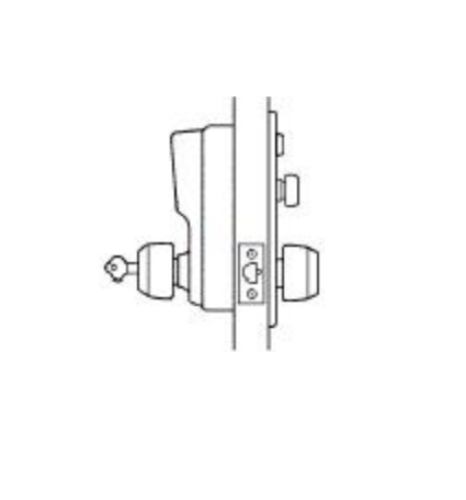

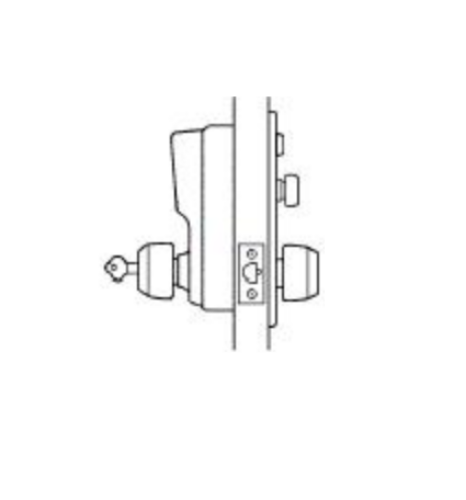

Passage: Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

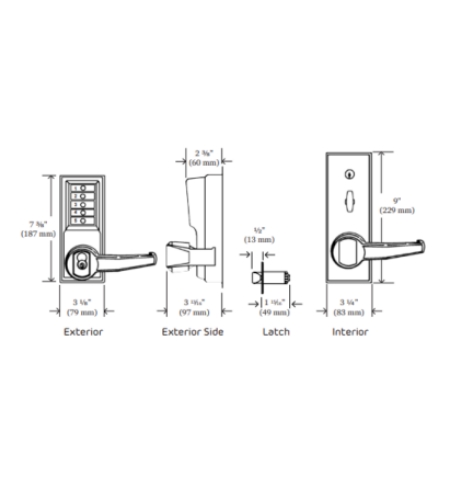

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model L1011)

Combination Entry and Passage (model L1031)

Combination Entry and Key Override (model L1021)

Combination Entry, Key Override and Passage (model L1041)

Model: Dormakaba, Ilco, Access, Simplex, LL1041C, LL1041C05, LL1041C5, LL1041CUS5, LL1041C-05-41, 609, Antique Brass
