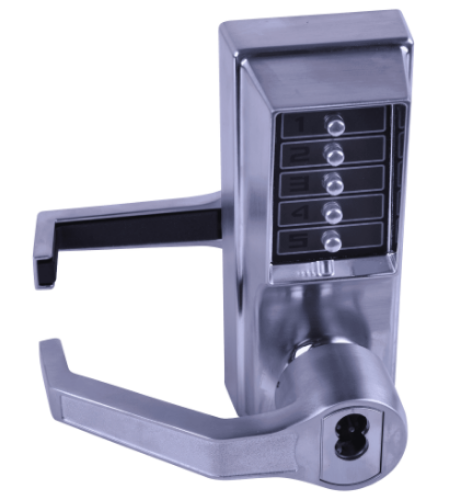

Dormakaba Simplex LL1076B-26D Pushbutton Privacy Lock (lockout) W/ Key LH & LHR Satin Chrome

**Dormakaba Simplex LL1076B Pushbutton Lock - Privacy (lockout), with Key Override "Best and Compatibles"

**for Left Hand or Left Hand Reverse Doors[(Help Me)

](https://www.americanlocksets.com/optionsjs/ajaxoptions.php?productsid=6713&optionsid=10)

Cylindrical keyless Lever Lock, Combination Entry and Key Override ans Privacy - Lockout - Best and Compatibles (Best, Arrow & Falcon Small Format IC Cores)

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finish: Satin Chrome 26D (626)

Backset: 2 3⁄4" (70 mm)

Latch: 3⁄4" (19 mm) throw latch

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating for A labeled doors

Operation Modes:

Combination Entry Only (model L1011)

Combination Entry and Passage (model L1031)

Combination Entry and Key Override (model L1021)

Combination Entry, Key Override and Passage (model L1041)

Combination Entry, Key Override and Privacy - Lockout (model L1076)

Passage option:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key included with all passage feature models (optional)

Lockout option:Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only (optional)

Model: Dormakaba, Ilco, Access, Simplex, LL1076B26D, LL1076BUS26D, LL1076B-26D-41, 626,Satin Chrome
