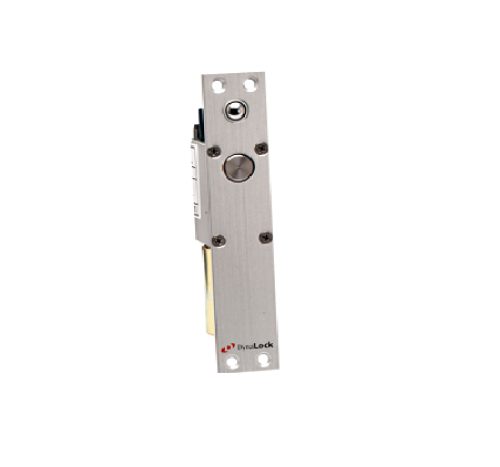

Dynalock 1300-12/24-ARSB Mortise Electric Deadbolt Lock W/ Auto-Relock Switch - Ball Type

Dynalock 1300-12/24-ARSB Mortise Electric Deadbolt Lock W/*Auto-Relock Switch - Ball Type,12/24 VAC/VDC, Aluminum*

AUTO-RELOCK SWITCH - Ball Type*(ARSB) -*Switch that insures the deadbolt will only project when the door is in the closed position.

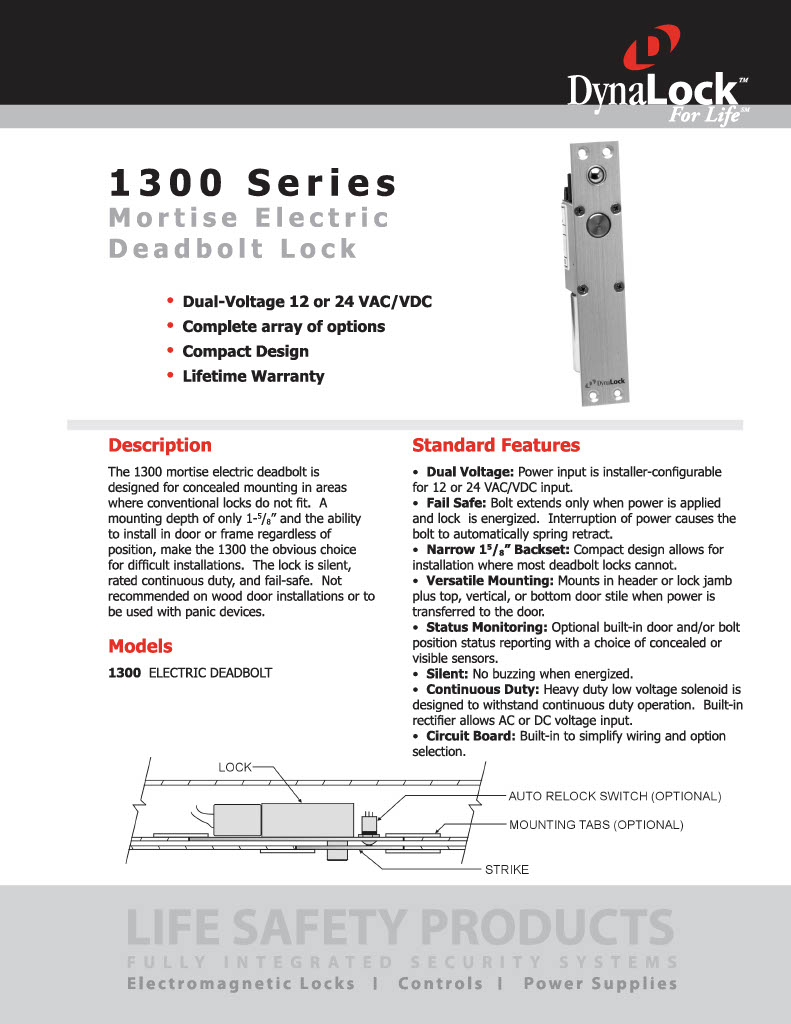

Description:

The 1300 mortise electric deadbolt is designed for concealed mounting in areas where conventional locks do not fit. A mountingdepth of only 1-5 /8" and the ability to install in door or frame regardless of position, make the 1300 the obvious choice for difficult installations.

The lock is silent, rated continuous duty, and fail-safe. Not recommended on wood door/frame installations or to be used with panic devices.

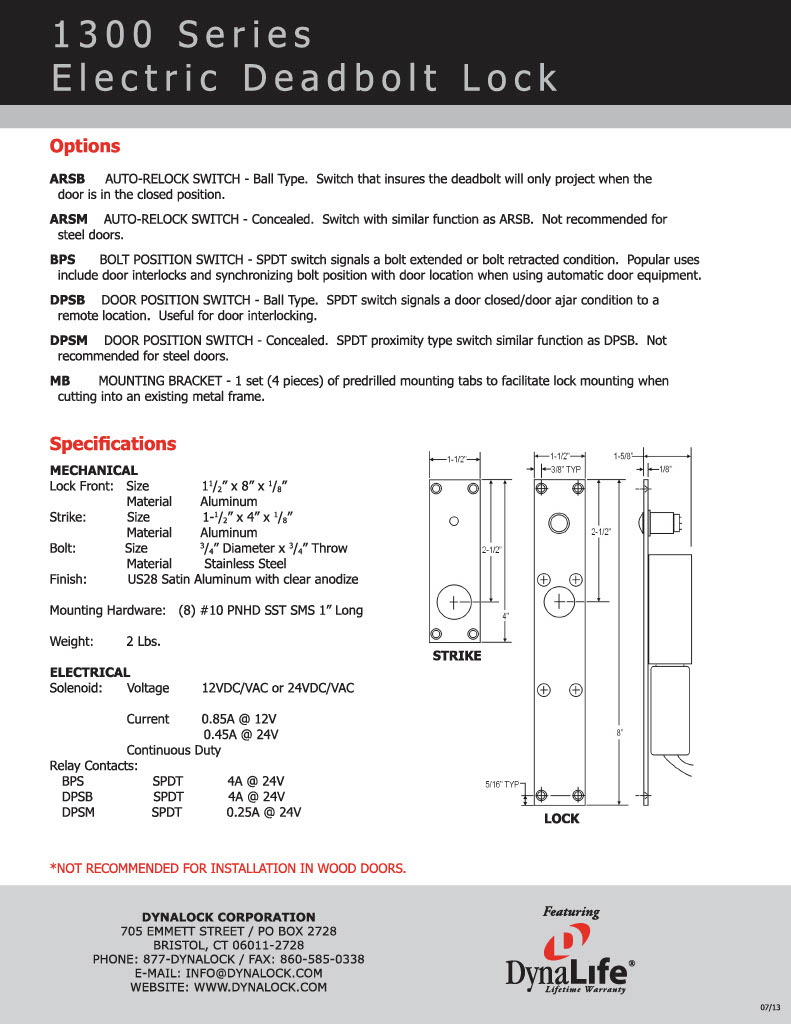

Specifications:

 Lock Front:  11/2" x 8" x 1 /8"

 Strike: Size 1-1/2" x 4" x 1/8"

 Bolt: Size 3/4" Diameter x 3/4" Throw

 Voltage: 12VDC/VAC, 24VDC/VAC

 Current: 0.85A @ 12V, 0.45A @ 24V

Standard Features:

 Fail Safe: Bolt extends only when power is applied and lock is energized. Interruption of power causes the bolt to automatically spring retract.

 Narrow 15/8" Backset: Compact design allows for installation where most deadbolt locks cannot.

 Versatile Mounting: Mounts in header or lock jamb plus top, vertical, or bottom door stile when power is transferred to the door.

 Silent: No buzzing when energized.

 Continuous Duty: Heavy duty low voltage solenoid is designed to withstand continuous duty operation. Built-in rectifier allows AC or DC voltage input .  Circuit Board: Built-in to simplify wiring and option selection.

 Material: Stainless Steel

 Finish: US28 Satin Aluminum with clear anodize

 Lifetime Warranty

Model:130012/24ARSB, 1300-12/24ARSB, 1300-12/24-ARSB
