Dynalock 1410-12/24VDC Dual Voltage Cabinet Lock

Product Details

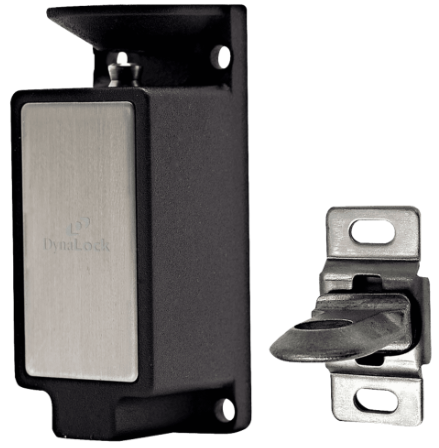

Dynalock 1410-12/24VDC Dual Voltage Cabinet Lock

Description:

DynaLock 1400 Series Heavy Duty, Dual-Voltage Cabinet Locks are the ideal choice for securing anycabinet or drawer application.

 The 1400 Series offers an easy installation with self-adjusting alignment tabs as well as four counter-sunk mounting holes to ensure a secure top or side mount installation.

Standard Features:

 Surface-Mounted Compact Design  Selectable Fail-Safe or Fail-Secure Operation

 12/24V Field-Selectable Dual Voltage

 440Lbs Holding Force

Top or Side Mount

 Stainless Steel Locking Pin Assembly

 Low Energy Consumption

 Heavy Duty Metal Construction

 Dual SPDT Monitoring Outputs (1420 ONLY)

 3 Year Limited Warranty

SPECIFICATION:

 LOCK HOUSING: 1-1/8"Dx1-3/16"Wx2-7/8"L

 LOCKING PIN ASSEMBLY: 3/16"

 OPERATING VOLTAGE: 12VDC/24VDC

 MODE OF OPERATION:  FAIL LOCKED/UNLOCKED

 CYCLE RATING: 500,000 CYCLES

 CURRENT CONSUMPTION: 200 mA @ 12 VDC, 100 mA @ 24 VDC

 HOLDING FORCE: 440lbs

 OPERATING TEMPERATURE: 14 TO 104F

 POWER REQUIREMENTS: REGULATED POWER SUPPLY OR 12VDC PLUG IN TRANSFORMER

Dynalock 1410-12/24VDC Dual Voltage Cabinet Lock

SKU: 1410-12/24VDC

In Stock

$74.82

$129.00

You saved $54.18

About this item

Dynalock 1410-12/24VDC Dual Voltage Cabinet Lock

Description:

DynaLock 1400 Series Heavy Duty, Dual-Voltage Cabinet Locks are the ideal choice for securing anycabinet or drawer application.

 The 1400 Series offers an easy installation with self-adjusting alignment tabs as well as four counter-sunk mounting holes to ensure a secure top or side mount installation.

Standard Features:

 Surface-Mounted Compact Design  Selectable Fail-Safe or Fail-Secure Operation

 12/24V Field-Selectable Dual Voltage

 440Lbs Holding Force

Top or Side Mount

 Stainless Steel Locking Pin Assembly

 Low Energy Consumption

 Heavy Duty Metal Construction

 Dual SPDT Monitoring Outputs (1420 ONLY)

 3 Year Limited Warranty

SPECIFICATION:

 LOCK HOUSING: 1-1/8"Dx1-3/16"Wx2-7/8"L

 LOCKING PIN ASSEMBLY: 3/16"

 OPERATING VOLTAGE: 12VDC/24VDC

 MODE OF OPERATION:  FAIL LOCKED/UNLOCKED

 CYCLE RATING: 500,000 CYCLES

 CURRENT CONSUMPTION: 200 mA @ 12 VDC, 100 mA @ 24 VDC

 HOLDING FORCE: 440lbs

 OPERATING TEMPERATURE: 14 TO 104F

 POWER REQUIREMENTS: REGULATED POWER SUPPLY OR 12VDC PLUG IN TRANSFORMER
