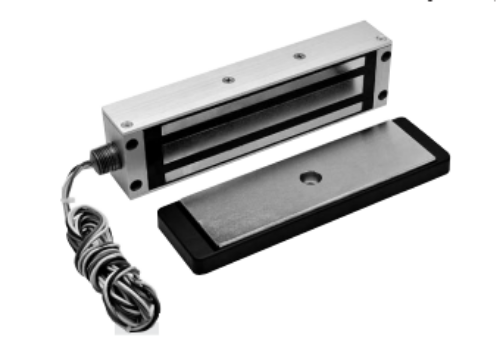

Dynalock 2013 Electromagnetic Gate Lock - Aluminum

Dynalock 2013 Electromagnetic Gate Lock - Aluminum

Description:

The 2013 is fully sealed with a 1/2" threaded conduit nipple for wiring from the side. Specify RWE option for wiring from back without a nipple (ex: mounting over a box).

The coil and housing assembly mounts rigidly to the post or frame while the armature mounts to the gate in a manner that allows it to pivot slightly to compensate for gate misalignment. When the gate is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the gate without utilizing any moving parts.

Specifications:

Lock Size: 11/2"D x 21/2"H x 91/4"L

Armature Size: 11/16"D x 29/16"H x 83/4"L

Finish: US28 Satin Aluminum with clear anodize.

Standard Features:

• Weather Resistant: Designed specifically to be used outside.

• A totally plated coil and armature provides protection against corrosion.

• No moving parts means little or no maintenance from wear and tear.

• Low power consumption conserves energy, reduces operation cost, and extends battery backup time.

• 12 or 24VDC: Field Selectable. AC voltage equires optional rectifier (PN# 7088).

• Long Leads: 6’ Long / 18 gauge flying lead connections.

• No residual magnetism: The gate releases without delay when lock is de-energized.

• Includes spike suppression MOV to protect other solid state components within the system from damage when the lock is de-energized.

• Lifetime Warranty: Made in the USA by DynaLock, with over 20 years experience in the manufacture of electronic security & access control products.
