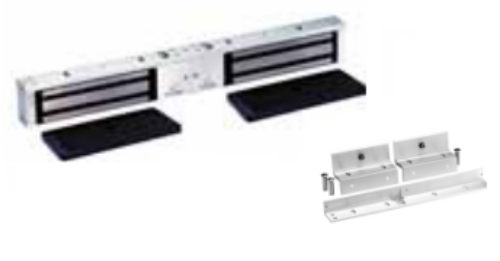

Dynalock 2022-TJ22-DSM2 Electromagnetic Lock W/ Door Status Switch For Double Inswinging Doors

Dynalock 2022-TJ22-DSM2 Electromagnetic Lock W/ Door Status Switch For Double Inswinging Doors - Aluminum

Standard Features

• For Double Inswinging Door, Double coil. Mounts to the face of the frame header. 1200 Lbs. holding force per leaf.

• DOOR STATUS SWITCH - Signals door closed or ajar. SPDT contacts.

• Size: 1-1/2"D x 2-3/4"H x 11"L

• Multi-voltage field selectable 12/24 VAC/VDC Current Draw: 384 mA @ 12VDC Single / 768 mA Double 217 mA @ 24VDC Single / 434 mA Double

• Finish: Standard-Satin Aluminum

• Medium to High Security

• Adjustable mounting Base

• Internal wiring compartment includes built-in circuit board attached to access cover to provide a convenient, plug in, concealed area for wiring connections.

• Low power consumption conserves energy, reduces operation cost, and -extends battery backup time.

• A totally plated coil and armature provides protection against corrosion.

• A narrow backset of 1-1/2" may mean the elimination of other mounting brackets or filler plates.

• No residual magnetism - the door releases without delay when lock is de-energized.

• Multiple sensor and monitor options increases flexibility, security and compatibility with system equipment.

• Built-in spike suppression protects other solid state components within the system from damage when the lock is de-energized.

• Lifetime Warranty - American Made in the USA by DynaLock, with over 20 years experience in the manufacture of electromagnetic locks.
