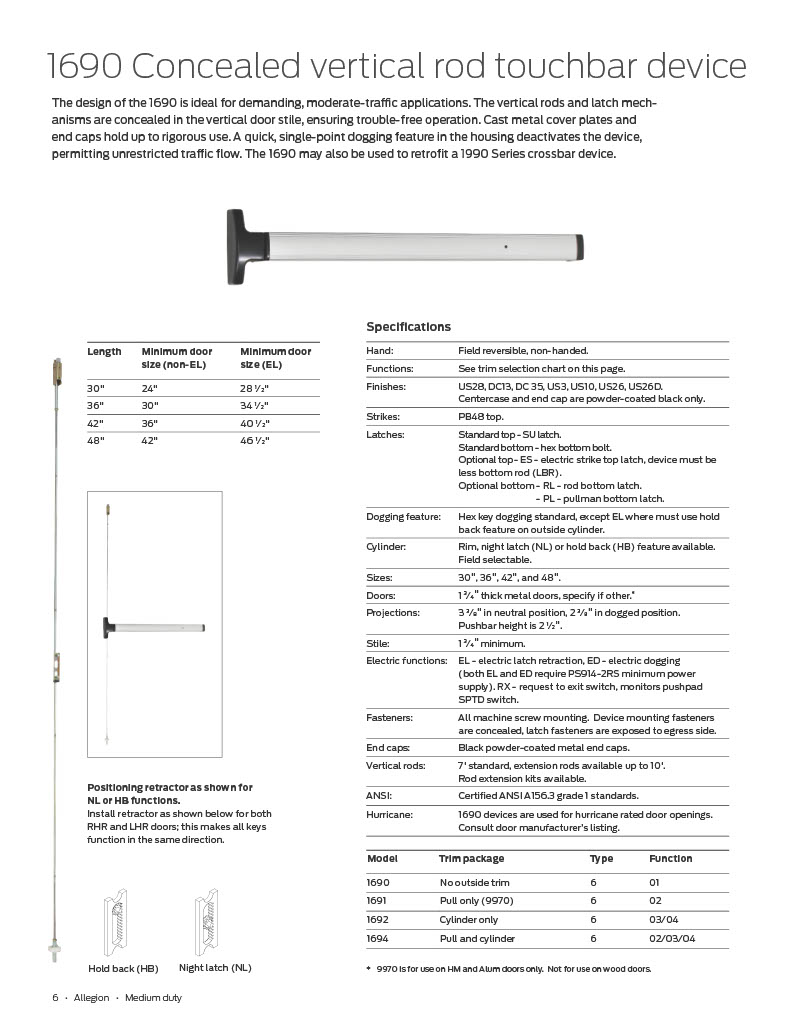

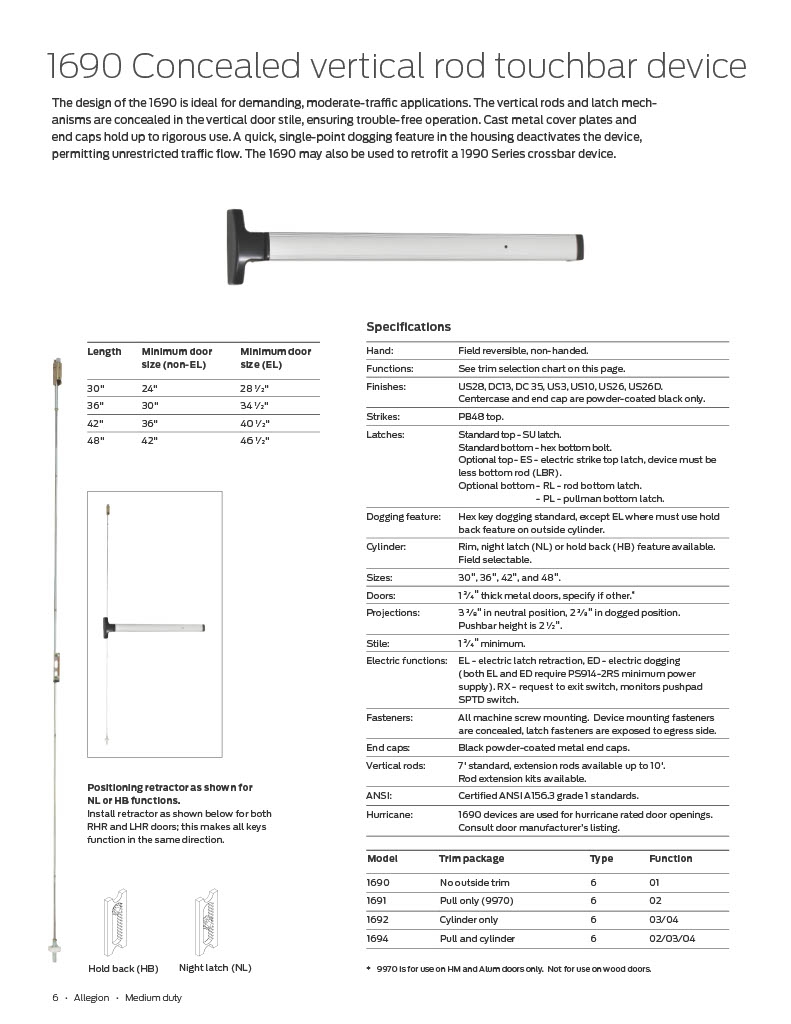

Product Details

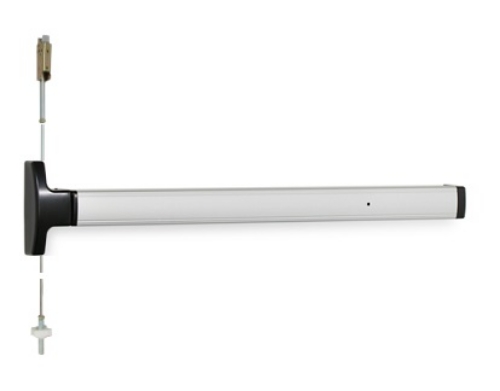

Falcon 1692NL-OP/HB-OP Concealed Vertical Rod Touchbar W/Nightlatch Cylinder(Dor-O-Matic)
NL-OP- Night latch, cylinder only: key retracts latch but does not unlock exit device, no pull
HB-OP- Hold back, cylinder only: key retracts latch and holds latch back, no pull
Rim cylinder supplied standard with NL and HB options is C keyway
Length: 36"Minimum door size: 30"
Length: 42"Minimum door size: 36"
Hand:Field reversible, non-handed
Strikes:PB48 top.
Latches:Standard top - SU latch. Standard bottom - hex bottom bolt.
Dogging feature:Hex key dogging standard, except EL where must use hold back feature on outside cylinder.
Doors:1 3 ⁄4" thick metal doors, specify if other.
Projections:3 3 ⁄8" in neutral position, 2 3 ⁄8" in dogged position. Pushbar height is 2 1 ⁄2".**
Stile:1 3 ⁄4" minimum.
Fasteners:All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
End caps:Black powder-coated metal end caps.
Vertical rods:7' standard, extension rods available up to 10'. Rod extension kits available.
ANSI:Certified ANSI A156.3 grade 1 standards.
High security:1690 High security devices are used for hurricane rated door openings. Consult door manufacturer’s listing.
**
**
**
