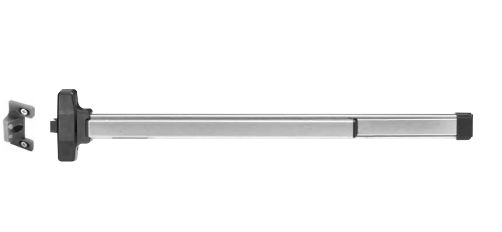

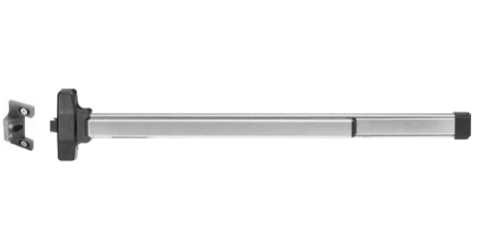

Falcon F19R EO Fire Rated Rim Panic Exit Device (Monarch)

Falcon F19R EO Fire Rated Rim Panic Exit Device(Monarch)

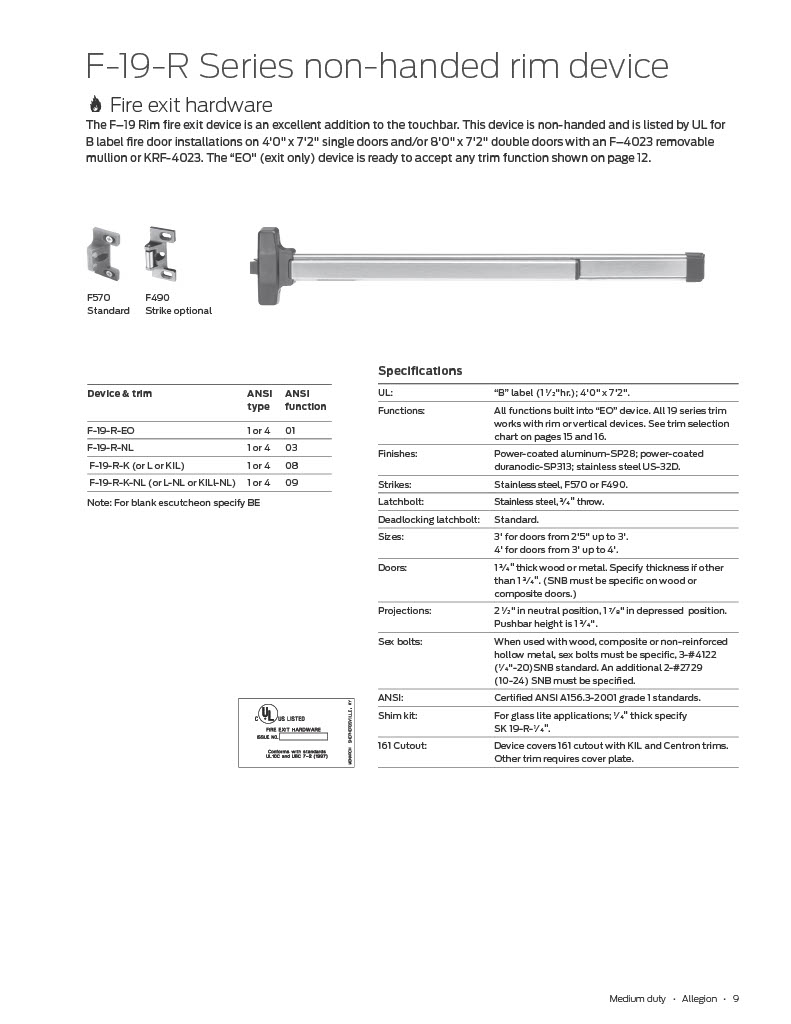

The F–19 Rim fire exit device is an excellent addition to the touchbar. This device is non-handed and is listed by UL for B label fire door installations on 4'0" x 7'2" single doors and/or 8'0" x 7'2" double doors with an F–4023 removable mullion or KRF-4023. The “EO" (exit only) device is ready to accept any trim function

Specifications

Hand:Non-handed.

Finishes:Power-coated aluminum-SP28; power-coated duranodic-SP313; stainless steel US-32D

Strikes:Standard - F570. Optional - F490, 565, 571, 571A.

Latch:Stainless steel, 3 ⁄4" throw dead locking.

Dogging feature:Hex key dogging standard. Cylinder dogging or less dogging optional.

Sizes:3' for doors from 2'5" up to 3'. 4' for doors from 3' up to 4'.

Doors:1 3 ⁄4" thick metal or wood doors, specify if other.

Projections:2 1 ⁄2" in neutral position, 1 7 ⁄8" in dogged position. Pushbar height is 1 3 ⁄4".

Stile:3-1/2" minimum.

Fasteners:All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

End caps:Black plastic end caps. ANSI: Certified

ANSICertified ANSI A156.3-2001 grade 1 standards
