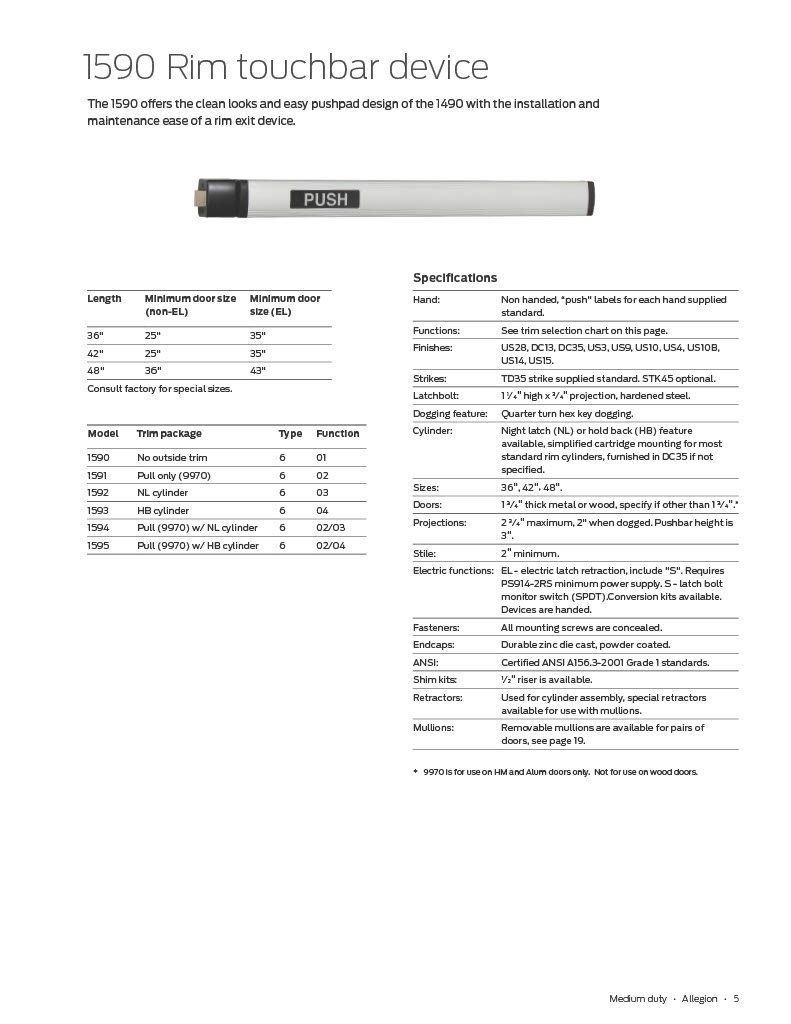

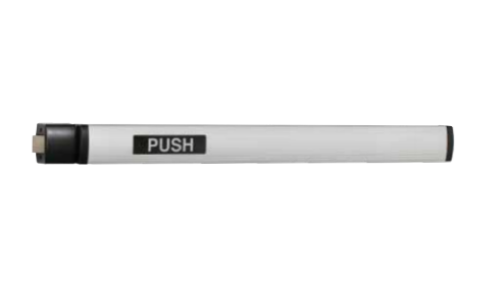

Falcon 1590-EO Rim Touchbar Device

Falcon 1590EO Rim Touchbar Device

Length:36"

Minimum door size:  25"

Hand:Non handed, “push" labels for each hand supplied standard.

Strikes:TD35 strike supplied standard. STK45 optional.

Latchbolt:1 1 ⁄4" high x 3 ⁄4" projection, hardened steel.

Dogging feature:Quarter turn hex key dogging.

Doors:1 3 ⁄4" thick metal or wood, specify if other than 1 3 ⁄4".

Projections:2 3 ⁄4" maximum, 2" when dogged. Pushbar height is 3".

Stile:2" minimum.

Fasteners:All mounting screws are concealed.

Endcaps:Durable zinc die cast, powder coated.

ANSI:Certified ANSI A156.3-2001 Grade 1 standards.

Falcon 1590EO, 1590 EO, 1590-EO, US28, DC13
