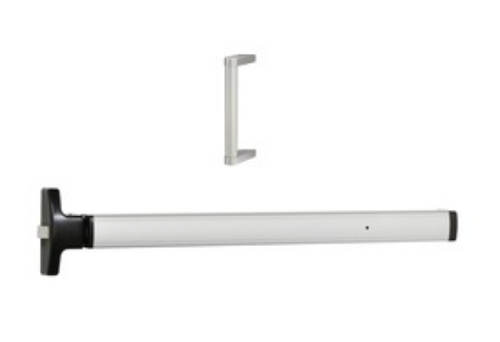

Falcon 1791DT Rim Type Pushpad Exit Device, Dummy Trim, with 9970 Pull

Falcon 1791DT Rim Type Pushpad Exit Device, Dummy Trim, with 9970 Pull

9970*Pull,*Can be used with all devices (not for use on wood doors).

Length: 36"Minimum door size:  30"

Length: 42"Minimum door size:  36"

Hand:Field reversible, non-handed

Strikes:PB48 top.

Latches:Standard top - SU latch. Standard bottom - hex bottom bolt.

Dogging feature:Hex key dogging standard, except EL where must use hold back feature on outside cylinder.

Doors:1 3 ⁄4" thick metal doors, specify if other.

Projections:3 3 ⁄8" in neutral position, 2 3 ⁄8" in dogged position. Pushbar height is 2 1 ⁄2".**

Stile:1 3 ⁄4" minimum.

Fasteners:All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

End caps:Black powder-coated metal end caps.

Vertical rods:7' standard, extension rods available up to 10'. Rod extension kits available.

ANSI:Certified ANSI A156.3 grade 1 standards.

High security:1690 High security devices are used for hurricane rated door openings. Consult door manufacturer’s listing.

**

**

**

Model: 179148US28Falcon, 1791-DT-48-US28Falcon, 1791DT48US28Falcon, 1791 DT 48  US28 Falcon,Falcon1791, Falcon1791-DT, Falcon1791DT, Falcon1791 DT, 1791 Falcon, 1791-DT Falcon, 1791DT Falcon, 1791 DT Falcon, 1791Falcon, 1791-DTFalcon, 1791DTFalcon, 1791 DTFalcon, 1791-DT-36, 1791DT36, 1791 DT 36, Falcon 1791, Falcon 1791-DT-36, Falcon 1791DT36, Falcon 1791 DT 36, Falcon179136, Falcon1791-DT-36, Falcon1791DT36, Falcon1791 DT 36, 1791 Falcon, 1791-DT-36 Falcon, Falcon 1791DT36, Falcon 1791 DT 36, 179136Falcon, 1791-DT-36Falcon, 1791DT36Falcon, 1791 DT 36 Falcon,   .1791 DT-36-DC13, 1791DT36DC13, 1791 DT 36 DC13, Falcon 1791, Falcon 1791-DT-36-DC13, Falcon 1791DT36DC13, Falcon 1791 DT 36 DC13, Falcon179136DC13, Falcon1791-DT-36-DC13, Falcon1791DT36DC13, Falcon1791 DT 36 DC13, 1791 Falcon, 1791-DT-36-DC13 Falcon, Falcon 1791DT36DC13, Falcon 1791 DT 36 DC13, 179136DC13Falcon, 1791-DT-36-DC13Falcon, 1791DT36DC13Falcon, 1791 DT 36 DC13 Falcon, 1791-DT-48, 1791DT48, 1791 DT 48, Falcon 1791, Falcon 1791-DT-48, Falcon 1791DT48, Falcon 1791 DT 48, Falcon179148, Falcon1791-DT-48, Falcon1791DT48, Falcon1791 DT 48, 1791 Falcon, 1791-DT-48 Falcon, Falcon 1791DT48, Falcon 1791 DT 48, 179148Falcon, 1791-DT-48Falcon, 1791DT48Falcon, 1791 DT 48 Falcon,   .1791-DT-48-DC13, 1791DT48DC13, 1791 DT 48 DC13, Falcon 1791, Falcon 1791-DT-48-DC13, Falcon 1791DT48DC13, Falcon 1791 DT 48 DC13, Falcon179148DC13, Falcon1791-DT-48-DC13, Falcon1791DT48DC13, Falcon1791 DT 48 DC13, 1791 Falcon, 1791-DT-48-DC13 Falcon, Falcon 1791DT48DC13, Falcon 1791 DT 48 DC13, 179148DC13Falcon, 1791-DT-48-DC13Falcon, 1791DT48DC13Falcon, 1791 DT 48  DC13 Falcon,
