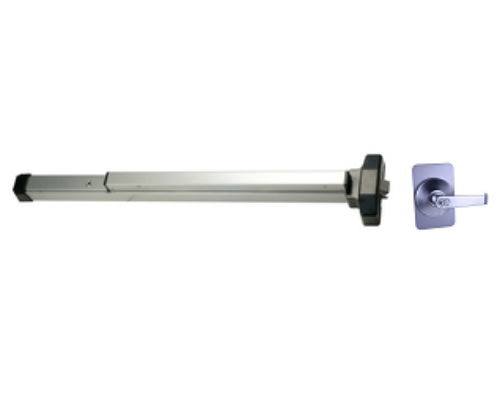

Falcon 19R-KIL-IC Rim Panic Exit Device, 914 Key-in-lever Lever Rose Trim, SFIC Core

Falcon 19R-KIL-IC Rim Panic Exit Device, 914 Key-in-lever Lever Rose Trim, SFIC Interchangeable Core

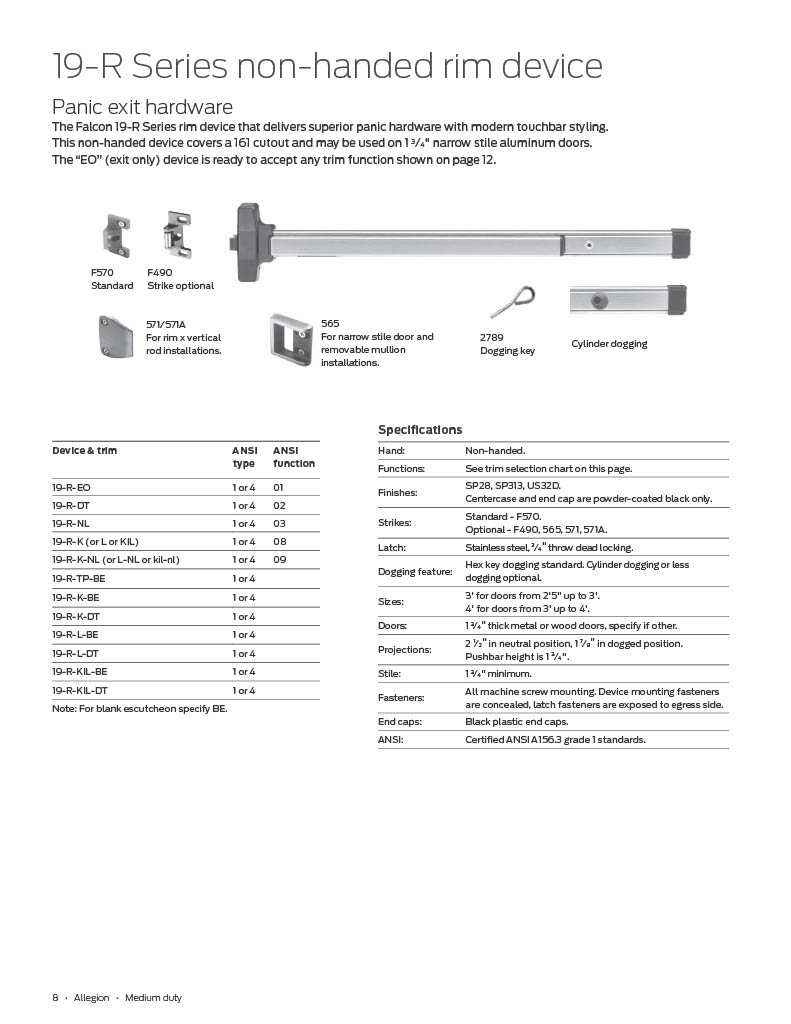

The Falcon 19-R Series rim device that delivers superior panic hardware with modern touchbar styling. This non-handed device covers a 161 cutout and may be used on 1 3⁄4" narrow stile aluminum doors. The “EO" (exit only) device is ready to accept any trim function

19R-KIL-IC - Key-in-lever-interchangeable core (KIL-IC): key locks and unlocks the lever with a Small Format Interchangeable Core (SFIC)

Specifications

Hand:Non-handed.

Finishes:SP28, SP313, US32D. Centercase and end cap are powder-coated black only.

Strikes:Standard - F570. Optional - F490, 565, 571, 571A.

Latch:Stainless steel, 3 ⁄4" throw dead locking.

Dogging feature:Hex key dogging standard. Cylinder dogging or less dogging optional.

Sizes:3' for doors from 2'5" up to 3'. 4' for doors from 3' up to 4'.

Doors:1 3 ⁄4" thick metal or wood doors, specify if other.

Projections:2 1 ⁄2" in neutral position, 1 7 ⁄8" in dogged position. Pushbar height is 1 3 ⁄4".

Stile: 3-1⁄2" minimum.

Fasteners:All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

End caps:Black plastic end caps. ANSI: Certified

ANSIA156.3 grade 1 standards.

**Models: 19R-KIL-IC SP28 3,  19R-KIL-IC 32D 3,   19R-KIL-IC SP313 3, 19R-KIL-IC SP28 4,  19R-KIL-IC 32D 4,   19R-KIL-IC  SP313 4,

**
