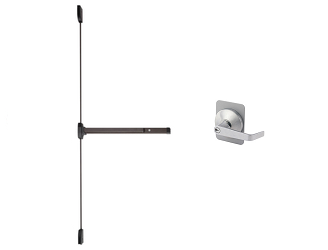

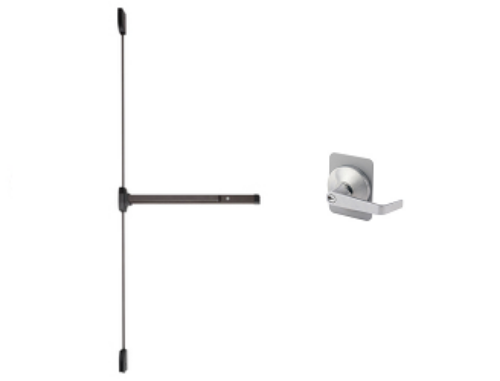

Falcon 19V-KIL-NL Surface Vertical Rod Panic Exit Device, 914 Key-in-lever Nightlatch Lever Rose Trim

Falcon 19V-KIL-NL Surface Vertical Rod Panic Exit Device, 914 Key-in-lever Nightlatch Lever Rose Trim

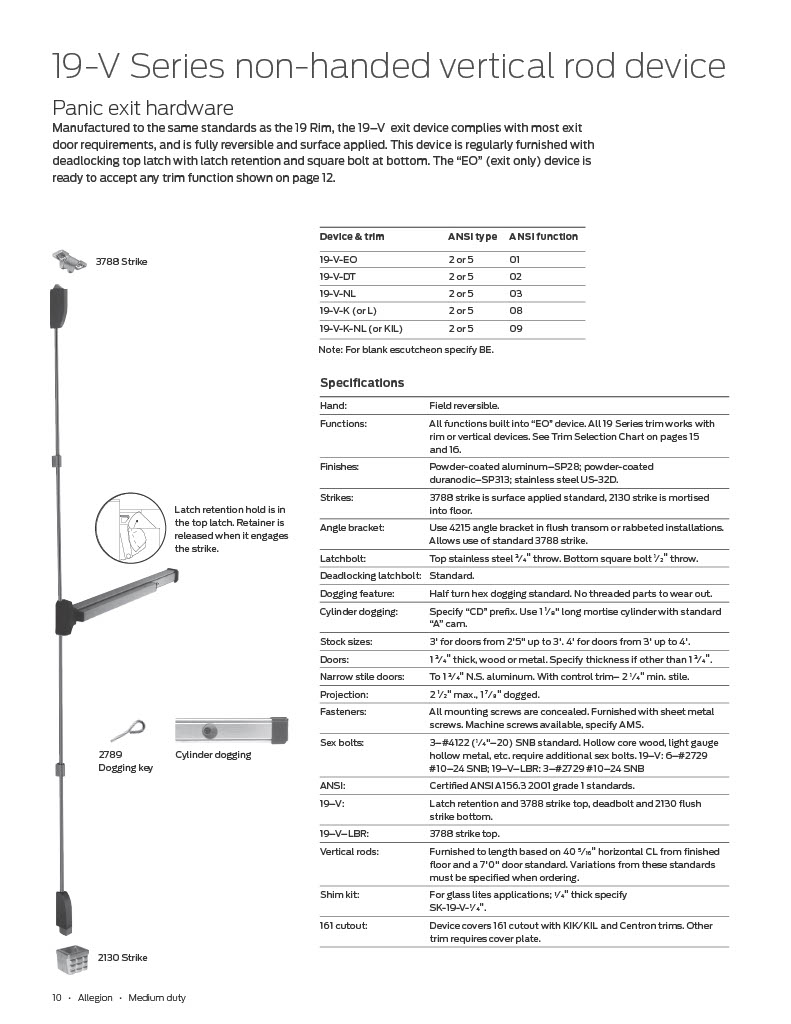

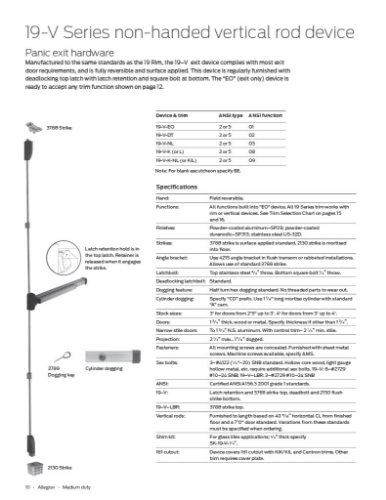

Manufactured to the same standards as the 19 Rim, the 19-V exit device complies with most exit door requirements, and is fully reversible and surface applied. This device is egularly furnished with deadlocking top latch with latch retention and square bolt at bottom.

19V-KIL-NL - Key-in-lever - Night Latch (KIL-NL): key retracts latch, but does not unlock the trim

Specifications

Hand:Non-handed.

Finishes:SP28, SP313, US32D. Centercase and end cap are powder-coated black only.

Strikes:Standard - F570. Optional - F490, 565, 571, 571A.

Latch:Stainless steel, 3 ⁄4" throw dead locking.

Dogging feature:Hex key dogging standard. Cylinder dogging or less dogging optional.

Sizes:3' for doors from 2'5" up to 3'. 4' for doors from 3' up to 4'.

Doors:1 3 ⁄4" thick metal or wood doors, specify if other.

Projections:2 1 ⁄2" in neutral position, 1 7 ⁄8" in dogged position. Pushbar height is 1 3 ⁄4".

Stile: 3-1⁄2" minimum.

Fasteners:All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

End caps:Black plastic end caps. ANSI: Certified

ANSIA156.3 grade 1 standards.

**Models: 19V-KIL-NL SP28 3,  19V-KIL-NL 32D 3,   19V-KIL-NL SP313 3, 19V-KIL-NL SP28 4,  19V-KIL-NL 32D 4,   19V-KIL-NL SP313 4,

**
