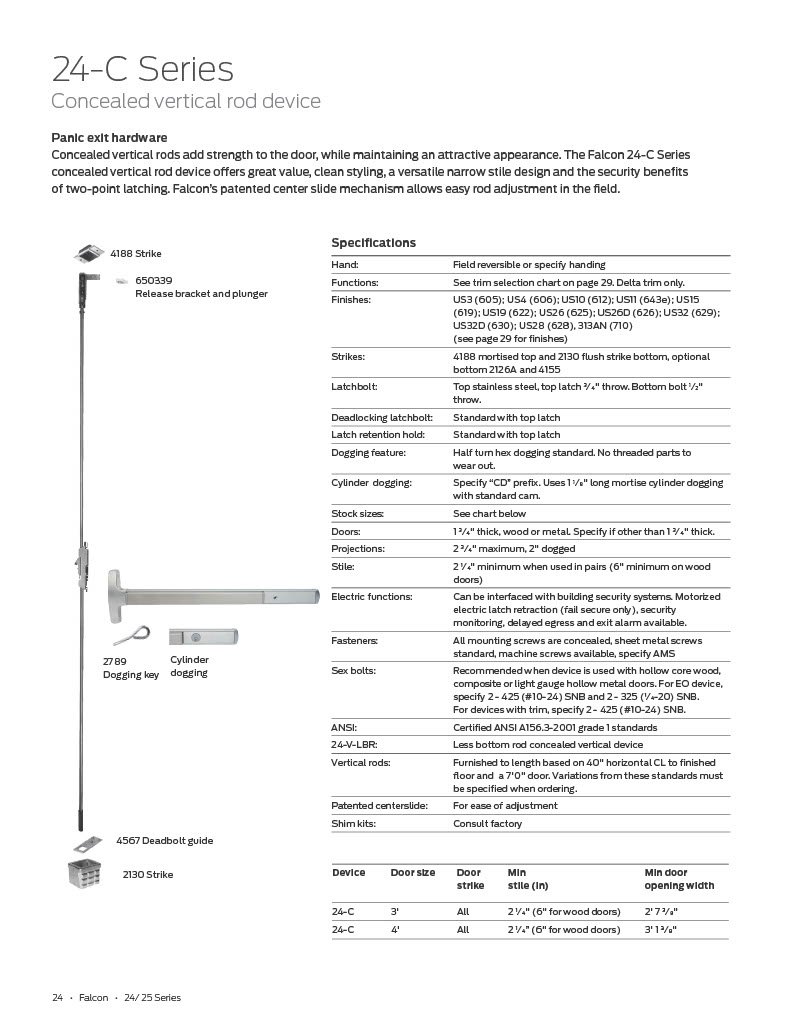

Falcon 24C-EO Narrow Concealed Vertical Rod Exit Device (Monarch)

Falcon 24V-EO Narrow*Concealed Rod Exit Device*

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

• Frequent traffic

• Offices, churches, hospitality, retail, education, healthcare

-  Interior, exterior, new construction, retro-fit

- 10-year warranty

Hand:Field reversible.

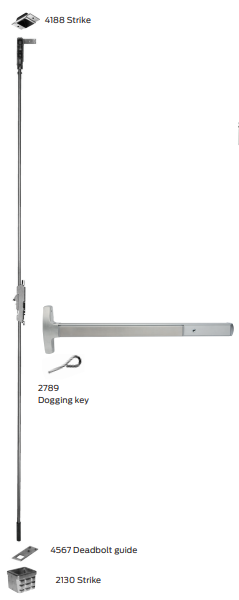

Strikes:4188 mortised top and 2130 flush strike bottom, optional bottom 2126A and 4155.

Latchbolt:Top stainless steel, top latch 3⁄4" throw, bottom bolt 1 ⁄2" throw.

Deadlocking latchbolt:Standard with top latch.

Latch retention hold:Standard with top latch. On top latch.

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Doors:1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4" thick.

P*rojections:*2 3⁄4" maximum, 2" dogged.

Stile:2 1 ⁄4" minimum when used in pairs. (6" minimum on wood doors).

Fasteners:All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 2 - 425 (#10-24) SNB and 2 - 325 (1 ⁄4-20) SNB. For devices with trim, specify 2 - 425 (#10-24) SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

24-C-LBR:Less bottom rod concealed vertical device.

Vertical rods:Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering
