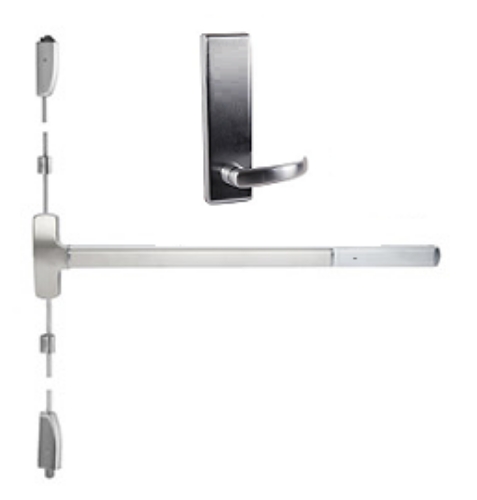

Falcon 25V-DT-Q Surface Vertical Rod Exit Device, With 510L Dummy Trim, Quantum Lever

Falcon 25V-DT-Q Vertical Rod Exit Device, With 510L Dummy Trim, Quantum Lever

Trim Type:510L-DT Dummy Trim.

All levers return to within 1⁄2" of door.

Escutcheon: 9 3⁄4" (H) x 2 3⁄4" (W) (specify handing) brass finish.

Protected by easily replaceable shear pin.

Lever is reversible, supplied RHR if not specified.

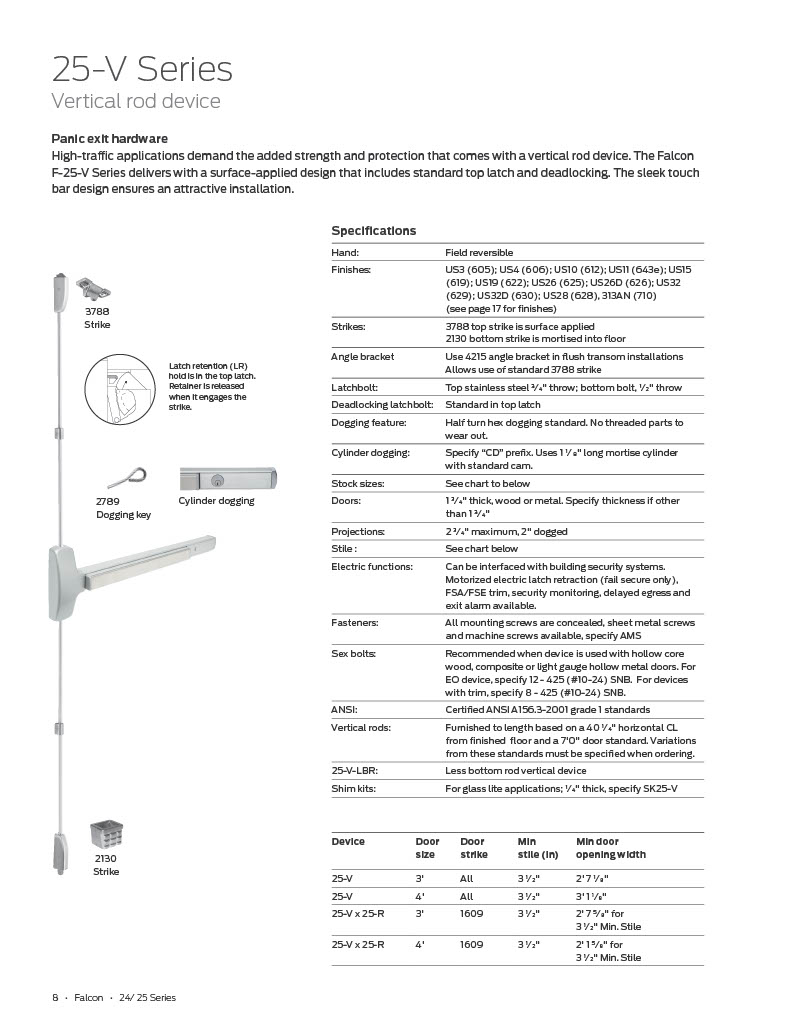

25 Series Exit Device:

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

Hand:Field reversible.

Strikes:3788 top strike is surface applied. 2130 bottom strike is mortised into floor.

Angle bracketUse 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike.

Latchbolt:Top stainless steel 3⁄4" throw. Bottom bolt, 1 ⁄2" throw.

Deadlocking latchbolt: Standard in top latch.

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Cylinder dogging:Specify “CD" prefix. Uses 1 1 ⁄ 8" long mortise cylinder with standard cam.

Doors:1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4".

Projections:2 3⁄4" maximum, 2" dogged.

Fasteners:All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 SNB. For devices with trim, specify 8 - 425  SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

Vertical rods:Furnished to length based on a 40 1 ⁄4" horizontal CL from finished floor and a 7'0" door standard.

 25-V-LBR:Less bottom rod vertical device

Extension Rods:For door heights over 7'0" up to 8'0", 12" extension rods Are Needed
