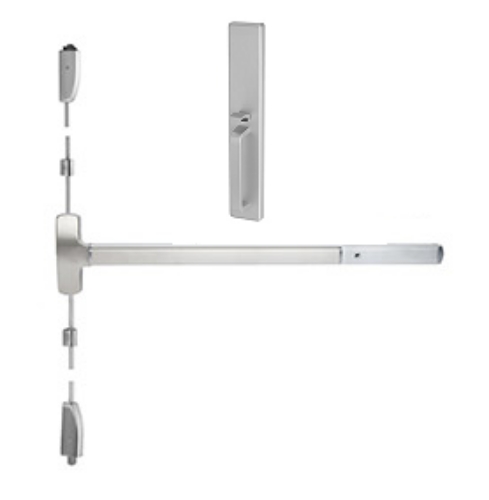

Falcon 25V-TP-BE 28 Surface Vertical Rod Exit Device, With Blank Escutcheon Thumb Piece Trim (512TPBE), Aluminum
Product Details
Falcon 25V-TP-BE 28 Surface Vertical Rod Exit Device, With Blank Escutcheon Thumb Piece Trim, Satin Aluminum Clear Anodized

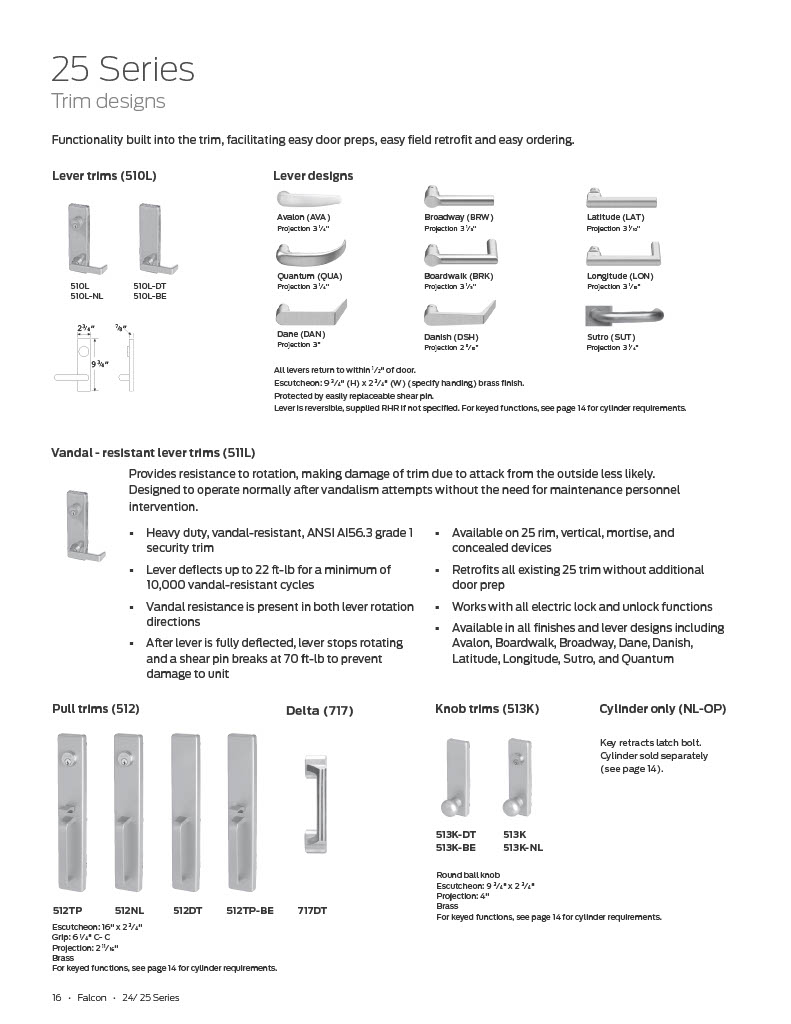

Trim Type: 512TPBE- Pull Classroom,Escutcheon: 16" x 2 3⁄4" Grip: 6 1 ⁄4" C- CProjection: 2 11⁄16" Brass.
- Maximum flexibility in a variety of applications
- Wide range of features and options
- Patent pending deadlocking technology
- Frequent traffic
- Offices, churches, hospitality, retail, education, healthcare
- Interior, exterior, new construction, retro-fit
- 10-year warranty

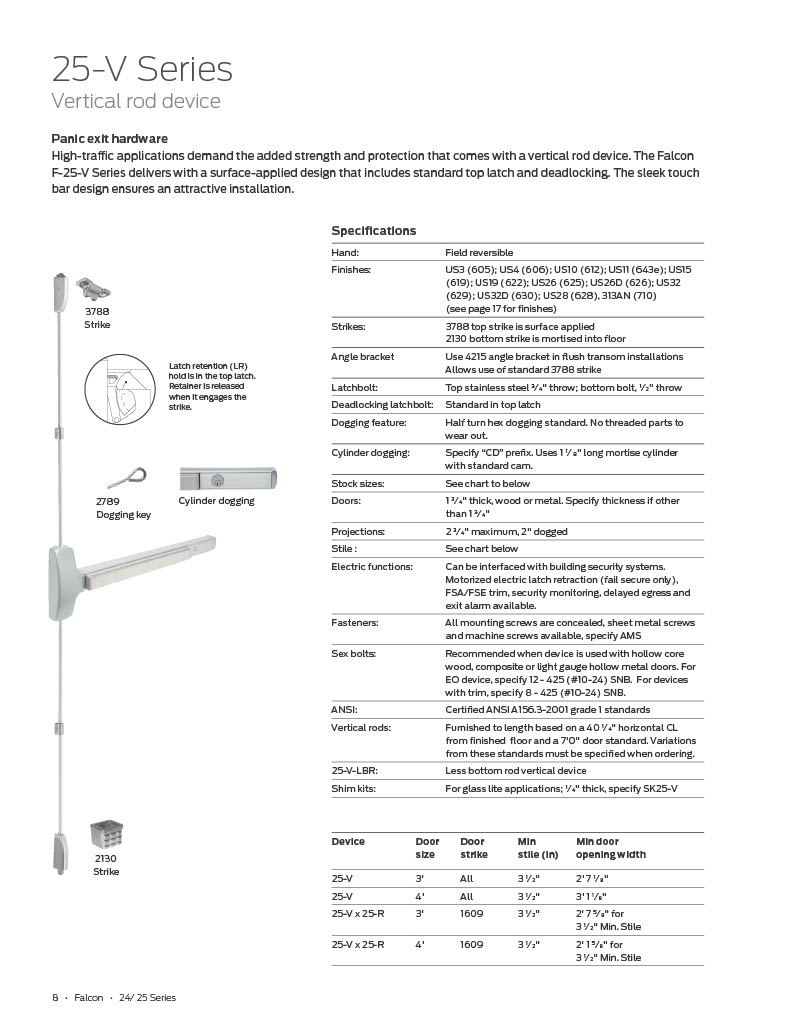

Hand:Field reversible.
Strikes:3788 top strike is surface applied. 2130 bottom strike is mortised into floor.
Angle bracketUse 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike.
Latchbolt:Top stainless steel 3⁄4" throw. Bottom bolt, 1 ⁄2" throw.
Deadlocking latchbolt: Standard in top latch.
Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.
Cylinder dogging:Specify “CD" prefix. Uses 1 1 ⁄ 8" long mortise cylinder with standard cam.
Doors:1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4".
Projections:2 3⁄4" maximum, 2" dogged.
Fasteners:All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 SNB. For devices with trim, specify 8 - 425 SNB.
ANSI:Certified ANSI A156.3-2001 grade 1 standards.
Vertical rods:Furnished to length based on a 40 1 ⁄4" horizontal CL from finished floor and a 7'0" door standard.
25-V-LBR:Less bottom rod vertical device
Extension Rods:For door heights over 7'0" up to 8'0", 12" extension rods Are Needed
Model: 25TP4US28Fa Model: 25TP4US28Falcon, 25TP-4-US28Falcon, 25TP4US28Falcon, 25TP 4 US28 Falcon,Falcon25TP, Falcon25TP, Falcon25TP, Falcon25TP, 25TP Falcon, 25TP Falcon, 25TP Falcon, 25TP Falcon, 25TPFalcon, 25TPFalcon, 25TPFalcon, 25TPFalcon, 25TP-3, 25TP3, 25TP 3, Falcon 25TP, Falcon 25TP-3, Falcon 25TP3, Falcon 25TP 3, Falcon25TP3, Falcon25TP-3, Falcon25TP3, Falcon25TP 3, 25TP Falcon, 25TP-3 Falcon, Falcon 25TP3, Falcon 25TP 3, 25TP3Falcon, 25TP-3Falcon, 25TP3Falcon, 25TP 3 Falcon, .25TP-3-C13, 25TP3C13, 25TP 3 C13, Falcon 25TP, Falcon 25TP-3-C13, Falcon 25TP3C13, Falcon 25TP 3 C13, Falcon25TP3C13, Falcon25TP-3-C13, Falcon25TP3C13, Falcon25TP 3 C13, 25TP Falcon, 25TP-3-C13 Falcon, Falcon 25TP3C13, Falcon 25TP 3 C13, 25TP3C13Falcon, 25TP-3-C13Falcon, 25TP3C13Falcon, 25TP 3 C13 Falcon, 25TP-4, 25TP4, 25TP 4, Falcon 25TP, Falcon 25TP-4, Falcon 25TP4, Falcon 25TP 4, Falcon25TP4, Falcon25TP-4, Falcon25TP4, Falcon25TP 4, 25TP Falcon, 25TP-4 Falcon, Falcon 25TP4, Falcon 25TP 4, 25TP4Falcon, 25TP-4Falcon, 25TP4Falcon, 25TP 4 Falcon, .25TP-4-C13, 25TP4C13, 25TP 4 C13, Falcon 25TP, Falcon 25TP-4-C13, Falcon 25TP4C13, Falcon 25TP 4 C13, Falcon25TP4C13, Falcon25TP-4-C13, Falcon25TP4C13, Falcon25TP 4 C13, 25TP Falcon, 25TP-4-C13 Falcon, Falcon 25TP4C13, Falcon 25TP 4 C13, 25TP4C13Falcon, 25TP-4-C13Falcon, 25TP4C13Falcon, 25TP 4 C13 Falcon,
