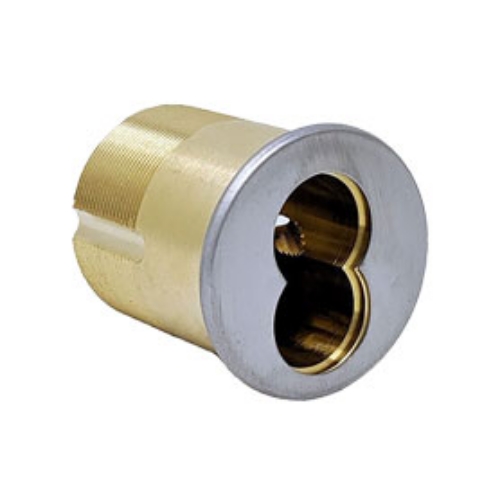

Falcon C992 2" SFIC Mortise Housing

The Falcon C992 is an SFIC mortise housing, not a cylinder. The distinction is important when ordering. A conventional mortise cylinder contains a complete keying mechanism: pins, springs, a keyway plug, and a fixed key cut pattern. The C992 contains none of that. It's the outer shell that a Small Format Interchangeable Core (SFIC) drops into. The IC core holds all the keying elements and can be removed and replaced using a control key, without taking the housing out of the lock body or the lock body out of the door. The C992 is the correct component for a Falcon mortise lock prep that needs to accept BEST-compatible SFIC cores.

The "2"" in C992 is the housing length: 2 inches. Standard SFIC mortise housings are typically 1-1/4" or 1-3/8". The 2" length is for Falcon mortise lock bodies and prep configurations that require the longer housing reach to interface correctly with the internal mechanism. Order the wrong length and the housing either won't seat properly or the cam won't engage the lock's actuating mechanism. The Falcon MA Cam (part number 5622-IC, also called F2 cam) is the specific cam profile included with the C992, matched to Falcon's own mortise lock cam interface. For all IC housings, cores, and key blanks, browse our cylinders, cores, and keys catalog.

SFIC and IC Core: What They Mean for Facilities

SFIC stands for Small Format Interchangeable Core. The system was pioneered by BEST Access Systems and has since become an industry standard that multiple manufacturers support with compatible housings. An IC core slides into any compatible housing using a control key that's separate from the operating key. When a tenant moves out, maintenance staff don't call a locksmith or replace the lock. They slide out the old core with the control key and install a new core. The door hardware stays. The key system changes in seconds.

The C992 housing accepts BEST-compatible 6-pin SFIC cores. These are the same cores that fit Corbin Russwin, Sargent, Yale, and BEST mortise housings in the same SFIC format. If a facility runs a BEST IC core master key program, the C992 allows Falcon mortise locks to participate in that same program: same cores, same control key, same master key hierarchy.

Falcon C992 Technical Specifications

SKU: C992. Also known as: Falcon C992, C992 housing, Falcon SFIC mortise housing 2 inch, C992 falcon ic housing. Type: SFIC Mortise Housing. Length: 2" (50mm). Cam: Falcon MA Cam (5622-IC (F2)). Keyway format: 6-pin SFIC (BEST-compatible). Finish: Satin Chrome. Handing: Non-handed. Core: Not included; accepts BEST-compatible 6-pin SFIC cores. Resources: Falcon Keys, Keying Systems and Cylinders Product Catalog in Resources section.

C992 vs. Other SFIC Mortise Housings

The related products on this page show competing SFIC mortise housings from Corbin Russwin, Yale, BEST, and Sargent. 76 is the lowest-cost SFIC mortise housing in this group. The functional difference is cam profile: each manufacturer's housing uses a cam matched to their own lock bodies. The C992's MA cam fits Falcon lock bodies. Corbin Russwin's 1070 cam fits Corbin Russwin lock bodies. Ordering the wrong cam for the installed lock body is the most common installation error on SFIC housing replacements. Confirm the installed lock body brand and cam requirement before selecting.
