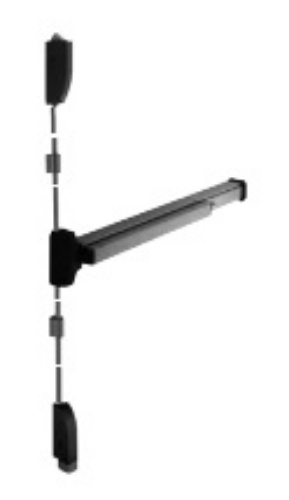

Falcon F19V EO Fire Rated Vertical Panic Exit Device (Monarch)

Falcon F19V EO Fire Rated Vertical Panic Exit Device(Monarch)

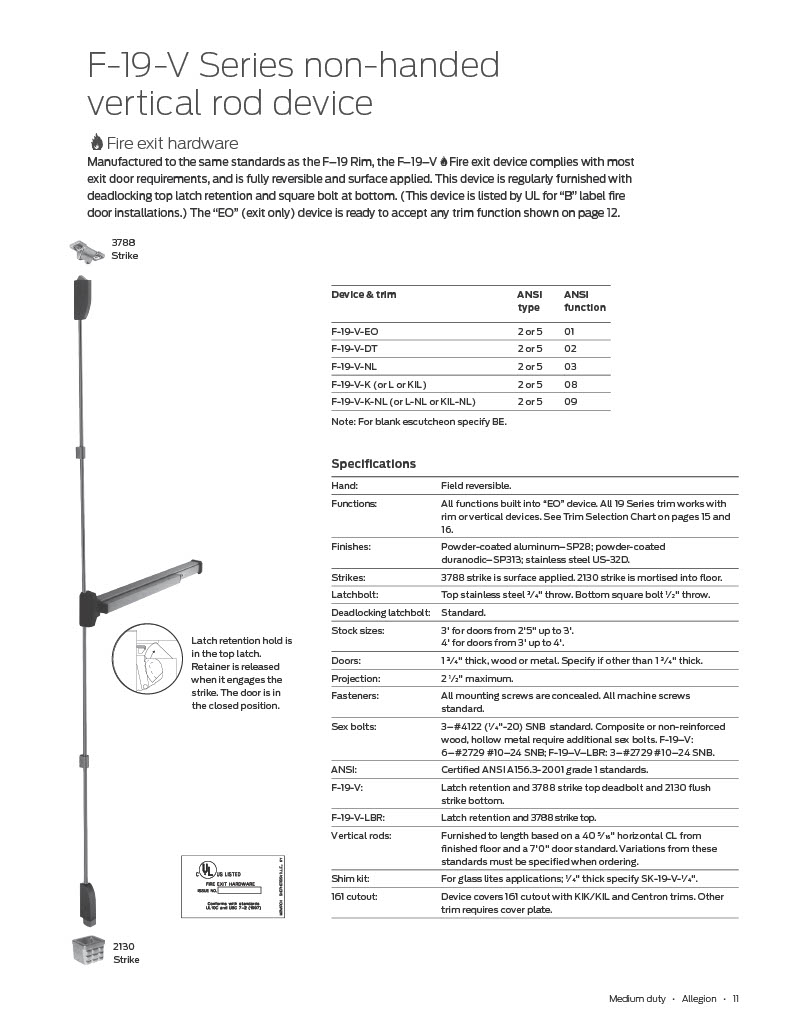

Manufactured to the same standards as the F–19 Rim, the F–19–V ZFire exit device complies with most exit door requirements, and is fully reversible and surface applied. This device is regularly furnished with deadlocking top latch retention and square bolt at bottom. (This device is listed by UL for “B" label fire door installations.) The “EO" (exit only) device is ready to accept any trim function

Specifications

Hand:  Field Reversible

Finishes:Power-coated aluminum-SP28; power-coated duranodic-SP313; stainless steel US-32D

Strikes:3788 strike is surface applied standard, 2130 strike is mortised into floor.

Latchbolt:Top stainless steel 3 ⁄4" throw. Bottom square bolt 1 ⁄2" throw

Deadlocking latchbolt: Standard.**

Stock sizes:3' for doors from 2'5" up to 3'. 4' for doors from 3' up to 4'.**

Doors:1 3 ⁄4" thick, wood or metal. Specify thickness if other than 1 3 ⁄4".**

Stile: 3-1/2' Minimum stile.

Projection:2 1 ⁄2" max., 1 7 ⁄8" dogged.

Fasteners:All mounting screws are concealed. Furnished with sheet metal screws. Machine screws available, specify AMS.

Sex bolts:3–#4122 (1 ⁄4"–20) SNB standard.

ANSI:Certified ANSI A156.3 2001 grade 1 standards.**

19–V:Latch retention and 3788 strike top, deadbolt and 2130 flush strike bottom.**

19–V–LBR:3788 strike top.

Vertical rods:Furnished to length based on 40 5 ⁄16" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.

Shim kit:For glass lites applications; 1 ⁄4" thick specify SK-19-V-1 ⁄4".

161*cutout:*Device covers 161 cutout with KIK/KIL and Centron trims. Other trim requires cover plate.
