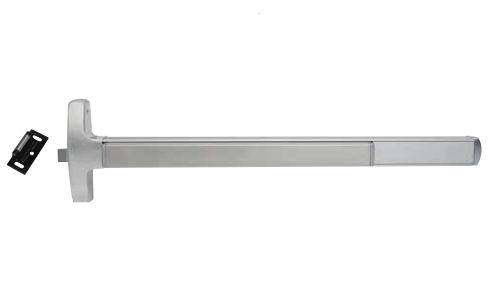

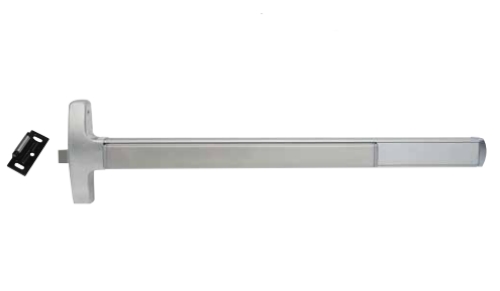

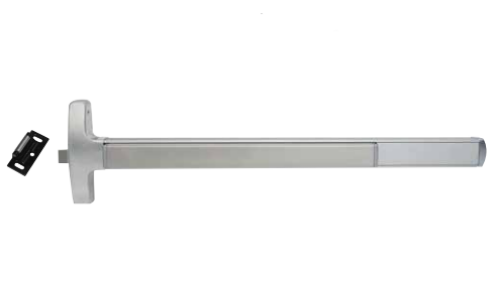

Falcon F24R-EO Fire Rated Narrow Rim Exit Device (Monarch)

Falcon F24R-EO Fire Rated Narrow Rim Exit Device (Monarch)

• Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

• Frequent traffic

• Offices, churches, hospitality, retail, education, healthcare

• Interior, exterior, new construction, retro-fit

- 10-year warranty

Hand:Non-handed

UL:“B" label (1 1 ⁄2 hr.); 4'0" x 8'0".**

FunctionsF-24-REO (Exit only) has all functions built in. Order trim with the device, or add it later.

Strikes:299F strike standard.

Latchbolt:Stainless steel, 3⁄4" throw.

Deadlocking latchbolt:Standard.

Doors:1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4".

Projections:2 3⁄4" maximum.

Mounting height:40" from CL to finished floor

Fasteners:All mounting screws are concealed. Furnished with all machine screws.

Sex bolts:Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 - 425  SNB and 2 - 325 (1 ⁄4"-20) SNB. For devices with trim, specify 4 - 425   SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

Center case & working parts:Investment-cast ferrous alloy with heavy wrought and sintered metal parts.

**

**

**
