Falcon F25R-L-D Rim Exit Device, Dane Lever, Fire Rated

Falcon F25R-L-D Rim Exit Device, Dane Lever, Fire Rated

Product Details

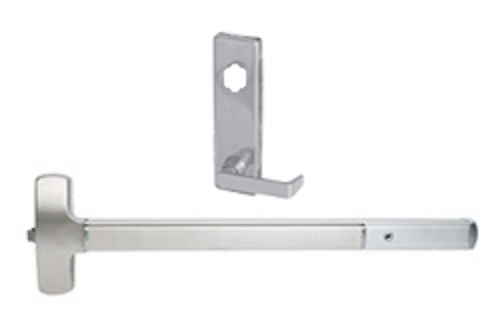

Falcon F25R-L-D Rim Exit Device, Dane Lever, Fire Rated

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

Hand:Non-handed

Strikes:299 strike standard.

Latchbolt:Stainless steel, 3⁄4" throw.

Deadlocking latchbolt:Standard.

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Cylinder dogging:Specify “CD" prefix. Uses 1 1 ⁄ 8" long mortise cylinder with standard cam

Doors:1 3⁄4" thick, wood or metal.

Projections:2 3⁄4" maximum, 2" dogged.

Mounting height:40 1 ⁄4" from CL to finished floor.

Fasteners:All mounting screws are concealed, sheet metal screws and machine screws standard.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

Center case & working parts:Center case is heavy wrought and sintered metal parts.

Model:Falcon 25R-EO, 25-R-EO, 25REO, 25 R EO , 25 R EO

Falcon F25R-L-D Rim Exit Device, Dane Lever, Fire Rated

Name: Falcon F25R-L-D Rim Exit Device, Dane Lever, Fire Rated
SKU: F25RLD
Price: 1077.30 USD
Availability: InStock

SKU: F25RLD

In Stock

Chat

$1,077.30

About this item

The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Resources
