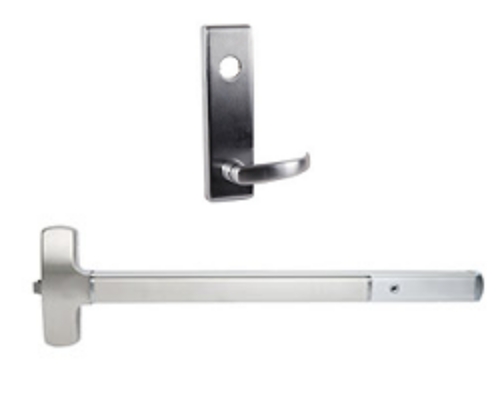

Falcon F25R-L-Q Rim Exit Device, Quantum Lever, Fire Rated

Falcon F25R-L-Q Rim Exit Device, Quantum Lever, Fire Rated

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

Hand:Non-handed

Strikes:299 strike standard.

Latchbolt:Stainless steel, 3⁄4" throw.

Deadlocking latchbolt:Standard.

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Cylinder dogging:Specify “CD" prefix. Uses 1 1 ⁄ 8" long mortise cylinder with  standard cam

Doors:1 3⁄4" thick, wood or metal.

Projections:2 3⁄4" maximum, 2" dogged.

Mounting height:40 1 ⁄4" from CL to finished floor.

Fasteners:All mounting screws are concealed, sheet metal screws and machine screws standard.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

Center case & working parts:Center case is heavy wrought and sintered metal parts.

Model:Falcon 25R-L-Q, 25-R-L-Q, 25RLQ, 25 R LQ, 25 R LQ, 26D, 28, 313, 32D
