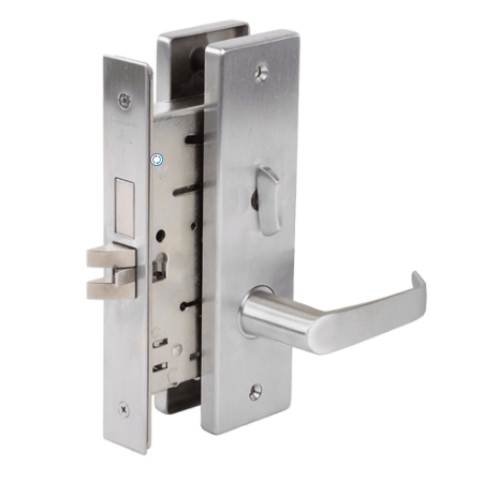

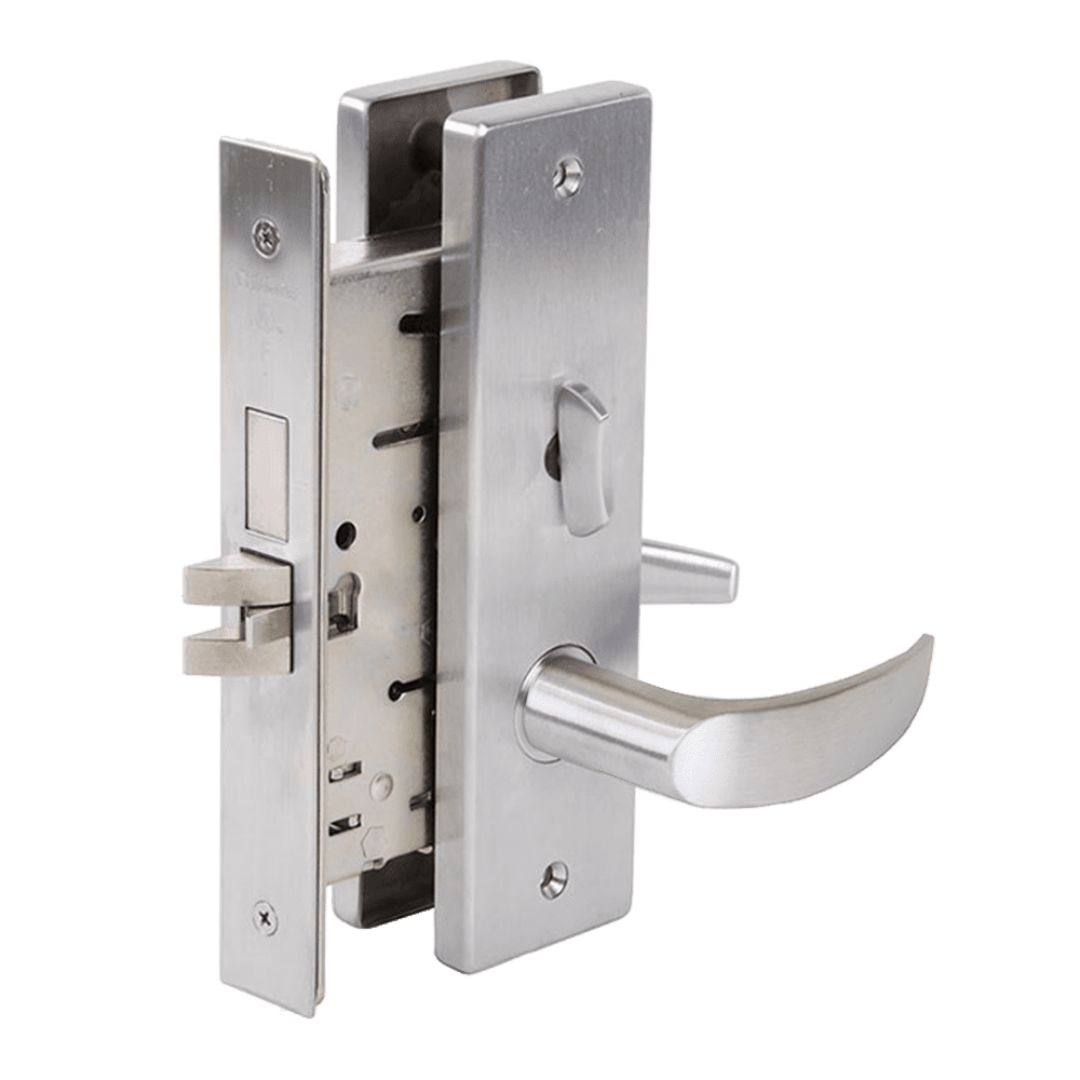

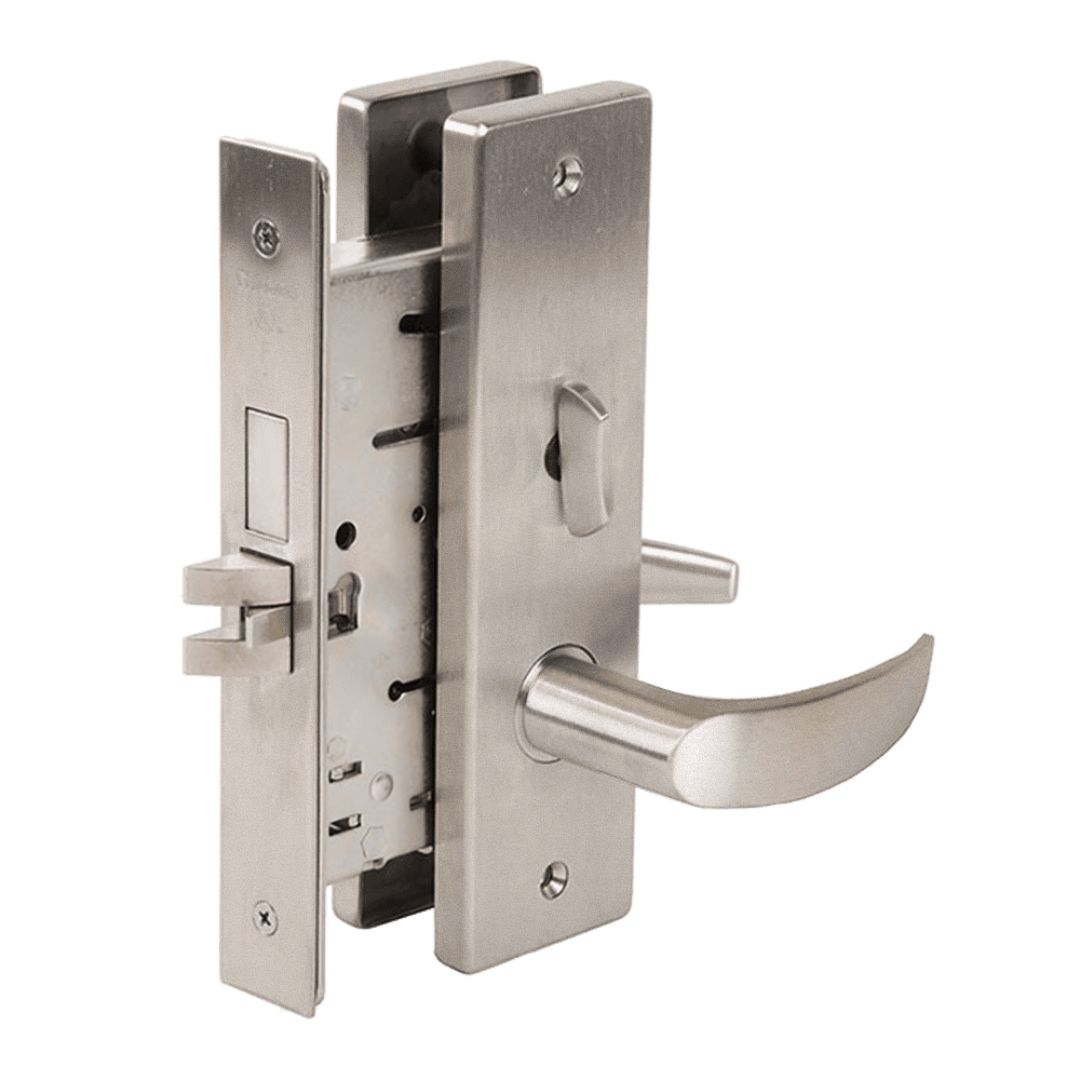

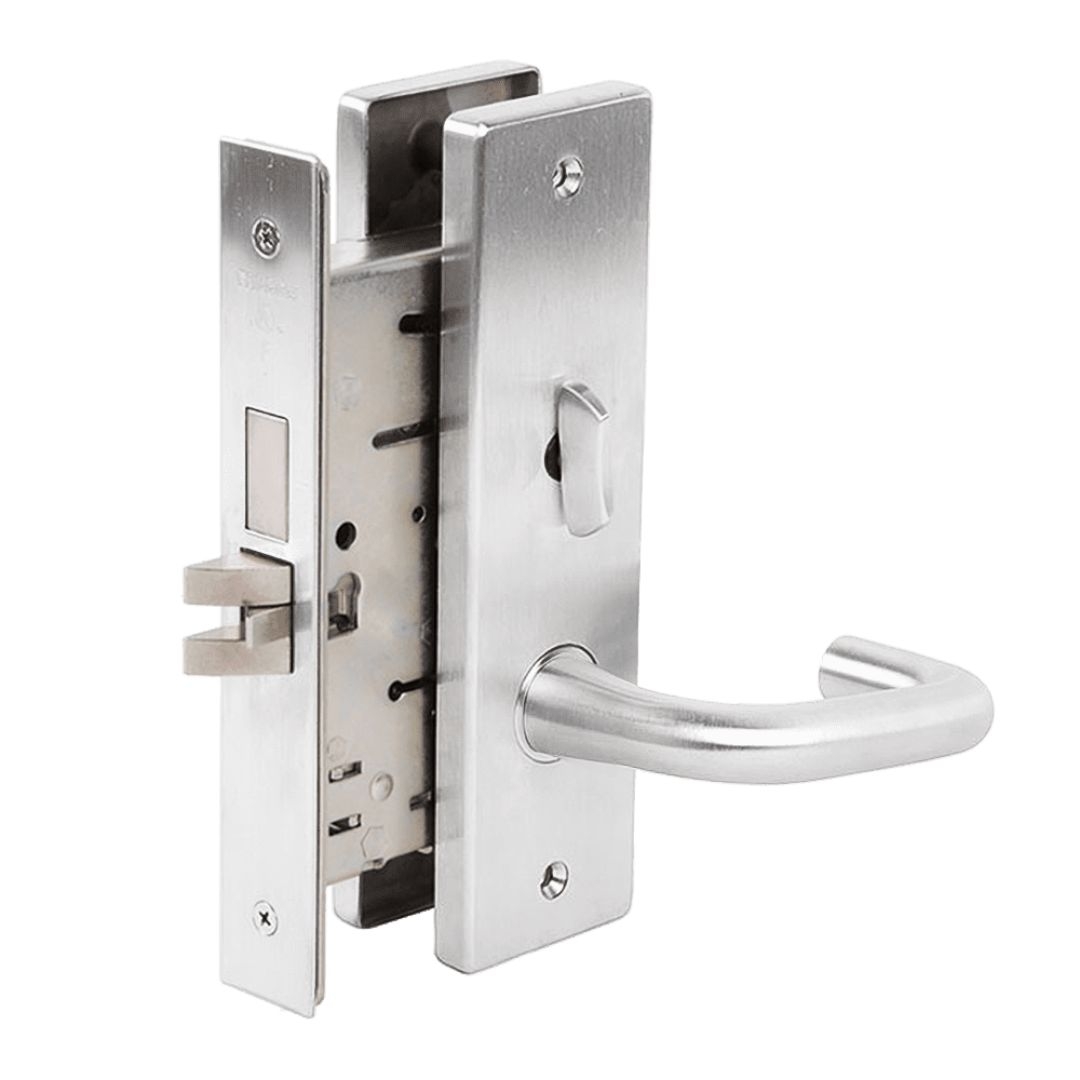

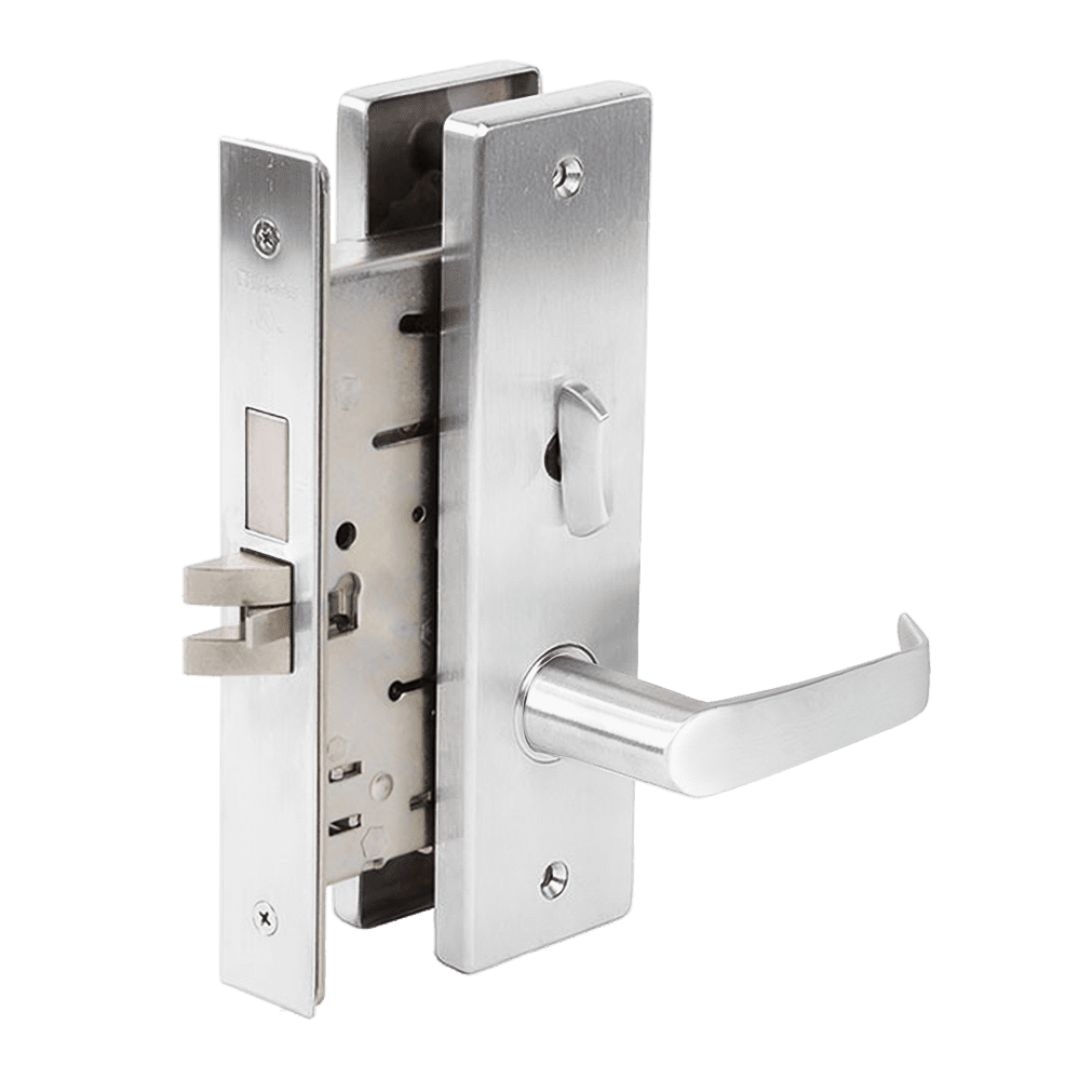

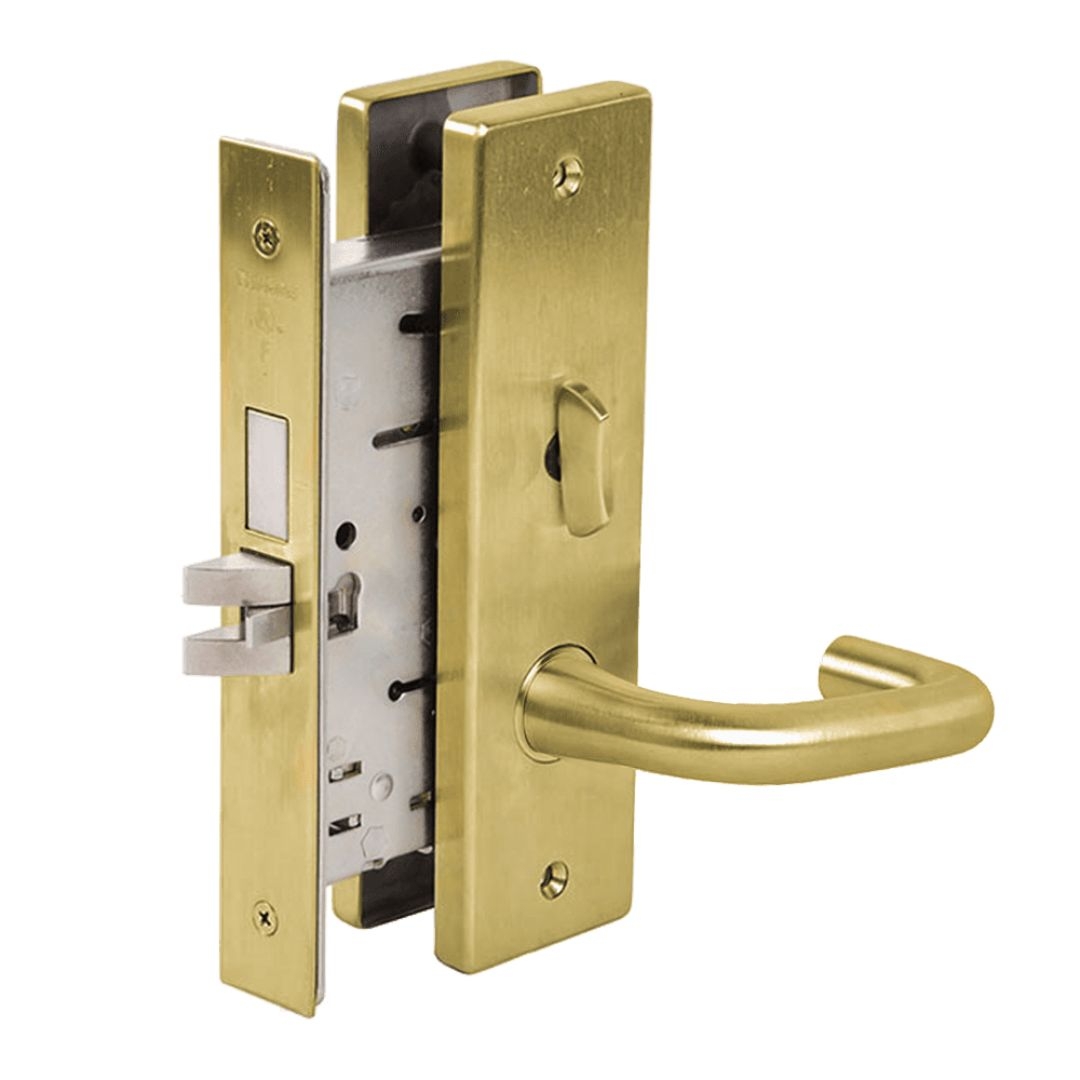

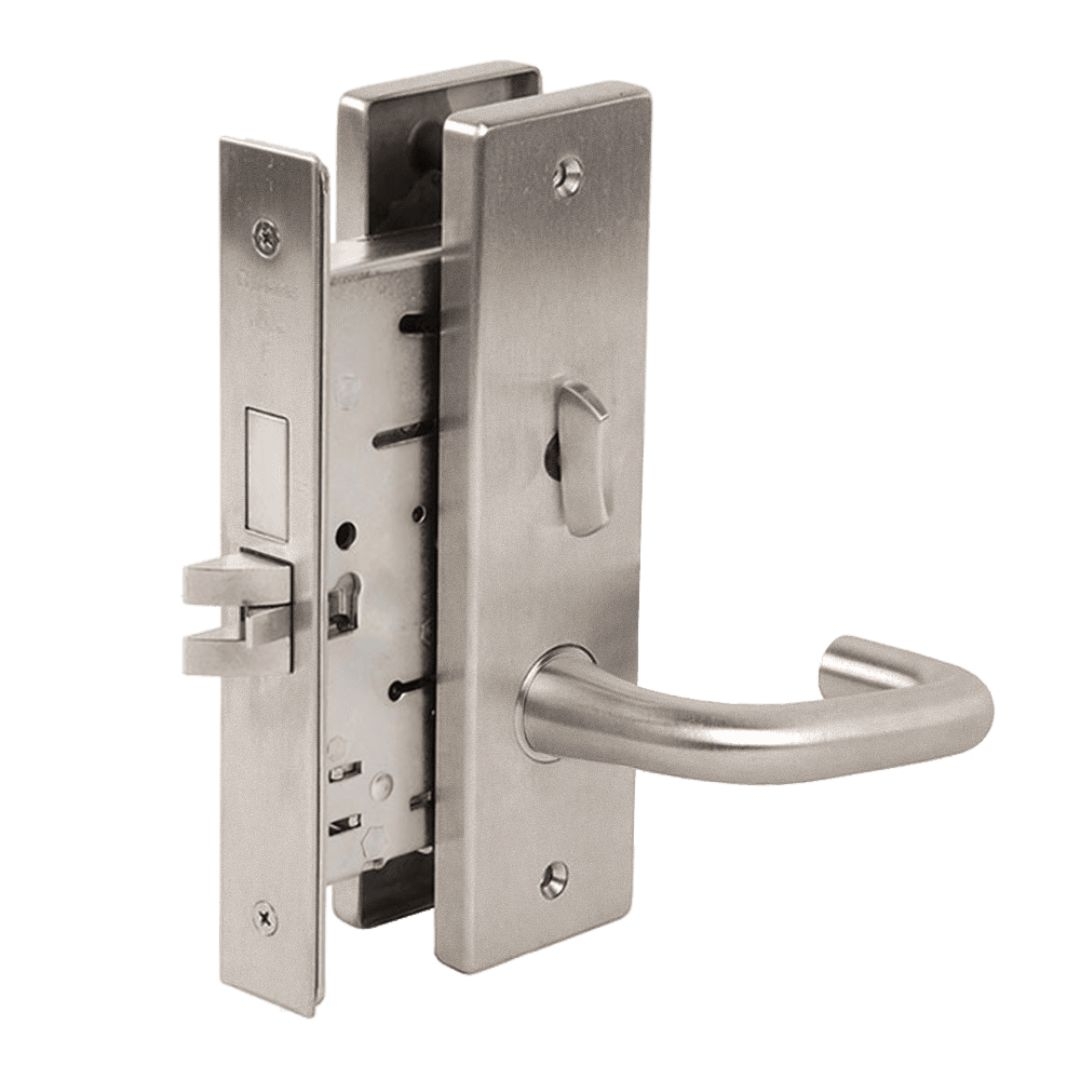

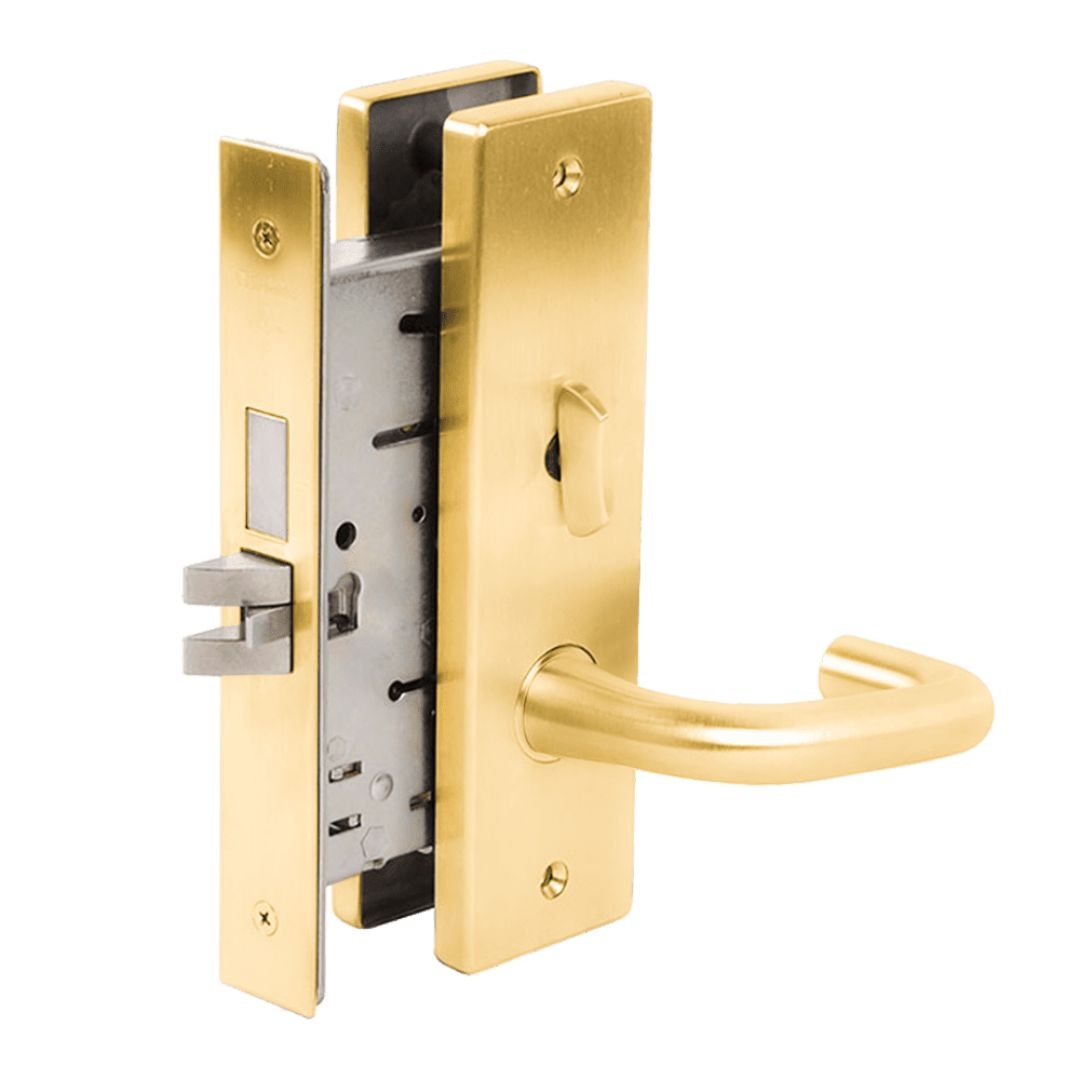

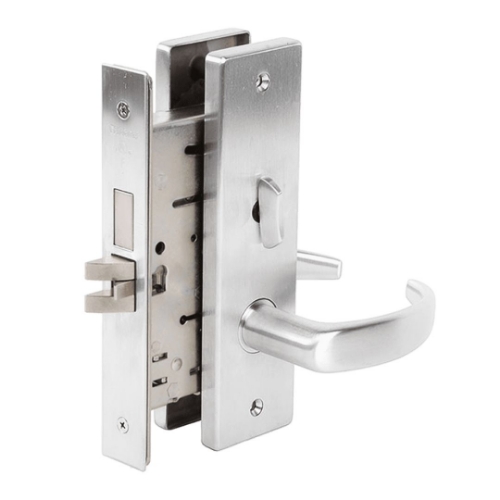

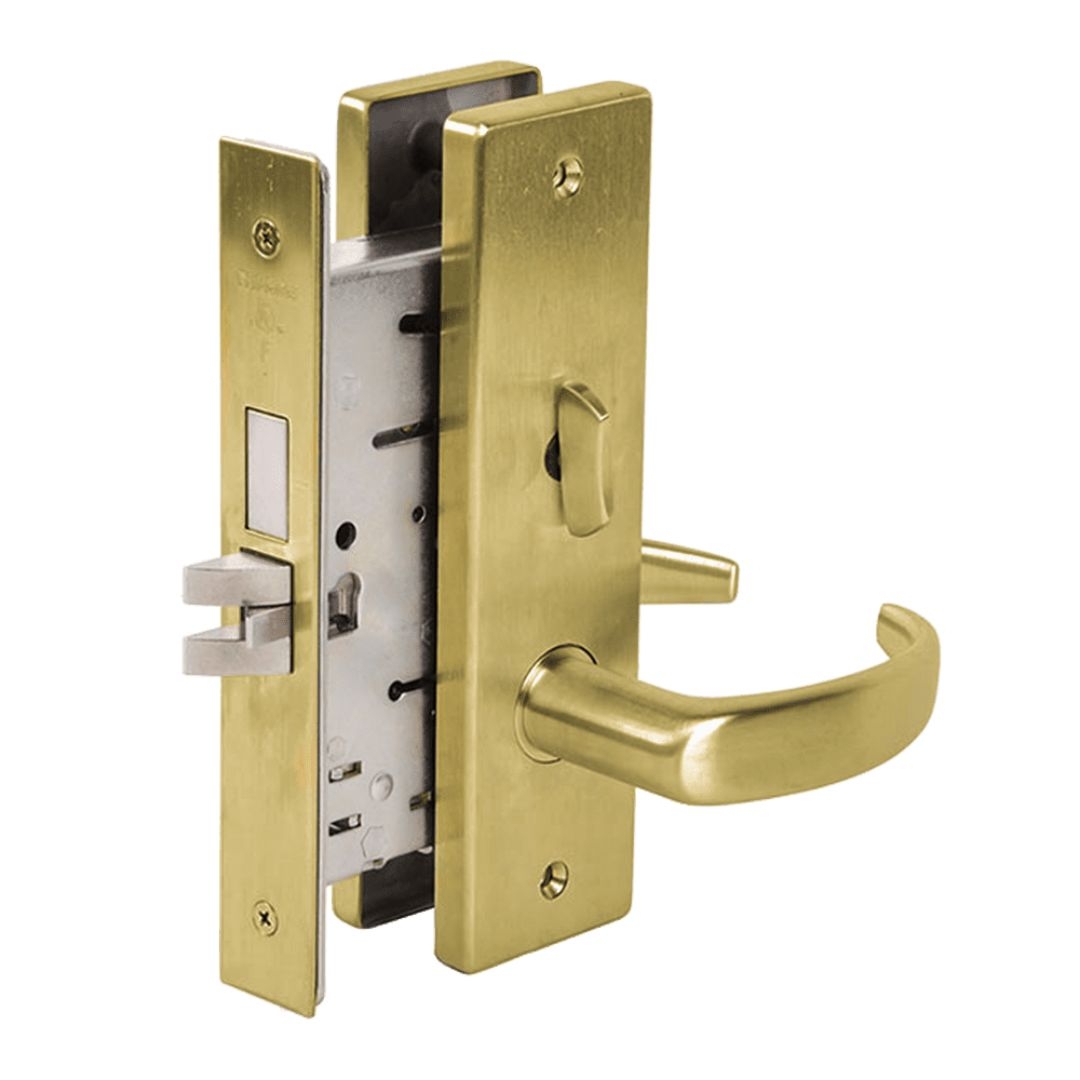

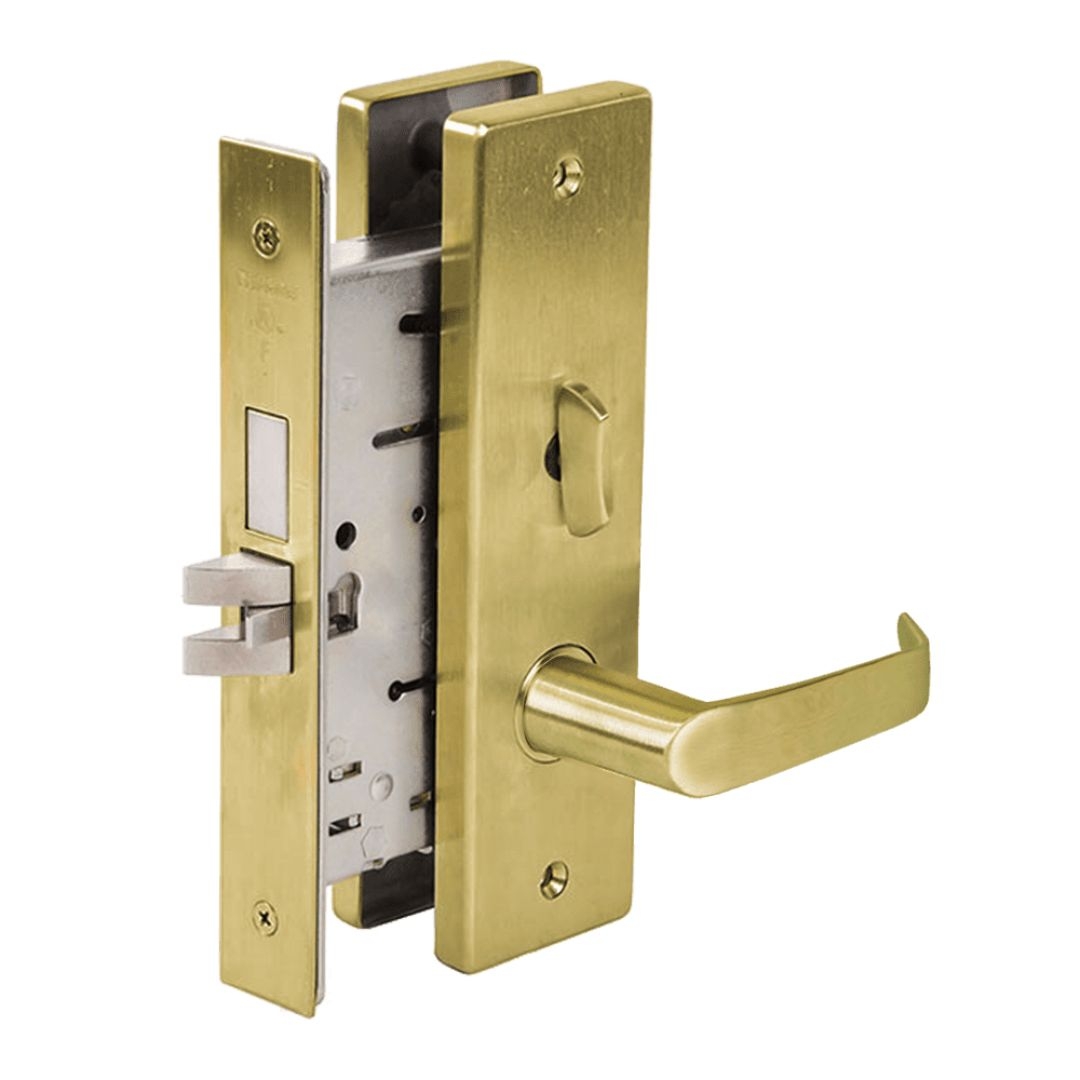

Falcon MA301 Grade 1 Privacy Mortise Lock

Falcon MA301 Privacy Mortise Lock - ANSIFO2

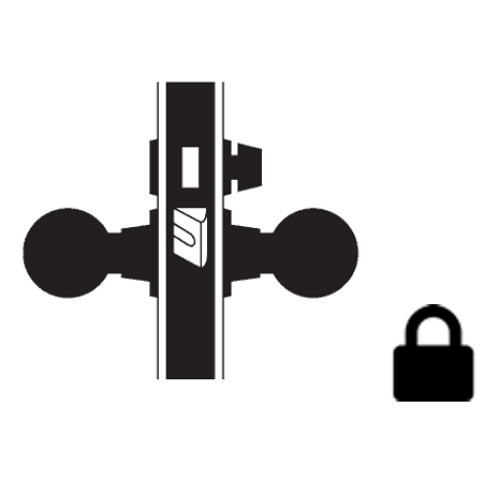

Latchbolt by knobs/levers, deadbolt by turn inside or emergency key outside.

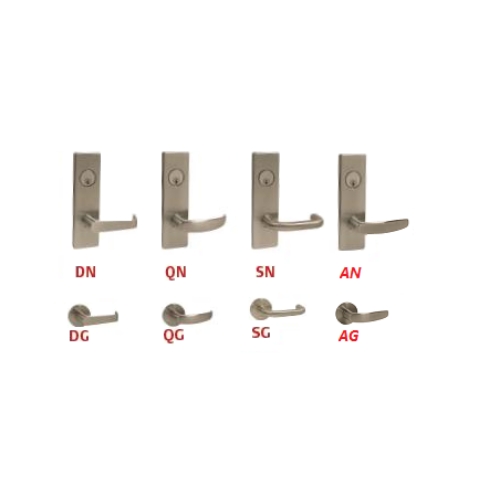

**Available in the following trim styles:

**

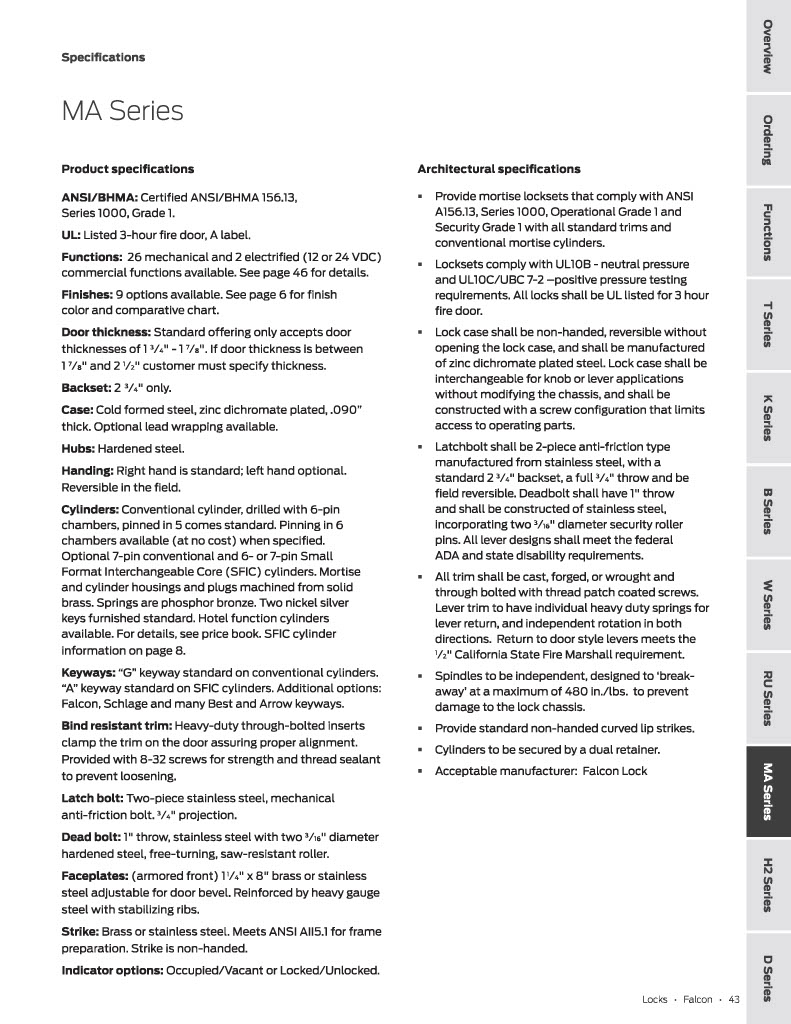

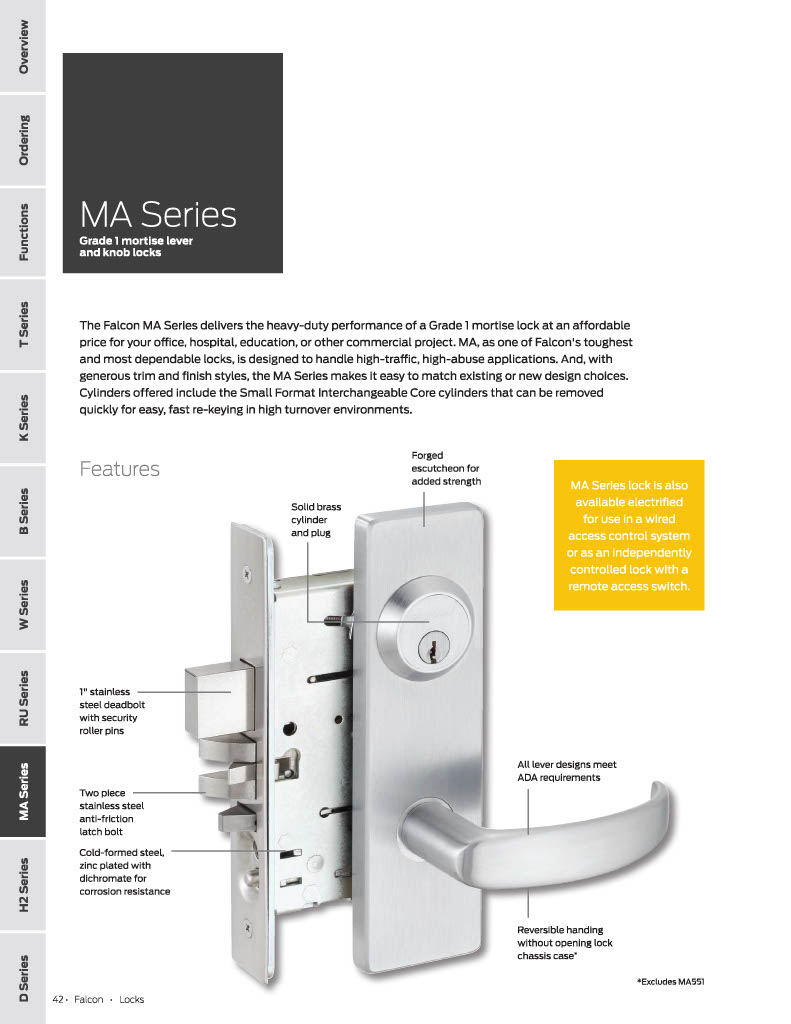

MA Series Lock Features

Door thickness:Standard accommodates thickness of 1-3/8to 2-1/2".

Backset:2-3/4only.

Case:Cold formed steel, zinc dichromate plated, .090thick.

Hubs:Hardened steel.

Handing:Right hand is standard; left hand optional. Reversible in the field.

Cylinders:Solid brass cylinder and plug.Standard mortise cylinders are furnished as 5-or 6-pin as standard. 6 or 7-pin are available on interchangeable core cylinder.

Furnished with two nickel silver keys standard

Keyways:Gkeyway standard on standard cylinder. A keyway standard on I/C cylinder.

Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.

Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4projection.

Dead Bolt:1throw, stainless steel with two 13/16diameter hardened steel, free-turning, saw-resistant roller.

Faceplates:(Armored Front) 1-1/4x 8brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.

Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.

Electrified Functions:Available in 12 or 24 VDC. ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.

UL:3 hour A label.

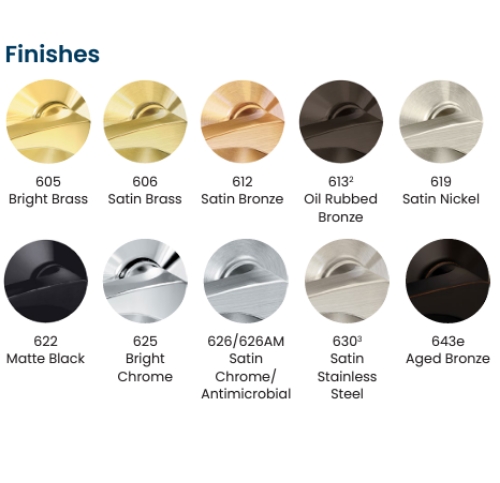

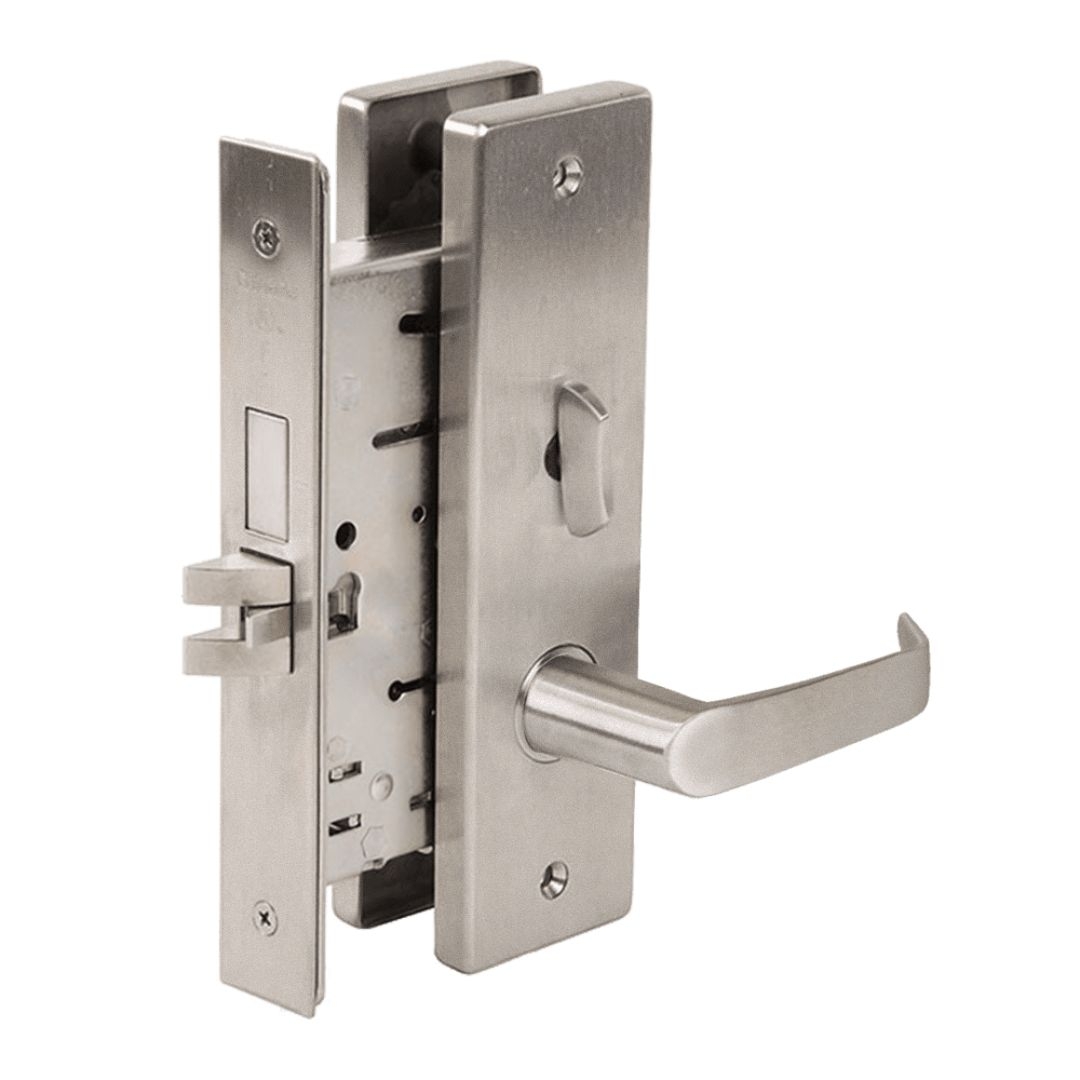

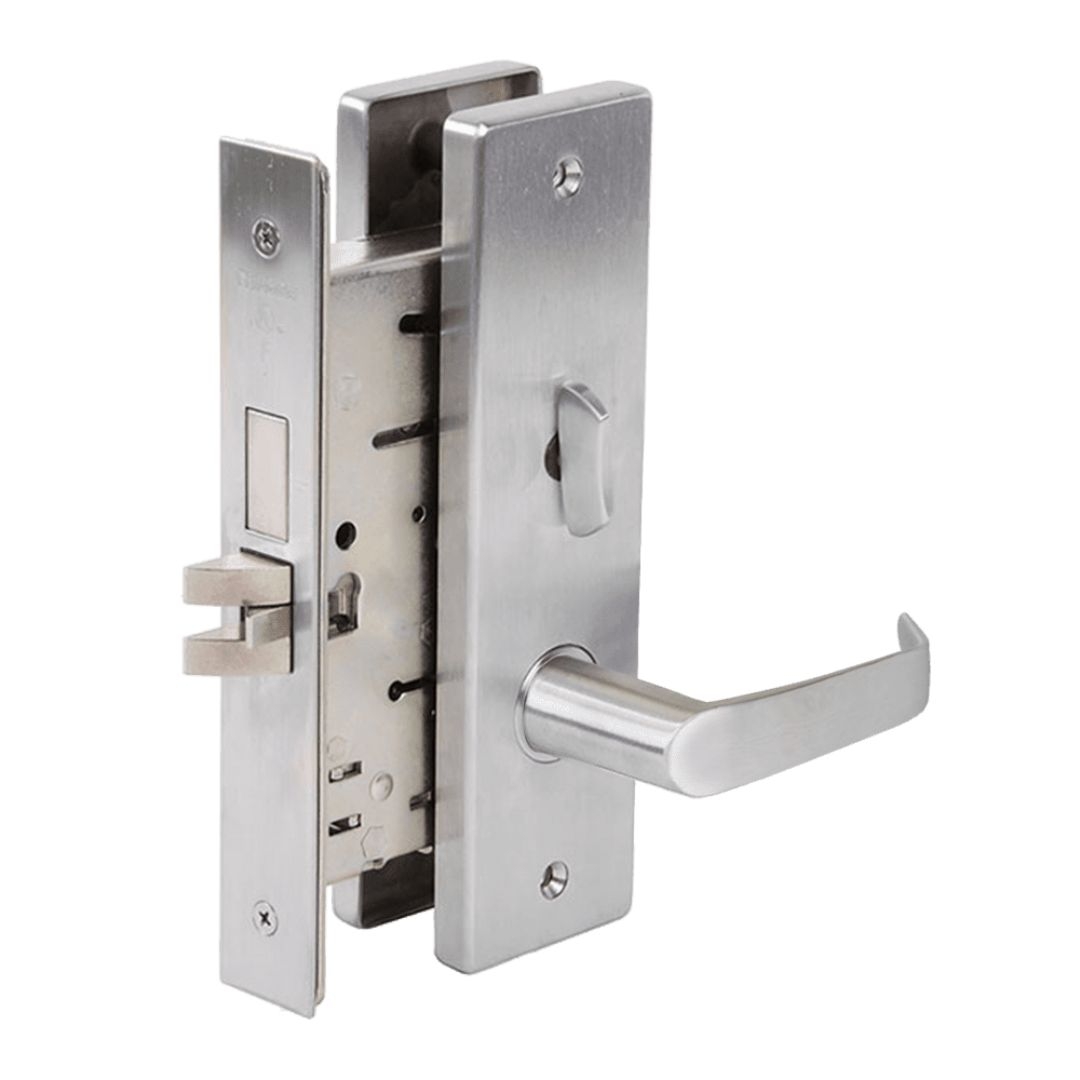

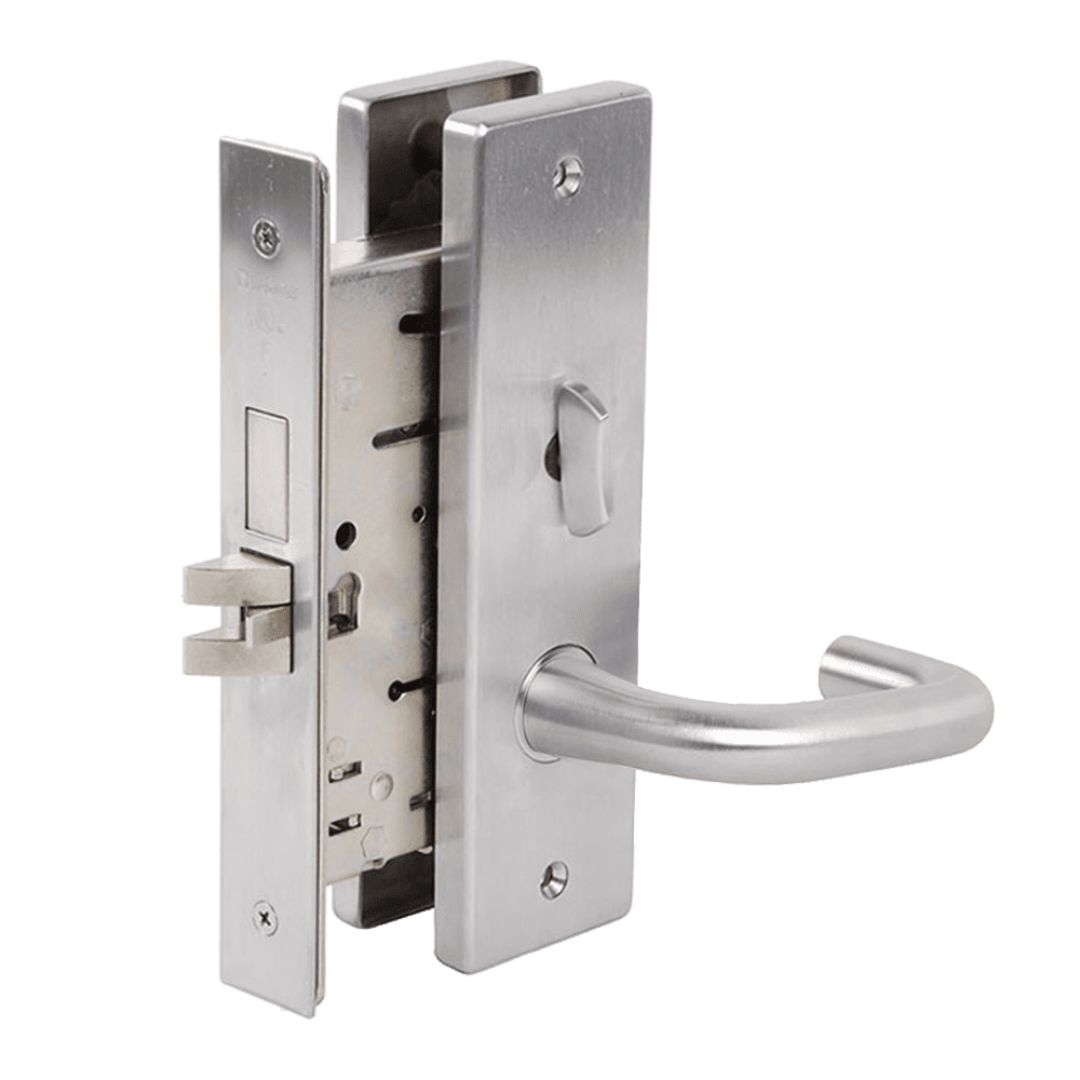

Model: Falcon MA301, DG, Dane-Gala, QG, -Quantum-Gala, SG, Sutro-Gala, DN, Dane-Napa, QN, -Quantum-Napa, SN, Sutro-Napa, HG, Hana-Gala, HN, Hana-Napa, 626, Satin Chrome, 613, Oil Rubbed Bronze, 630, Satin Stainless Steel, MA301DG, MA301QG, MA301SG, MA301HG, MA301DN, MA301QN, MA301SN, MA301HN, MA301DG626, MA301DG613, MA301DG630 ,MA301QG626, MA301QG613, MA301QG630, MA301SG626, MA301SG613, MA301SG630, MA301DN626, MA301QN626, MA301SN626, MA301HG626, MA301HN626
