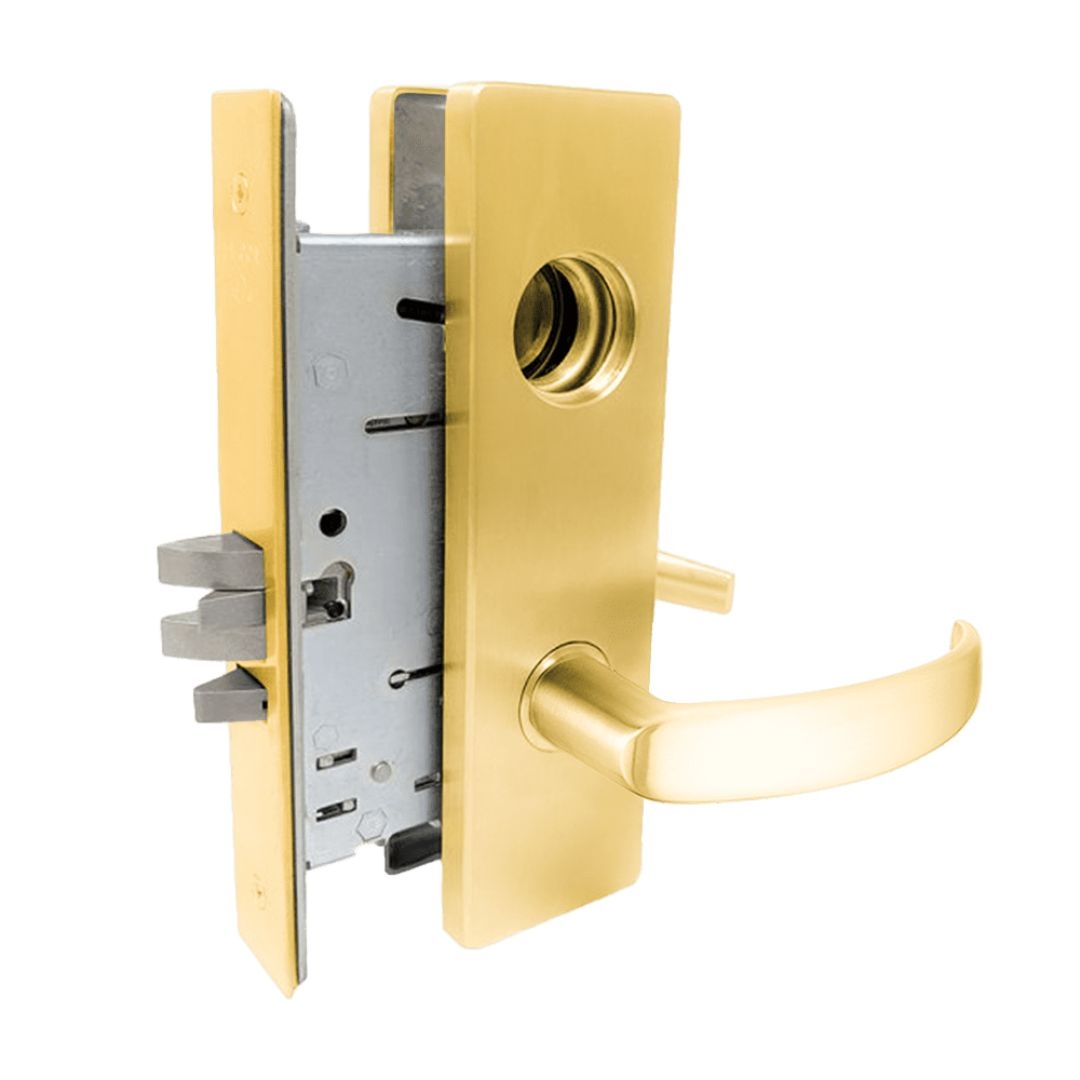

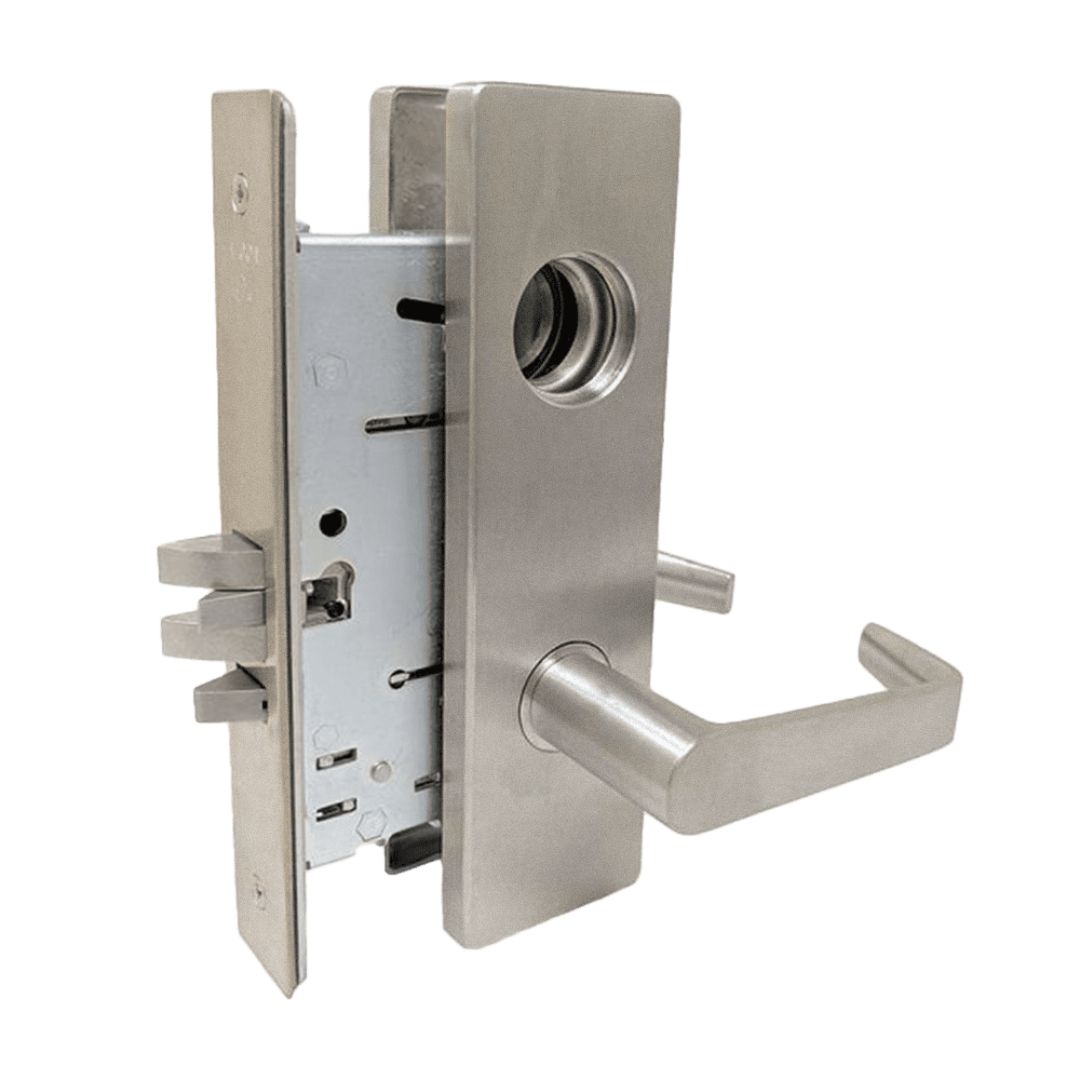

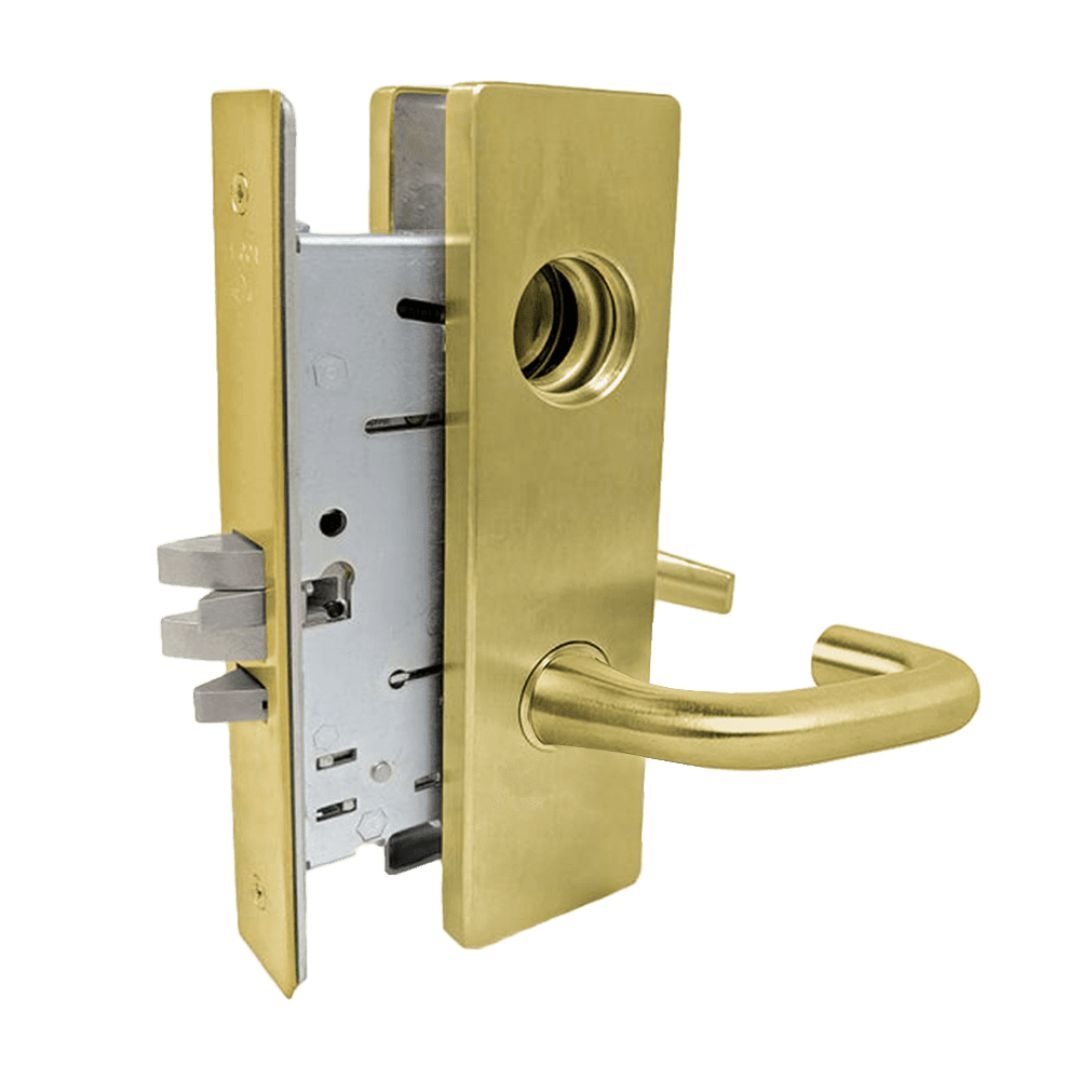

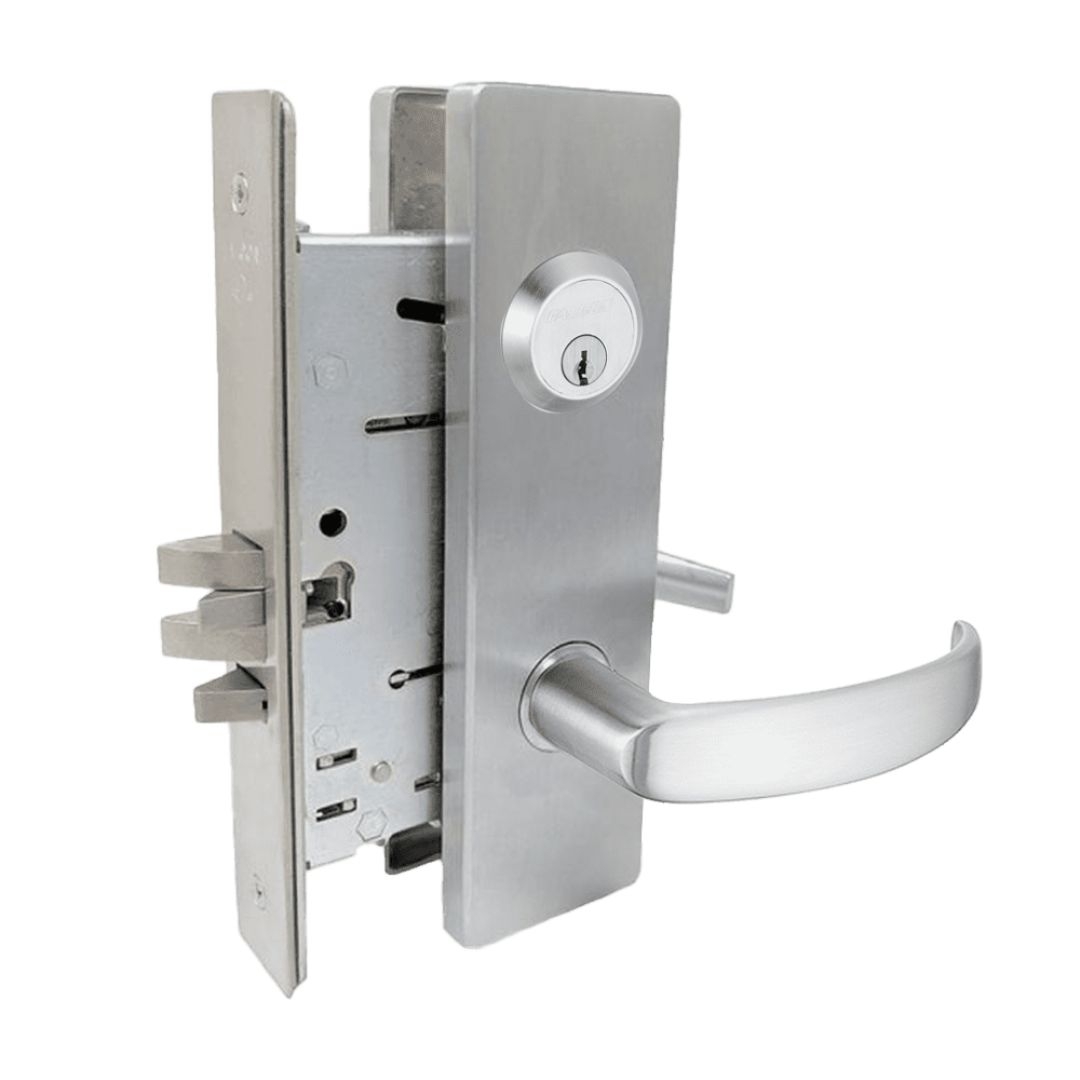

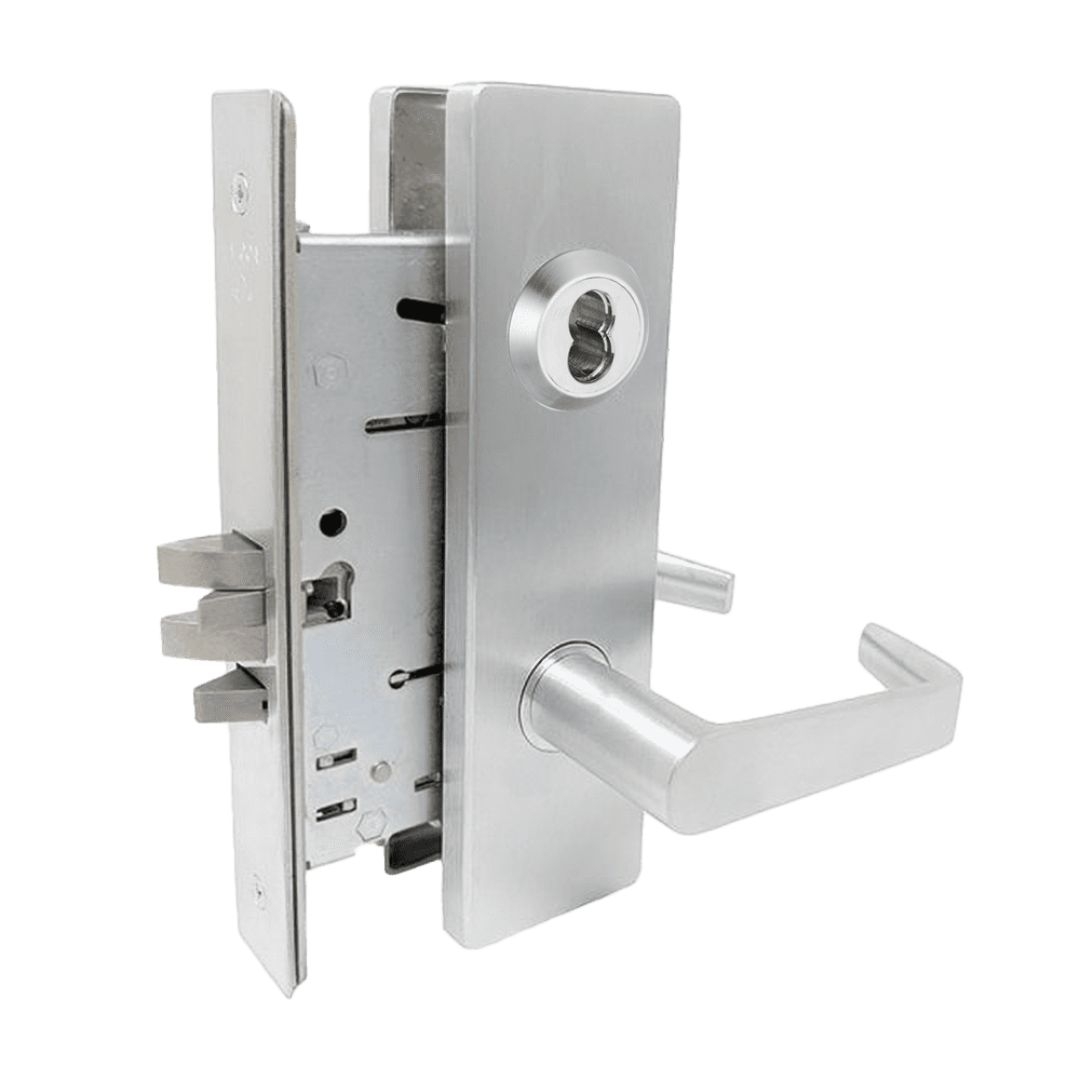

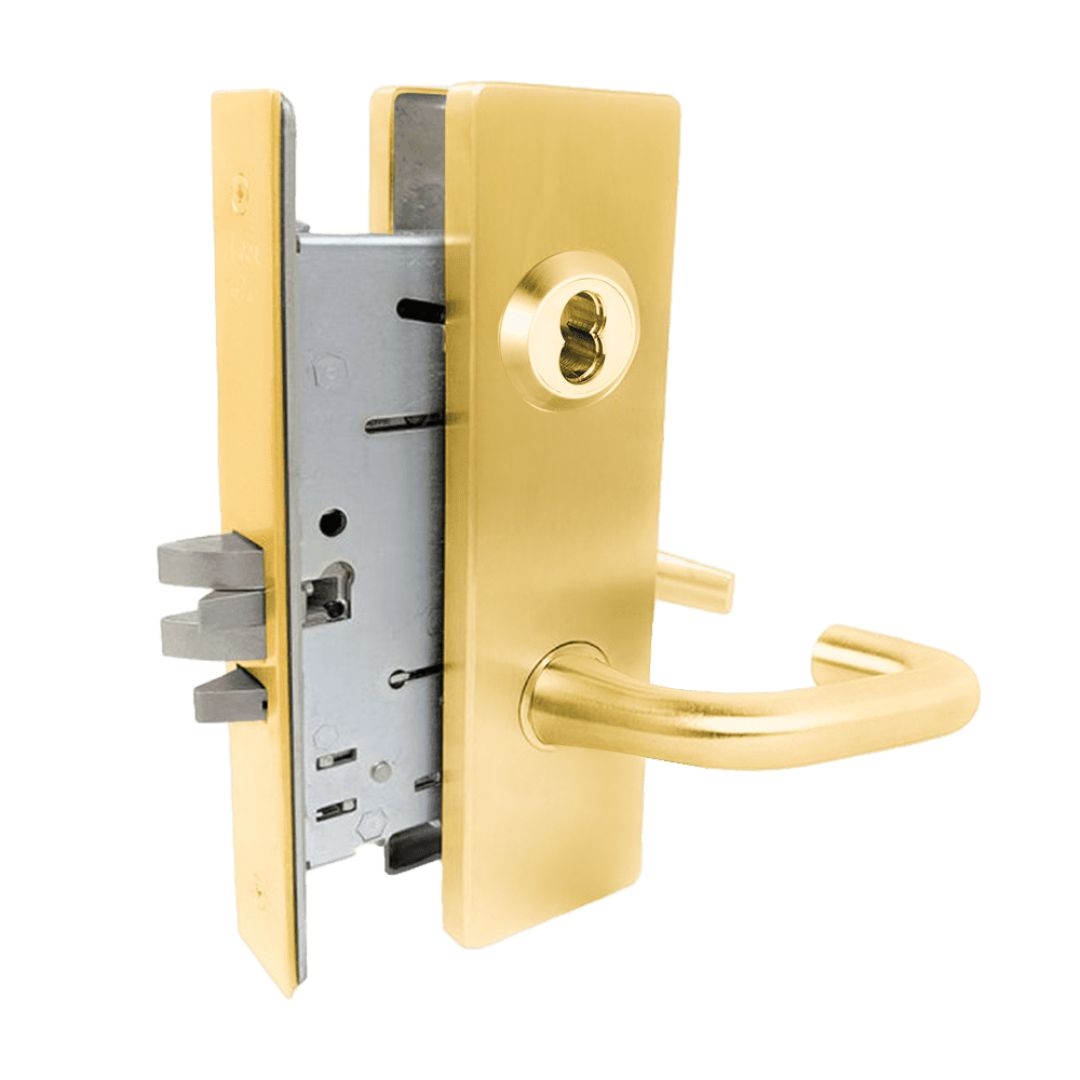

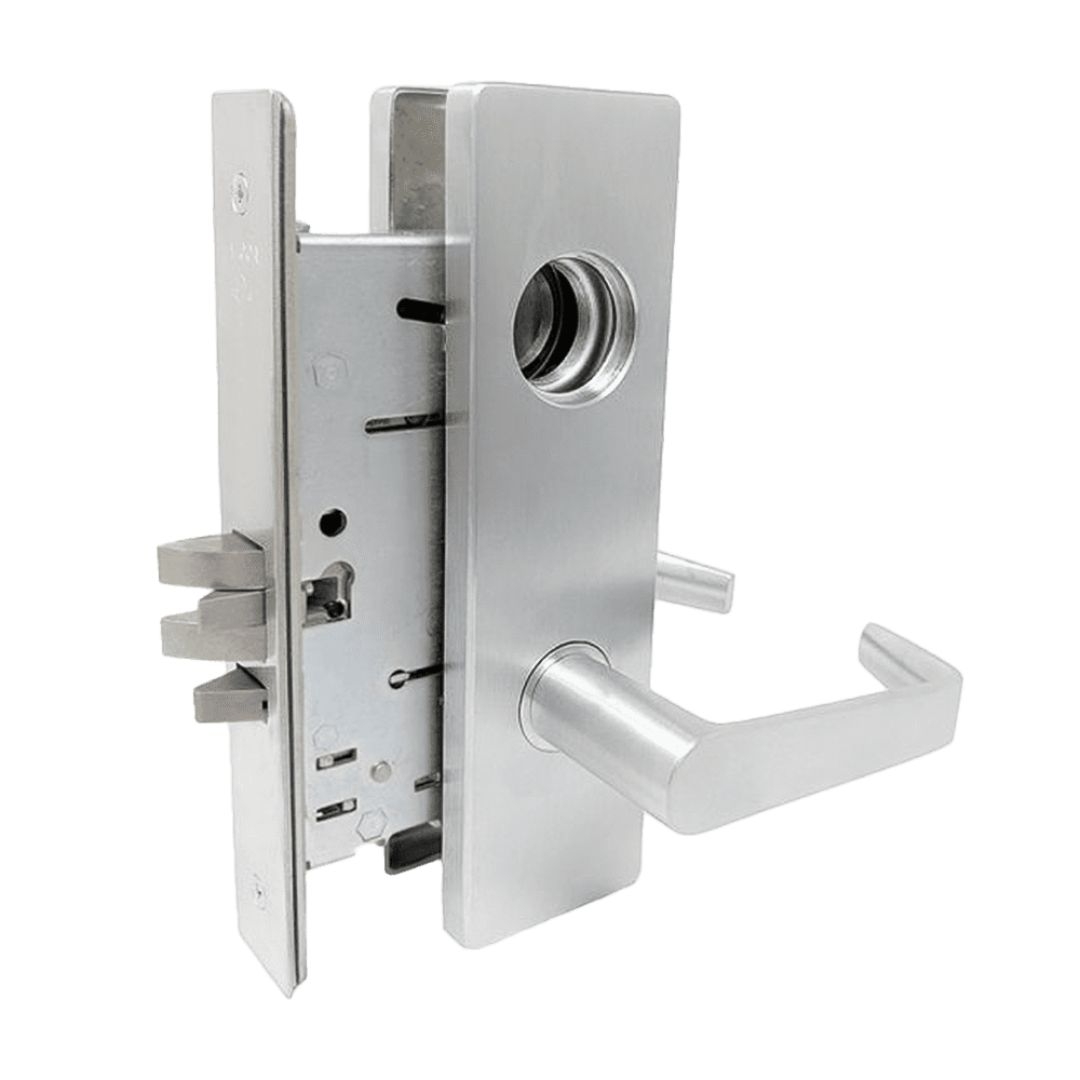

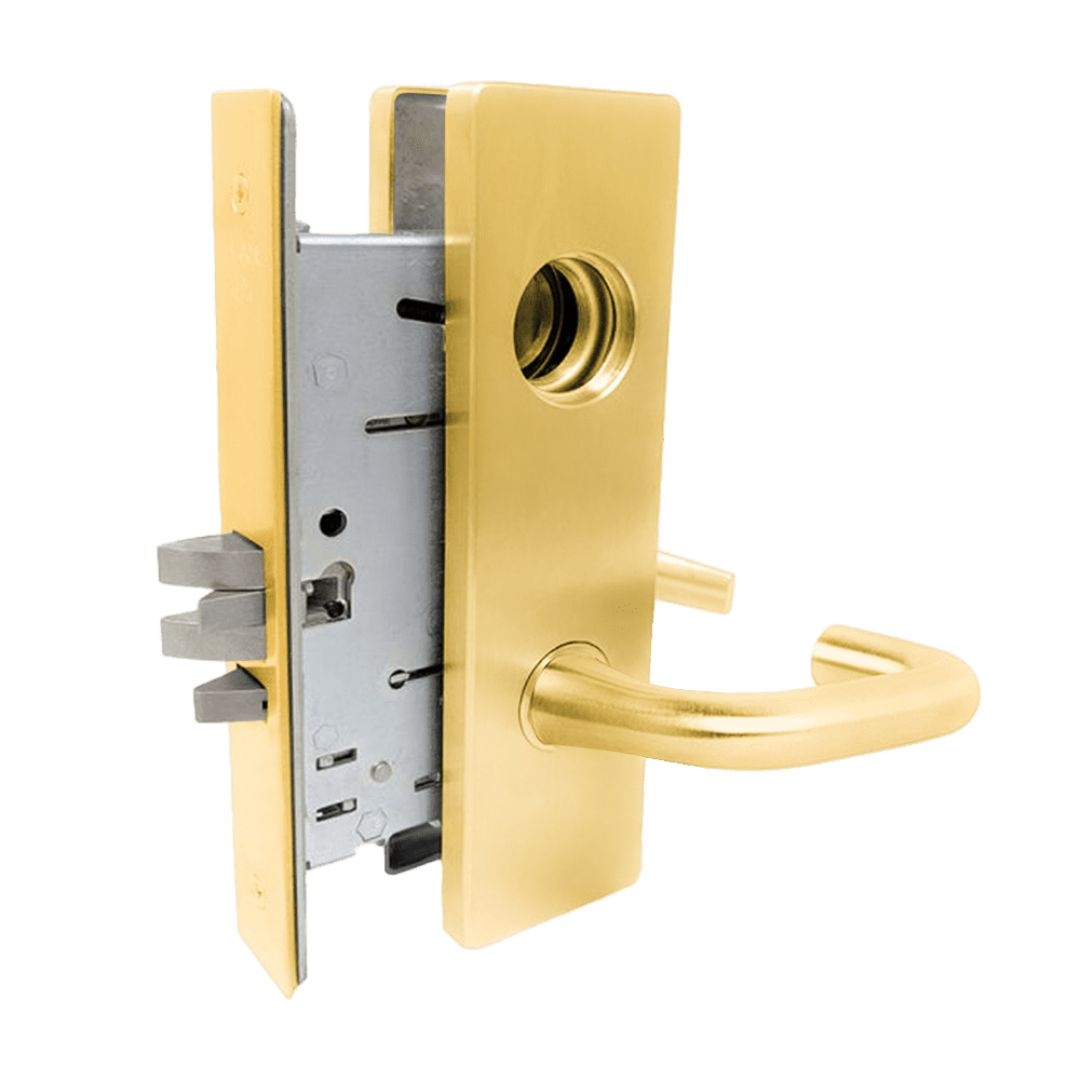

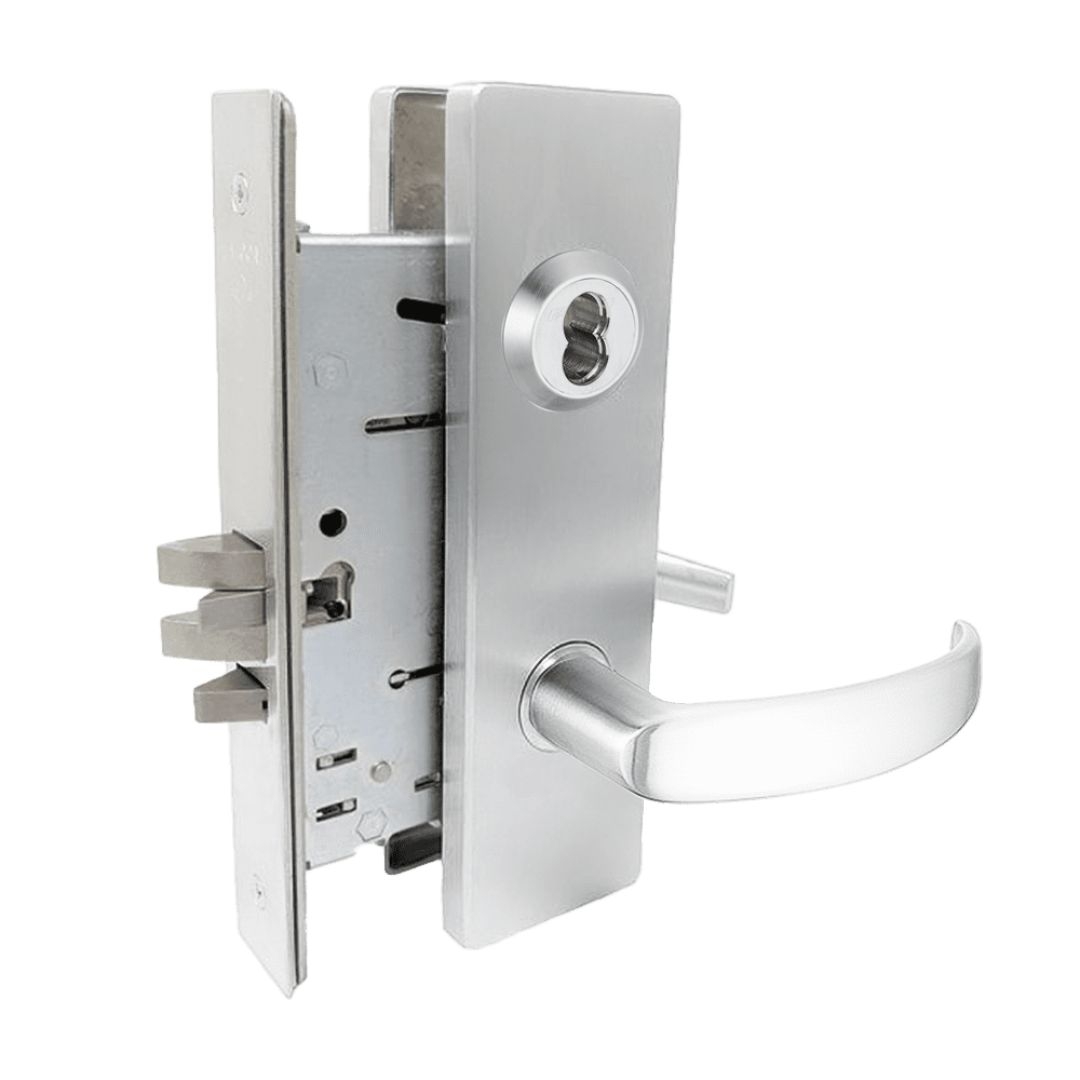

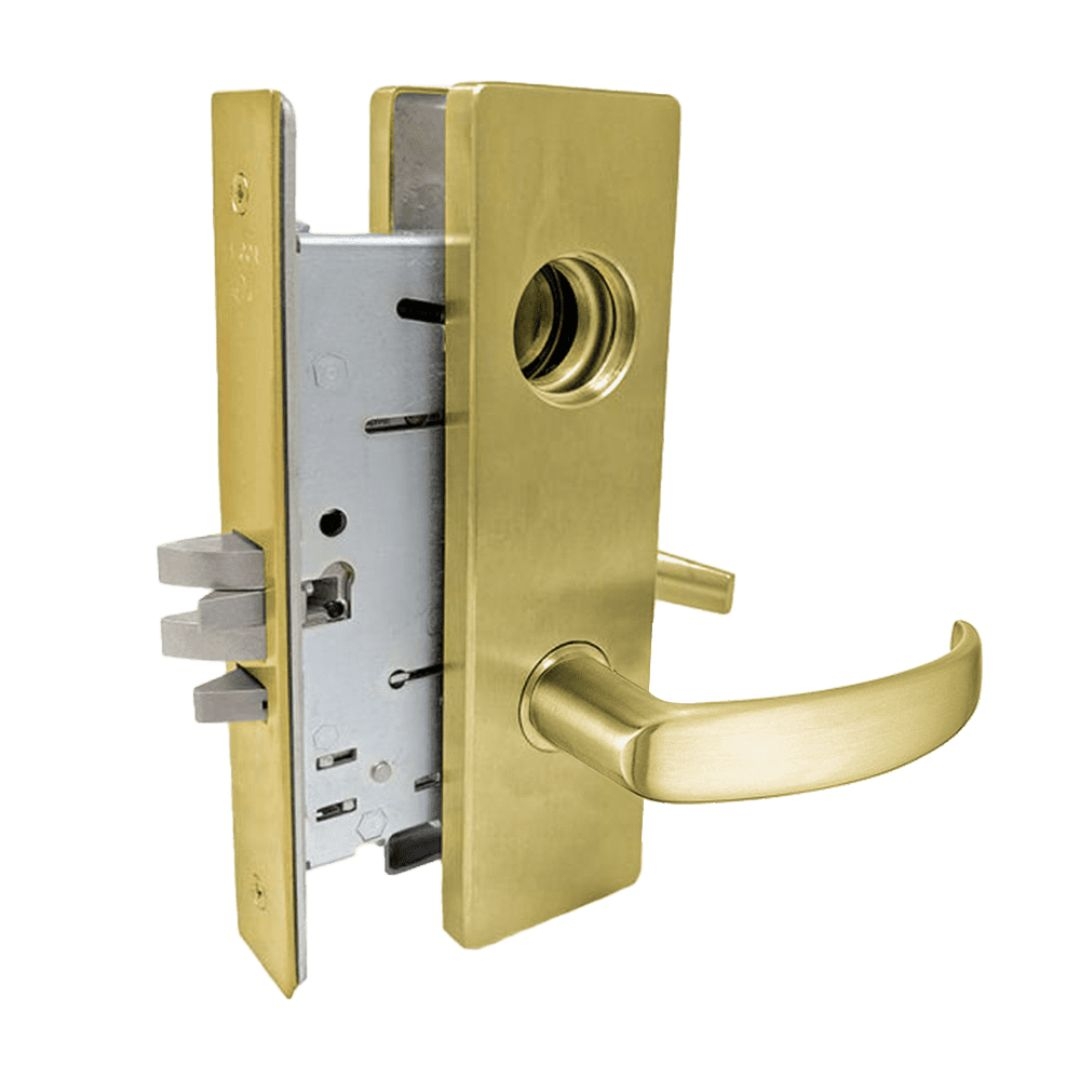

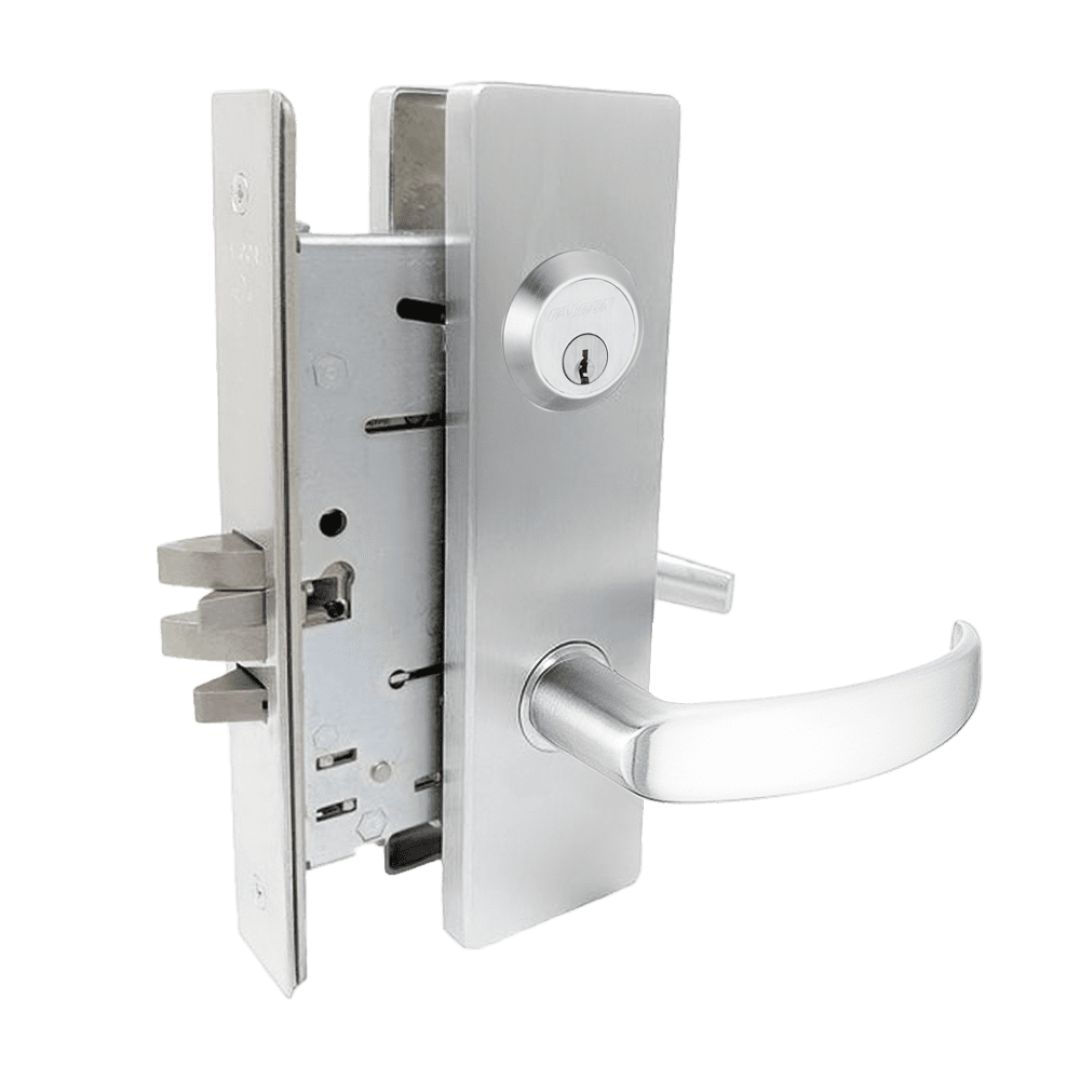

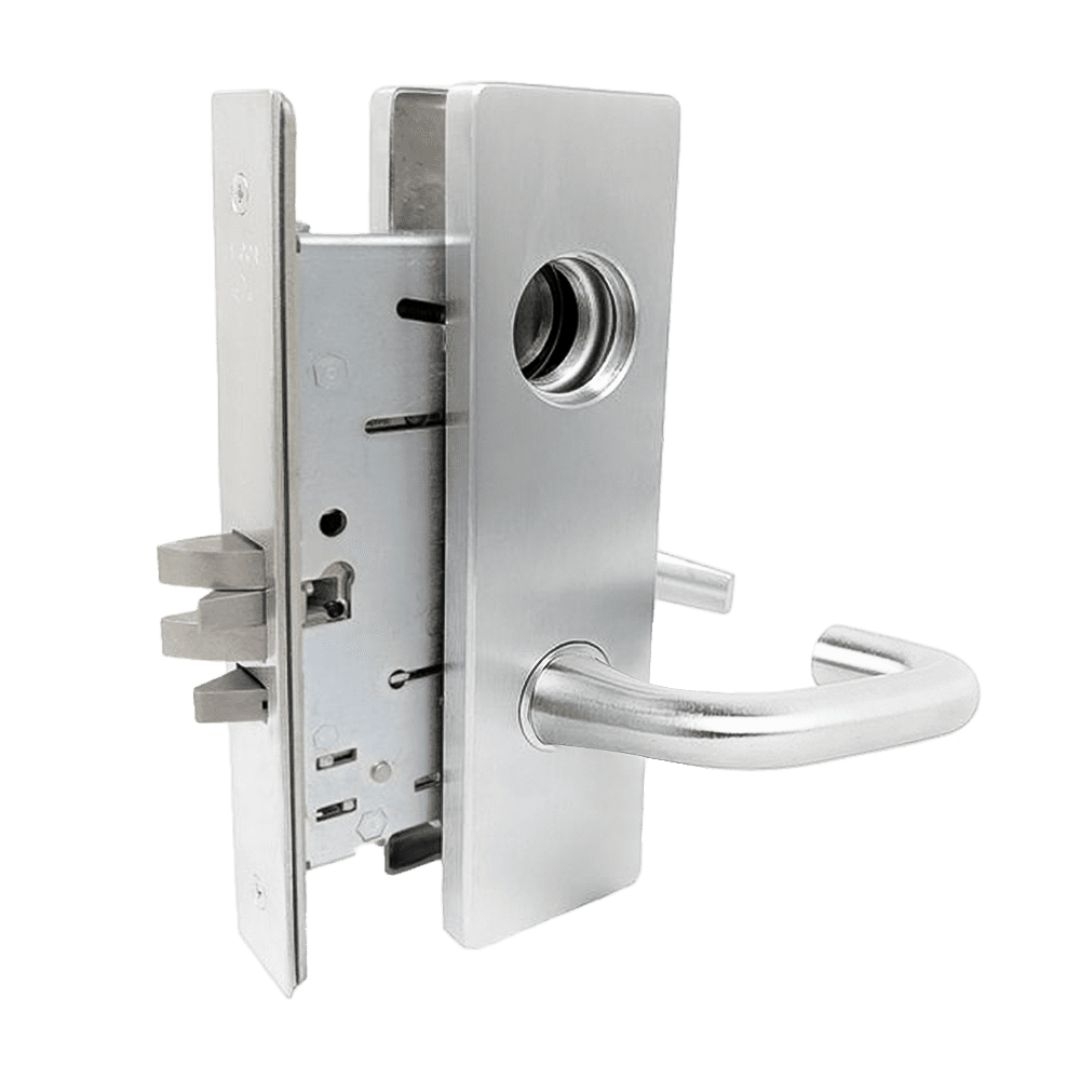

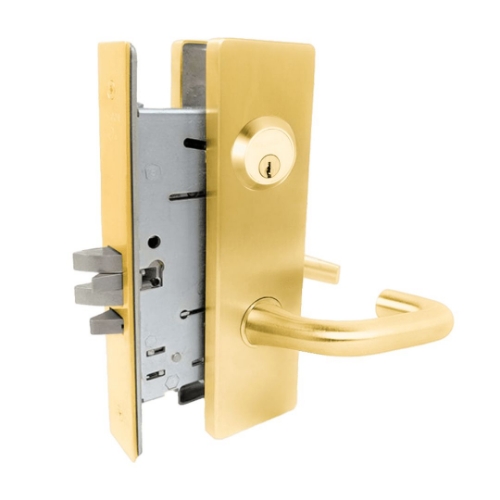

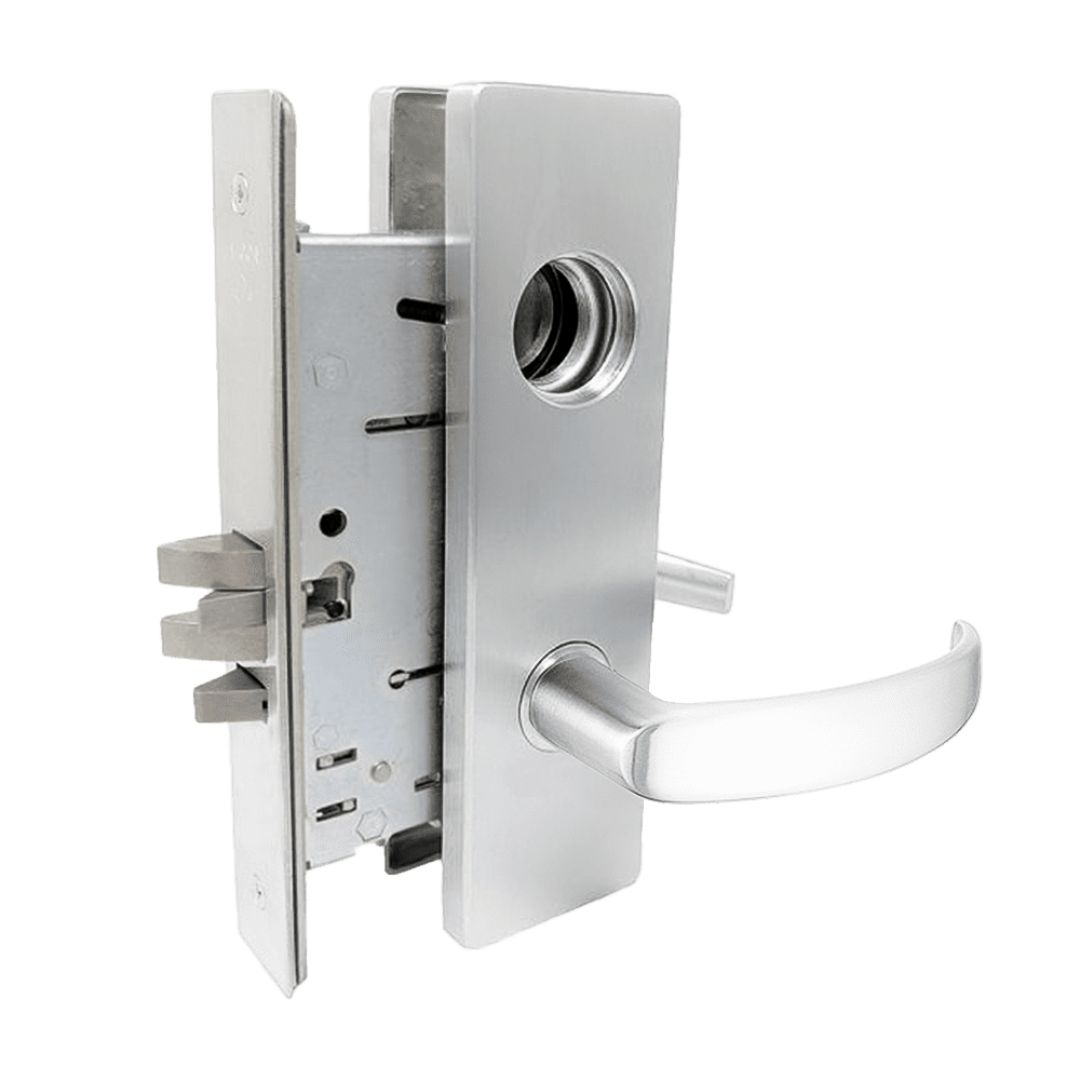

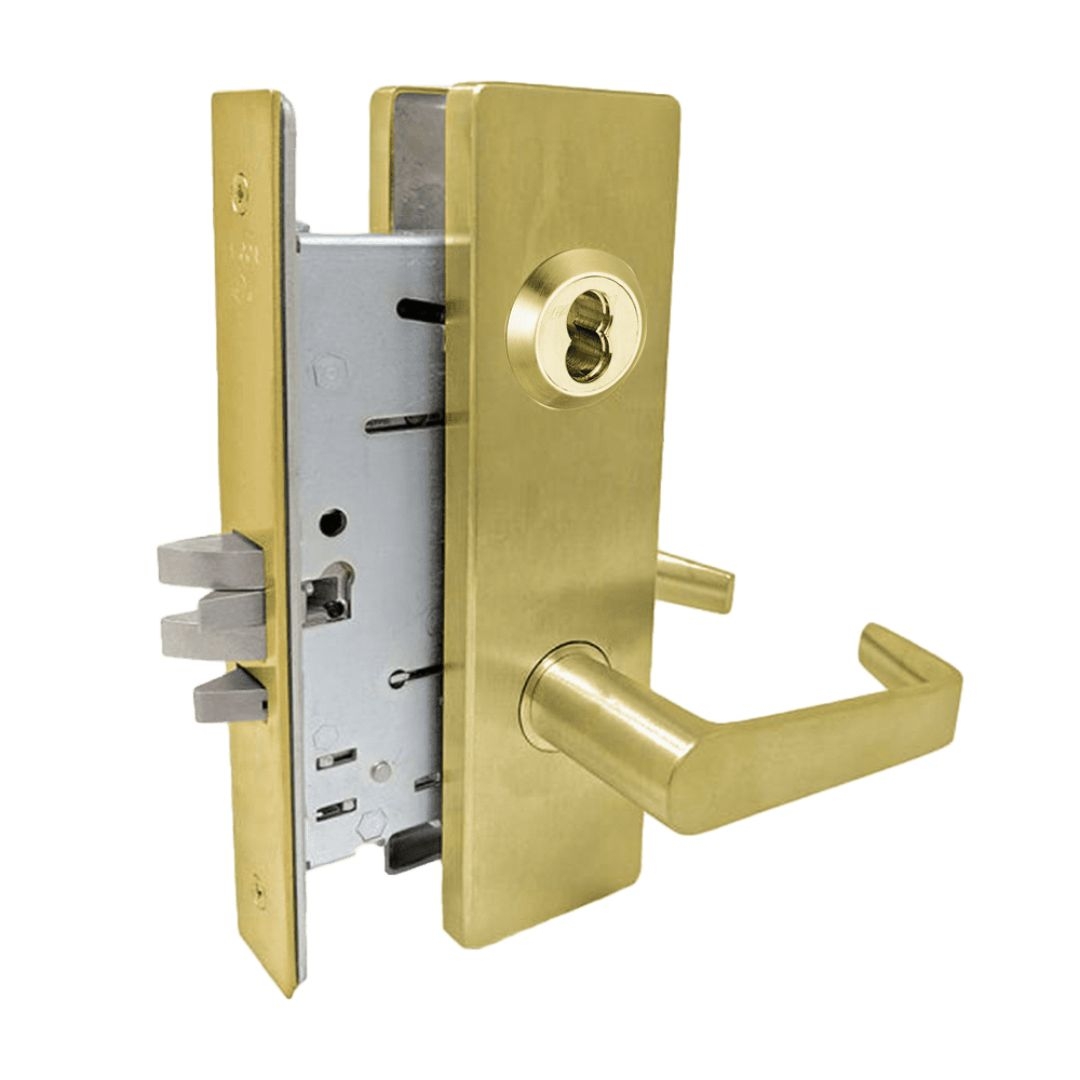

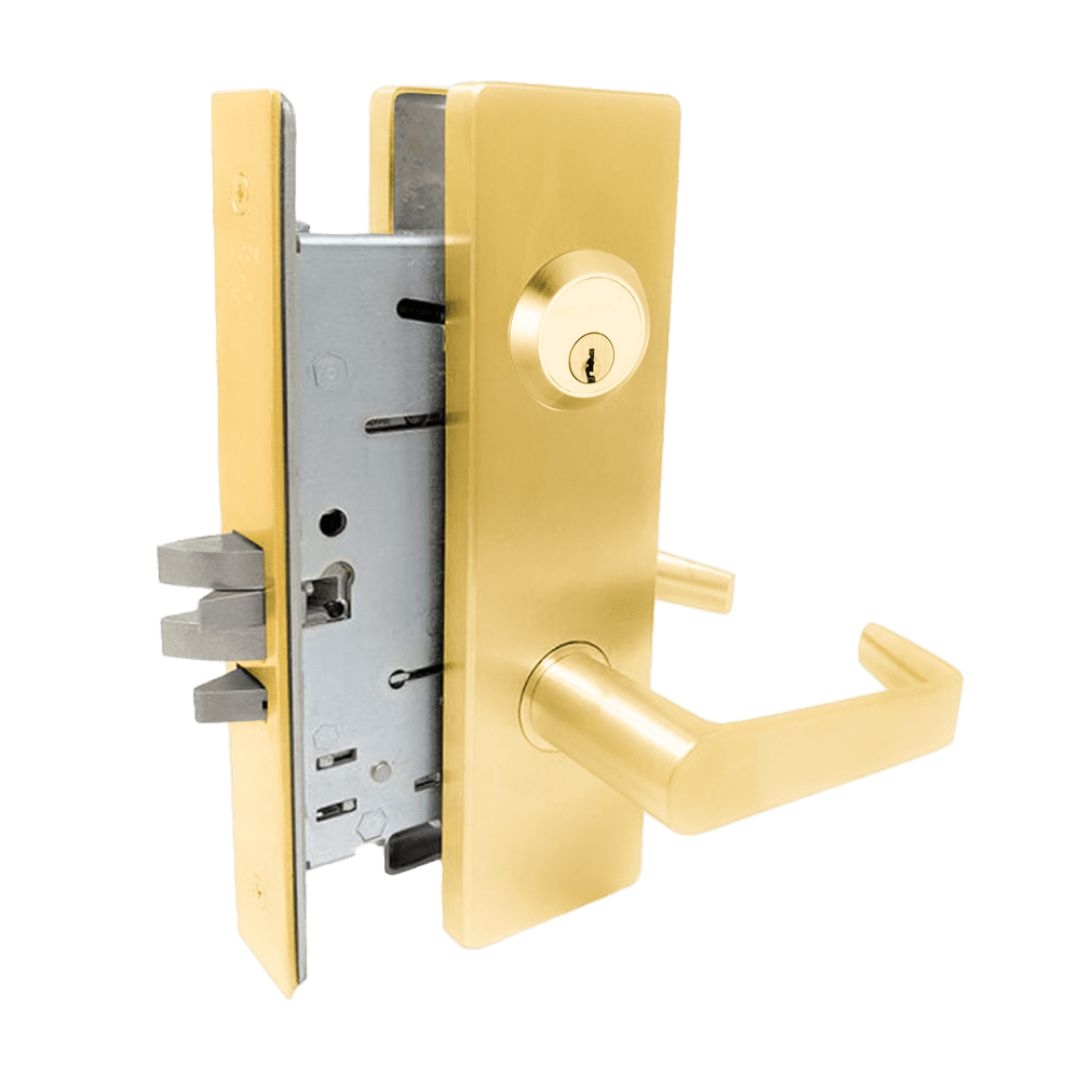

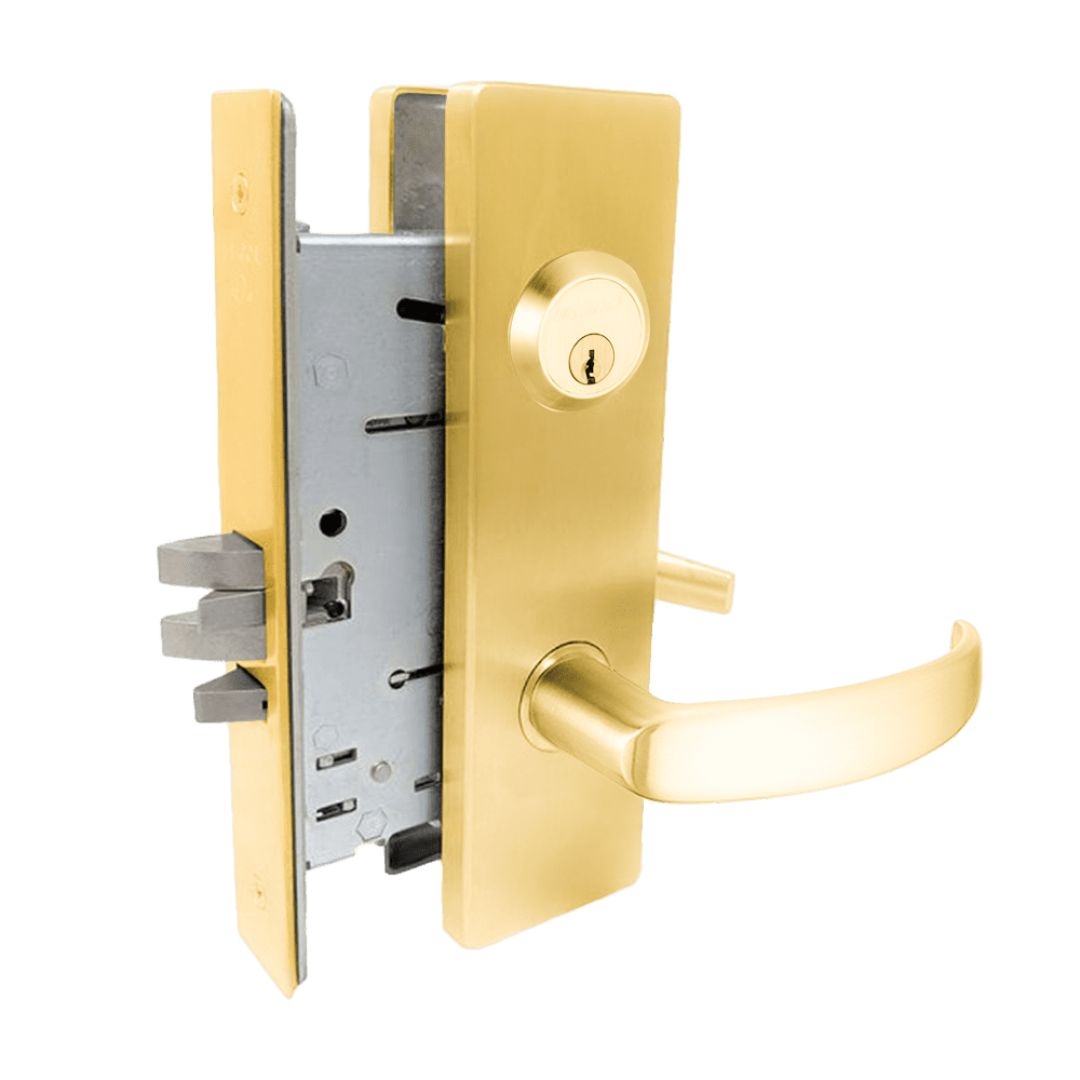

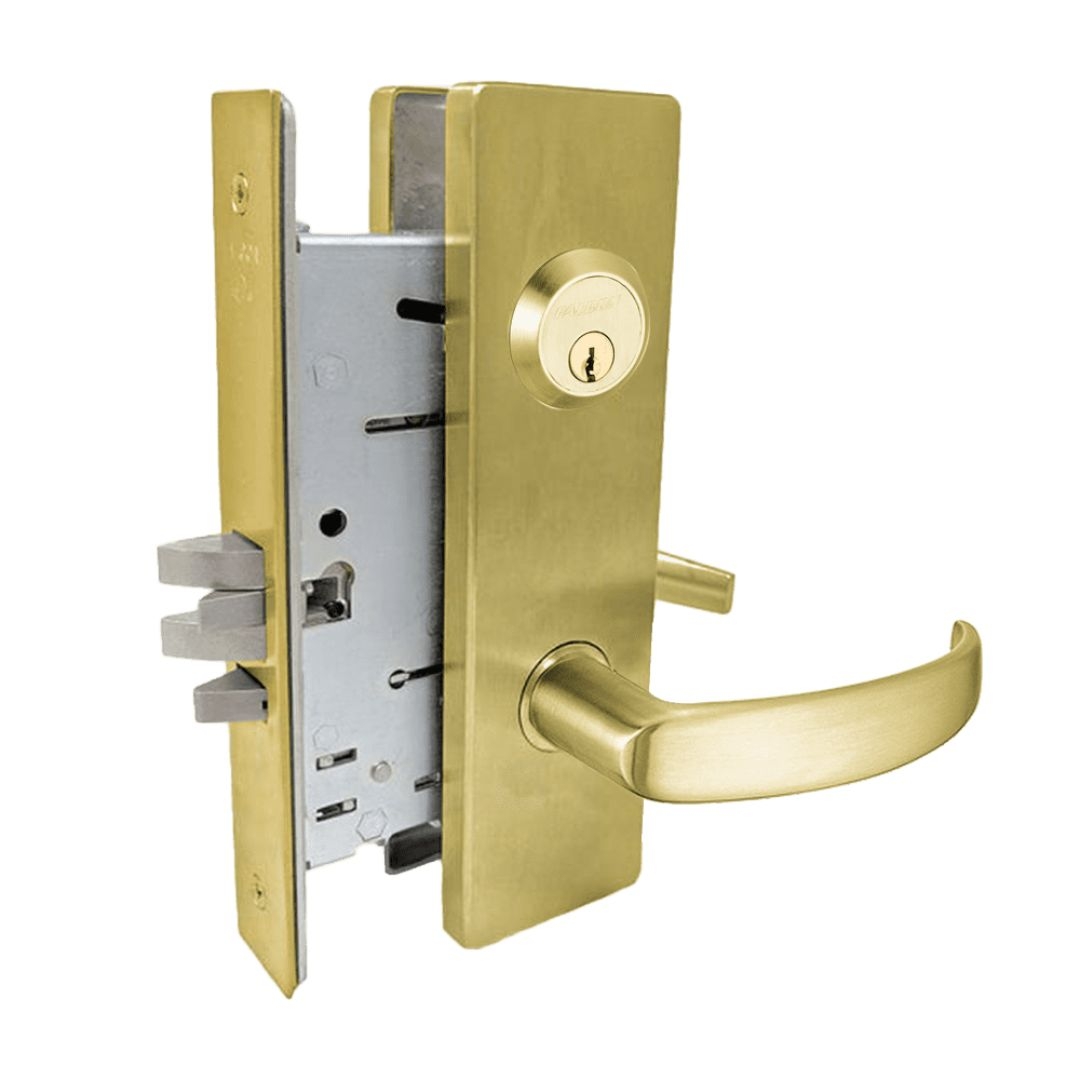

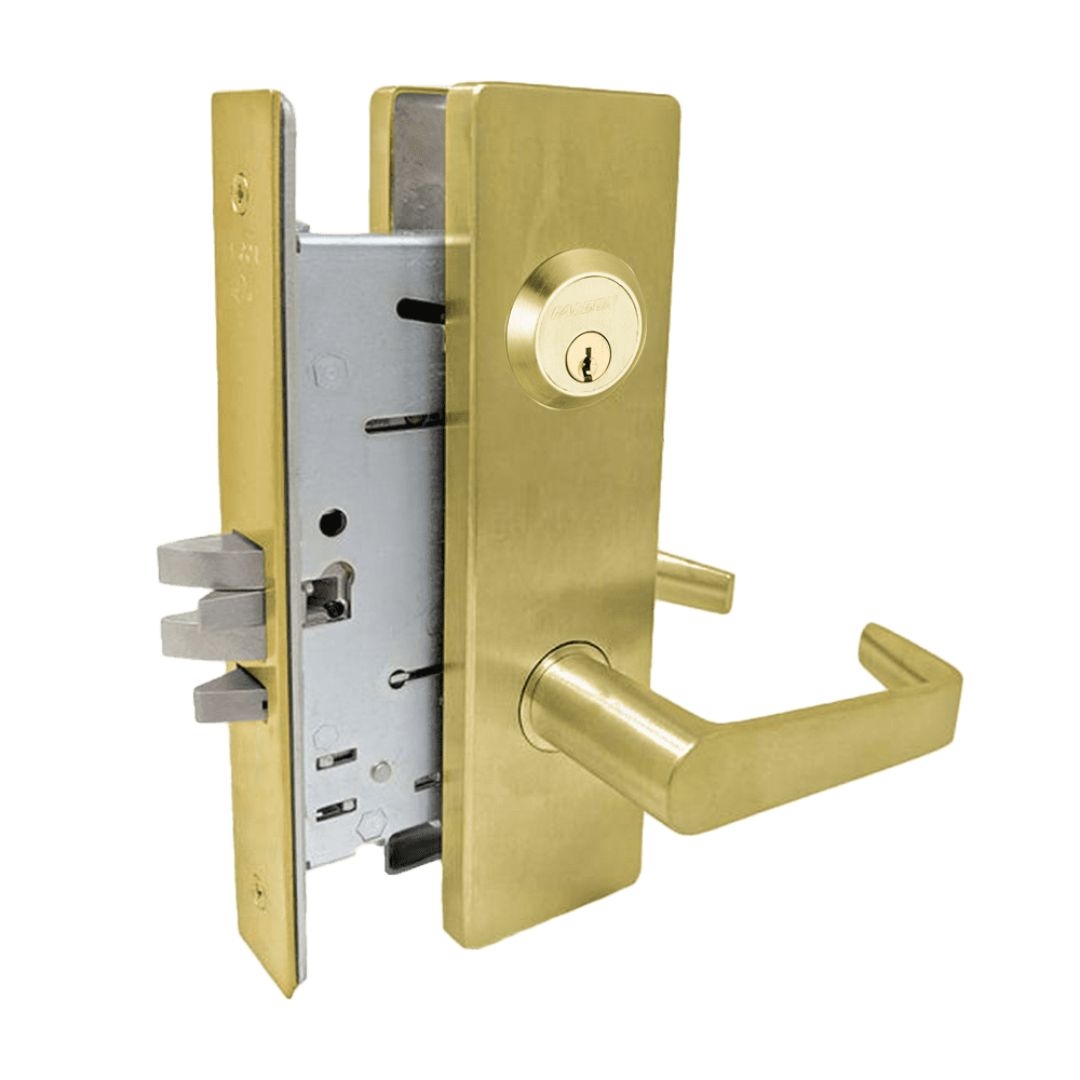

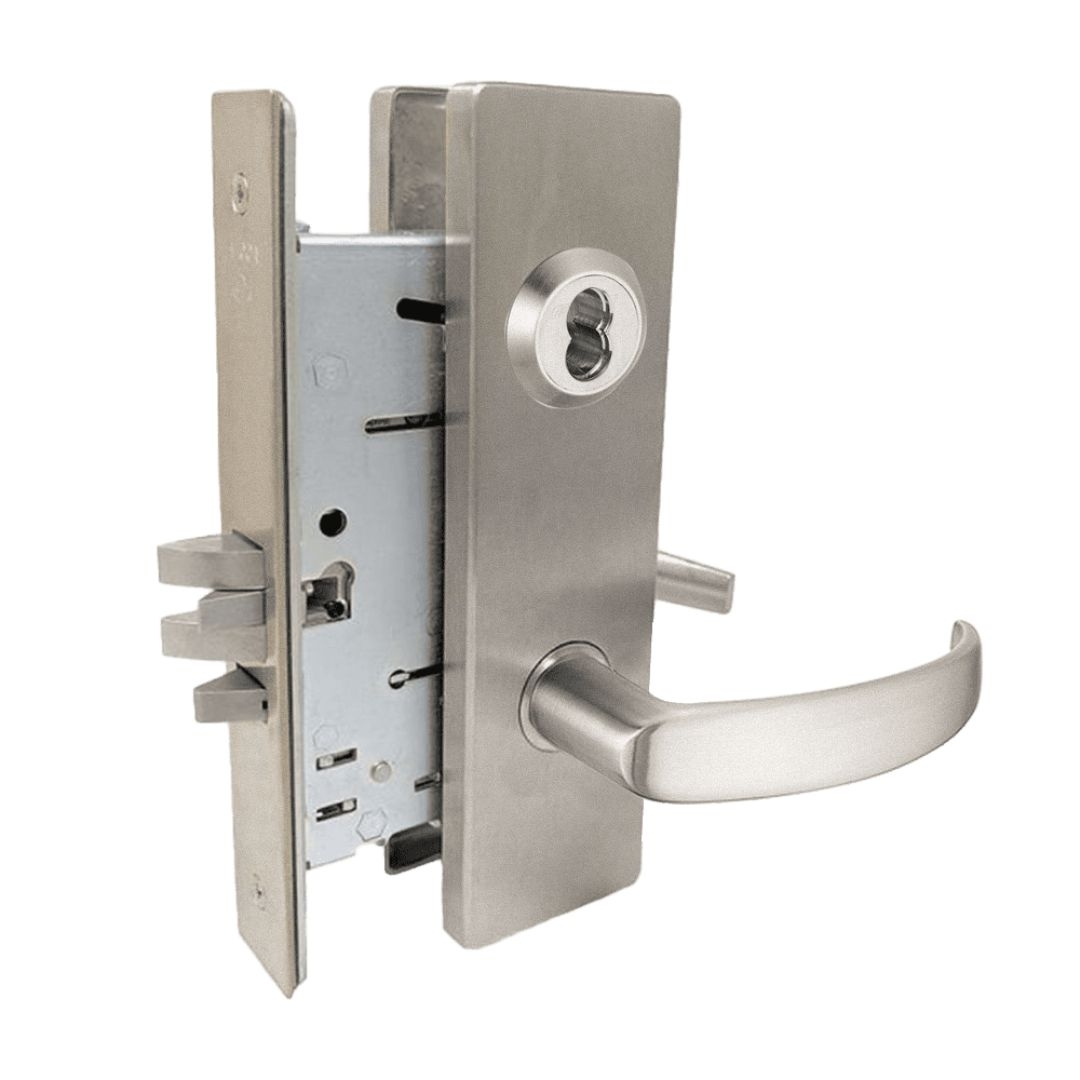

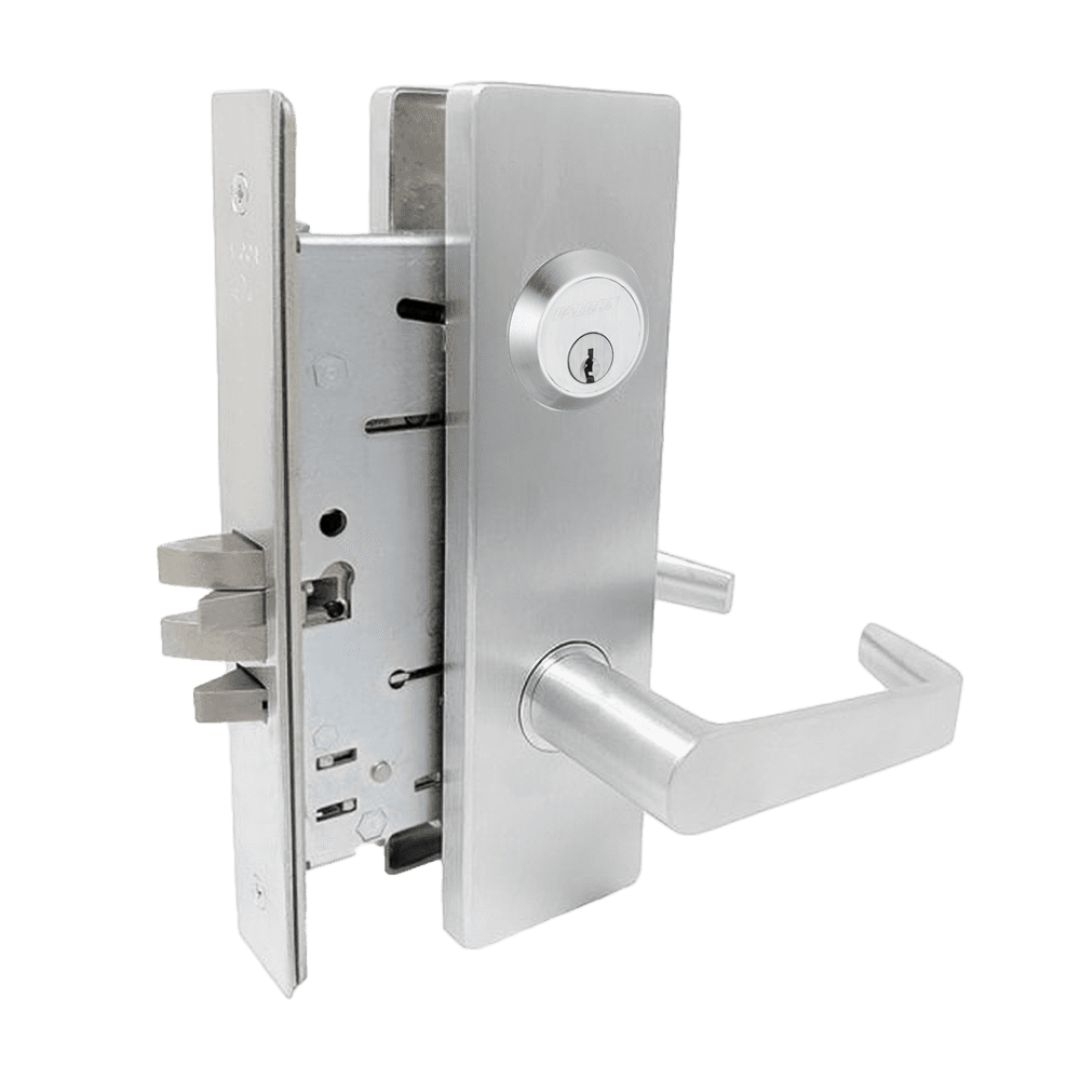

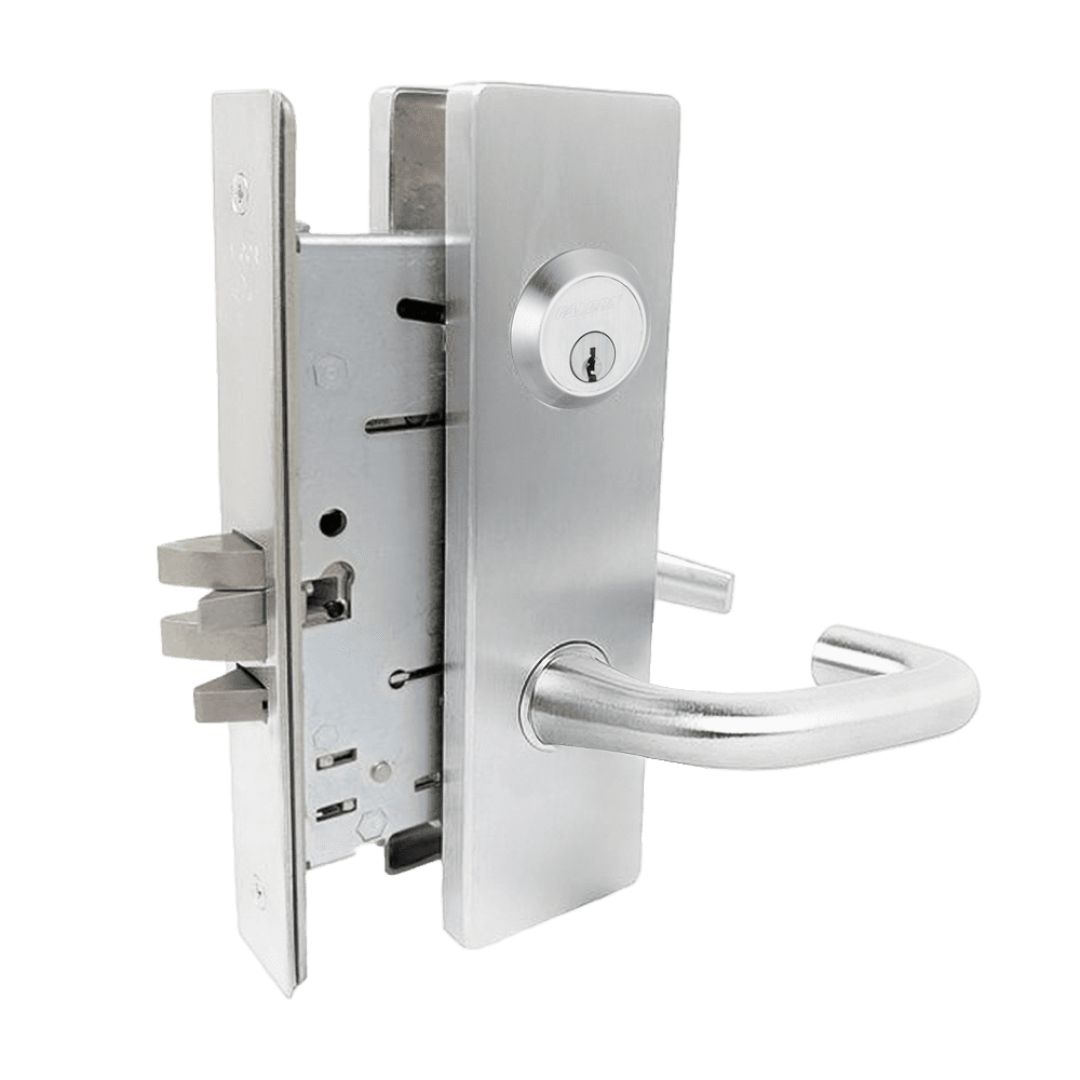

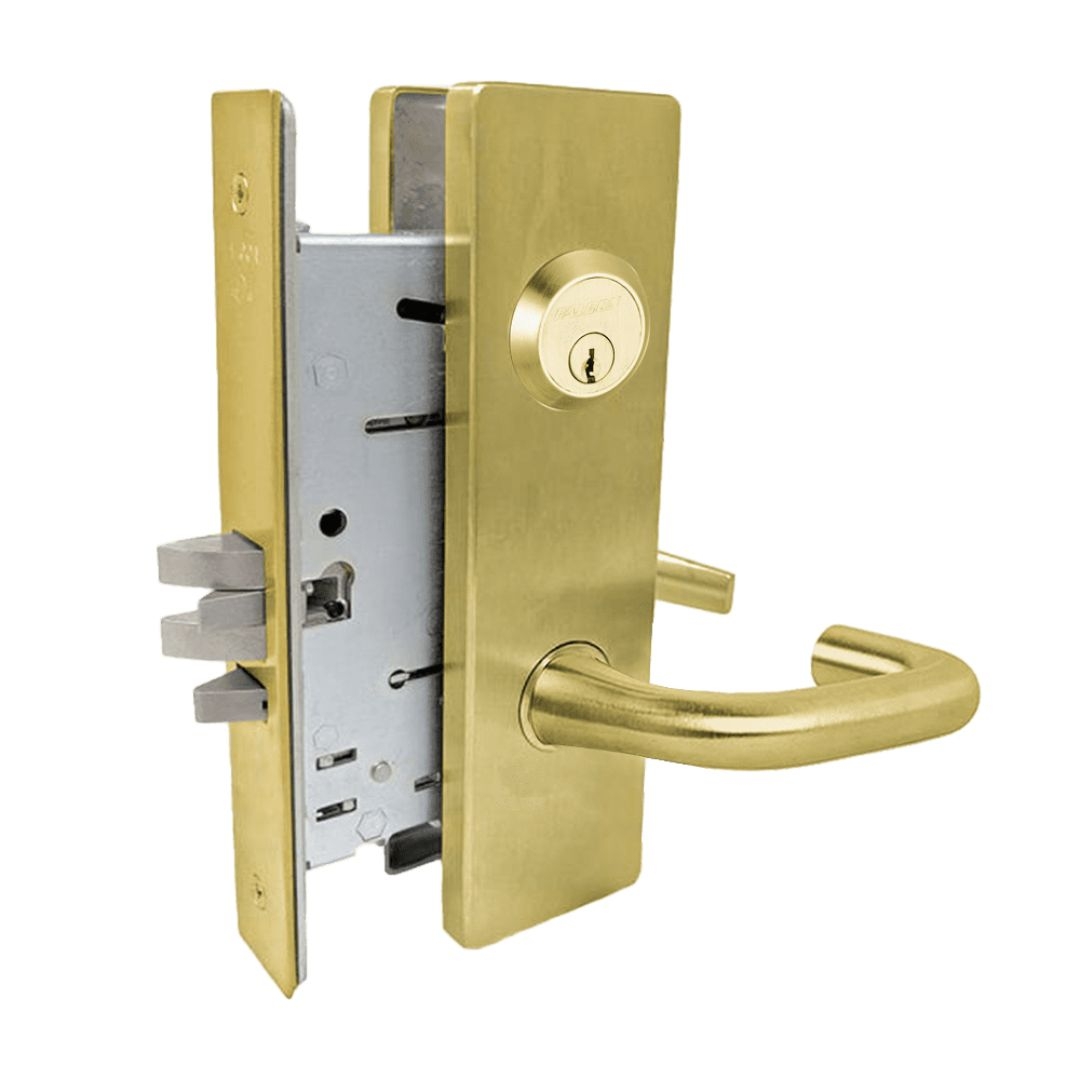

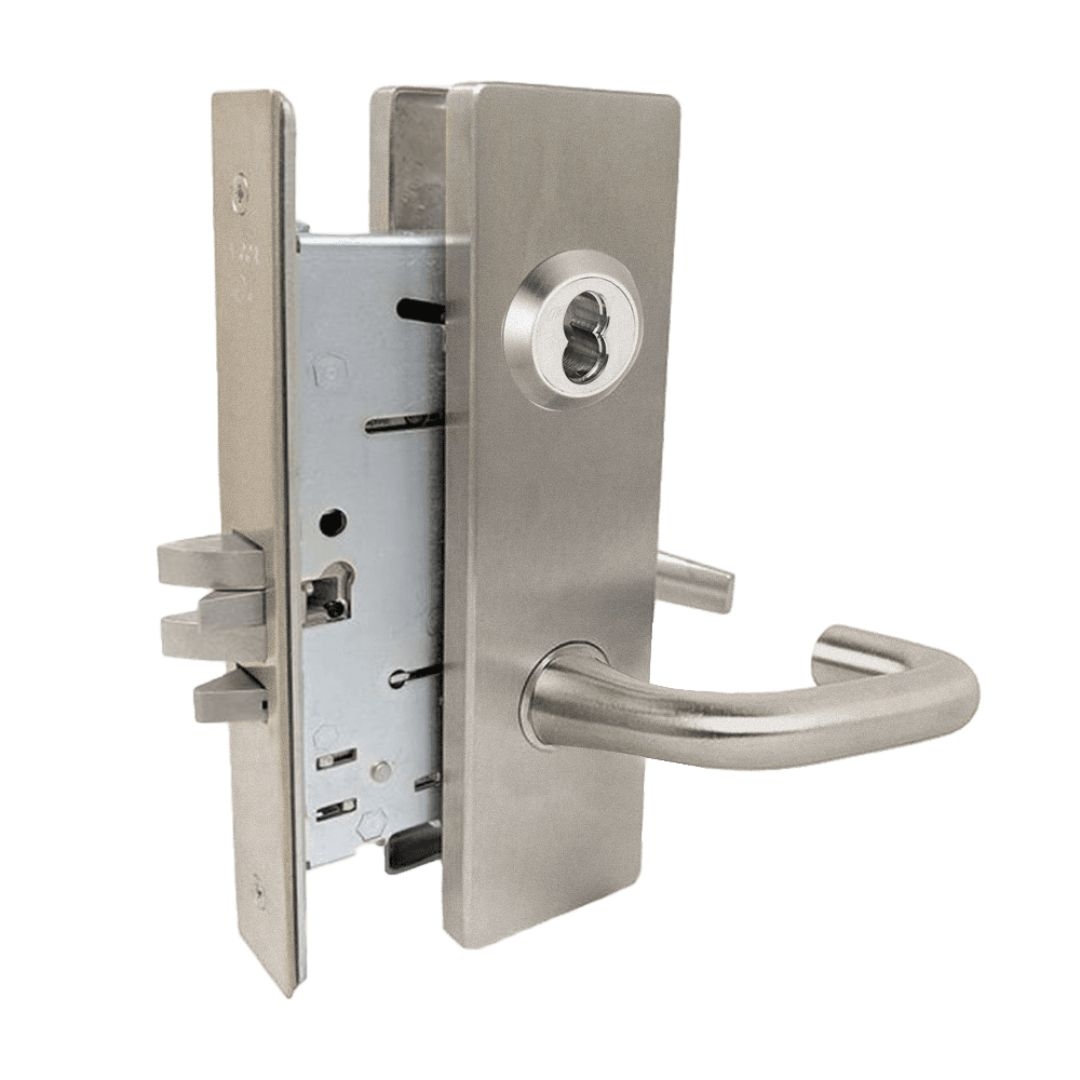

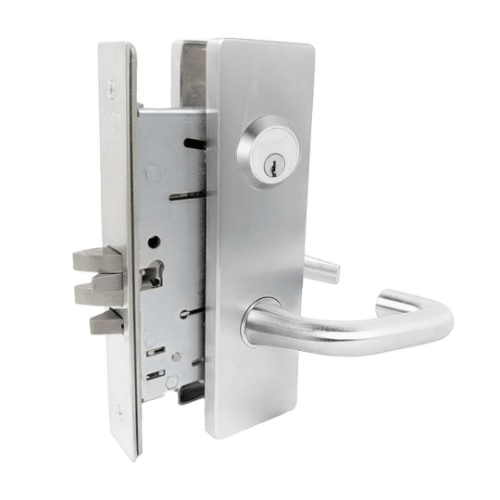

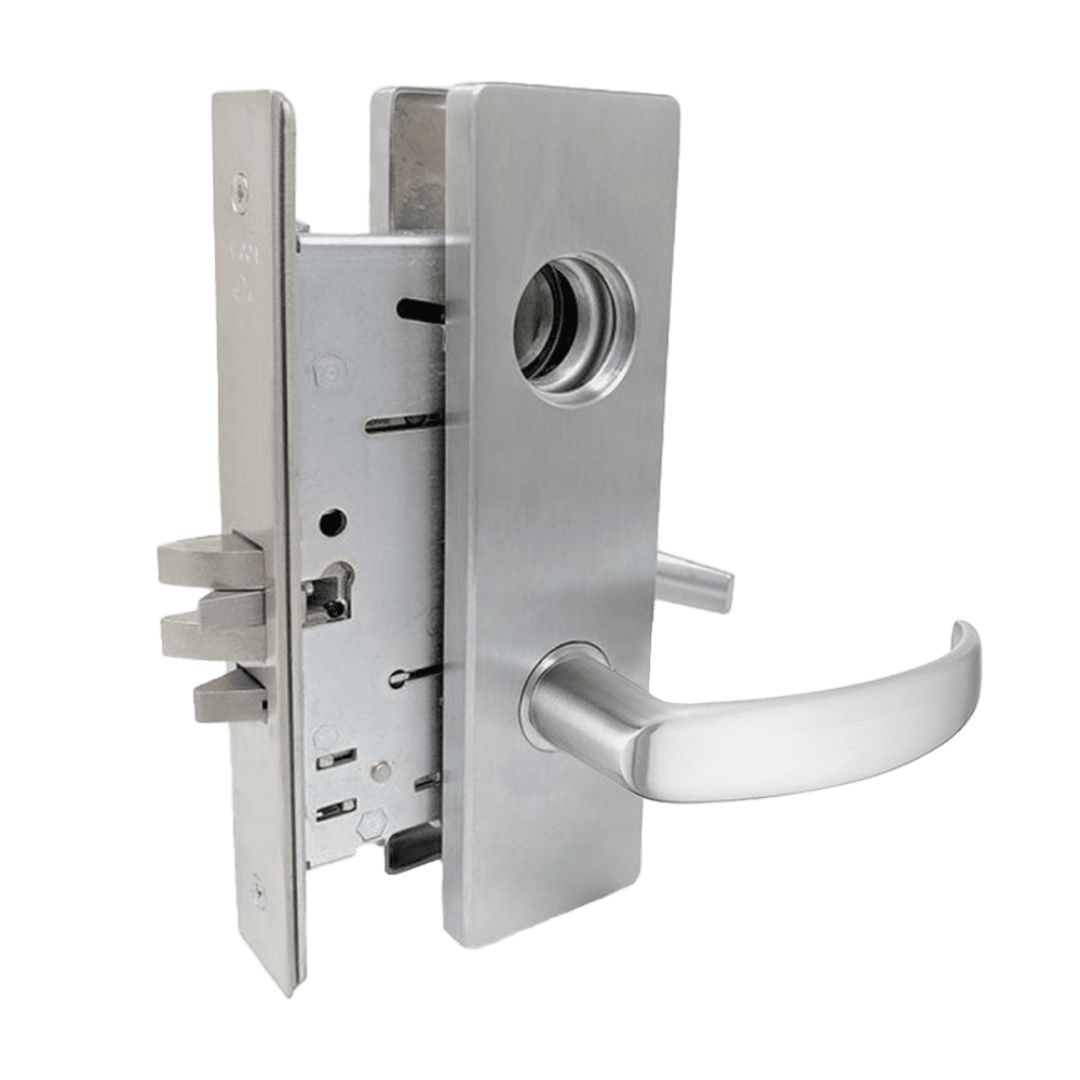

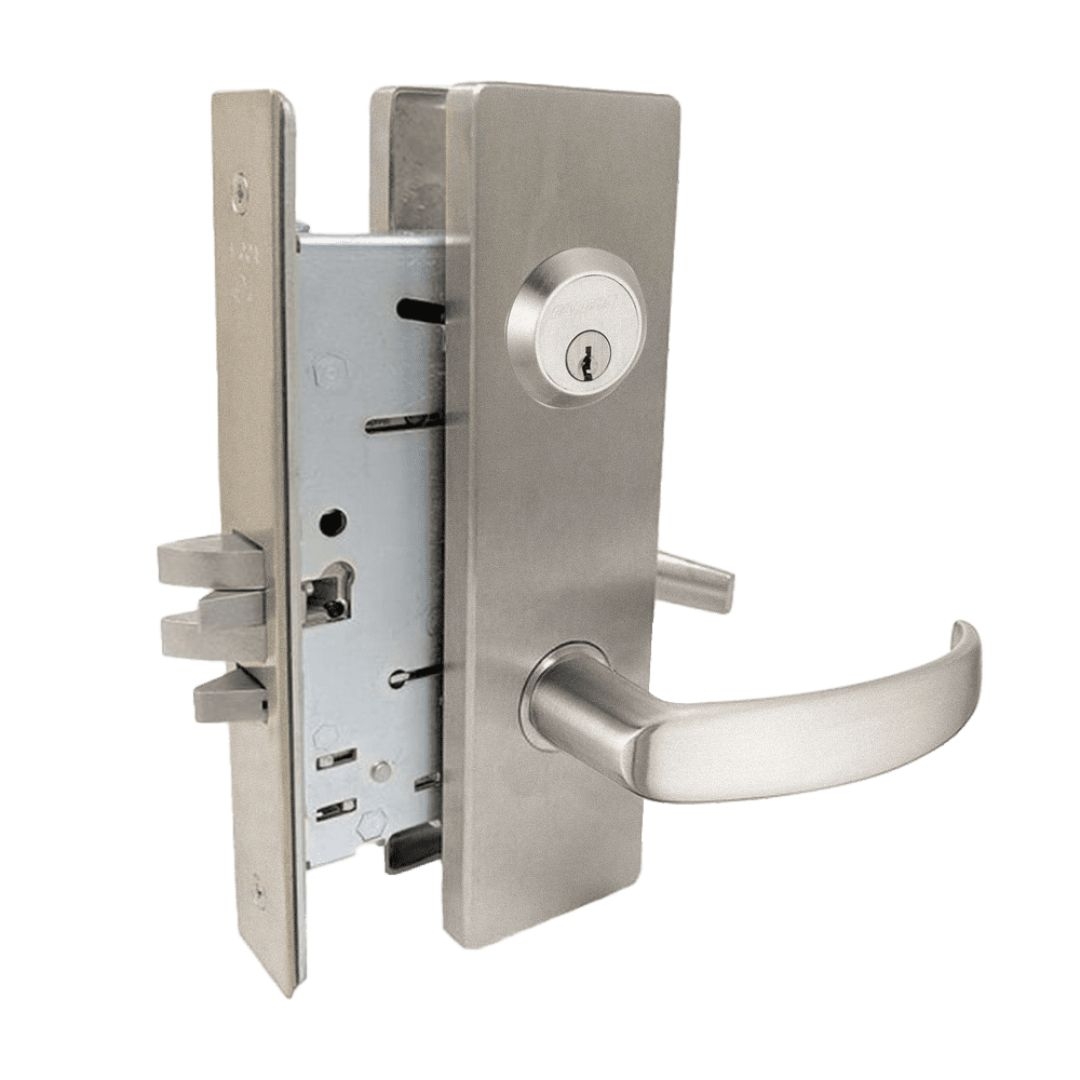

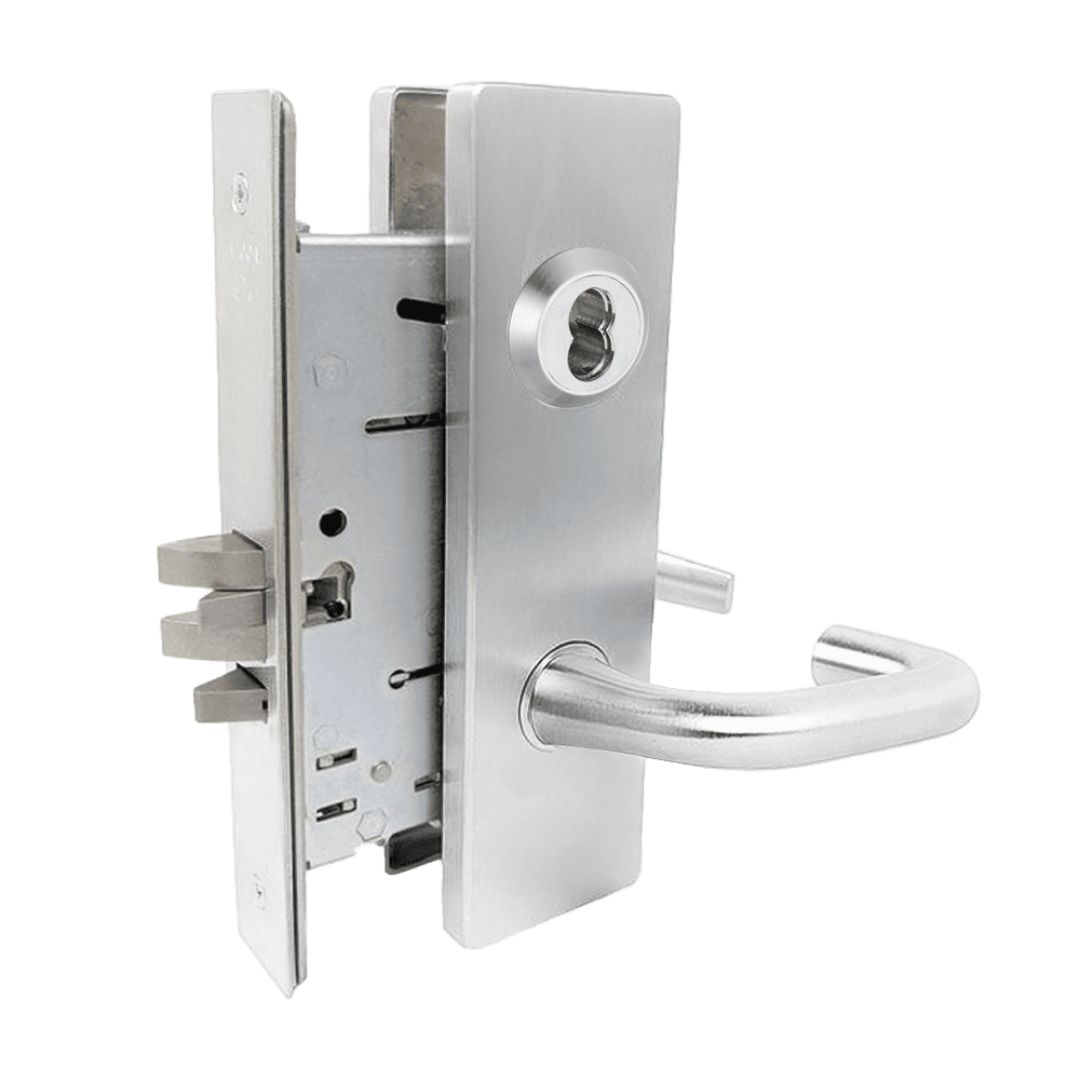

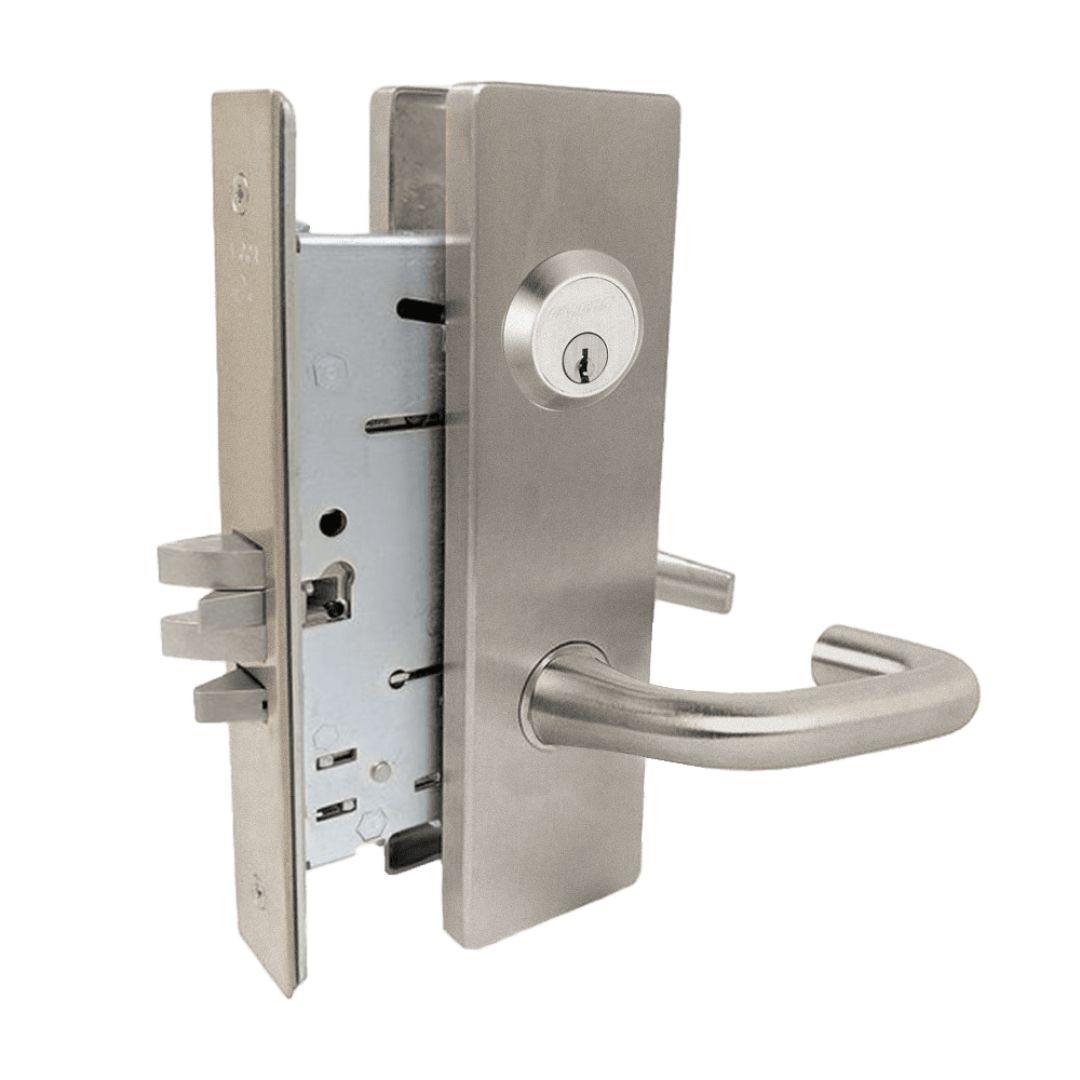

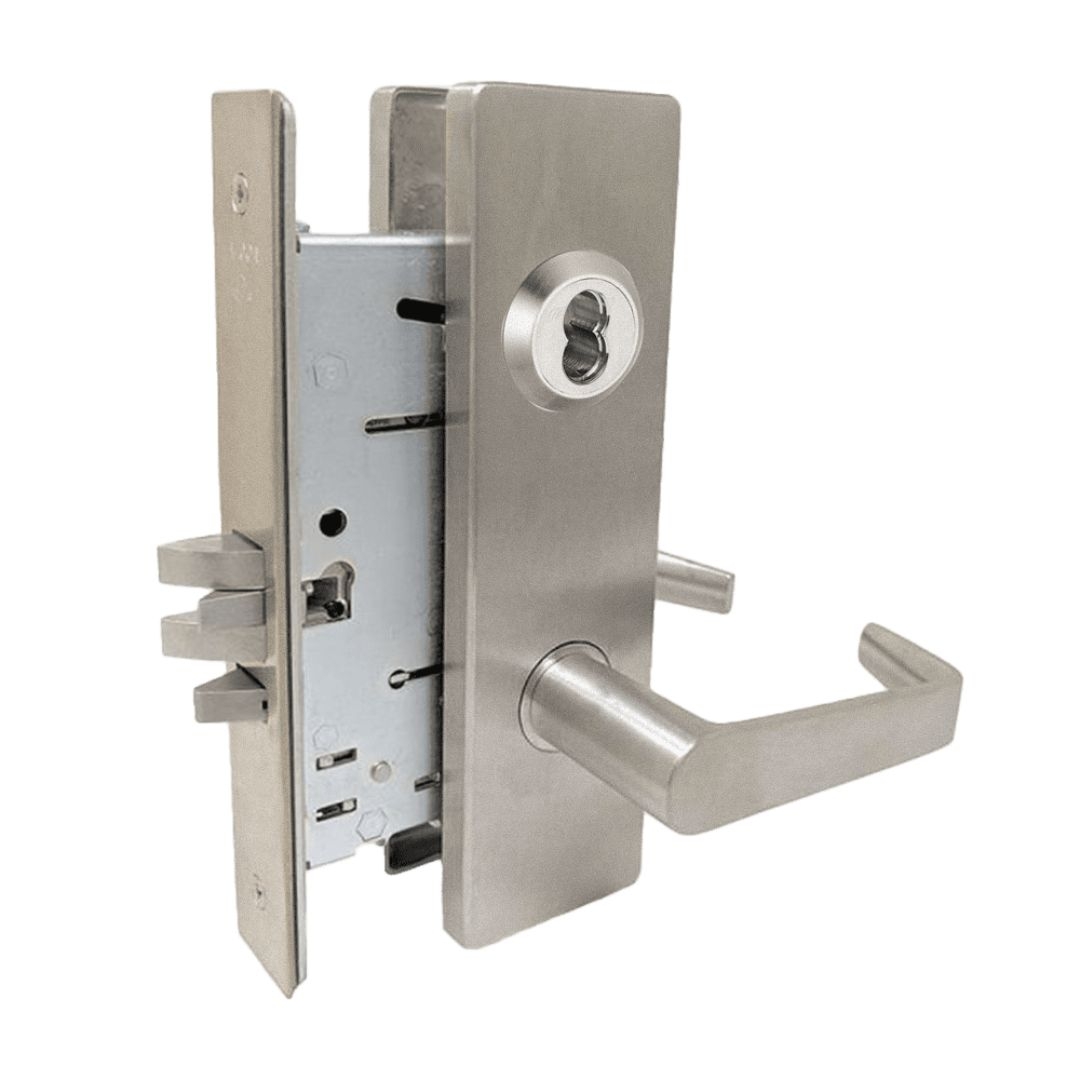

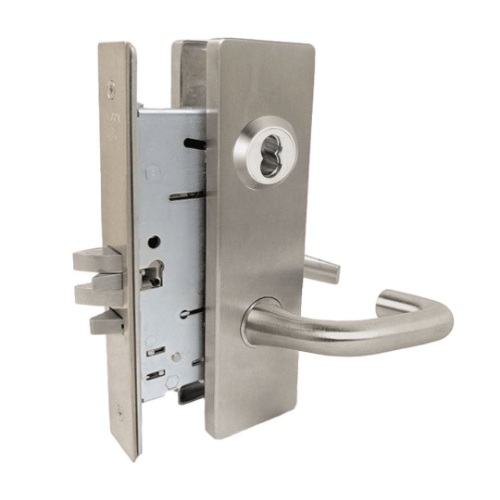

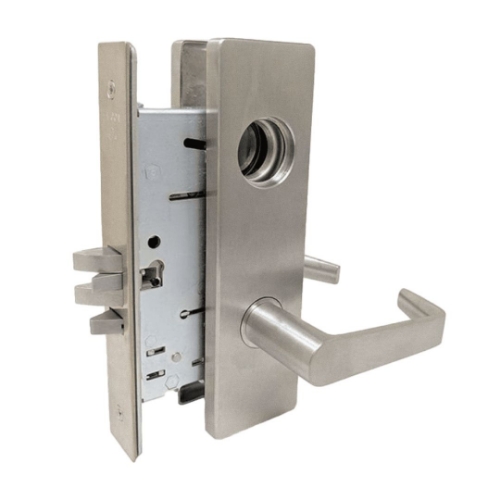

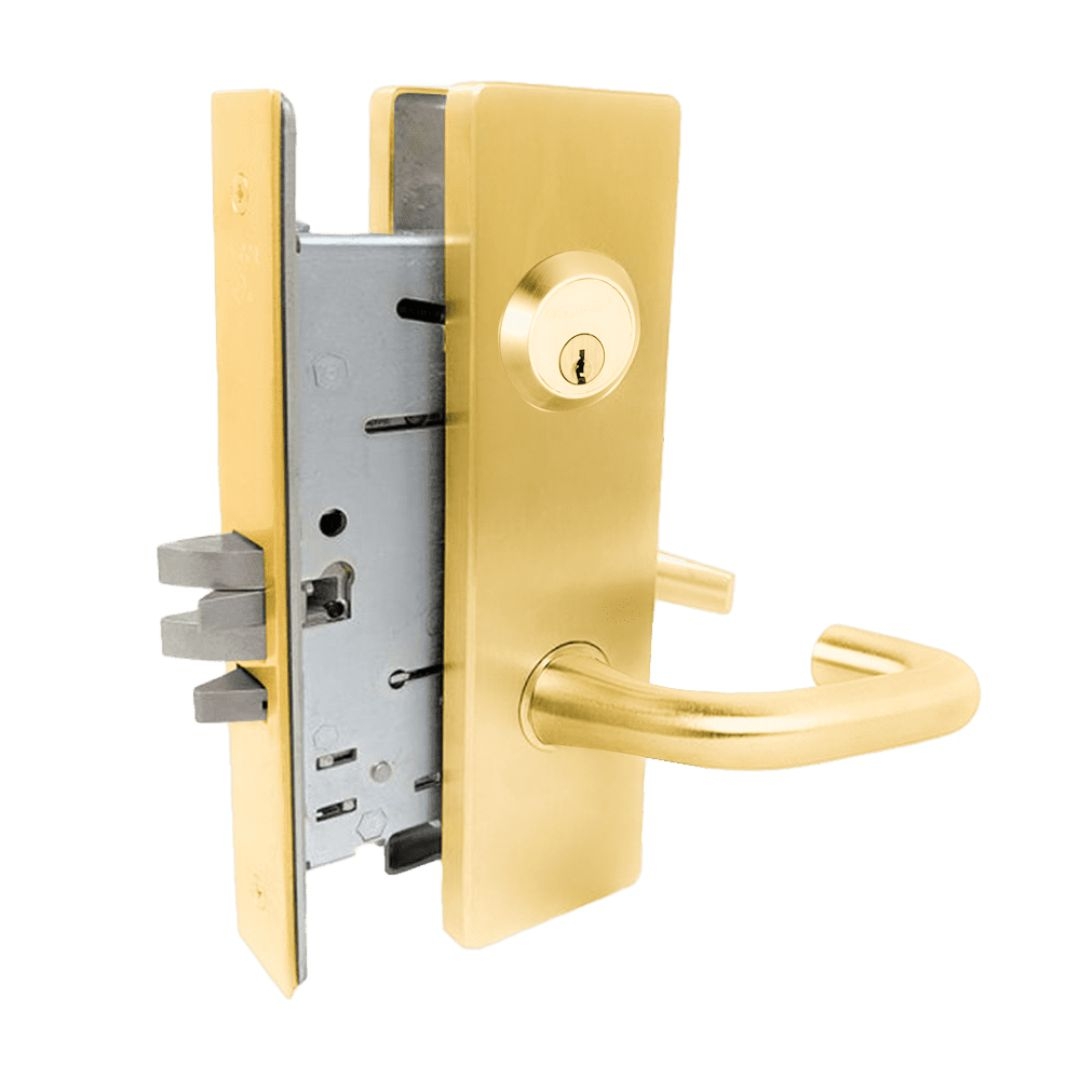

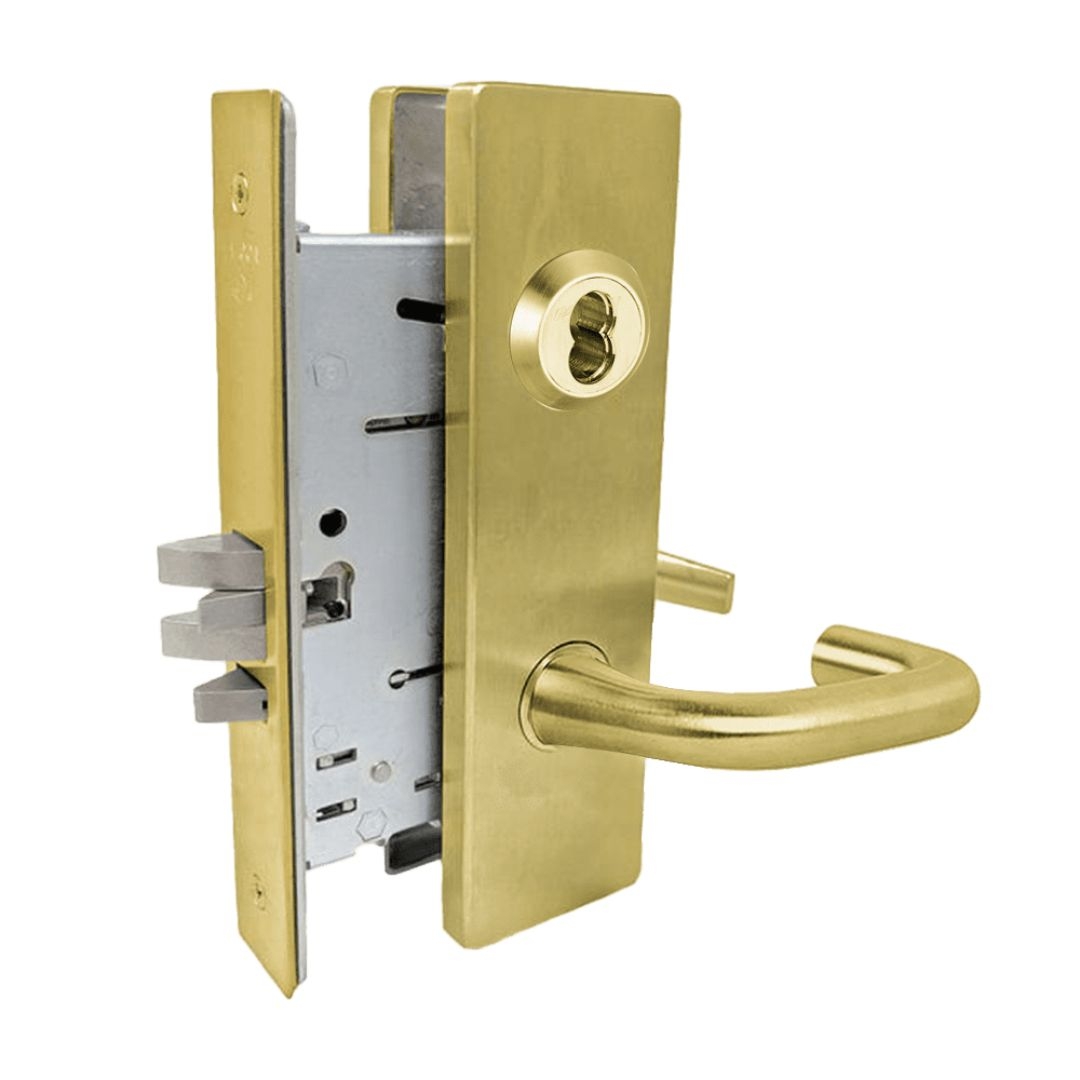

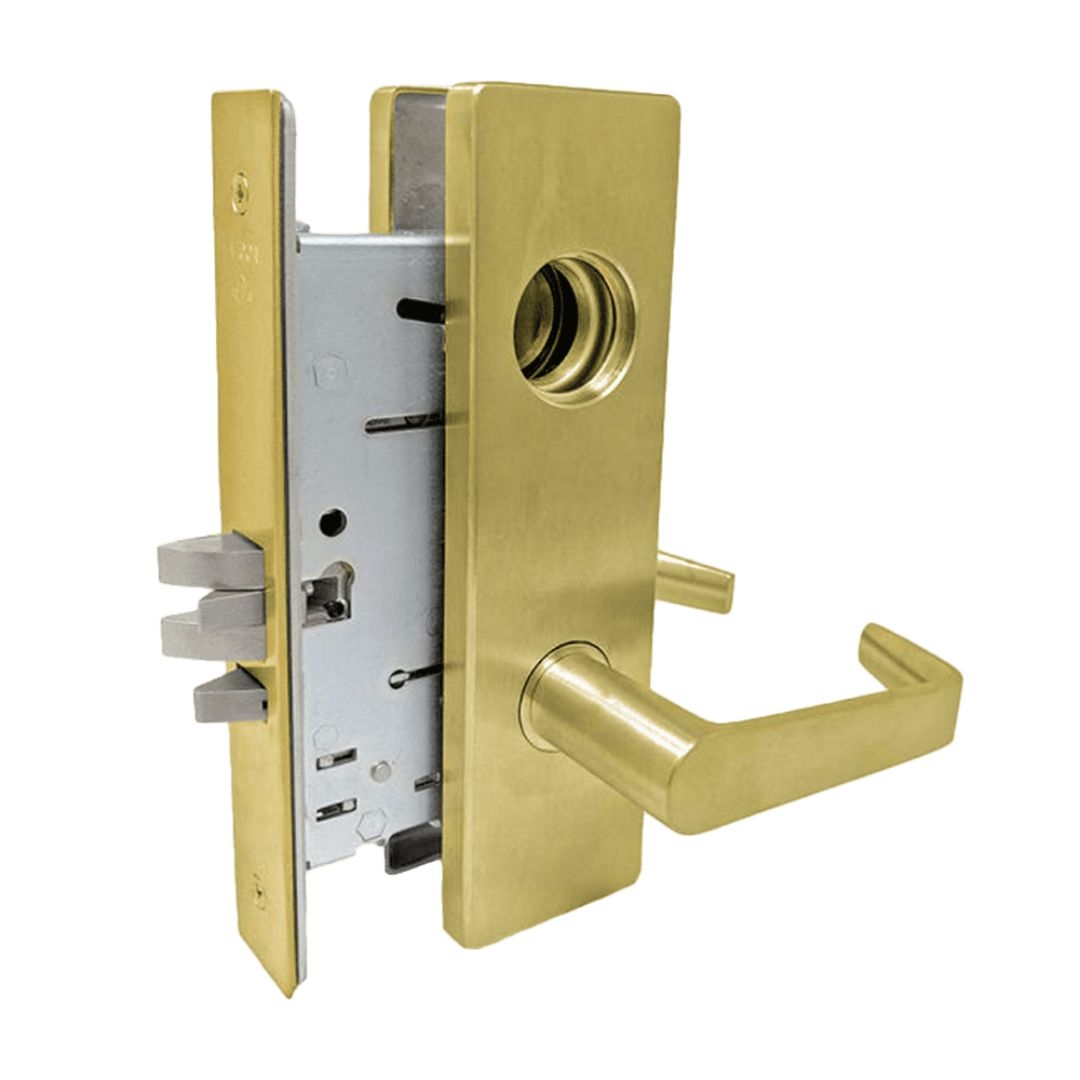

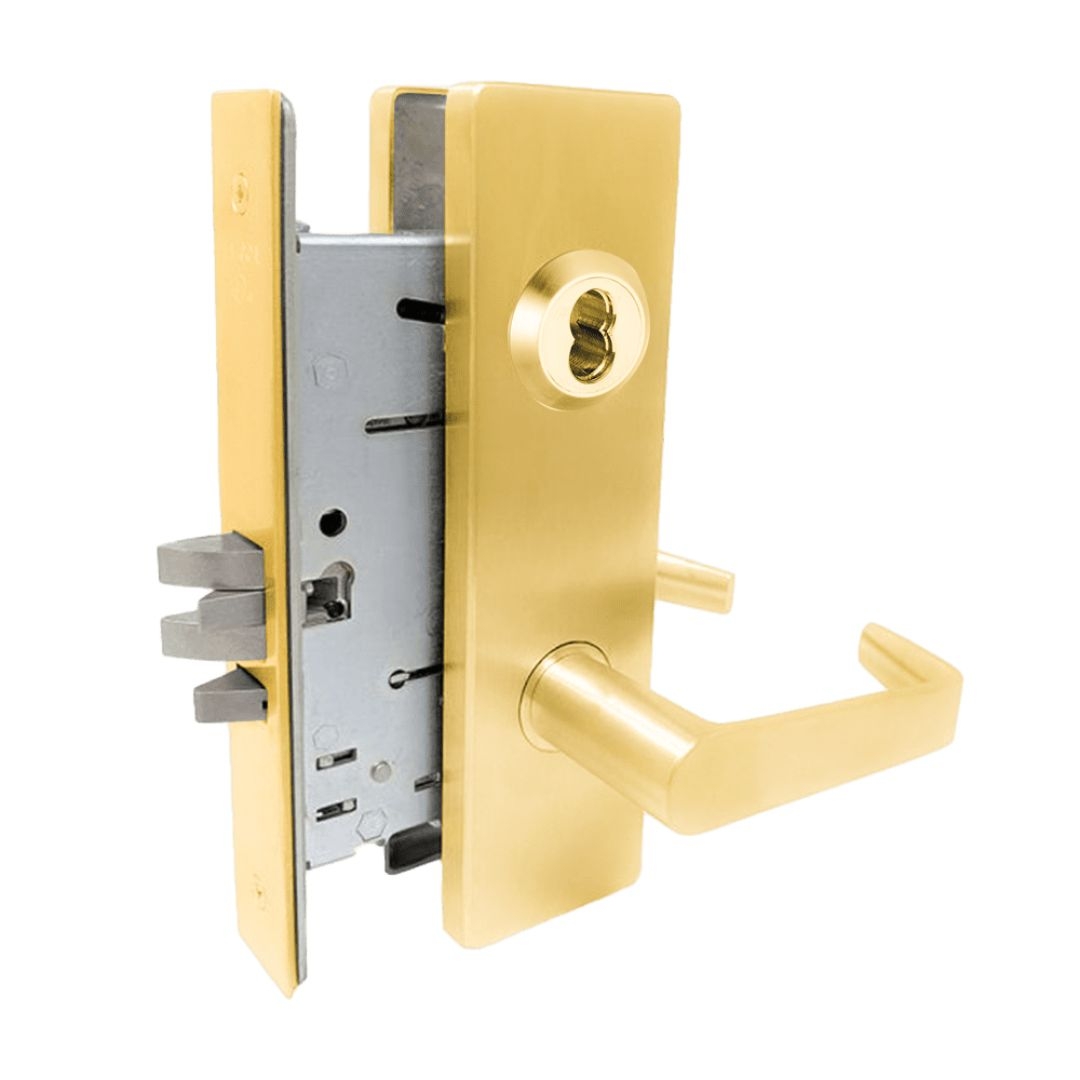

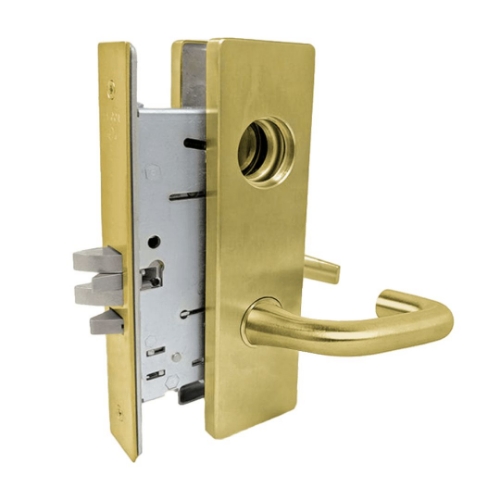

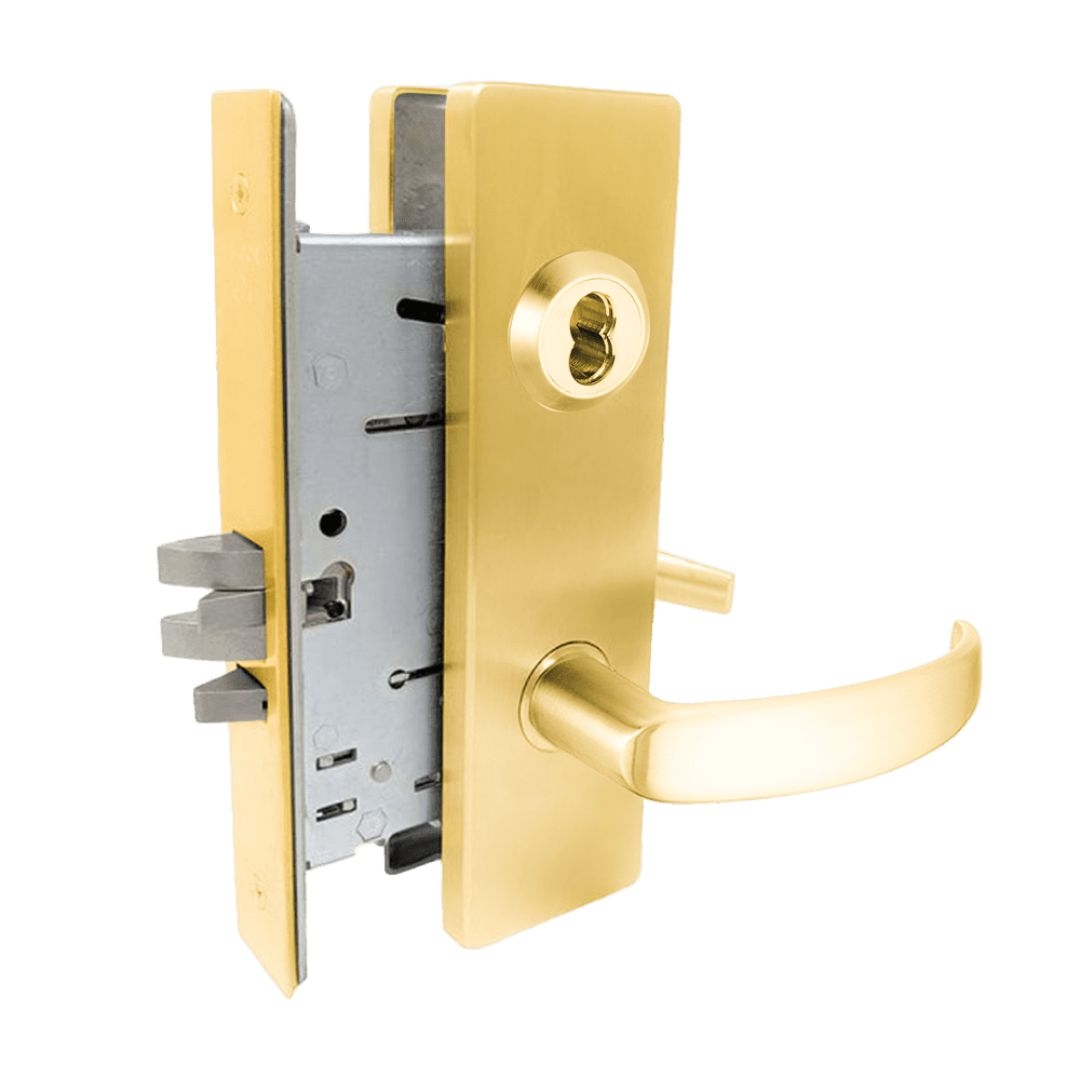

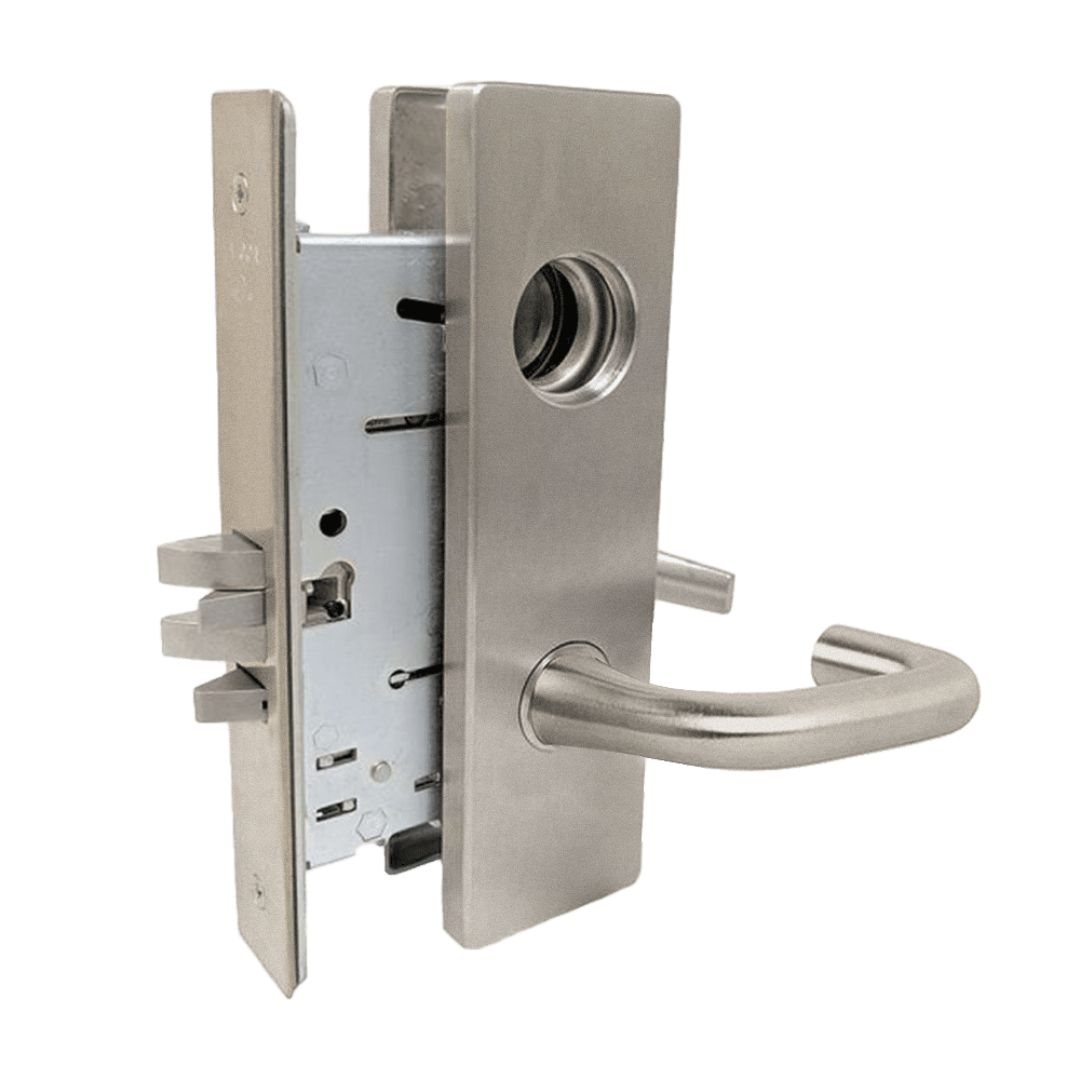

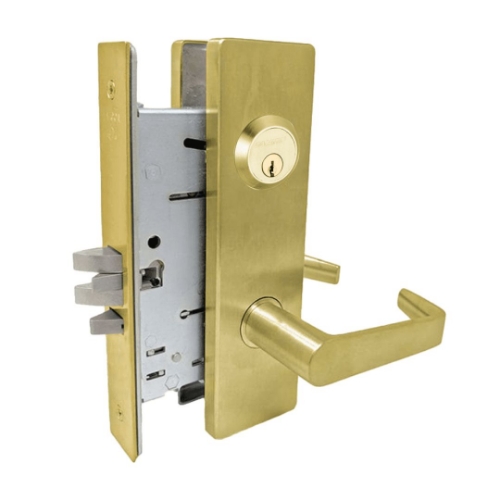

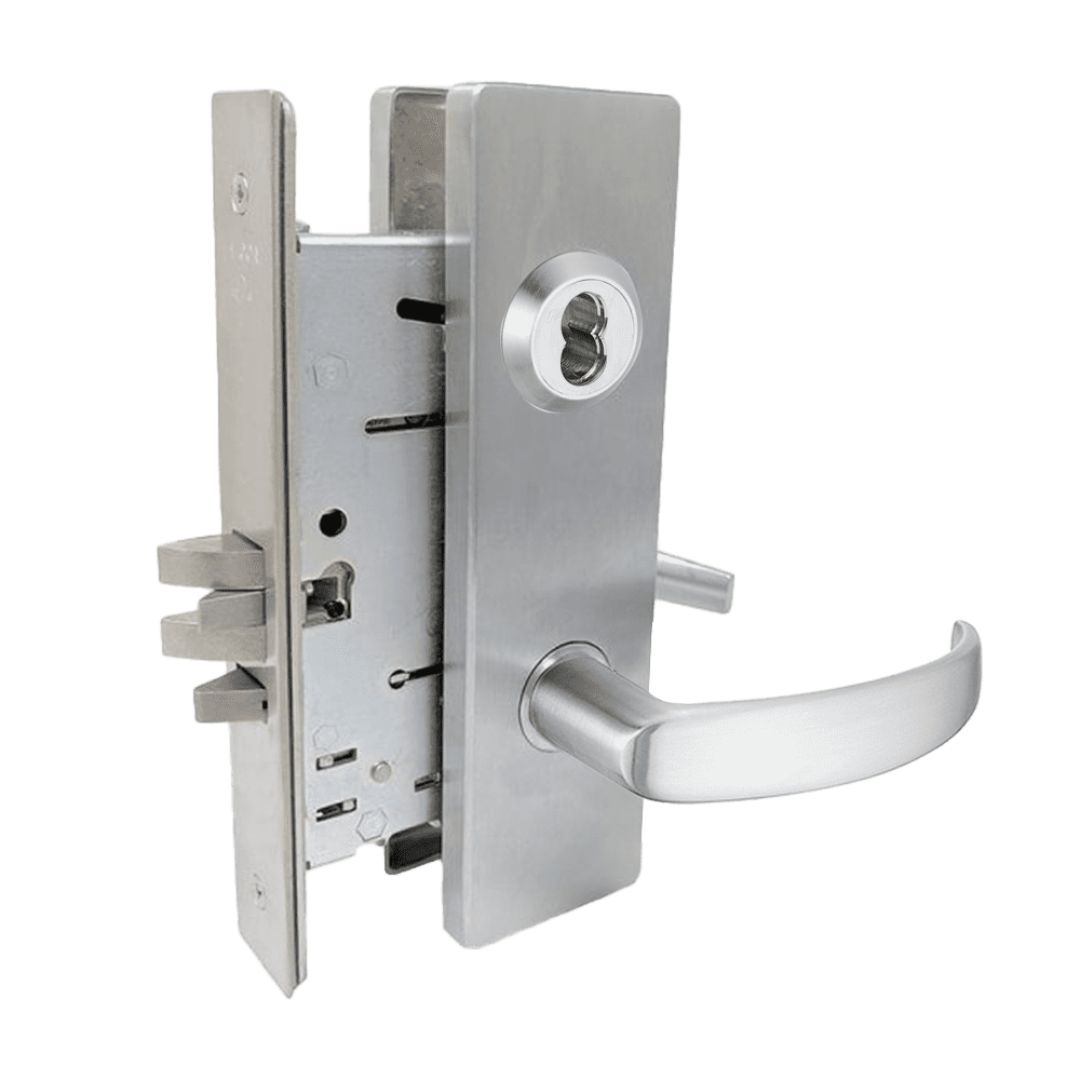

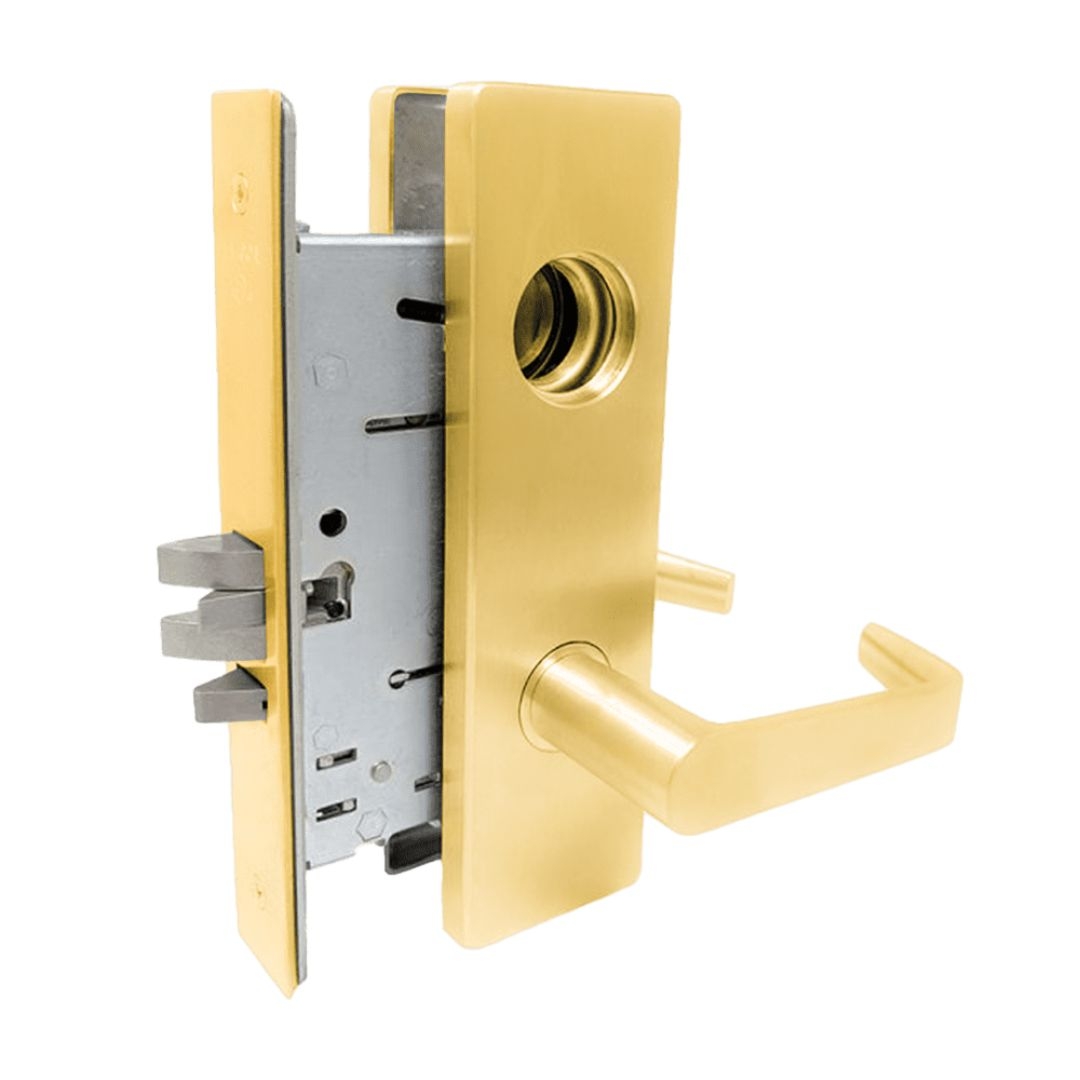

Falcon MA451 Grade 1 Hotel Guest Mortise Lock,

Falcon MA451 Hotel Guest Mortise Lock - ANSIF15

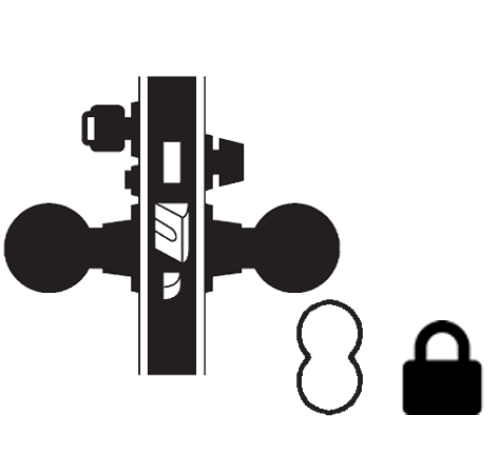

Latch bolt operated by key from outside or by operating inside knob/lever. Outside knob/lever is always inoperative. Dead bolt projected by turn from inside and all keys except emergency key are shut out. Operating inside knob/lever retracts both bolts. Auxiliary dead latch.

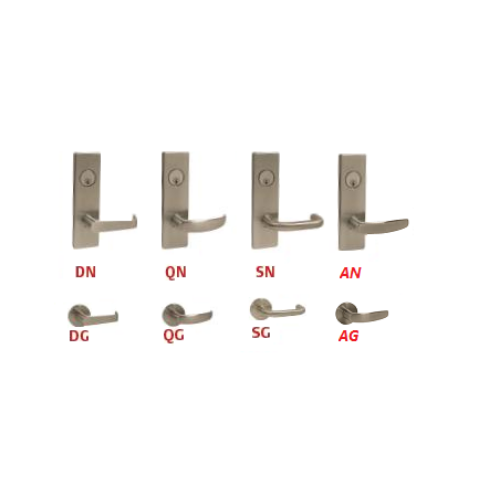

Available in the following trim styles:

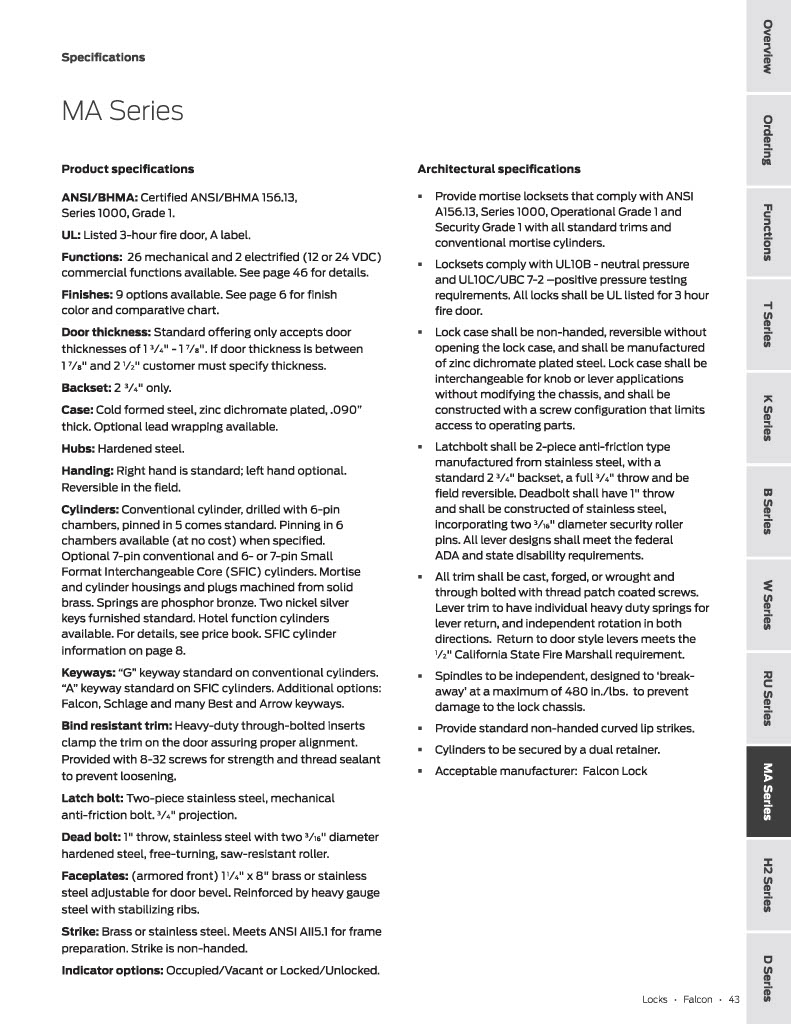

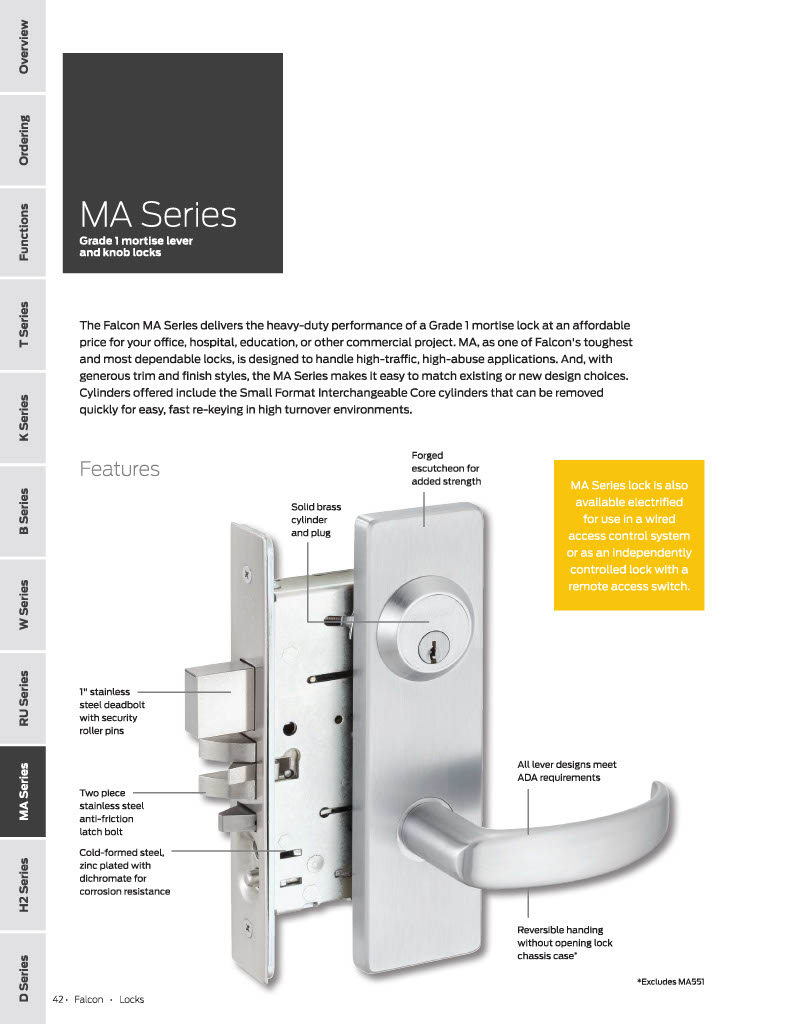

MA Series Lock Features

Door thickness:Standard accommodates thickness of 1-3/8to 2-1/2".

Backset:2-3/4only.

Case:Cold formed steel, zinc dichromate plated, .090thick.

Hubs:Hardened steel.

Handing:Right hand is standard; left hand optional. Reversible in the field.

Cylinders:Solid brass cylinder and plug.Standard mortise cylinders are furnished as 5-or 6-pin as standard. 6 or 7-pin are available on interchangeable core cylinder.

Furnished with two nickel silver keys standard

Keyways:Gkeyway standard on standard cylinder. A keyway standard on I/C cylinder.

Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.

Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4projection.

Dead Bolt:1throw, stainless steel with two 13/16diameter hardened steel, free-turning, saw-resistant roller.

Faceplates:(Armored Front) 1-1/4x 8brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.

Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.

Electrified Functions:Available in 12 or 24 VDC. ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.

UL:3 hour A label.

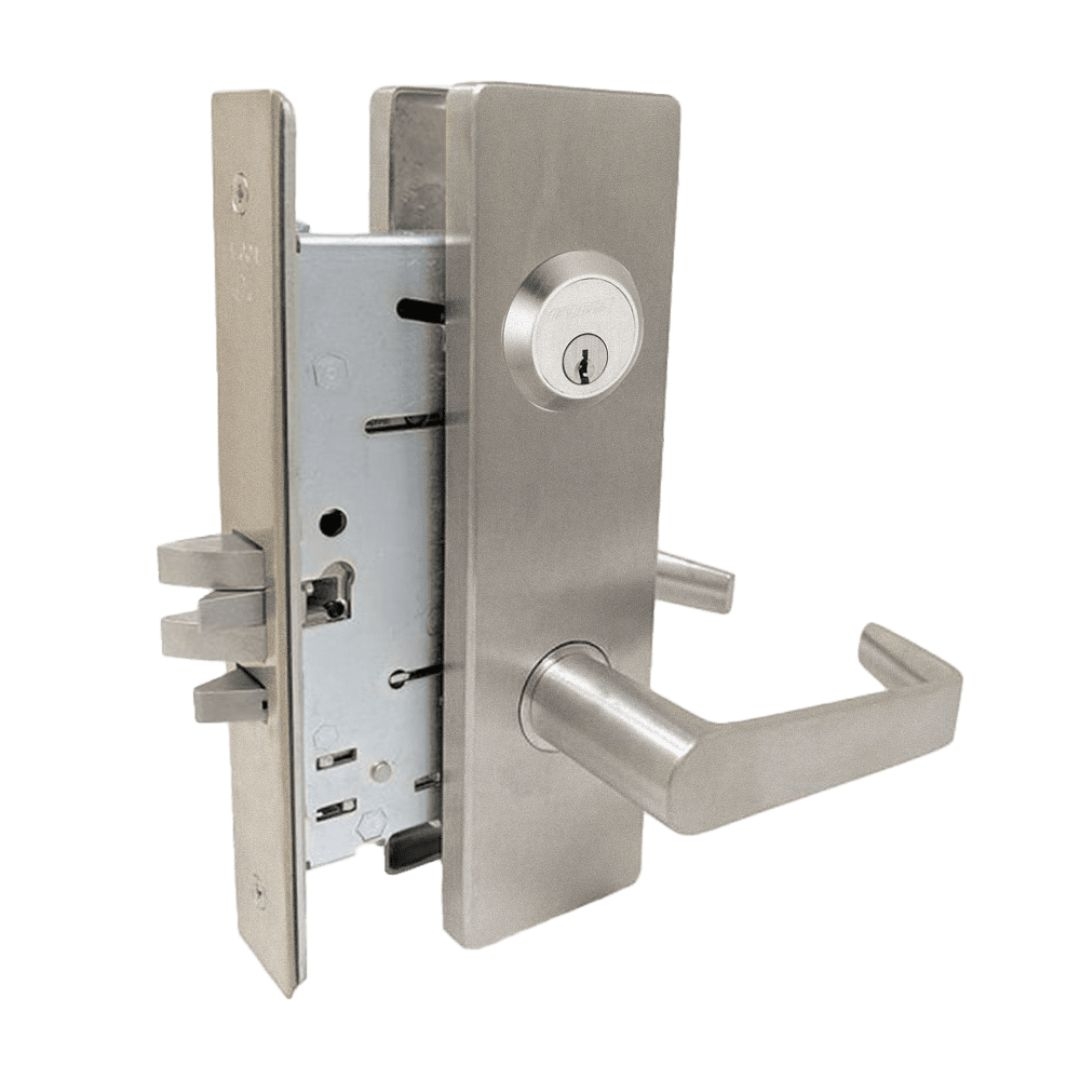

Model: Falcon MA451, DG, Dane-Gala, QG, -Quantum-Gala, SG, Sutro-Gala, DN, Dane-Napa, QN, -Quantum-Napa, SN, Sutro-Napa, HG, Hana-Gala, HN, Hana-Napa, 626, Satin Chrome, 613, Oil Rubbed Bronze, 630, Satin Stainless Steel, MA451DG, MA451QG, MA451SG, MA451HG, MA451DN, MA451QN, MA451SN, MA451HN, MA451DG626, MA451DG613, MA451DG630 ,MA451QG626, MA451QG613, MA451QG630, MA451SG626, MA451SG613, MA451SG630, MA451DN626, MA451QN626, MA451SN626, MA451HG626, MA451HN626
