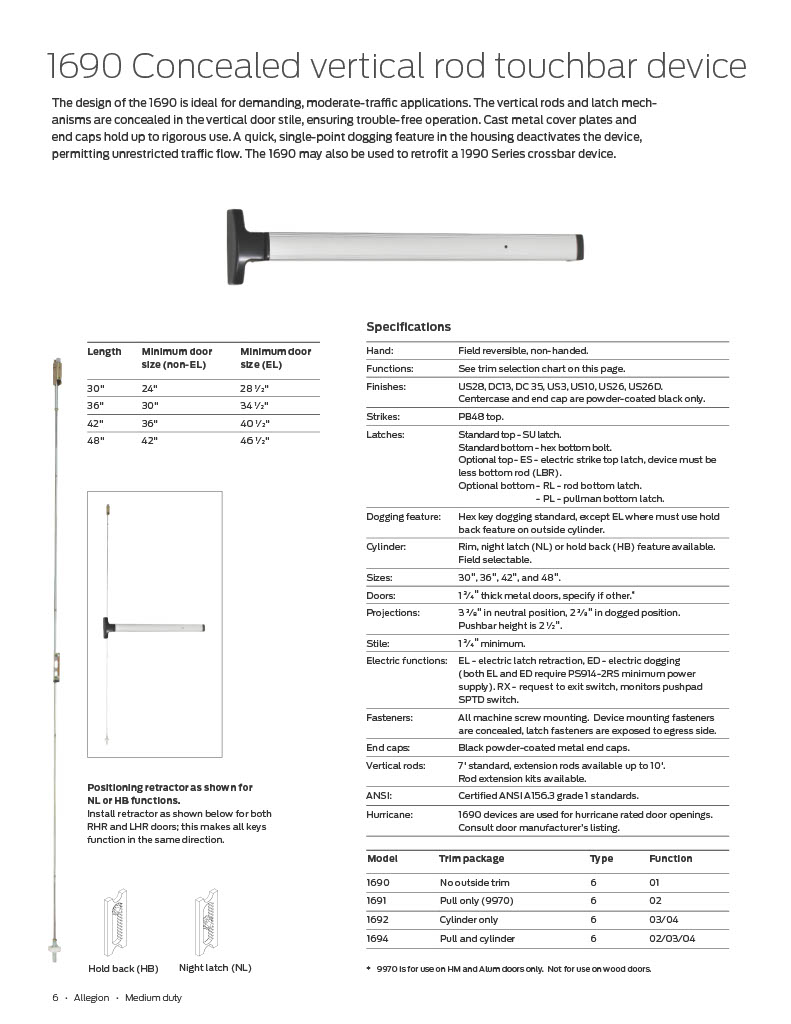

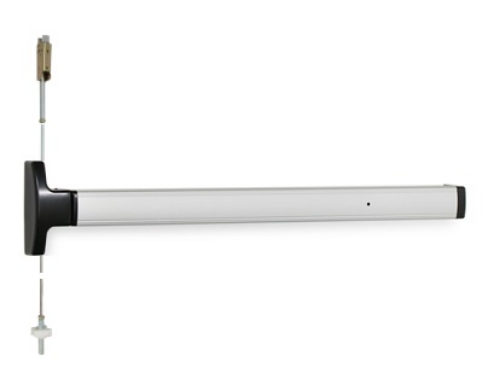

Falcon MEL1692NL-OP/HB-OP Concealed Vertical Rod Touchbar With Motorized Electric Latch Retraction W/Nightlatch Cylinder

Falcon MEL1692NL-OP/HB-OP Concealed Vertical Rod Touchbar With Motorized Electric Latch Retraction W/Nightlatch Cylinder

NL-OP- Night latch, cylinder only: key retracts latch but does not unlock exit device, no pull

HB-OP- Hold back, cylinder only: key retracts latch and holds latch back, no pull

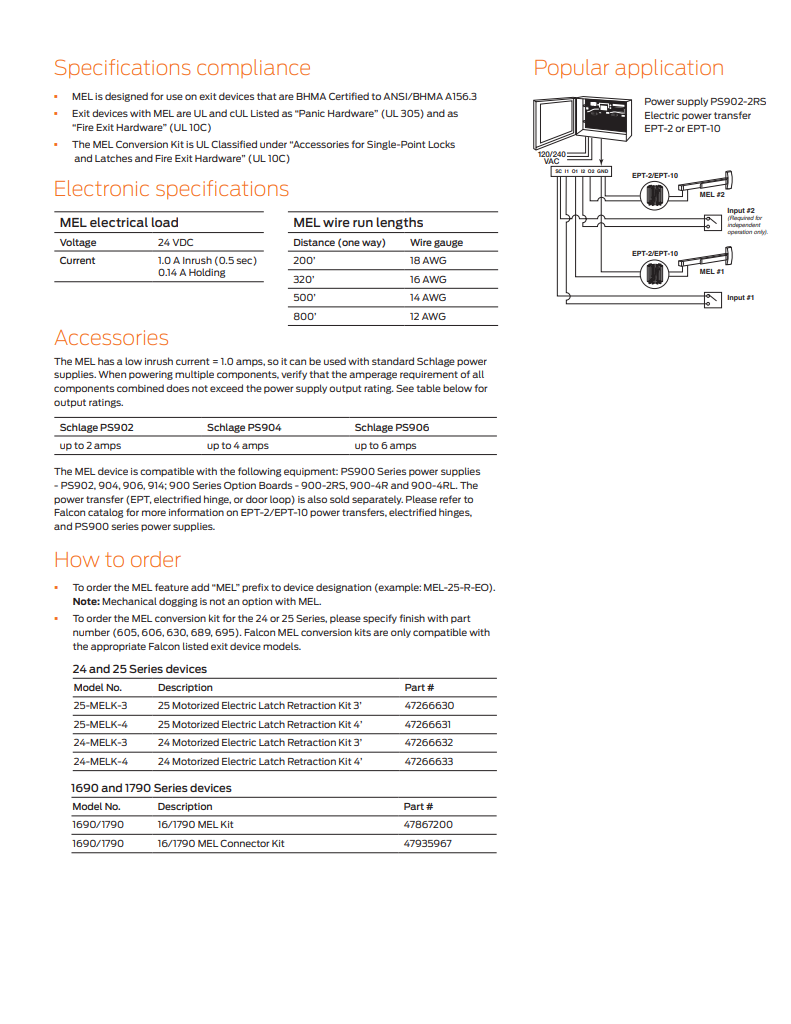

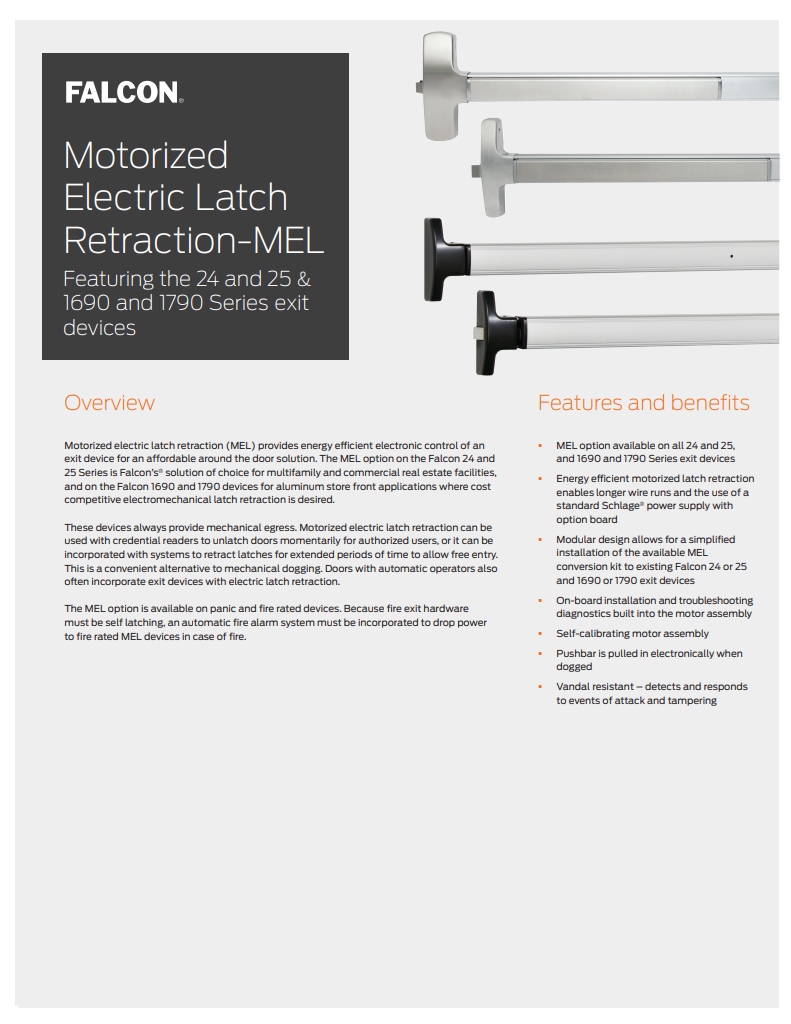

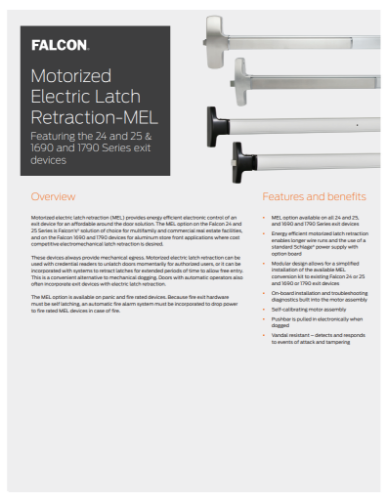

Motorized Electric Latch Retraction*: *

MEL is designed for use on exit devices that are BHMA Certified to ANSI/BHMA A156.3Exit devices with MEL are UL and cUL Listed as 'Panic Hardware' (UL 305) and as 'Fire Exit Hardware' (UL 10C)The MEL Conversion Kit is UL Classified under 'Accessories for Single-Point Locks and Latches and Fire Exit Hardware' (UL 10C)Rim cylinder supplied standard with NL and HB options is C keyway

Electric functions: EL - electric latch retraction, include "S". Requires PS914-2RS minimum power supply. S- latch bolt monitor switch (SPDT).Conversion kits available. Devices are handed.

Length:36"Minimum door size: 34 1 ⁄2"

Length:42" Minimum door size: 40 1 ⁄2"

Hand:Field reversible, non-handed

Strikes:PB48 top.

Latches:Standard top - SU latch. Standard bottom - hex bottom bolt.

Dogging feature:Hex key dogging standard, except EL where must use hold back feature on outside cylinder.

Doors:1 3 ⁄4" thick metal doors, specify if other.

Projections:3 3 ⁄8" in neutral position, 2 3 ⁄8" in dogged position. Pushbar height is 2 1 ⁄2".**

Stile:1 3 ⁄4" minimum.

Fasteners:All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

End caps:Black powder-coated metal end caps.

Vertical rods:7' standard, extension rods available up to 10'. Rod extension kits available.

ANSI:Certified ANSI A156.3 grade 1 standards.

High security:1690 High security devices are used for hurricane rated door openings. Consult door manufacturer’s listing.

**

**

**
