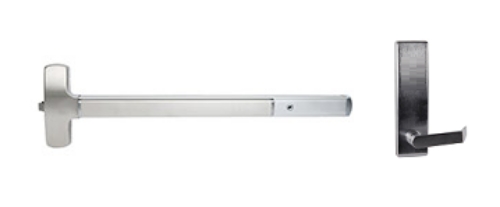

Falcon MEL25R-L-DT Rim Exit Device, With Lever Trim, Dummy Function, Motorized Electric Latch Retraction

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

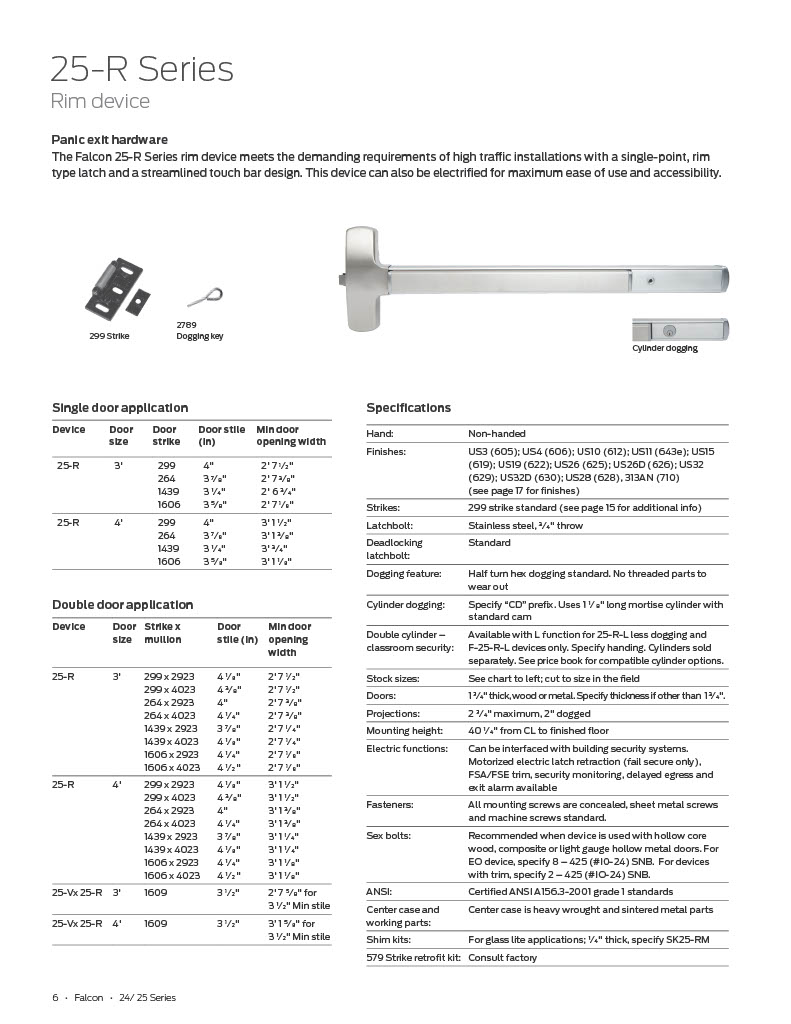

Hand: Non-handed

Strikes: 299 strike standard.

Latchbolt: Stainless steel, 3⁄4" throw.

Deadlocking latchbolt:Standard.

Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.

Cylinder dogging: Specify “CD" prefix. Uses 1 1 ⁄ 8" long mortise cylinder with  standard cam

Doors:1 3⁄4" thick, wood or metal.

Projections: 2 3⁄4" maximum, 2" dogged.

Mounting height: 40 1 ⁄4" from CL to finished floor.

Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.

Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.

ANSI: Certified ANSI A156.3-2001 grade 1 standards.

Center case & working parts:Center case is heavy wrought and sintered metal parts.

Model: Falcon MEL25R-EO, MEL25-R-EO, 25REO, MEL25 R EO , MEL25 R EO

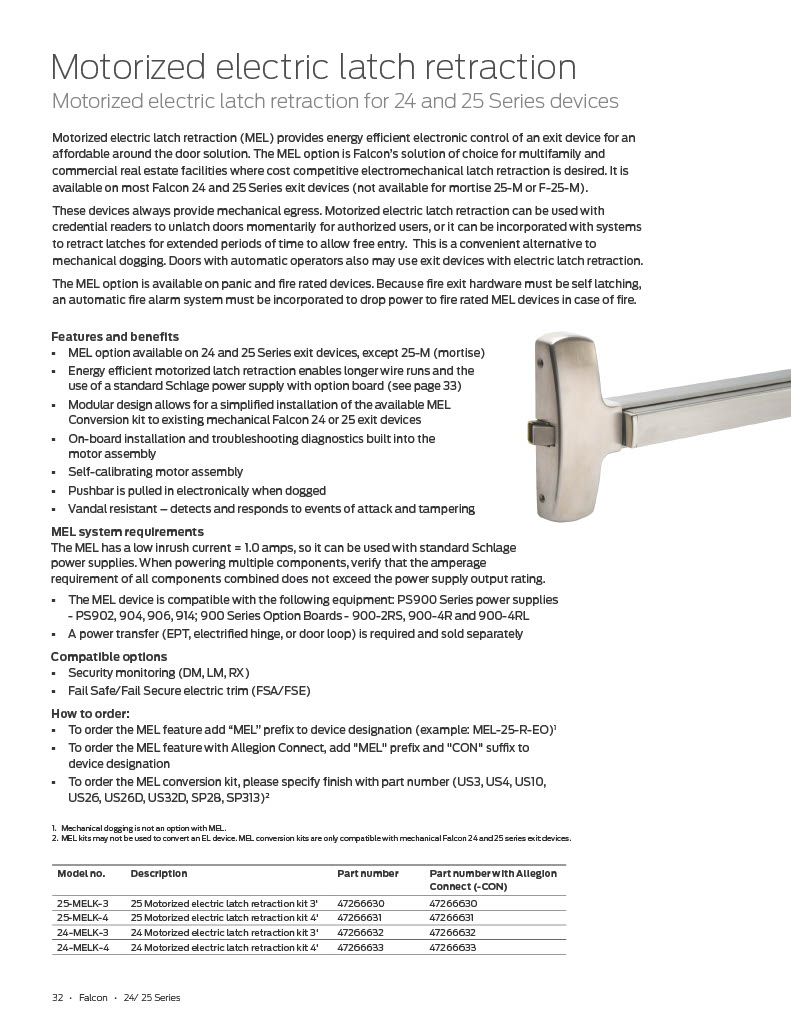

MEL Specifications compliance:

• MEL is designed for use on exit devices that are BHMA Certified to ANSI/BHMA A156.3

• Exit devices with MEL are UL and cUL Listed as "Panic Hardware" (UL 305) and as "Fire Exit Hardware" (UL 10C)

• The MEL Conversion Kit is UL Classified under "Accessories for Single-Point Locks  and Latches and Fire Exit Hardware" (UL 10C)

Electronic specifications:

MEL electrical load Voltage 24 VDC Current 1.0 A Inrush (0.5 sec) 0.14 A Holding

MEL wire run lengths Distance (one way) - Wire gauge

200' - 18 AWG

320' - 16 AWG

500' - 14 AWG

800' - 12 AWG
