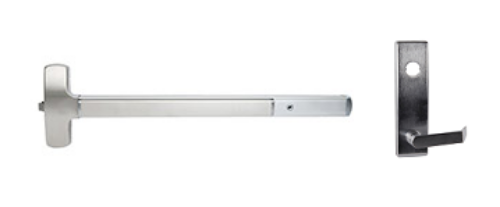

Falcon MEL25R-L Rim Exit Device, With 510L Lever Trim, Motorized Electric Latch Retraction

25R-L
1-Page6-Falcon24_25
1-Page16-Falcon24_25
1-Page32-Falcon24_25
25R-L
1-Page6-Falcon24_25
1-Page16-Falcon24_25
1-Page32-Falcon24_25
naxt
prev

Product Details

Falcon MEL25R-L Rim Exit Device, With 510L Lever Trim, Motorized Electric Latch Retraction

Trim Type: 510L Classroom Lever.

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

Hand:Non-handed

Strikes:299 strike standard.

Latchbolt:Stainless steel, 3⁄4" throw.

Deadlocking latchbolt:Standard.

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Cylinder dogging:Specify “CD" prefix. Uses 1 1 ⁄ 8" long mortise cylinder with  standard cam

Doors:1 3⁄4" thick, wood or metal.

Projections:2 3⁄4" maximum, 2" dogged.

Mounting height:40 1 ⁄4" from CL to finished floor.

Fasteners:All mounting screws are concealed, sheet metal screws and machine screws standard.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

Center case & working parts:Center case is heavy wrought and sintered metal parts.

Model:Falcon MEL25R-EO, MEL25-R-EO, 25REO, MEL25 R EO , MEL25 R EO

Falcon MEL25R-L Rim Exit Device, With 510L Lever Trim, Motorized Electric Latch Retraction

SKU: MEL25RL

In Stock
Picture for manufacturer Falcon
icon Chat

$1,396.20

Finish *

28 - Satin Aluminum Clear Anodized Finish (ed)
28 - Satin Aluminum Clear Anodized Finish (ed)
26D - Satin Chrome Finish (ed) [+$127.50]
26D - Satin Chrome Finish (ed) [+$127.50]
32D - Satin Stainless Steel Finish (ed) [+$142.50]
32D - Satin Stainless Steel Finish (ed) [+$142.50]
32 - Satin Stainless Steel (ed) [+$171.00]
32 - Satin Stainless Steel (ed) [+$171.00]
15 - Satin Nickel Plated Clear Coated Finish (ed) [+$248.50]
15 - Satin Nickel Plated Clear Coated Finish (ed) [+$248.50]
4 - Satin Brass Finish (ed) [+$171.00]
4 - Satin Brass Finish (ed) [+$171.00]
3 - Bright Brass Finish (ed) [+$248.50]
3 - Bright Brass Finish (ed) [+$248.50]
10 - Satin Bronze Plated Clear Coated Finish (ed) [+$156.50]
10 - Satin Bronze Plated Clear Coated Finish (ed) [+$156.50]
26 - Bright Chrome Finish (ed) [+$156.50]
26 - Bright Chrome Finish (ed) [+$156.50]
19 - Flat Black Coated Finish (ed) [+$127.50]
19 - Flat Black Coated Finish (ed) [+$127.50]
643E - Aged Bronze Finish (ed) [+$248.50]
643E - Aged Bronze Finish (ed) [+$248.50]

Lever *

Dane (D)
Dane (D)
Quantum (Q)
Quantum (Q)

Size *

Handing *

About this item

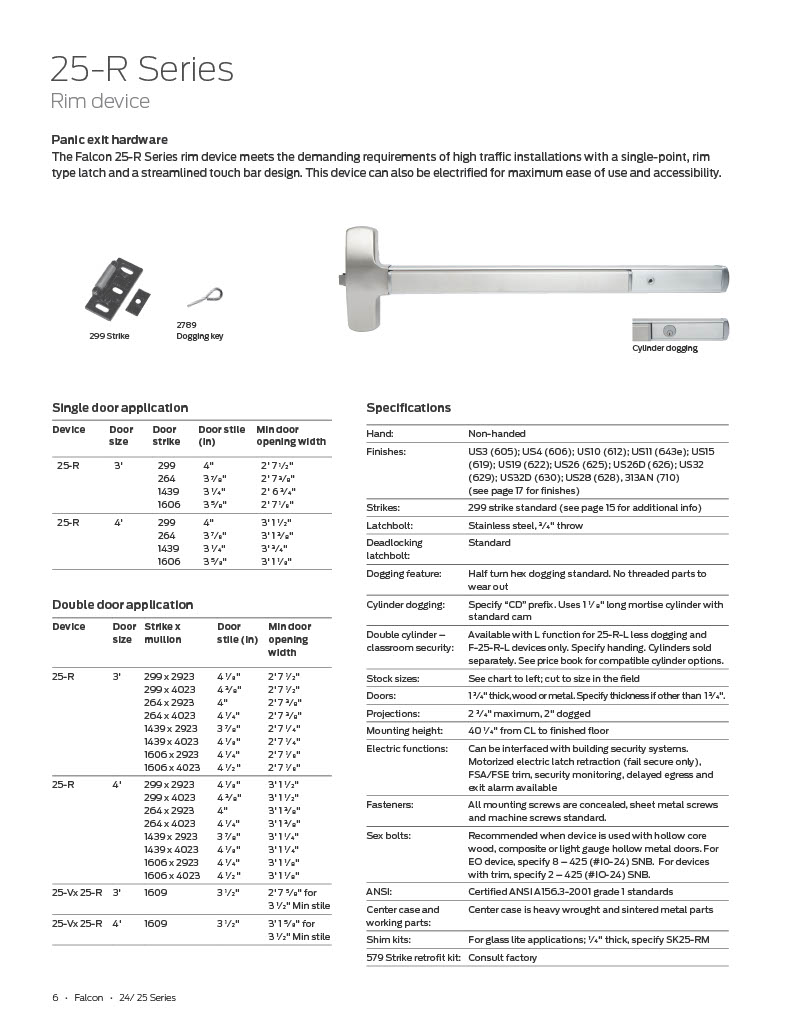

The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Resources

Falcon MEL25R-L Rim Exit Device, With 510L Lever Trim, Motorized Electric Latch Retraction

Trim Type: 510L Classroom Lever.

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

Hand:Non-handed

Strikes:299 strike standard.

Latchbolt:Stainless steel, 3⁄4" throw.

Deadlocking latchbolt:Standard.

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Cylinder dogging:Specify “CD" prefix. Uses 1 1 ⁄ 8" long mortise cylinder with  standard cam

Doors:1 3⁄4" thick, wood or metal.

Projections:2 3⁄4" maximum, 2" dogged.

Mounting height:40 1 ⁄4" from CL to finished floor.

Fasteners:All mounting screws are concealed, sheet metal screws and machine screws standard.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

Center case & working parts:Center case is heavy wrought and sintered metal parts.

Model:Falcon MEL25R-EO, MEL25-R-EO, 25REO, MEL25 R EO , MEL25 R EO

25R-L
Falcon MEL25R-L Rim Exit Device, With 510L Lever Trim, Motorized Electric Latch Retraction

Product code: MEL25RL

In Stock

$1,396.20

$1,396.20

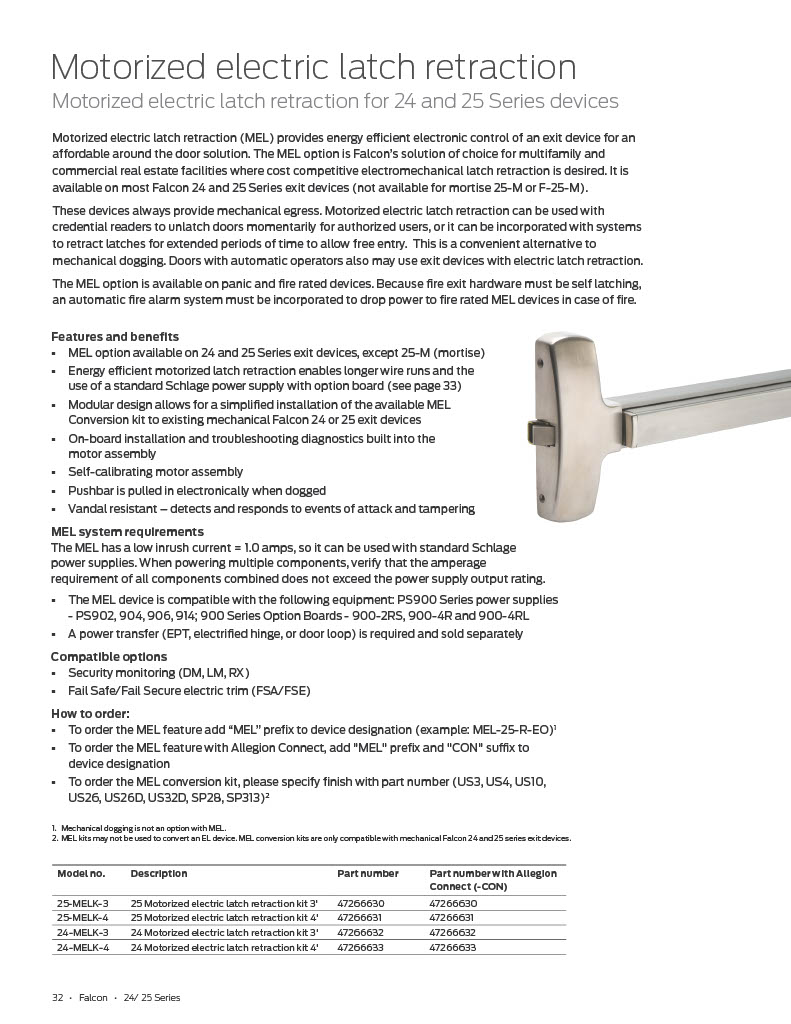

MEL Specifications compliance:

  • MEL is designed for use on exit devices that are BHMA Certified to ANSI/BHMA A156.3

  • Exit devices with MEL are UL and cUL Listed as "Panic Hardware" (UL 305) and as "Fire Exit Hardware" (UL 10C)

  • The MEL Conversion Kit is UL Classified under "Accessories for Single-Point Locks  and Latches and Fire Exit Hardware" (UL 10C)

Electronic specifications:

MEL electrical load Voltage 24 VDC Current 1.0 A Inrush (0.5 sec) 0.14 A Holding

MEL wire run lengths Distance (one way) - Wire gauge

200' - 18 AWG

320' - 16 AWG

500' - 14 AWG

800' - 12 AWG

25R-L
Falcon MEL25R-L Rim Exit Device, With 510L Lever Trim, Motorized Electric Latch Retraction

Product code: MEL25RL

In Stock

$1,396.20

$1,396.20

Falcon MEL25R-L Rim Exit Device, With 510L Lever Trim, Motorized Electric Latch Retraction

SKU: MEL25RL
