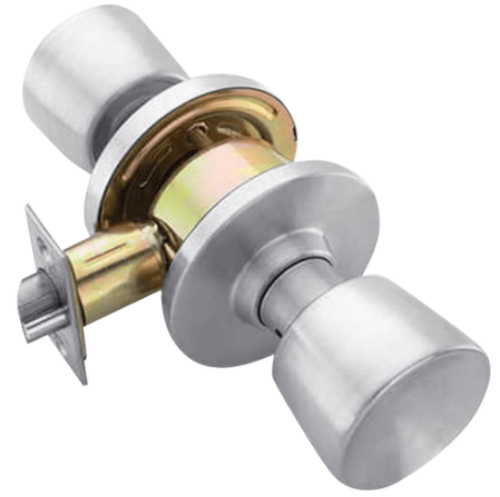

Falcon W101S ELI 626 Grade 2 Passage Cylindrical Lock

Falcon W101S ELI 626 Grade 2 Passage Cylindrical Lock

Knobs: 1)*ELI- Elite,(2 HAN*- Hana

Finishes: Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626 Door Thickness:  1-3/8" to to 1-3/4" standard.

Backset: 2-3/4" standard; 2-3/8" also available.

Handing: Locks are non-handed.

Trim: Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8backset with 2-1/4" x 1latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: 3 hour A label.

Model:Falcon, W101, W101S, W101SD, W101SQ, W101SELI, W101SHAN,  101SD626, W101SQ626, W101SELI626, W101SHAN626, W101SD625, W101SQ625, W101SELI625, W101SHAN625, W101SD605, W101SQ605, W101SELI605, W101SHAN605, W101SD606, W101SQ606, W101SELI606, W101SHAN606, W101SD613, W101SQ613, W101SELI613, W101SHAN613
