Falcon W511PD, Grade 2 Entry/Office Lock, Key in Lever Cylinder

Falcon W511PD, Grade 2 Entry/Office Lock, Key in Lever Cylinder -*ANSI F109*

Deadlocking latch bolt by levers. Turn/push button locking. Pushing and turning button locks outside lever, requiring use of a key for unlocking the door until button is manually unlocked. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever is always free.

Lever:HAN - HANA, ELI - Elite

Finishes:Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness:1-3/8" to to 1-3/4" standard.

Backset:2-3/4" standard; 2-3/8" also available.

Handing:Locks are non-handed.

Cylinders:Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.

Keyways:G keyway standard on Falcon standard cylinders. A keyway standard on I/C core cylinders. Also available with some optional keyways. SchlageCkeyway also available on standard cylinders.

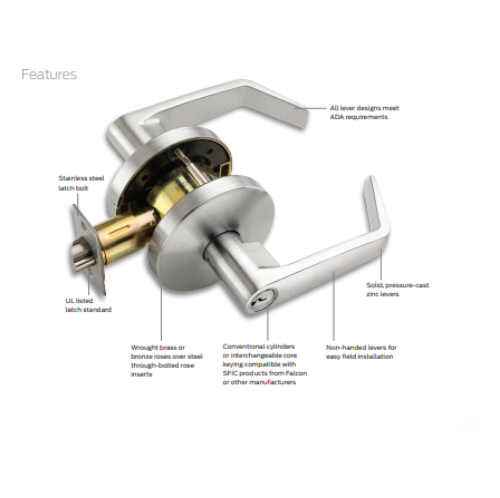

Trim:Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches:1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:3 hour A label.

MODEL:W511, W511PDELI, W511PDELID, W511PDELIQ, W511PDELIDAN, W511PDELIQUA, W511SD626, W511PDELIQ626, W511PDELIDAN626, W511PDELIQUA626, W511PDELID625, W511PDELIQ625, W511PDELIDAN625, W511PDELIQUA625, W511PDELID605, W511PDELIQ605, W511PDELIDAN605, W511PDELIQUA605, W511PDELID606, W511PDELIQ606, W511PDELIDAN606, W511PDELIQUA606, W511PDELID613, W511PDELIQ613, W511PDELIDAN613, W511PDELIQUA613, W511BDELI, W511BDELID, W511BDELIQ, W511BDELIDAN, W511BDELIQUA, 101SD626, W511BDELIQ626, W511BDELIDAN626, W511BDELIQUA626, W511BDELID625, W511BDELIQ625, W511BDELIDAN625, W511BDELIQUA625, W511BDELID605, W511BDELIQ605, W511BDELIDAN605, W511BDELIQUA605, W511BDELID606, W511BDELIQ606, W511BDELIDAN606, W511BDELIQUA606, W511BDELID613, W511BDELIQ613, W511BDELIDAN613, W511BDELIQUA613

Mechanism:Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Screws:Furnished with combination screws for use in wood or metal doors and frames.
