Product Details

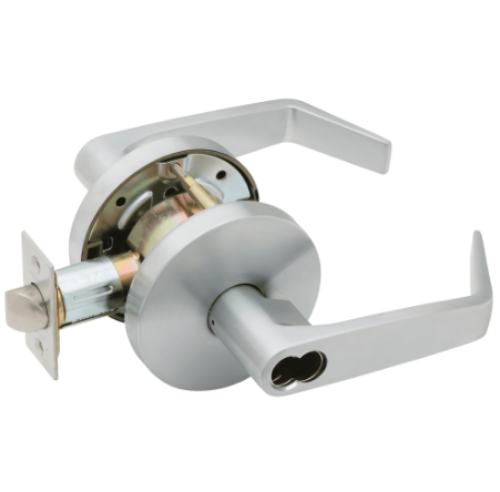

W711 - Grade 2 Apartment Entrance Lock -*ANSI F86*
Latch bolt operated by levers/knobs. Turn/push button locking: Pushing and turning button locks outside lever/knob requiring use of a key for unlocking the door until button is manually unlocked. Push button locking: Pushing button locks outside lever until unlocked by key, by rotating inside lever, or by closing the door. Inside always free for immediate egress.

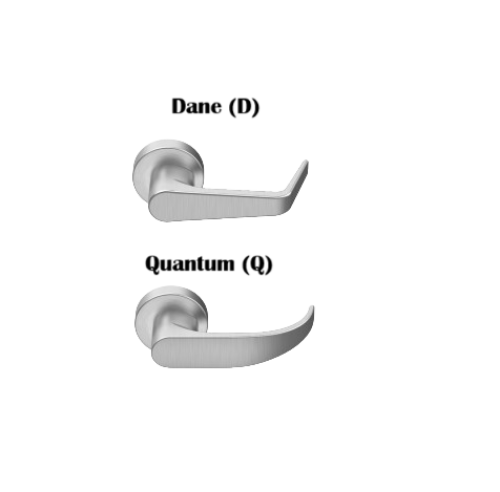

Lever:D - Dane, Q - Quantum
Finishes:Oil rubbed bronze 613, Satin chrome 626.
Door Thickness:1-3/8" to to 1-3/4" standard.
Backset:2-3/4" standard; 2-3/8" also available.
Handing:Locks are non-handed.
Cylinders:Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
Keyways:G keyway standard on Falcon standard cylinders. A keyway standard on I/C core cylinders. Also available with some optional keyways. SchlageCkeyway also available on standard cylinders.

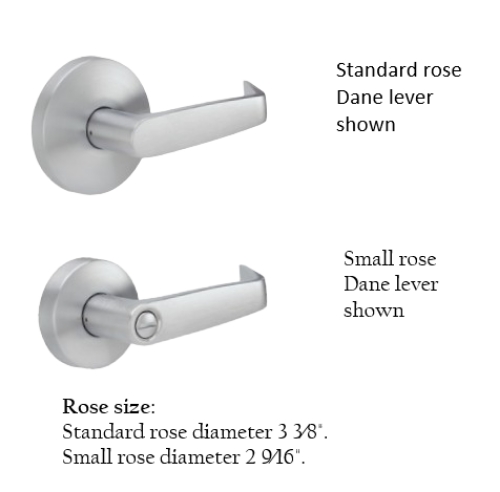

Trim:Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
Latches:1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.
Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
UL:3 hour A label.
Model:Falcon, W711, W711PD, W711PDD, W711PDQ, W711PDDAN, W711PDQUA, W711SD626, W711PDQ626, W711PDDAN626, W711PDQUA626, W711PDD625, W711PDQ625, W711PDDAN625, W711PDQUA625, W711PDD605, W711PDQ605, W711PDDAN605, W711PDQUA605, W711PDD606, W711PDQ606, W711PDDAN606, W711PDQUA606, W711PDD613, W711PDQ613, W711PDDAN613, W711PDQUA613, W711BD, W711BDD, W711BDQ, W711BDDAN, W711BDQUA, 101SD626, W711BDQ626, W711BDDAN626, W711BDQUA626, W711BDD625, W711BDQ625, W711BDDAN625, W711BDQUA625, W711BDD605, W711BDQ605, W711BDDAN605, W711BDQUA605, W711BDD606, W711BDQ606, W711BDDAN606, W711BDQUA606, W711BDD613, W711BDQ613, W711BDDAN613, W711BDQUA613
