Falcon W561PD, Grade 2 Classroom Lock, Key in Lever Cylinder

Falcon E561PD, Grade 2 Classroom Lock, Key in Lever Cylinder*- ANSI F109*

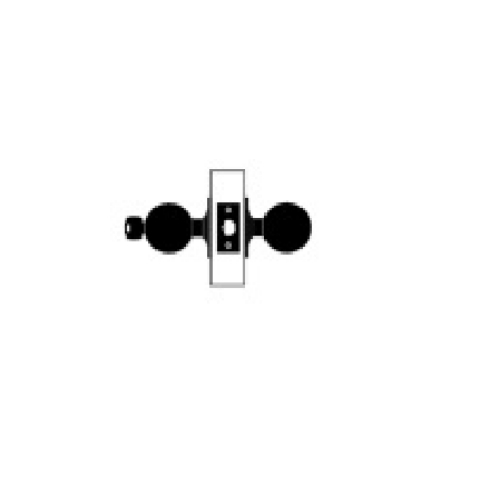

Latch bolt operated by levers/knobs. Outside lever is locked by key in outside lever/knob. Inside always free for immediate egress.

Lever:HAN - HANA, ELI - Elite

Finishes:Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness:1-3/8" to to 1-3/4" standard.

Backset:2-3/4" standard; 2-3/8" also available.

Handing:Locks are non-handed.

Cylinders:Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.

Keyways:G keyway standard on Falcon standard cylinders. A keyway standard on I/C core cylinders. Also available with some optional keyways.

Schlage C keyway also available on standard cylinders.

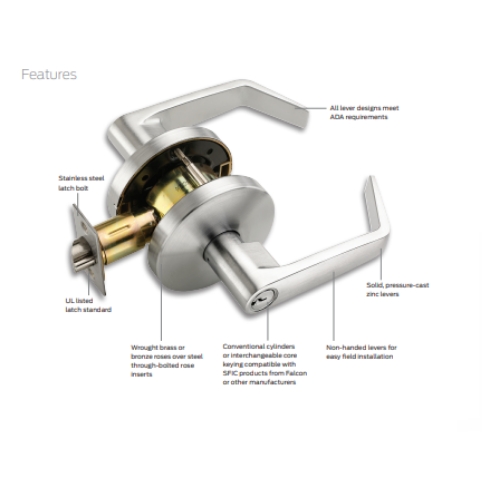

Trim:Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches:1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:3 hour A label.

MODEL:W561, W561PDELI, W561PDELID, W561PDELIQ, W561PDELIDAN, W561PDELIQUA, W561SD626, W561PDELIQ626, W561PDELIDAN626, W561PDELIQUA626, W561PDELID625, W561PDELIQ625, W561PDELIDAN625, W561PDELIQUA625, W561PDELID605, W561PDELIQ605, W561PDELIDAN605, W561PDELIQUA605, W561PDELID606, W561PDELIQ606, W561PDELIDAN606, W561PDELIQUA606, W561PDELID613, W561PDELIQ613, W561PDELIDAN613, W561PDELIQUA613, W561BDELI, W561BDELID, W561BDELIQ, W561BDELIDAN, W561BDELIQUA, 101SD626, W561BDELIQ626, W561BDELIDAN626, W561BDELIQUA626, W561BDELID625, W561BDELIQ625, W561BDELIDAN625, W561BDELIQUA625, W561BDELID605, W561BDELIQ605, W561BDELIDAN605, W561BDELIQUA605, W561BDELID606, W561BDELIQ606, W561BDELIDAN606, W561BDELIQUA606, W561BDELID613, W561BDELIQ613, W561BDELIDAN613, W561BDELIQUA613, W561, W561PDHAN, W561PDHAND, W561PDHANQ, W561PDHANDAN, W561PDHANQUA, W561SD626, W561PDHANQ626, W561PDHANDAN626, W561PDHANQUA626, W561PDHAND625, W561PDHANQ625, W561PDHANDAN625, W561PDHANQUA625, W561PDHAND605, W561PDHANQ605, W561PDHANDAN605, W561PDHANQUA605, W561PDHAND606, W561PDHANQ606, W561PDHANDAN606, W561PDHANQUA606, W561PDHAND613, W561PDHANQ613, W561PDHANDAN613, W561PDHANQUA613, W561BDHAN, W561BDHAND, W561BDHANQ, W561BDHANDAN, W561BDHANQUA, 101SD626, W561BDHANQ626, W561BDHANDAN626, W561BDHANQUA626, W561BDHAND625, W561BDHANQ625, W561BDHANDAN625, W561BDHANQUA625, W561BDHAND605, W561BDHANQ605, W561BDHANDAN605, W561BDHANQUA605, W561BDHAND606, W561BDHANQ606, W561BDHANDAN606, W561BDHANQUA606, W561BDHAND613, W561BDHANQ613, W561BDHANDAN613, W561BDHANQUA613

Mechanism:Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Screws:Furnished with combination screws for use in wood or metal doors and frames.
