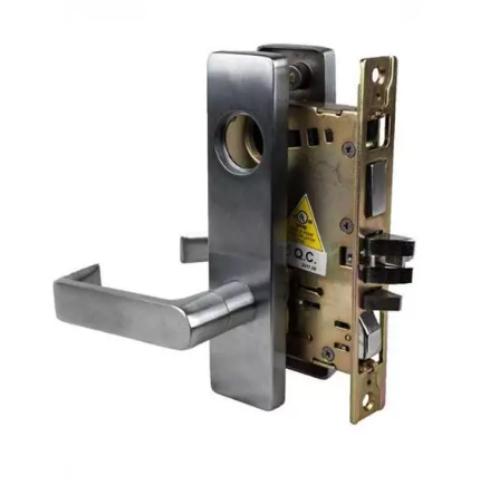

Imperial DL-DXML53 Entrance Mortise Set - Satin Chrome (US26D)

Imperial  DL-DXML53 Heavy duty Entrance Mortise Set - Satin Chrome

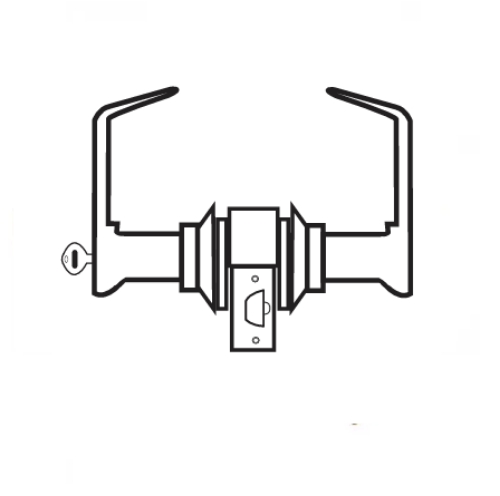

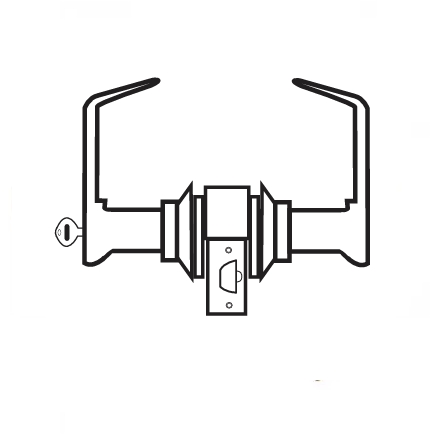

Function: Entrance Latch - ANSI F12Latchbolt operated by lever either side, except when outside lever is locked by stopworks in lock front, or by projecting deadbolt by turnpiece inside or key outside. Turning inside lever will retract latchbolt and deadbolt simultaneously. Deadbolt operated by turnpiece inside or key outside. When deadbolt is projected the latchbolt is deadlocked.

Door Thickness:1 3/4"

Backset:2 3/4"

Face plate:1 1/4" x 8"

UL 3 Hour fire Listed Latch

1" Throw Bolt

1 1/8" Mortise Cylinder

SC6 Schlage "C" 6 pin keyway

Sectional and escutcheon trim available

Barrier free levers and returns within 1/2" from door face

Dead or spring latch

Warranty:3 years Trim Specifications

Model:Imperial  DL-DXML53, DL-DXML53US26D, DL-DXML53 US26D, DL-DXML53LH, DL-DXML53RH, DL-DXML53SS, DL-DXML53SE, DL-DXML40SERH, DL-DXML53SELH, DL-DXML53SSRH, DL-DXML53SSLH, DL-DXML53LHUS26D, DL-DXML53RHUS26D, DL-DXML53SSUS26D, DL-DXML53SEUS26D, DL-DXML53SSLHUS26D, DL-DXML53SSRHUS26D,
