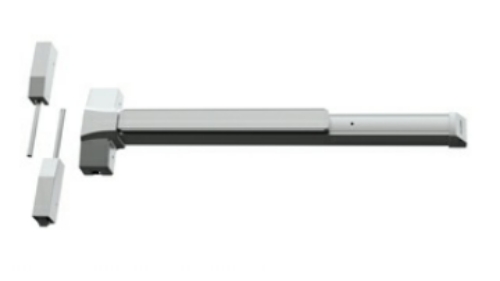

Hager 4501SVR Surface Vertical Rod Exit Device,Hager 4501SVR Surface Vertical Rod Exit Device

Hager 4501SVR Surface Vertical Rod Exit Device

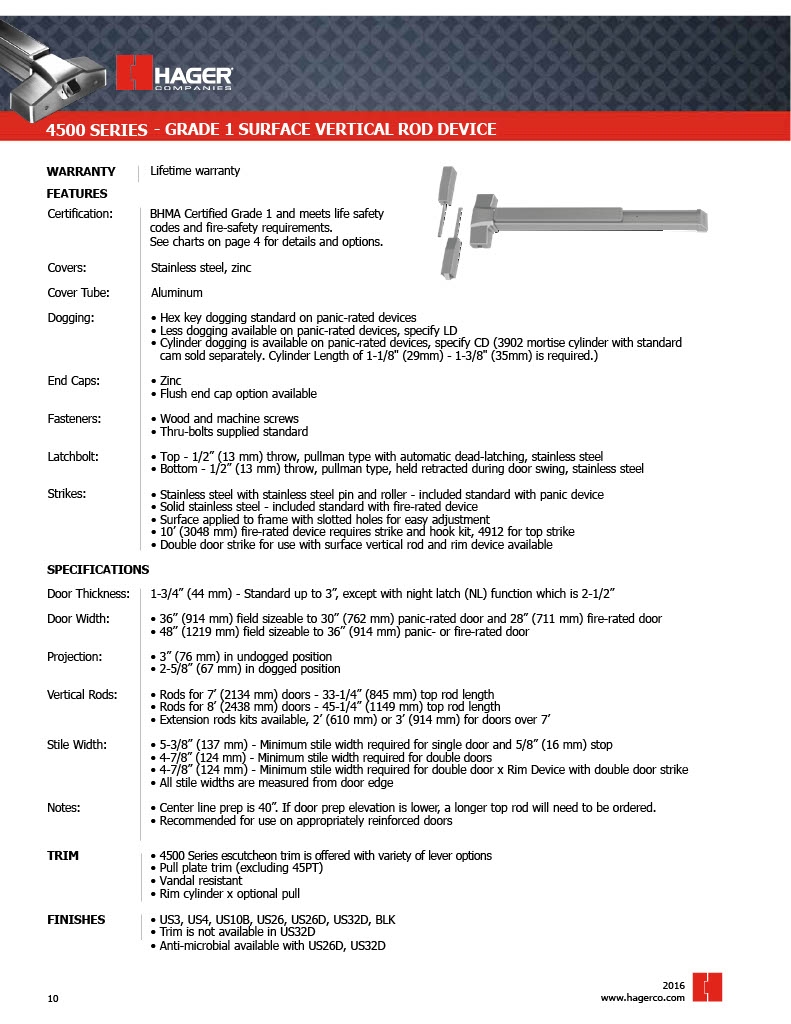

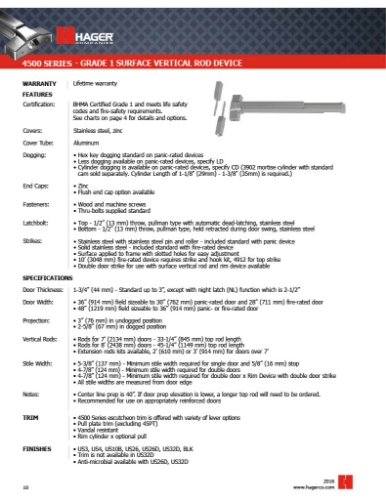

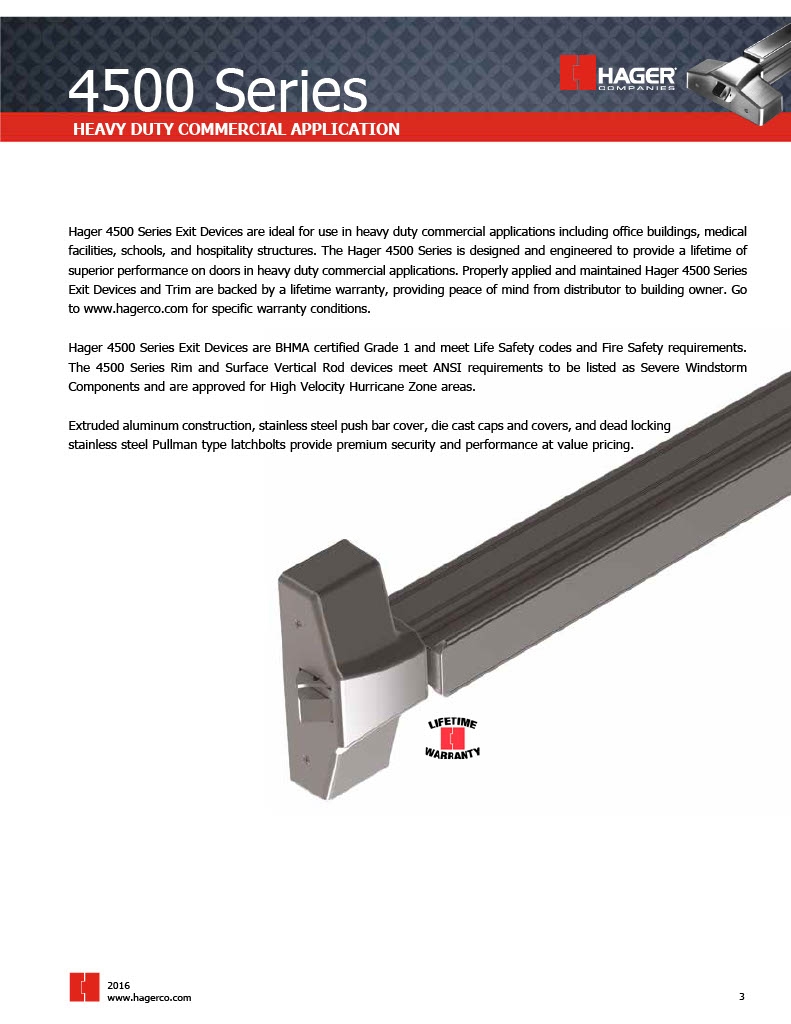

Description And Features:

COVERS:Stainless steel, zinc

COVER TUBE:Aluminum

END CAPS:Standard end cap (zinc)

DOOR WIDTH:

36''(914 mm) field sizeable to 30'' (762 mm) panic-rated door and 28" (711 mm) firerated door

48''(1219 mm) field sizeable to 36'' (914 mm) panic- or fire-rated door

DOOR HEIGHT: 7' (84) (2134 mm) - Standard

DOOR THICKNESS:1-3/4" (44 mm) - Standard up to 3", except with night latch which is 2-1/2"

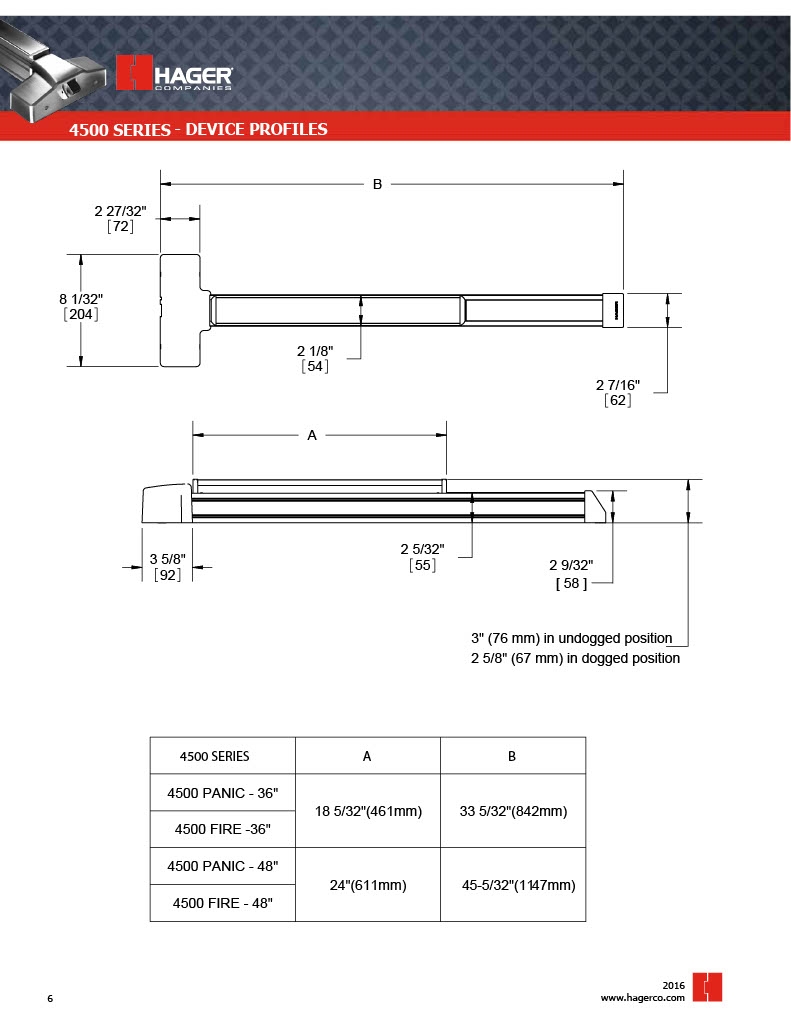

PROJECTION:

3" (76 mm) in undogged position

2-5/8" ( 67 mm) in dogged postion

STILE WIDTH:

5-3/8" (137 mm) minimum stile width required for single door and 5/8" (16 mm) stop

4-7/8" (124 mm) minimum stile width required for double doors

4-7/8" (124 mm) minimum stile width required for double door x Rim device with double door strike

All stile widths are measured from door edge

FASTENERS:Wood and machine screws, Thru-bolts

LATCHBOLT:

Top - 1/2" (13 mm) throw, Pullman type with automatic dead-latching, stainless steel

Bottom - 1/2" (13 mm) throw, Pullman type, held retracted during door swing, stainless steel

STRIKES:

Stainless steel with plated rollers - Included standard with panic devices

Solid stainless steel - Included standard with fire rated devices

Surface applied to frame with slotted holes for easy adjustment

DOGGING:Hex key dogging standard on panic rated devices

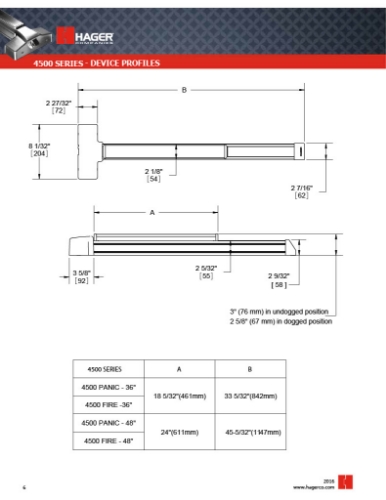

PROJECTION:

3" (76 mm) in undogged position 2-5/8" (67 mm) in dogged position

NOTES:  Center line prep is 40". If door prep elevation is lower, a longer rod will need to be ordered. Recommended to be used on appropriately reinforced doors Certifications:

BHMA Certified ANSI A156.3 Grade 1

UL305 Listed for Panic Hardware

UL10C Positive Pressure Rated

UL10B Neutral Pressure Rated

Complies with ANSI 117.1 for accessible buildings and facilities

Miami Dade NOA #11-1219.14 compliant. Must specify. Also complies with

ANSI A 250.13 Severe Windstorm Resistant.

Model:Hager 4501SVRO3626D, 4501SVRO3610B, 4501SVR, 4501-SVR-O-36-10B, 4501  SVR O 36 26D, 4501SVR3610B, 4501SVR 36 US10B, 4501-SVR-36-US10B, 4501SVR36US10B, 4501SVR36-US26D,  4501SVRIMO4810B, 4501SVRIM, 4501-SVR-O-48-26D, 4501  SVR O 4826D, 4501SVR4810B, 4501SVR 48 US26D, 4501-SVR-48-US10B, 4501SVR48US26D, 4501SVR48-US10B

Related Categories

• Panic Exit Devices
