Hager 4701R-F Fire Rated Grade 1 Rim Exit Device UL Listed Up to 3 Hours

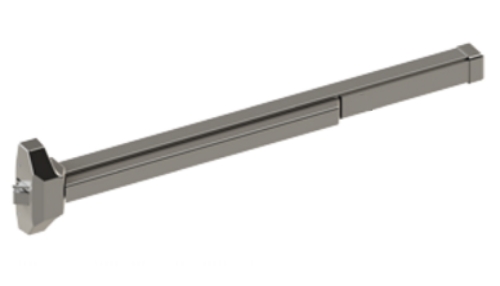

The Hager 4701R-F Fire Rated Rim Exit Device is a Grade 1 rim style exit device made for commercial doors where life safety and fire door requirements matter. It is UL/cUL listed for up to 3 hours on labeled fire doors and is also UL305 listed for panic hardware.

This device is field sizeable for common door widths, fits 1-3/4 inch thick doors, and uses a stainless steel latchbolt with automatic dead latching to help keep the door secure when closed. Fire rated models use a solid stainless steel strike that is included with the device.

About this item

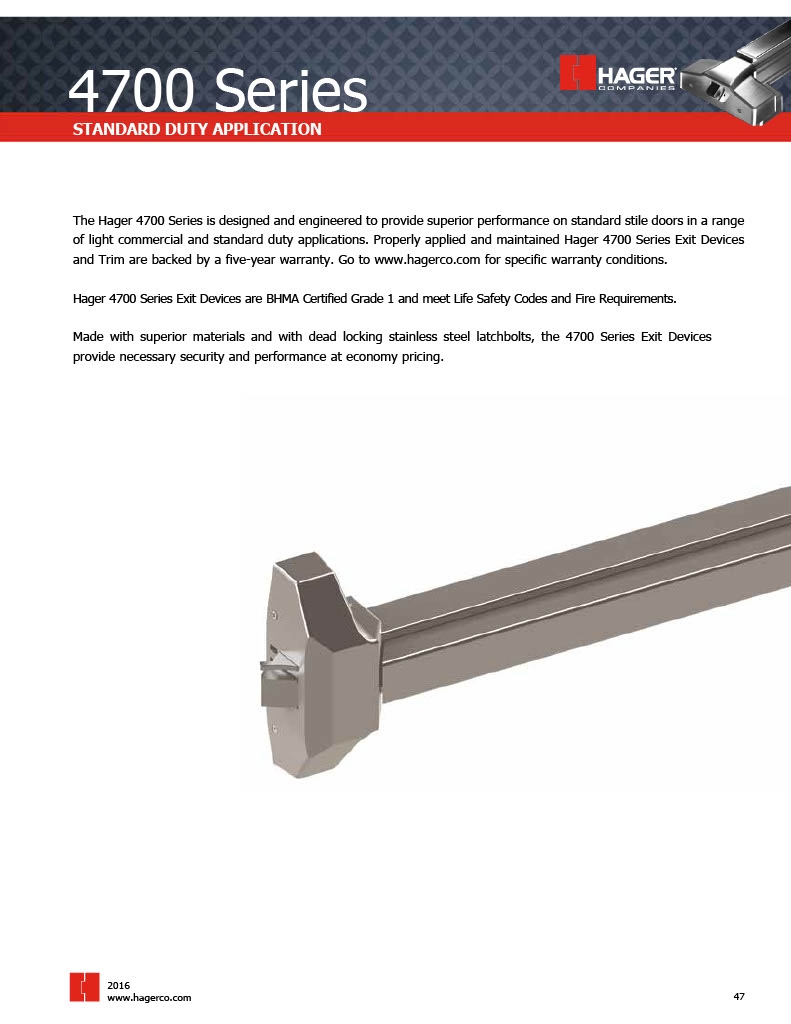

The Hager 4701R-F is a fire rated rim exit device for commercial doors that is UL/cUL listed up to 3 hours and meets ANSI/BHMA A156.3 Grade 1 requirements.

Function

 ANSI 117.1 - It allows people to exit by pushing the touchpad, while the rim latch retracts and re latches automatically when the door closes.

Applications

Use it on fire rated commercial doors such as corridors, stair doors, and other egress doors that need panic hardware with a rim style latch.

Best for

• Fire rated single doors that need a rim exit device

• Commercial openings that require Grade 1 exit hardware

• Doors that are 1-3/4 inch thick

• 30 inch to 48 inch door widths using field sizable device lengths

It helps by

• Supporting fire door listings up to 3 hours

• Meeting panic hardware listing requirements (UL305)

• Using a stainless steel latchbolt with automatic dead latching

• Including a solid stainless steel strike for fire rated openings

Key highlights

• Fire rated rim exit device listed up to 3 hours

• Grade 1 rim device performance standard

• Stainless latchbolt with automatic dead latching

• Solid stainless strike included for fire rated models

• Field sizeable for common door widths

What’s included

• Hager 4701R-F fire rated rim exit device

• Solid stainless steel strike

• Mounting fasteners (wood and machine screws, thru bolts)

Key features

• Rim style latch with pullman type latchbolt

• 5/8 inch latchbolt throw

• Automatic dead latching

• Field sizeable bar length options for 30 inch to 48 inch doors

• UL305 panic listing and up to 3 hour fire listing

Keying options

• Exit only device (trim and cylinders are separate, if used)

• Cylinders sold separately

Warranty

• Five year warranty

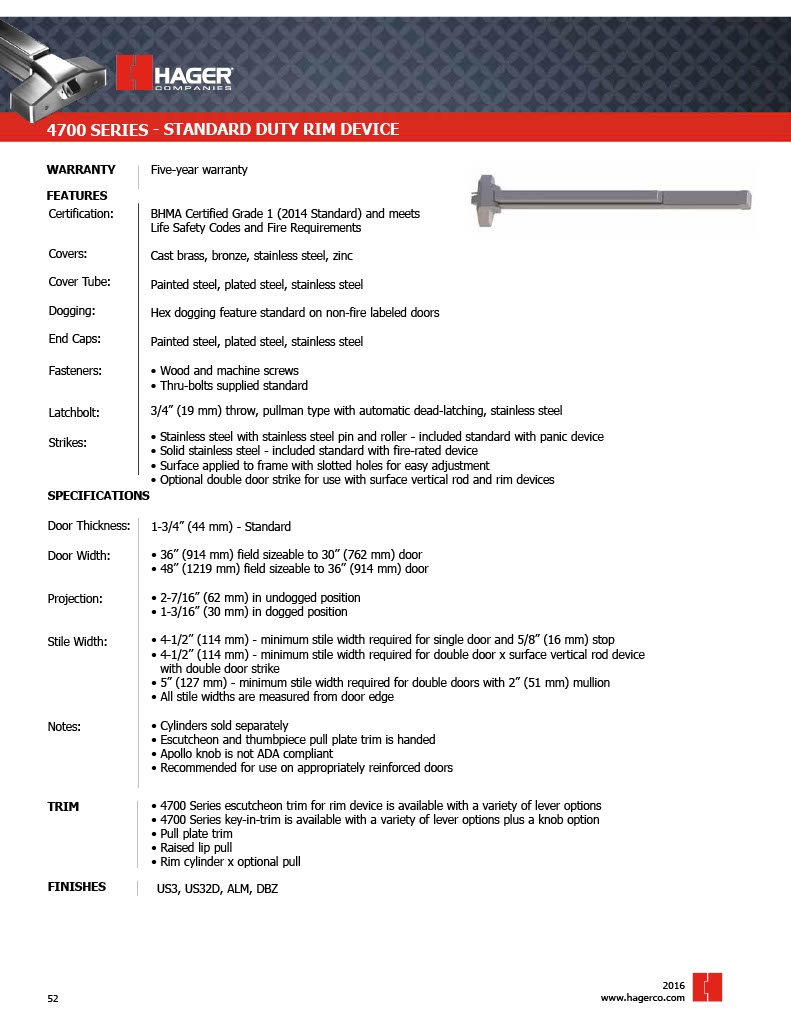

Specifications

• Device type: Fire rated rim exit device

• ANSI/BHMA: A156.3 Grade 1 (rim device)

• Fire rating: UL/cUL listed up to 3 hours for “A” labeled doors

• Panic listing: UL305 listed for panic hardware

• Door thickness: 1-3/4 inch standard

• Door width and sizing:

• 36 inch device, field sizeable for 30 inch to 36 inch doors

• 48 inch device, field sizeable for 36 inch to 48 inch doors

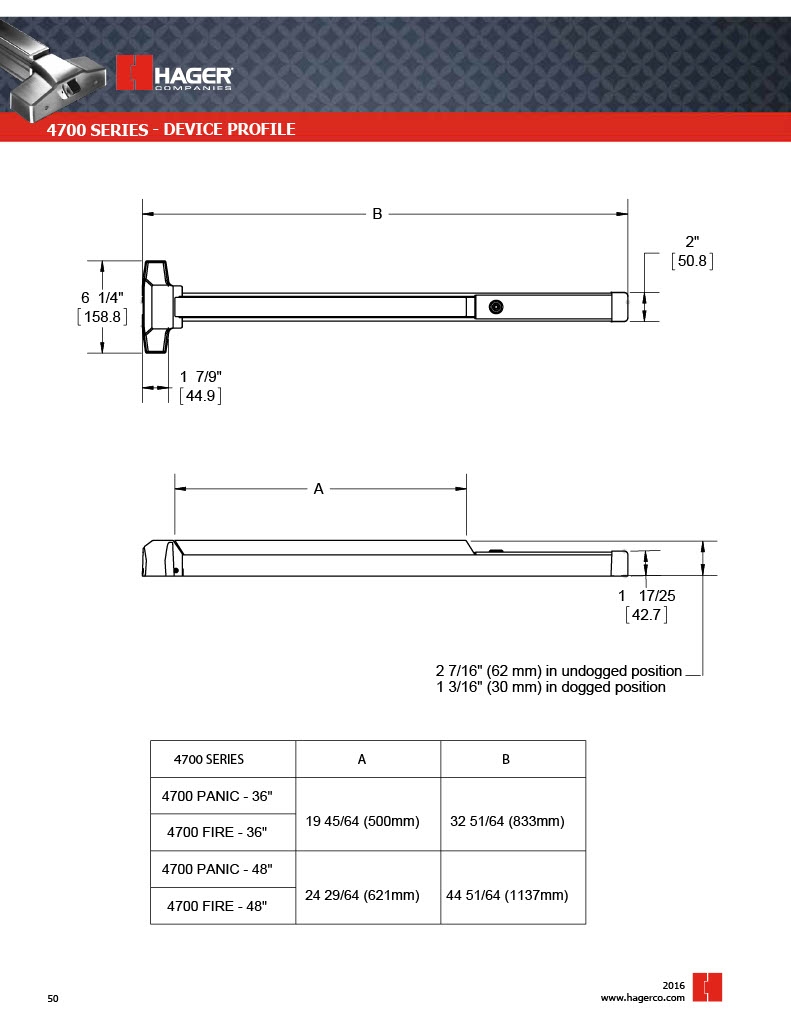

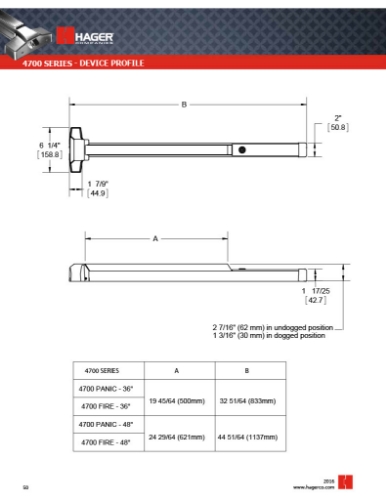

• Projection: 2-7/16 inch in undogged position

• Minimum stile width (single door with 5/8 inch stop): 4-1/2 inch

• Latchbolt: 5/8 inch throw, pullman type, automatic dead latching, stainless steel

• Strike: solid stainless steel (included with fire rated devices)

• Fasteners: wood and machine screws, thru bolts

• Accessibility: complies with ANSI 117.1

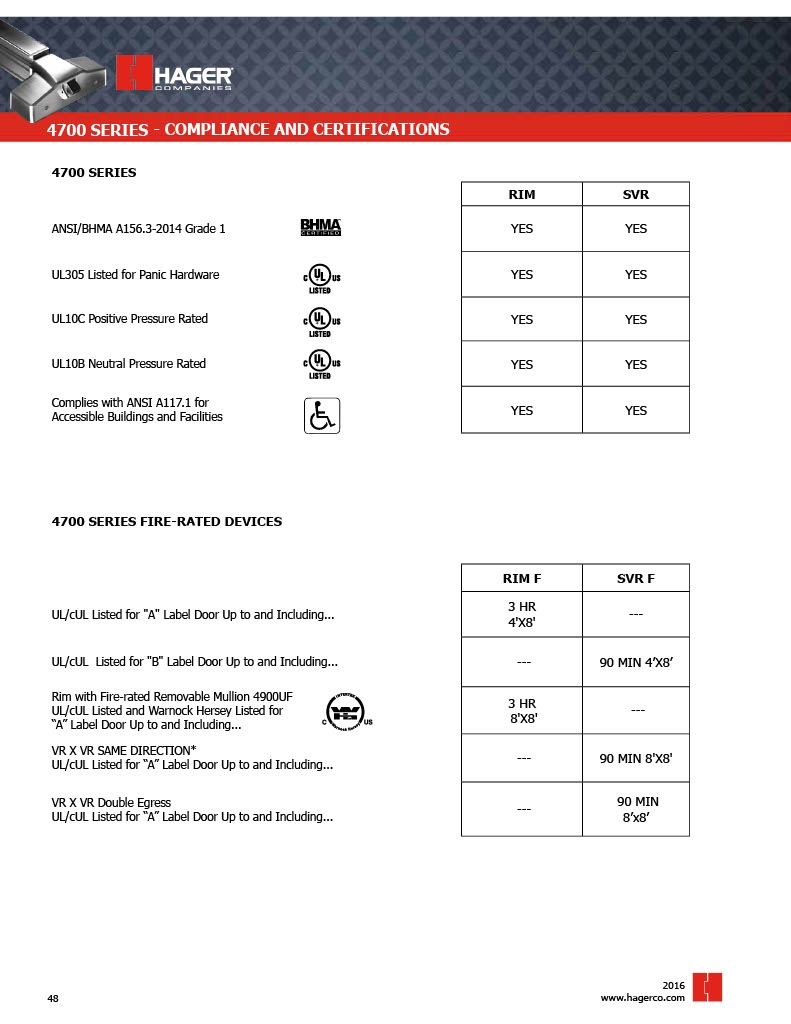

• Additional listings shown for the series: UL10C positive pressure and UL10B neutral pressure

• Finish options commonly listed: ALM, DBZ, US32D, BLK
