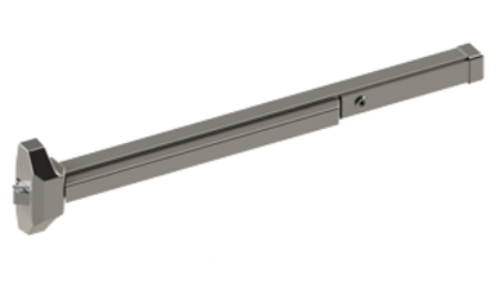

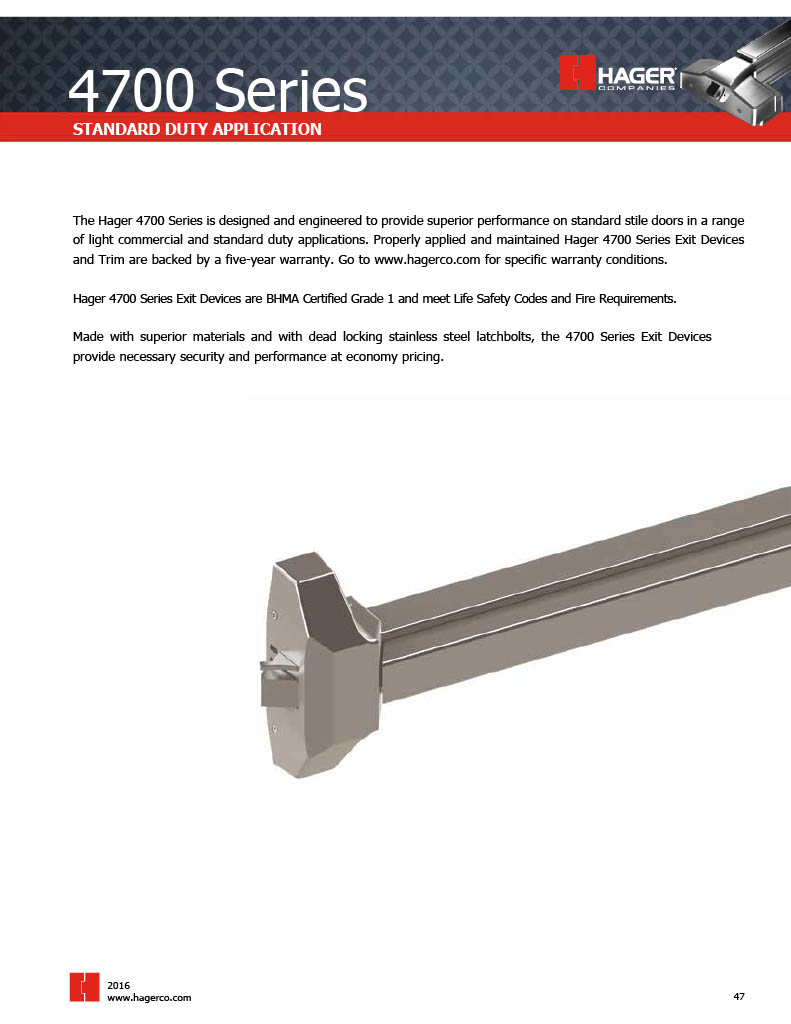

Hager 4701R Rim Exit Device

Hager 4701R Rim Exit Device

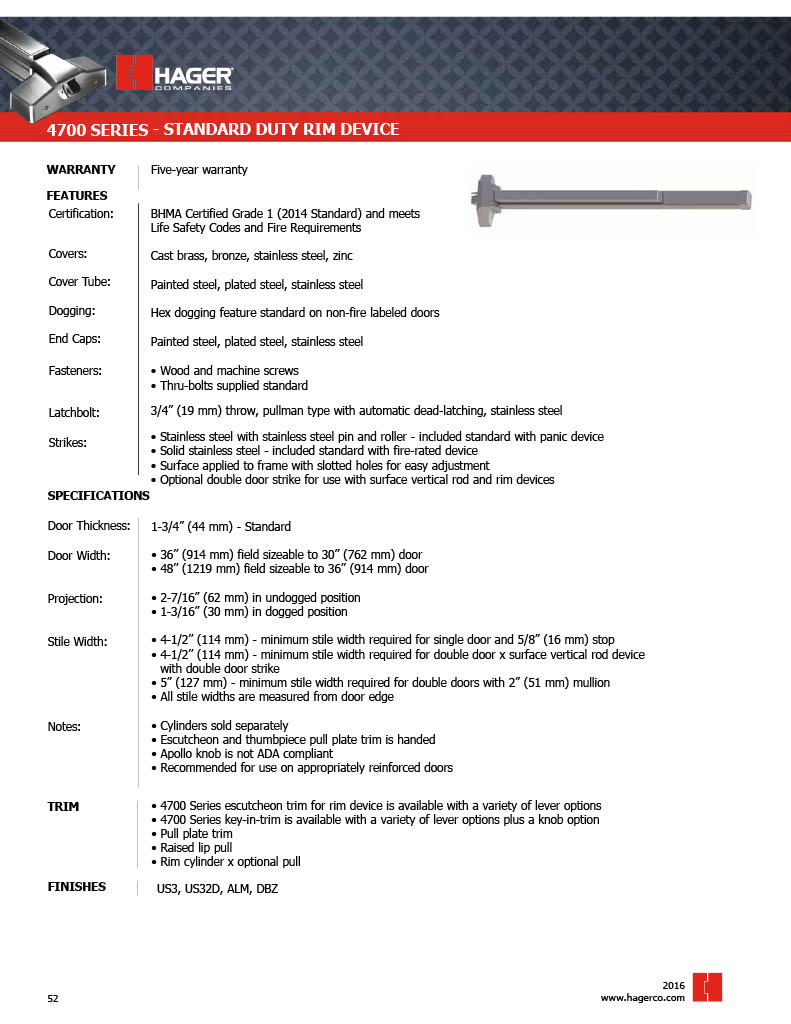

Description And Features:

Door Width:

36''(914 mm) field sizeable to 30'' (762 mm) door

48''(1219 mm) field sizeable to 36'' (914 mm) door

Door Thickness:1-¾" (44 mm) - standard

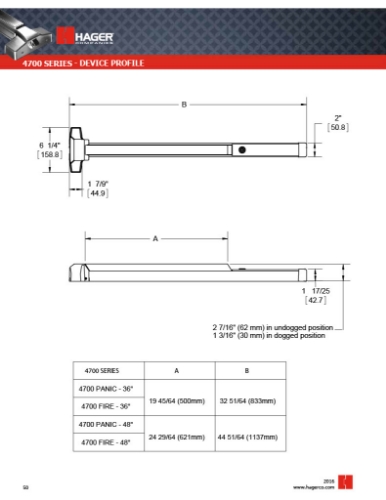

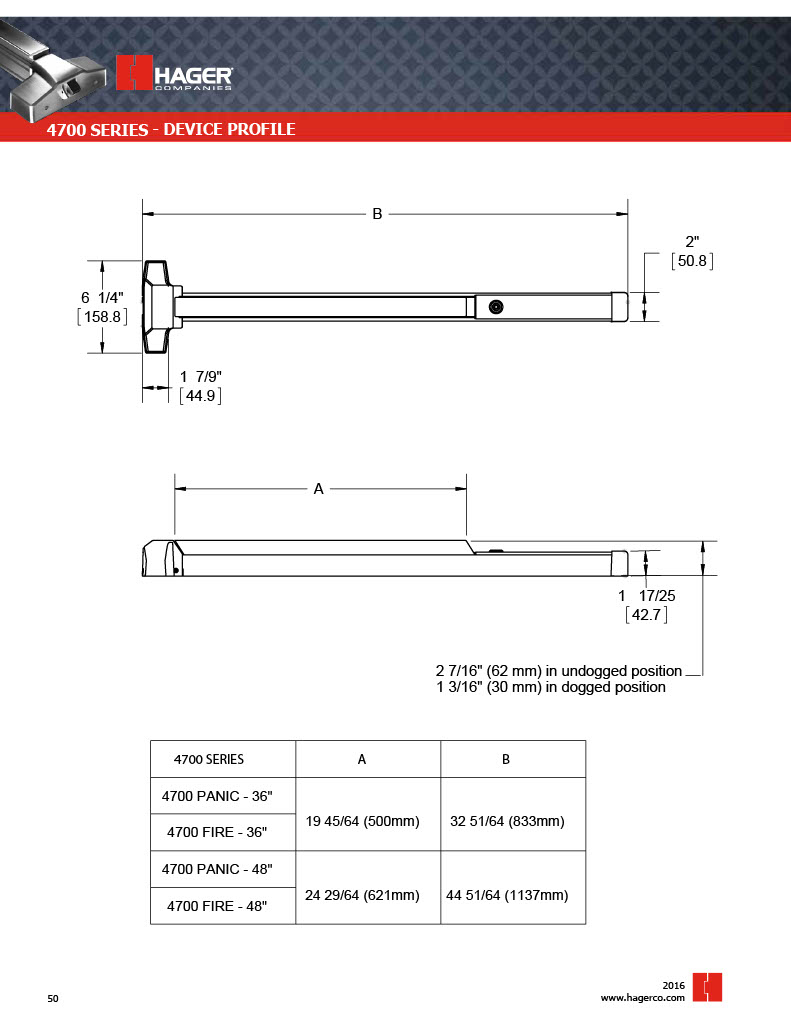

Projection:

2-7/16" (62 mm) in undogged position

1-3/16" (30 mm) in dogged position

Stile Width:

4-1/2'' (114 mm) - minimum stile width required for single door and 5/8" (16 mm) stop

4-1/2'' (114 mm) - minimum stile width required for double door x surface vertical rod device with double door strike

3-3/4" (95 mm) - minimum stile width required for double door x mullion x 4920 strike

5" (127 mm) - minimum stile width required for double doors with 2" (51 mm) mullion

All stile widths are measured from door edge

Fasteners:Wood and machine screws, Thru-bolts

Latchbolt: 5/8" (16 mm) throw, pullman type with automatic dead-latching, stainless steel

Strikes:

Stainless steel with roller - Included standard with panic and fire-rated devices

Surface applied to frame with slotted holes for easy adjustment

Dogging:Hex key dogging standard on panic-rated devices

Notes:

Recommended to be used on appropriately reinforced doors

Ideal for heavy duty commercial applications

Certifications:

Meets ANSI A156.3 Grade 1 Requirements (Rim device only)

UL305 Listed for panic hardware

UL10C/UBC 7-2 (1997) Positive Pressure Rated

UL10B Neutral Pressure Rated

ANSI A250.13 Severe Windstorm Resistant Component (Rim device only)

Complies with ANSI 117.1 for accessible buildings and facilities

warranty:Five-year Model: Hager 4701RIMO36ALM, 4701RIM36DBZ, 4701RIM, 4701-RIM-36-DBZ, 4701  RIM 36 ALM, 4701RIM36DBZ, 4701R 36 DBZ, 4701-R-36-DBZ, 4701R36DBZ, 4701R36-ALM,  4701RIMO48DBZ, 4701RIM, 4701-RIM-48-ALM, 4701  RIM O 48ALM, 4701RIM48DBZ, 4701R 48 ALM, 4701-R-48-DBZ, 4701R48ALM, 4701R48-DBZ

Related Categories

• Panic Exit Devices
