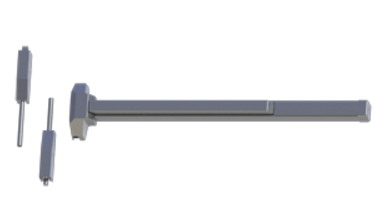

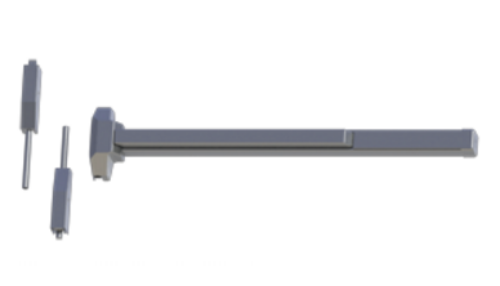

Hager 4701SVR Surface Vertical Rod Exit Device

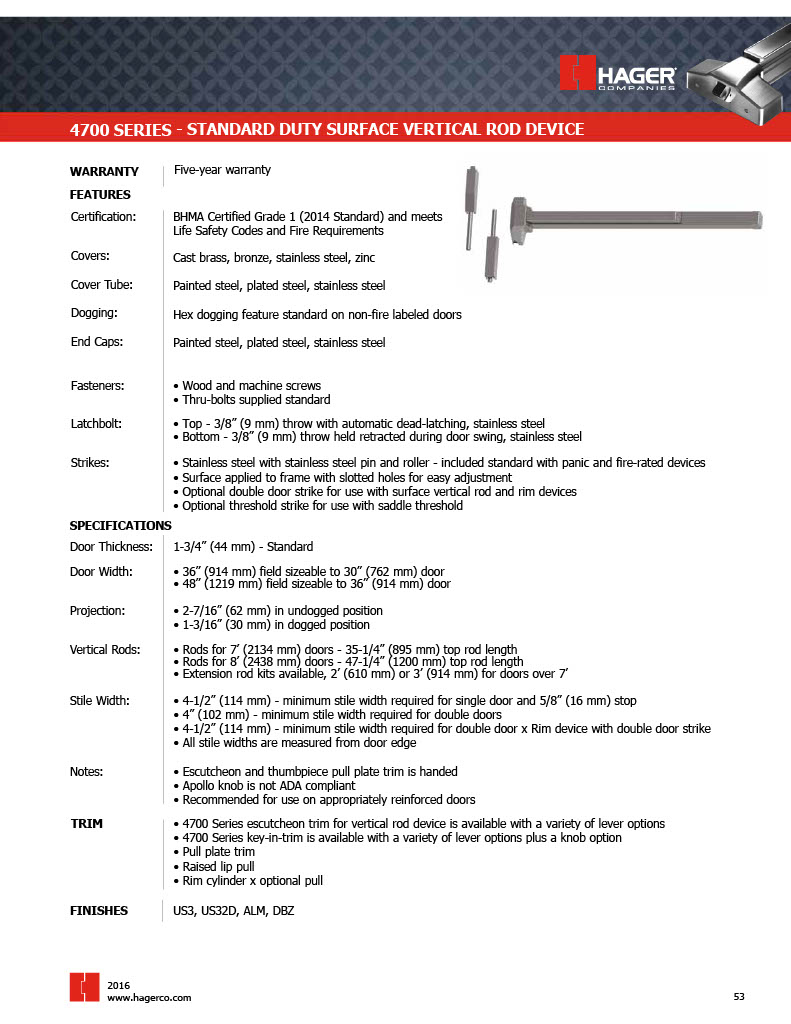

Description And Features:

Door Width:

36''(914 mm) field sizeable to 30'' (762 mm) door

48''(1219 mm) field sizeable to 36'' (914 mm) door

Door Height: - 7' (84") (2134 mm) - Standard

Door Thickness:1-¾" (44 mm) - standard

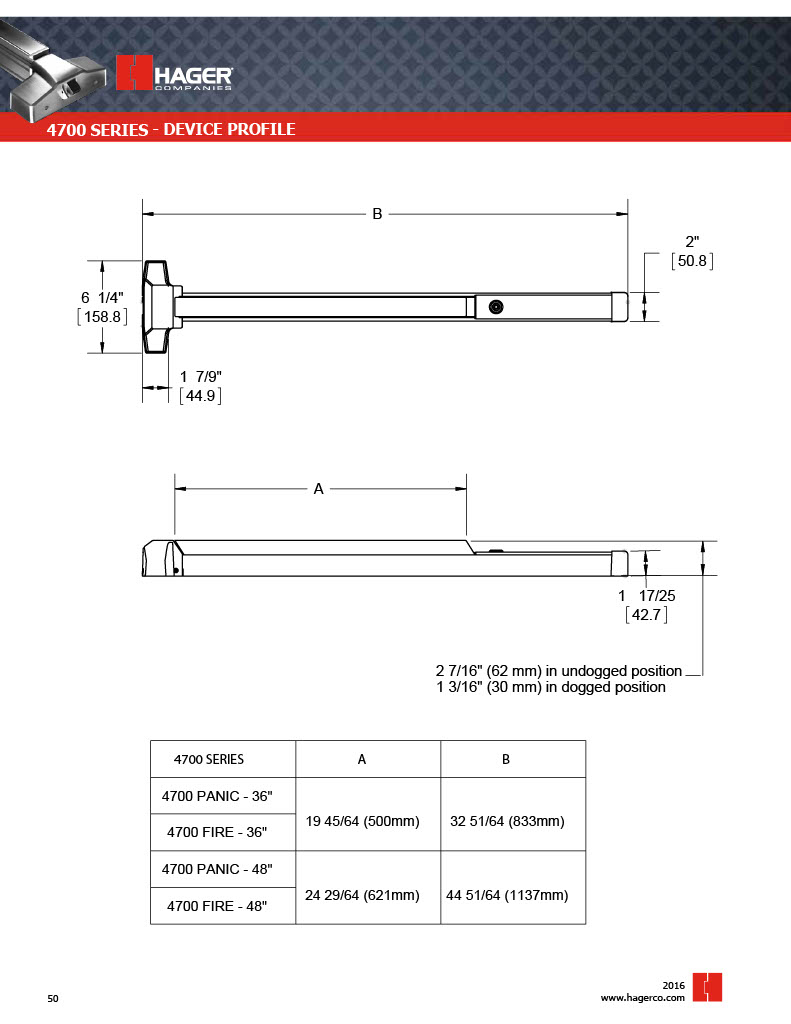

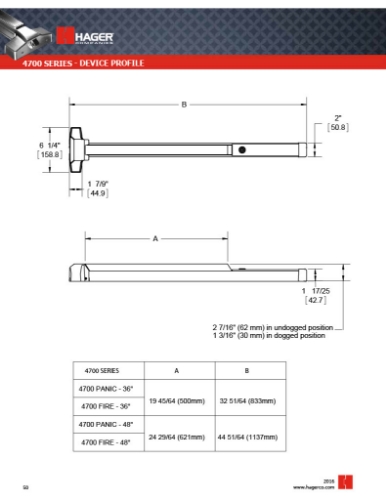

Projection:

2-7/16" (62 mm) in undogged position

1-3/16" (30 mm) in dogged position

Stile Width:

4-1/2'' (114 mm) - Minimum stile width required for single door and 5/8" (16 mm) stop

4'' (102 mm) - Minimum stile width required for double doors

4-1/2" (114 mm) - Minimum stile width required for double door x Rim device with double door strike

All stile widths are measured from door edge

Fasteners:Wood and machine screws, Thru-bolts

Latchbolt:

Top - 3/8" (9 mm) throw, with automatic dead-latching, stainless steel

Bottom - 3/8" (9 mm) throw, held retracted during door swing, stainless steel

Strikes:

Stainless steel with roller - Included standard with panic and fire-rated devices

Surface applied to frame with slotted holes for easy adjustment

Notes:

Recommended to be used on appropriately reinforced doors

Certifications:

UL305 Listed for panic hardware

UL10C/UBC 7-2 (1997) Positive Pressure Rated

UL10B Neutral Pressure Rated

Complies with ANSI 117.1 for accessible buildings and facilities

warranty:Five-year Model: Hager 4701SVR36ALM, 4701SVR36DBZ, 4701SVR, 4701-SVR-36-DBZ, 4701  SVR 36 ALM, 4701SVR36DBZ, 4701SVR36DBZ, 4701-SVR-36-DBZ, 4701SVR36DBZ, 4701SVR48-ALM,  4701SVR48DBZ, 4701SVR, 4701-SVR-48-ALM, 4701  SVR 48ALM, 4701SVR48DBZ, 4701SVR 48 ALM, 4701-SVR-48-DBZ, 4701SVR48ALM, 4701SVR48-DBZ
