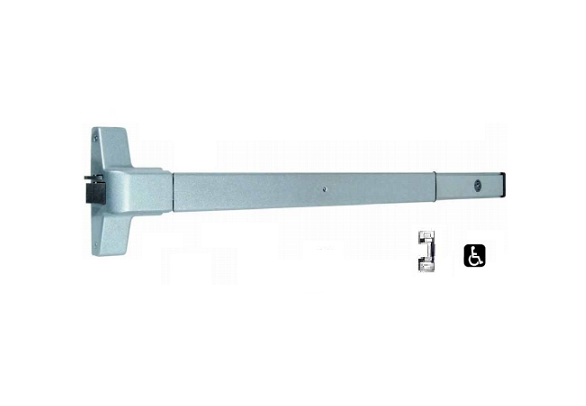

Imperial (Taco) ED-501 Rim Panic Exit Device

Imperial (Taco) ED-501 Reversible Rim Type Exit Device

UL listed (underwriter Laboratories)

ED501 Meets template requirements #161 (2-1/8" bore-2-3/4" backset) cylindrical lock prep.

For 1-3/4" thick doors, 30"- 48" door widths, 3" minimum stile required

Dead latching - Non handed - Hex key dogging

Easy installation - Minimum working parts

Each unit is packed with Strike, Shim, Fasteners, Hex key, including mounting templates and instructions

Includes Lock front Filler, Strike Filler & Sex Bolts

Available with EAK500 Alarm Kit

ED501Wrought Steel, Painted finishes: Satin Aluminum Satin Duronodic

ED501-US32D All Stainless Steel with all parts both internal & external made of stainless steel, with 3 parts solid brass. Fasteners & accessories stainless steel too. US32D Satin Stainless Steel

CODE COMPLIANCE

ANSI A156.3 Grade 1. UL10C and UBC 7.2 for positive pressure.

ANSI A117.1 and ADA for barrier-free accessibility.

C-UBC - California Uniform Builders Code -2001.

NFPA 80 - National Fire Protection Association -1999.

NFPA 101- National Fire Protection - Life Safety ? 2000.

1 YEAR WARRANTY

We will replace or repair this item within a one-year period from the date of shipment if proven defective in workmanship or material. Our warranty does not cover defects due to failure to perform normal maintenance, faulty installation or uses for which our products were not designed. Our liability shall in no event exceed the net cost of the merchandise. No materials may be returned without written consent. We are not responsible for any charges for labor or material incurred by others. This is a limited warranty and liability for our products.
