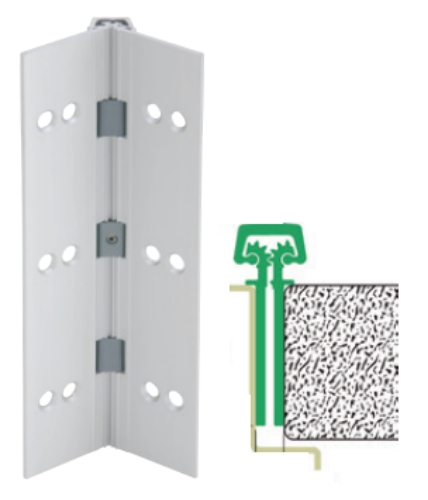

Ives 112HD Heavy Duty Full Mortise Aluminum Geared Continuous Hinge - 120"

Ives 112HD Heavy Duty Full Mortise Aluminum Geared Continuous Hinge - 120"

Material:6063-T6 Aluminum

Amount of bearings:47

SINGLE DOOR: Hinge Side Clearance - 5/16", Lock Side Clearance - 1/8", Frame Irregularity - 1/32", Beveled Door Clearance - 1/32",Square Edged - 15/32" ,Beveled Edge - 1/2"

PAIR OF DOORS: Hinge Side Clearance - 5/16", Lock Side Clearance - 3/16", Frame Irregularity - 1/16", Beveled Door Clearance - 1/16", Square Edged Total - 7/8" Square Edged Each Door - 7/16" Beveled Edged Total - 15/16" Beveled Edged Each Door - 15/32"    Non Handed  Flush Mounted, No Inset

Door Weight:For Doors Weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing (Rivet nuts recommended) and a max door width of 4'0".

Aluminum Geared Hinges are ANSI Certified, UL Listed

All Ives Aluminum Geared Hinges are Heavy Duty (HD).

All Ives Aluminum Geared Continuous Hinges can be cut to length during installation. The unique mounting pattern allows to cut up to 6" from bottom while still having double row fasteners. If cut more than 13.5", other modifications may be necessary.
