Ives 112HD Heavy Duty Full Mortise Aluminum Geared Continuous Hinge - 95"

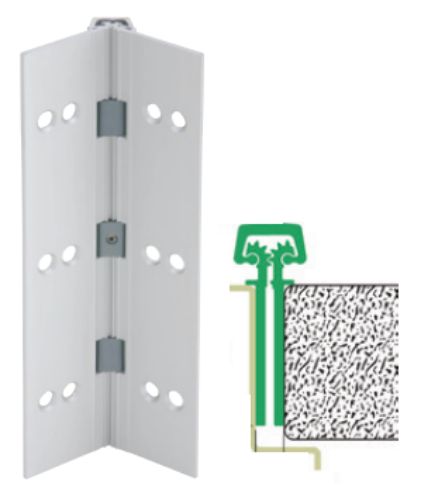

12hd

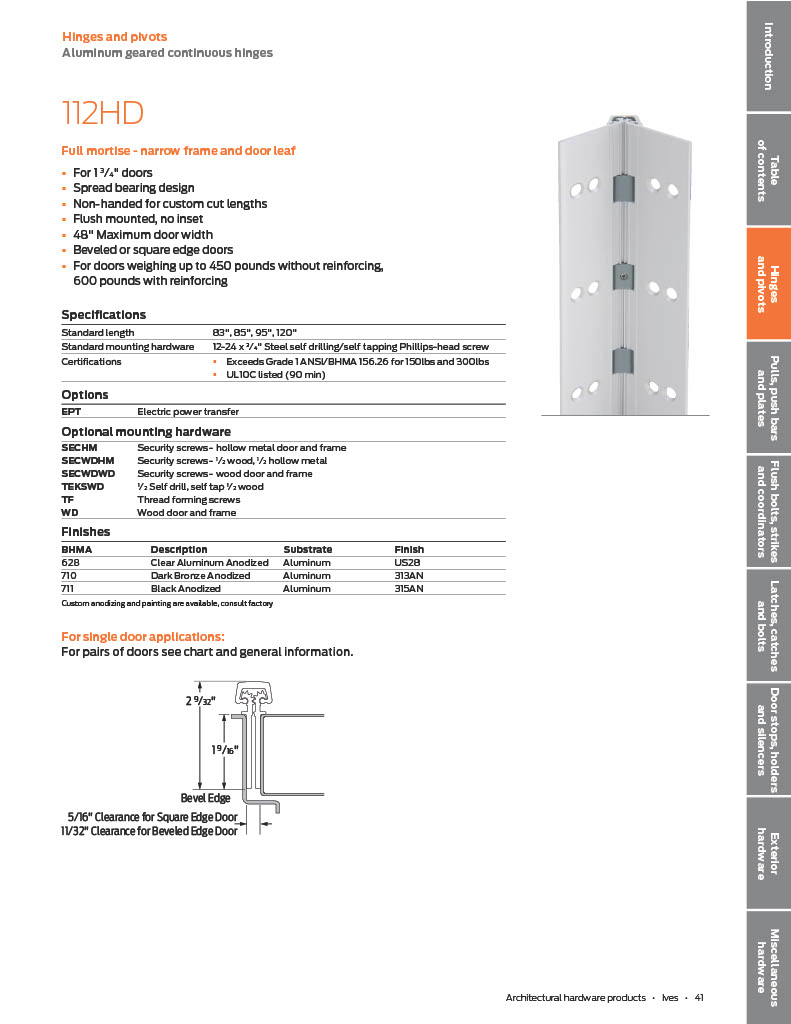

1-Page41-IVES-ARCH
1-Page1-FINISHESCHART
12hd
1-Page41-IVES-ARCH
1-Page1-FINISHESCHART
naxt
prev

Product Details

Ives 112HD Heavy Duty Full Mortise Aluminum Geared Continuous Hinge - 95"

Material:6063-T6 Aluminum

Amount of bearings:36

SINGLE DOOR: Hinge Side Clearance - 5/16", Lock Side Clearance - 1/8", Frame Irregularity - 1/32", Beveled Door Clearance - 1/32",Square Edged - 15/32" ,Beveled Edge - 1/2"

PAIR OF DOORS: Hinge Side Clearance - 5/16", Lock Side Clearance - 3/16", Frame Irregularity - 1/16", Beveled Door Clearance - 1/16", Square Edged Total - 7/8" Square Edged Each Door - 7/16" Beveled Edged Total - 15/16" Beveled Edged Each Door - 15/32"    Non Handed  Flush Mounted, No Inset

Door Weight:For Doors Weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing (Rivet nuts recommended) and a max door width of 4'0".

Aluminum Geared Hinges are ANSI Certified, UL Listed

All Ives Aluminum Geared Hinges are Heavy Duty (HD).

All Ives Aluminum Geared Continuous Hinges can be cut to length during installation. The unique mounting pattern allows to cut up to 6" from bottom while still having double row fasteners. If cut more than 13.5", other modifications may be necessary.

Ives 112HD Heavy Duty Full Mortise Aluminum Geared Continuous Hinge - 95"

SKU: 112HD-95"

In Stock
icon Chat
Picture for manufacturer Ives

Finish *

US28 - Aluminum (628)
US28 - Aluminum (628)
313AN ~ Dark Bronze Anodized [+$48.07]
313AN ~ Dark Bronze Anodized [+$48.07]

$187.59

Oversized item, extra shipping charge may be added

About this item

Ives Continuous Hinges are designed to last the life of the building. The unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps your door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high use/high traffic doors.

The design of a continuous hinge eliminates the gap between the door and the frame. The absence of gap also helps prevents finger from being pinched, making it a safer device than traditional hinges. These benefits result in higher efficiency and less maintenance, maximizing the value of your opening investment.

Resources

Ives 112HD Heavy Duty Full Mortise Aluminum Geared Continuous Hinge - 95"

Material:6063-T6 Aluminum

Amount of bearings:36

SINGLE DOOR: Hinge Side Clearance - 5/16", Lock Side Clearance - 1/8", Frame Irregularity - 1/32", Beveled Door Clearance - 1/32",Square Edged - 15/32" ,Beveled Edge - 1/2"

PAIR OF DOORS: Hinge Side Clearance - 5/16", Lock Side Clearance - 3/16", Frame Irregularity - 1/16", Beveled Door Clearance - 1/16", Square Edged Total - 7/8" Square Edged Each Door - 7/16" Beveled Edged Total - 15/16" Beveled Edged Each Door - 15/32"    Non Handed  Flush Mounted, No Inset

Door Weight:For Doors Weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing (Rivet nuts recommended) and a max door width of 4'0".

Aluminum Geared Hinges are ANSI Certified, UL Listed

All Ives Aluminum Geared Hinges are Heavy Duty (HD).

All Ives Aluminum Geared Continuous Hinges can be cut to length during installation. The unique mounting pattern allows to cut up to 6" from bottom while still having double row fasteners. If cut more than 13.5", other modifications may be necessary.

12hd
Ives 112HD Heavy Duty Full Mortise Aluminum Geared Continuous Hinge - 95"

Product code: 112HD-95"

In Stock

$329.10

$187.59

12hd
Ives 112HD Heavy Duty Full Mortise Aluminum Geared Continuous Hinge - 95"

Product code: 112HD-95"

In Stock

$329.10

$187.59
