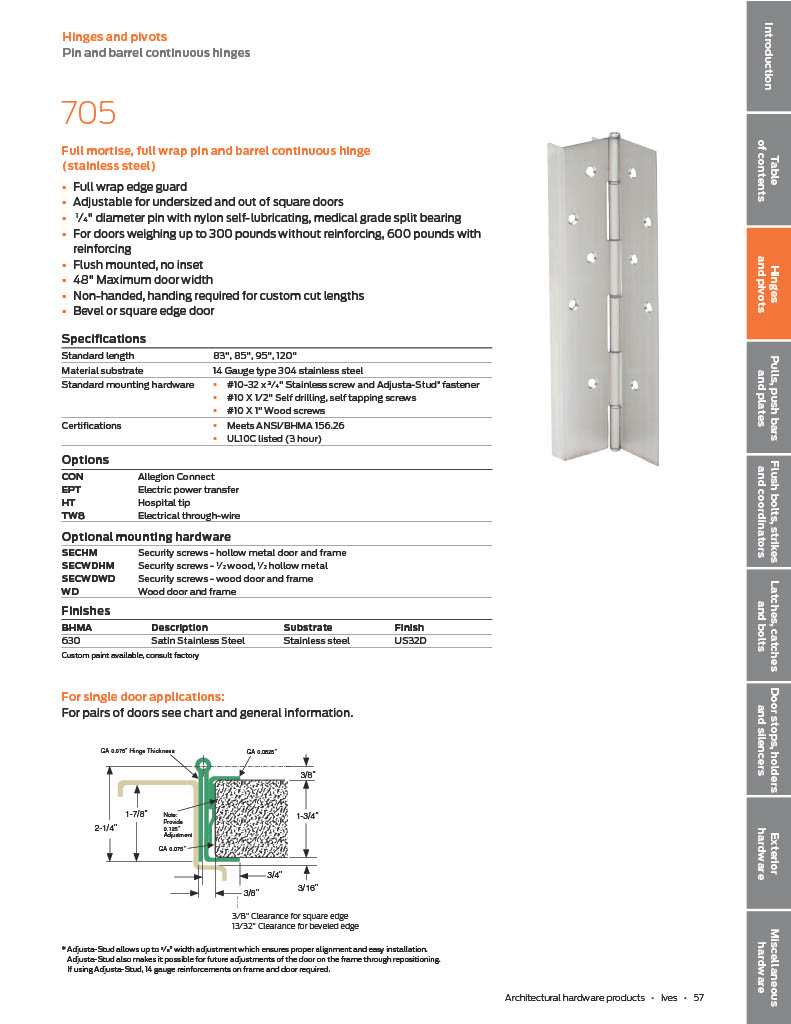

Ives 705 Full Mortise Full Wrap Pin And Barrel Continuous Hinge  - Stainless Steel

General Information:

- Non Handed - Flush Mounted, No Inset - 48" Maximum Door Width  - Full Wrap Edge Guard  - Bevel or Square Edge Doo

Material: 14 Gauge Type 304 Stainless Steel 1/4" diameter 304 stanless pin with nylon split bearings

SINGLE DOOR: Hinge Side Clearance - 1/2", Lock Side Clearance - 1/8", Frame Irregularity - 1/32", Beveled Door Clearance - 1/32",Square Edged - 21/32" ,Beveled Edge - 11/16"

PAIR OF DOORS: Hinge Side Clearance - 1/2", Lock Side Clearance - 3/16", Frame Irregularity - 1/16", Beveled Door Clearance - 1/16", Square Edged Total - 1-1/4" Square Edged Each Door - 5/8" Beveled Edged Total -1-5/16" Beveled Edged Each Door - 21/32"

Standard Mounting Hardware

10 X 1/2" Self Drilling Self Tapping Screws, #10 X 1" Wood Screws Adjusta-stud 1-3/8" with 10-32 internal thread

Door Weight:Each hinge can hold a door up to 600 lbs (Rivet nuts recommended)

ANSI Certified:All Ives Pin and Barrel Hinges certified to ANSI 156.26, Grade 1.

UL Listed:All Ives Steel and Stainless Steel Pin and Barrel Hinges are tested and approved UL 10C (3 hr).

Field Modifications:All Ives Pin and Barrel Continuous Hinges can be cut to length during installation. If more than 6" from bottom of hinge, additional modifications may be necessary.

Barrel Type: Twin Self Lubricated Nylon Bearings with Stainless Steel Pin.
